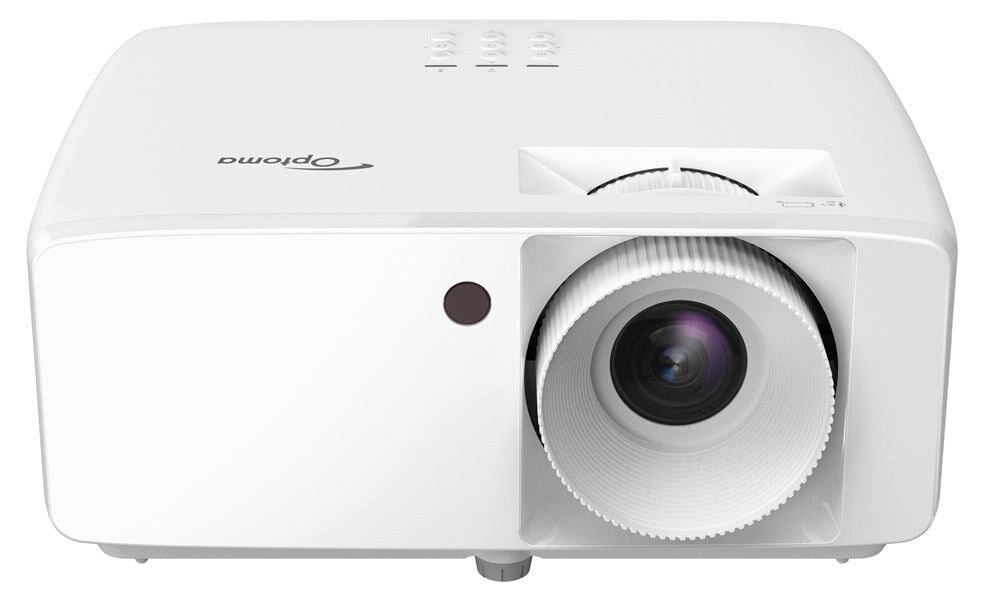

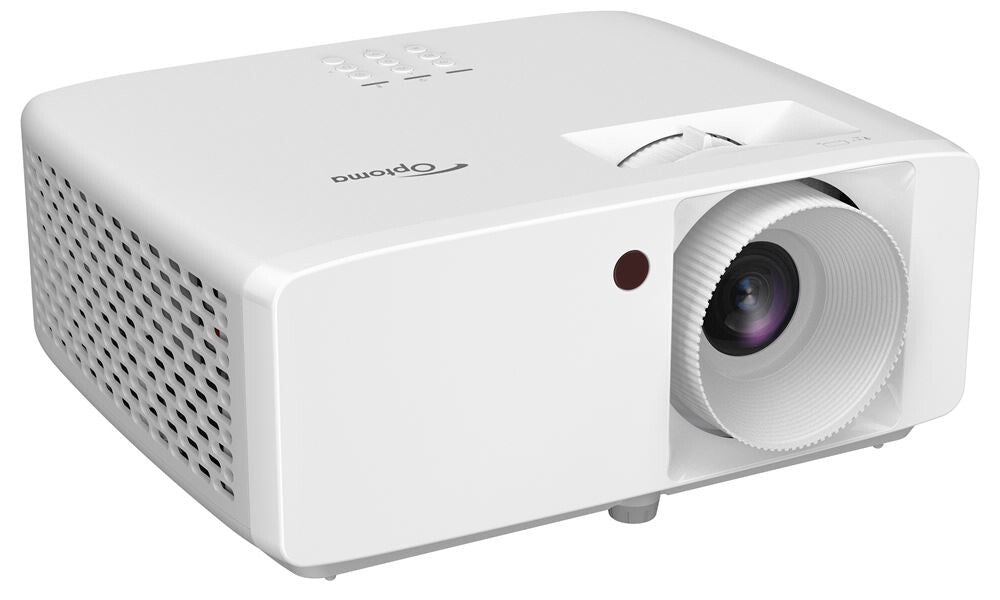

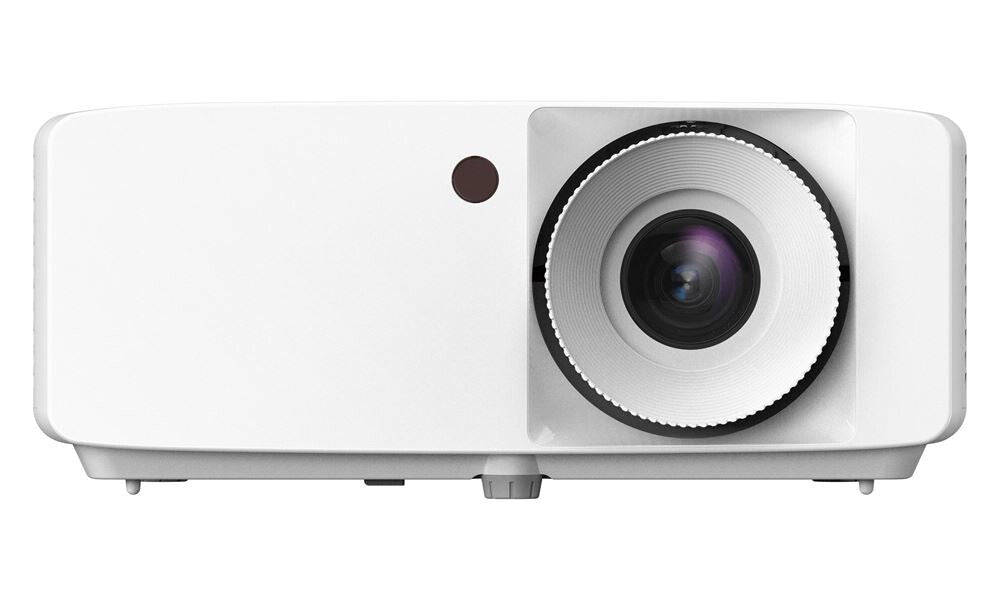

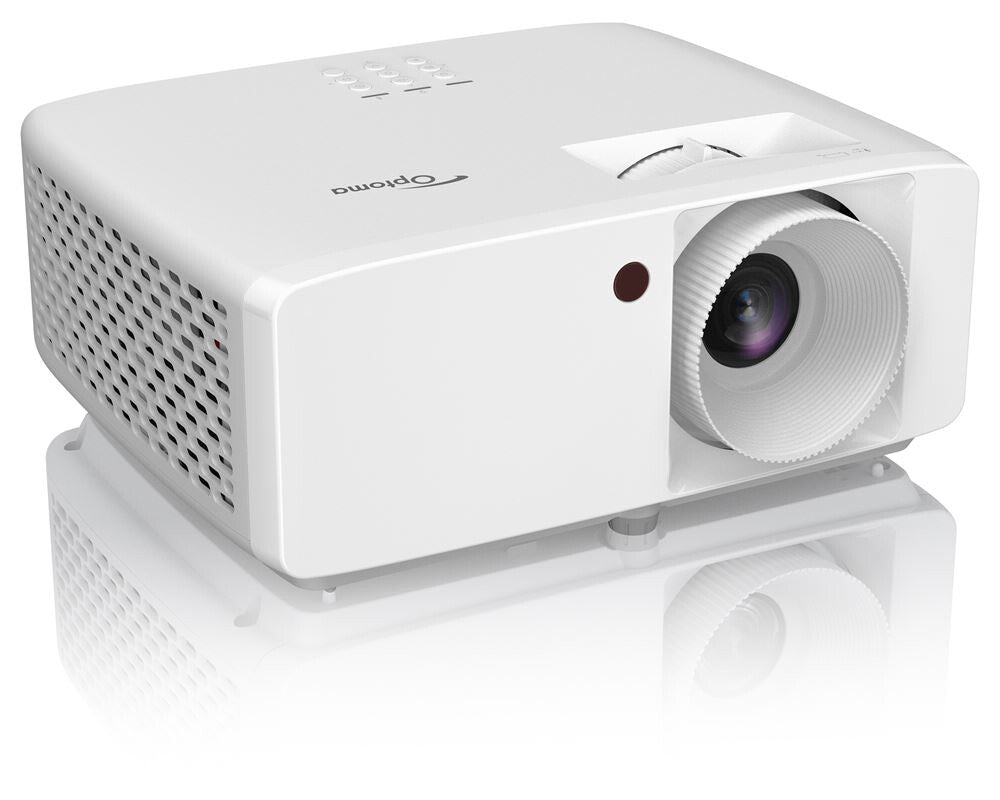

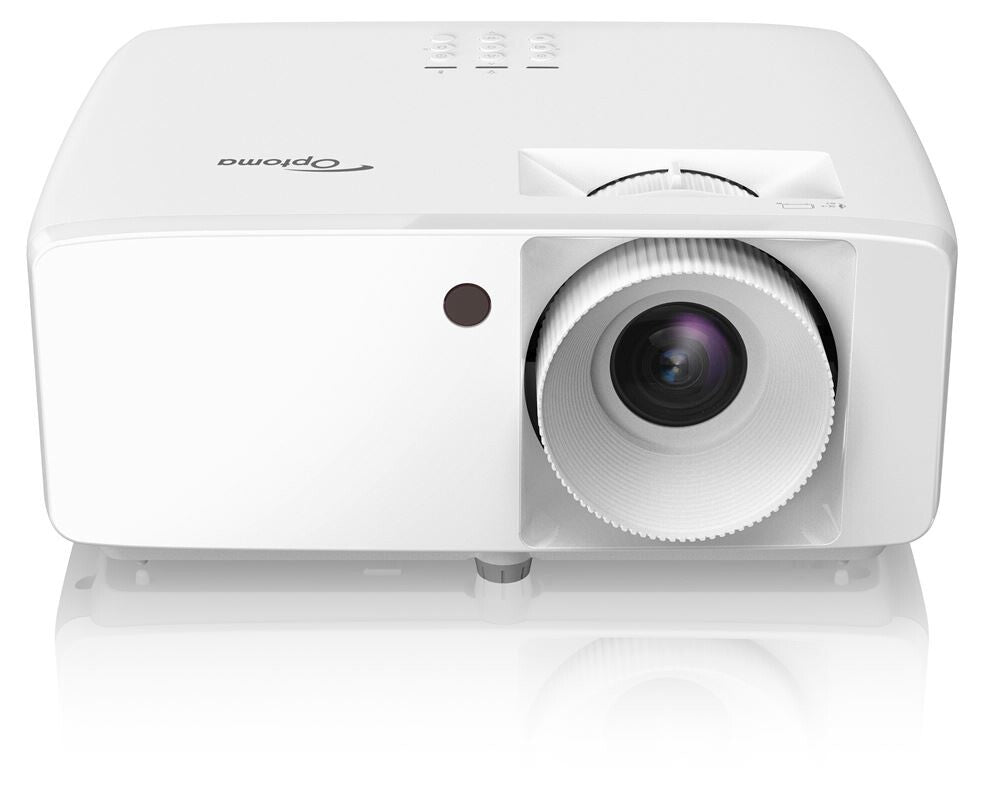

Optoma ZW340e Standard throw projector 3600 ANSI lumens DLP WXGA (1...
Compact high brightness laser projector
The ZW340e is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3600-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.
To support Optoma’s commitment to sustainability, the ZW340e cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors. Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.
An added benefit, the ZW340e features an external power supply offering more reliability, portability and energy efficiency. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials. In addition, the compact product and packaging size of the ZW340e projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.
| Projector | |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 300000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 508 - 7620 mm (20 - 300") |
| Projection distance | 1 - 10 m |
| Contrast ratio (dynamic) | 2000000:1 |
| Number of colours | 1.073 billion colours |
| Uniformity | 75% |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 140 kHz |
| Keystone correction, vertical | -40 - 40° |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 30000 h |
| Lens system | |
|---|---|
| Focal length range | 21.85 - 24 mm |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.54 - 1.72:1 |
| Offset | 112% |
| Video | |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| Network | |
|---|---|
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Interactive | No |
| Noise level | 31 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese |
| Number of OSD languages | 26 |
| Password protection | Yes |
| Certification | IP6X |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
| Design | |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 139 W |
| Power consumption (economy mode) | 88 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Weight | 3 kg |
| Width | 274 mm |
| Depth | 216 mm |
| Height | 114 mm |
| Package weight | 4.2 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | AC |
-
