StarTech.com AX54005A-USB-WIFI-6E network card WLAN 2402 Mbit/s
Add 802.11ax Wi-Fi connectivity to a computer via USB with tri-band support for 2.4/5/6GHz frequencies
This USB Wi-Fi 6E Network Adapter connects to desktop or laptop computer enhancing its capabilities and enables high-speed and low-latency wireless communication in the 6GHz band with combined tri-band speeds of up to 5400 Mbps.
Tri-Band Wireless
The USB Wi-Fi dongle with support for Wi-Fi 6/6E operating in this less congested 6Ghz frequency for reduced interference and enhanced speeds of up to 2402Mbps, ideal for latency-sensitive applications. The backward compatibility with 802.11 b, g, n, and ac wireless standards in both the 5GHz (2400Mbps) and 2.4GHz (574Mbps) bands ensures seamless integration with existing networks, allowing for smooth transitions and maximum flexibility.

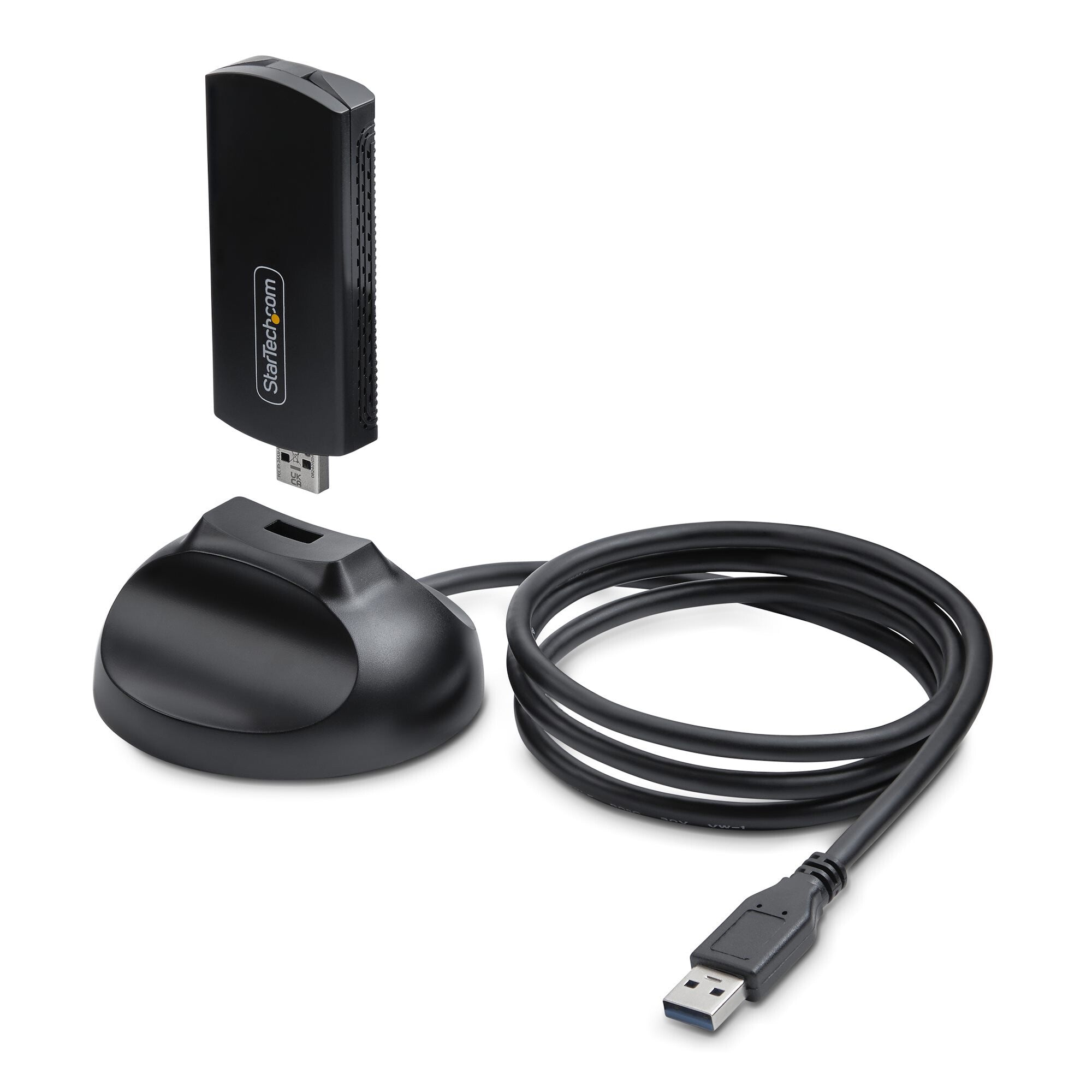

USB Cradle
The USB base is magnetized and is equipped with a 3.8ft (1.1m) built-in cable, allowing for flexible placement, which helps with signal reception and minimizes interference. In addition, the USB cradle is rubberized for improved grip when placed on flat, non-metallic surfaces.

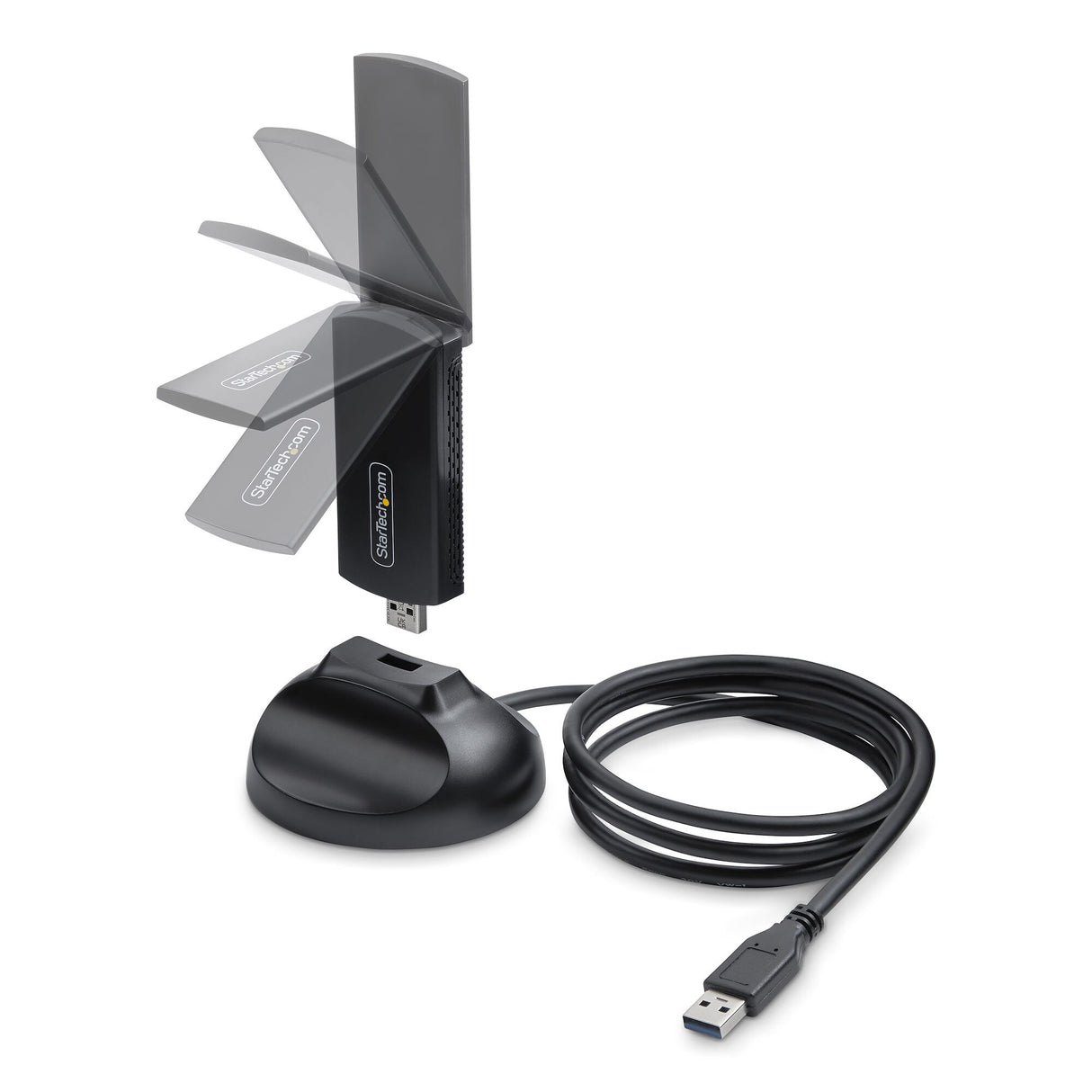

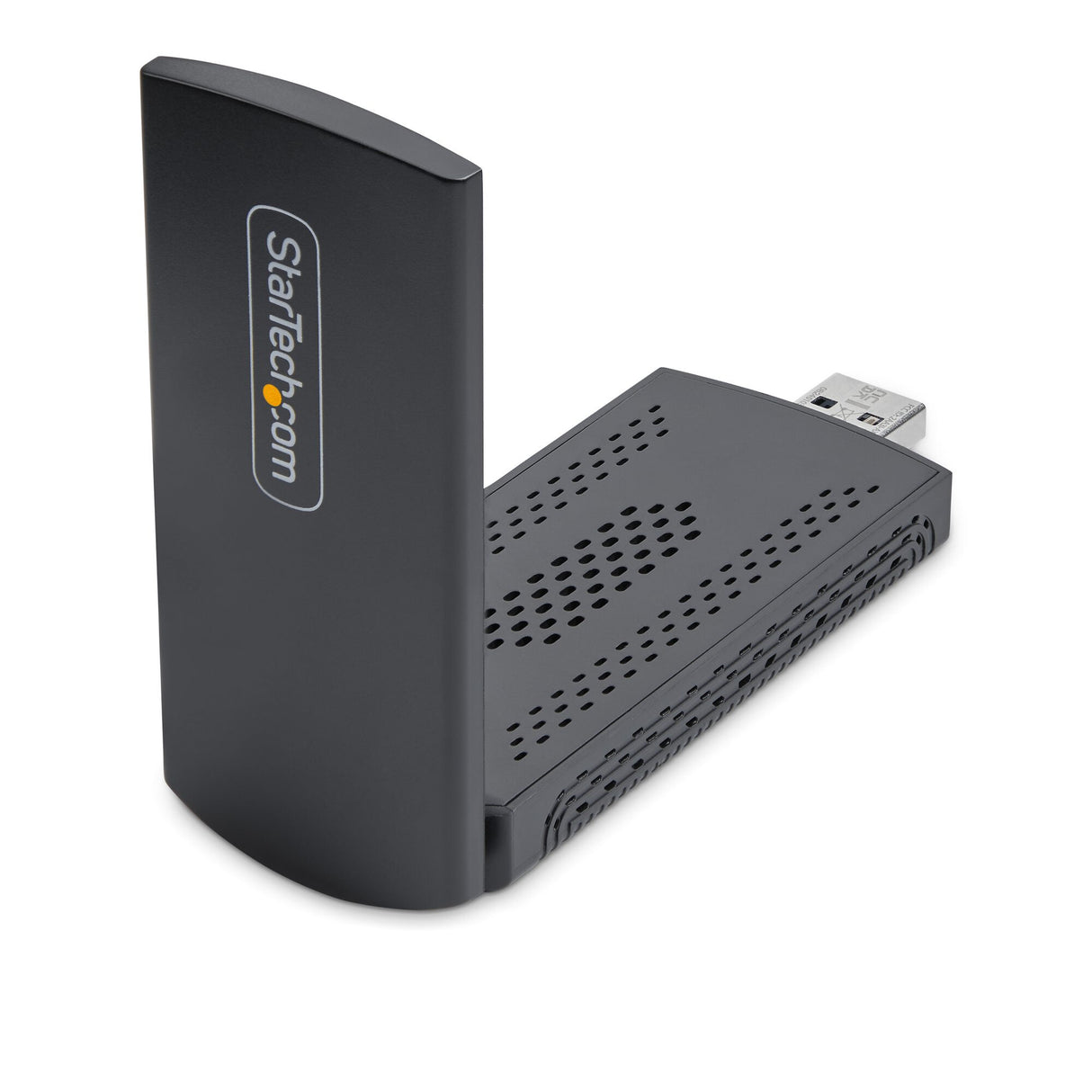

The wireless NIC features a foldable antenna that helps improve signal quality and range as it enables to focus wireless signals directly to the device. Additionally, it adds convenience to mobile setups by maintaining a compact design when not in use.
Secure and Reliable
WPA3 provides strong encryption for Wi-Fi password security. OFDMA and MU-MIMO features enhance network performance by reducing latency and improving data transmission efficiency.
OFDMA optimizes data transmission by dividing channels into smaller sub-channels, reducing latency and increasing efficiency, especially in crowded environments. Meanwhile, MU-MIMO allows simultaneous data transmission to multiple devices, maximizing throughput and minimizing wait times.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| USB connector form factor | Straight |
| Interface | WLAN |
| Host interface | USB |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| MU-MIMO | Yes |
| Full duplex | Yes |
| Security algorithms | AES, WEP, WPA, WPA2, WPA2-PSK, WPA3, WPS |
| Modulation | 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 2402 Mbit/s |
| Design | |
|---|---|
| LED indicators | Yes |
| Chipset | Realtek RTL8832CU |
| Antenna | Yes |
| Antenna design | External |
| Product colour | Black |
| Component for | PC |
| Internal | No |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 36 g |
| Height | 16 mm |
| Depth | 165 mm |
| Width | 37 mm |
| Packaging data | |
|---|---|
| Package weight | 302 g |
| Package height | 45 mm |
| Package depth | 175 mm |
| Package width | 143 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Other features | |
|---|---|
| Cable length | 1.155 m |
| Housing material | Plastic |
-
