TP-Link UH5020C interface hub USB Type-C 5000 Mbit/s Grey
5 in 1 USB-C Hub

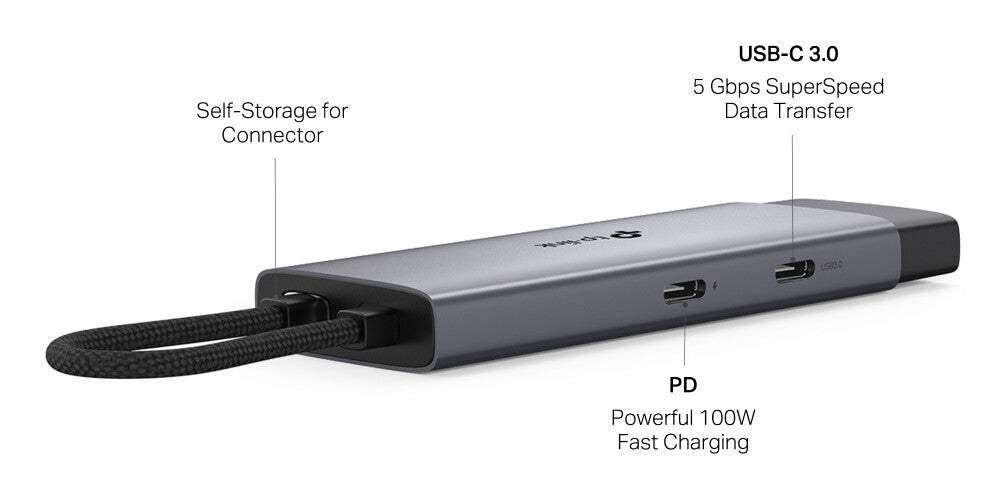

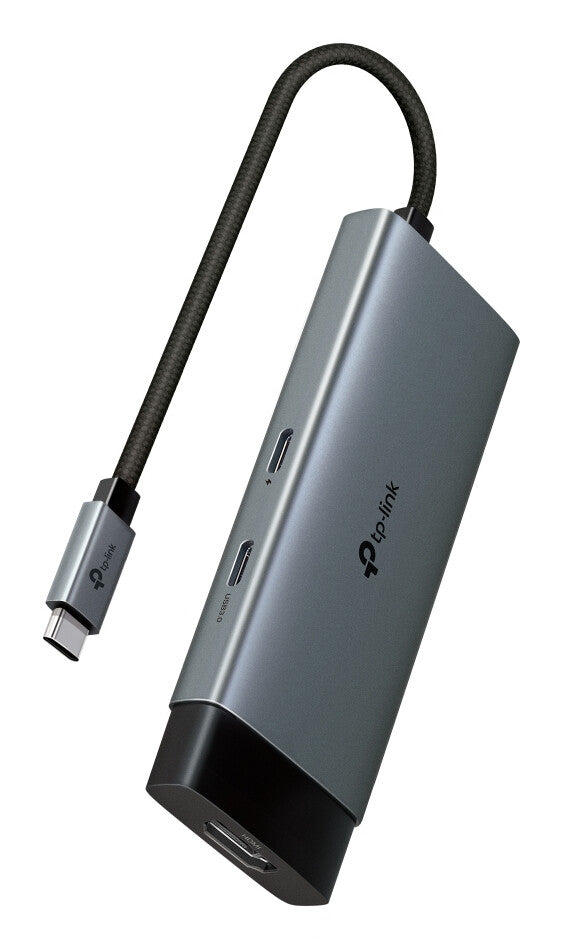

UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.
Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.
Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.
5 Gbps SuperSpeed Data Transfer
UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.
Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.
Compact and Elegant Design
The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.
| Ports & interfaces | |
|---|---|
| DC-in jack | No |
| Card reader integrated | No |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C |
| Host interface | USB Type-C |
| Ports quantity | 5 |
| Features | |
|---|---|
| Certification | HDMI |
| Plug and Play | Yes |
| Cable length | 0.18 m |
| Cable type | Round cable |
| Fast charging | Yes |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| Product colour | Grey |
| Housing material | Aluminium |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Supported video modes | 2160p |
| Maximum refresh rate | 60 Hz |
| Data transfer rate | 5000 Mbit/s |
| Power | |
|---|---|
| Power supply type | USB |
| System requirements | |
|---|---|
| Compatible operating systems | Nintendo OS |
| Other operating systems supported | Android, ChromeOS, iOS, iPadOS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Weight & dimensions | |
|---|---|
| Height | 12.2 mm |
| Depth | 40 mm |
| Width | 108.2 mm |
| Packaging data | |
|---|---|
| Package type | Hanging box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Design | |
|---|---|
| Cable colour | Black |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA |
-
