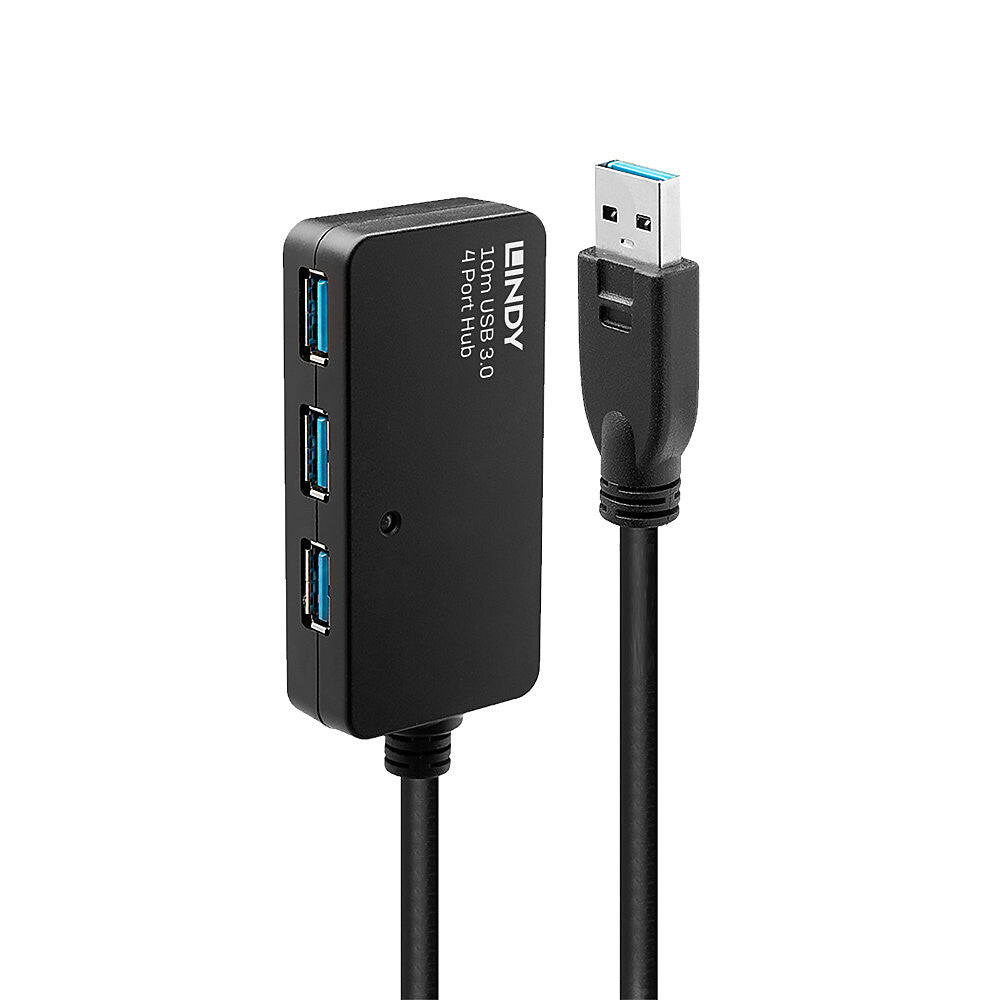

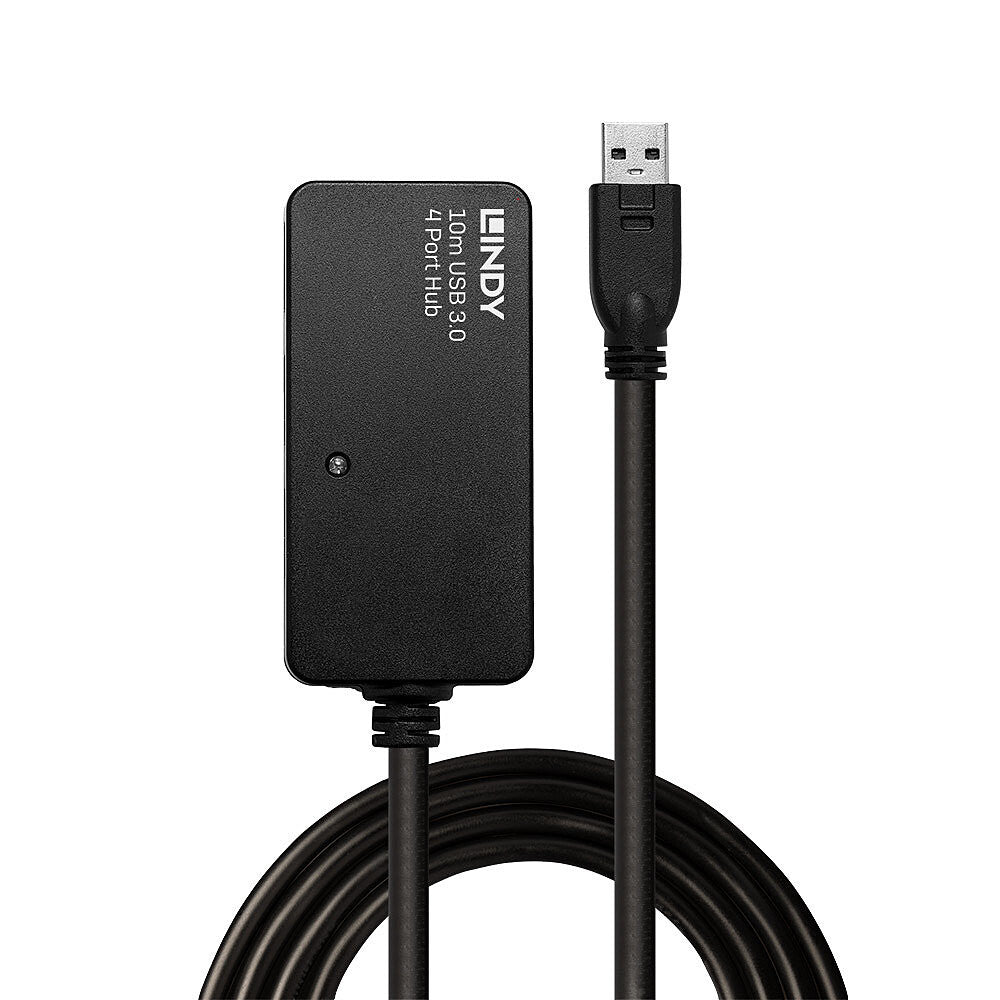

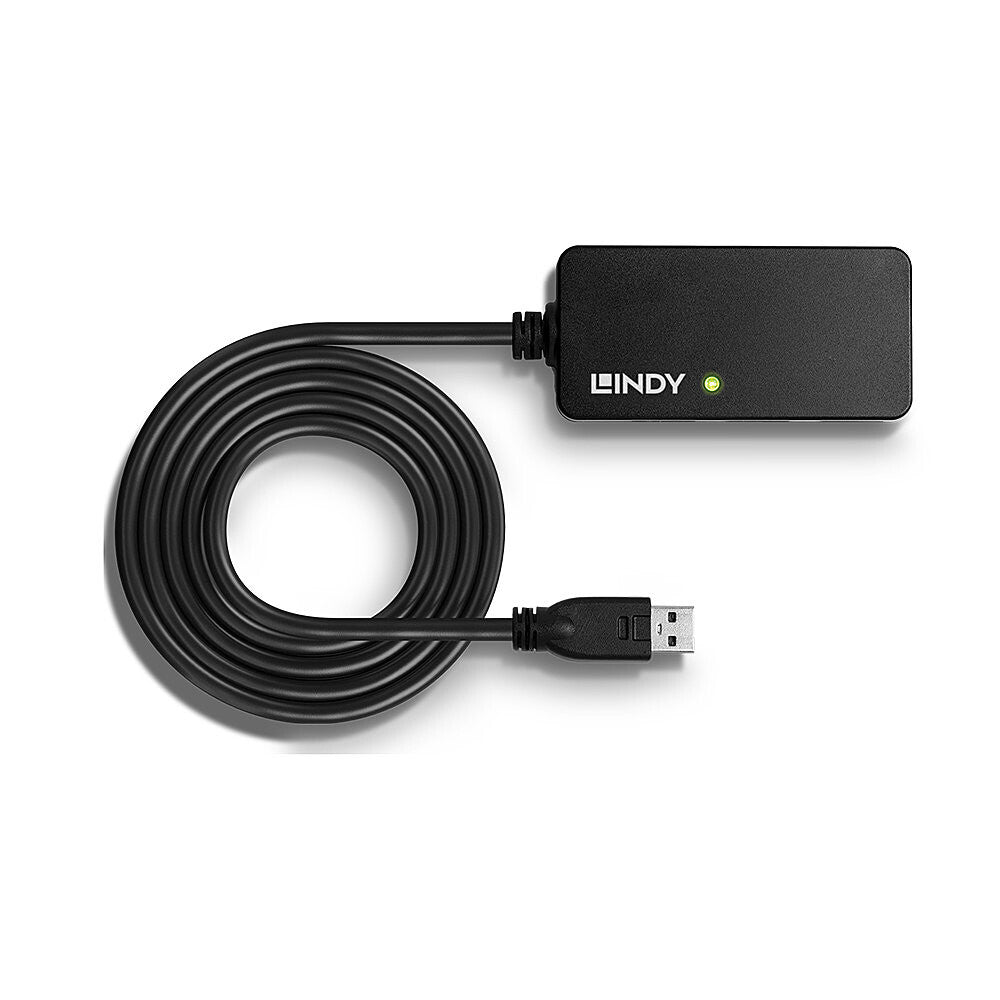

Lindy 10m USB 3.0 Active Extension Pro Hub

£107.99 £108.99
Excl VAT £89.99

Key Details:

  • High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
  • Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
  • Easy to use – connects to the deviceandrsquo;s existing USB cable (2m maximum)
  • 2 year warranty
LINDY  |  SKU: 43159  |  Condition: Brand New  |  Barcode: 4002888431590

Description

10m USB 3.0 Active Extension Pro Hub

The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.

This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

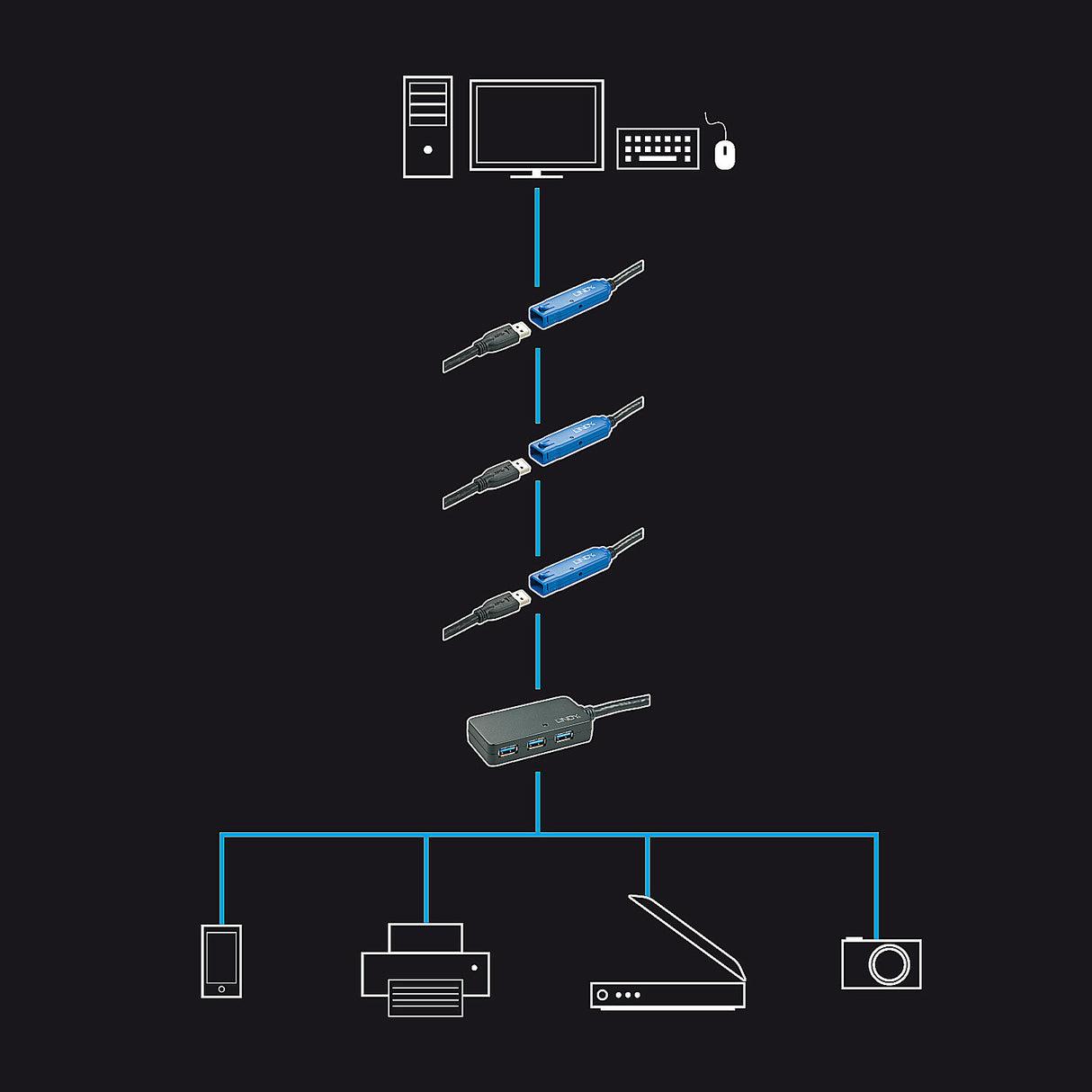

This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this hub as part of the USB 3.0 Active Extension System Pro

If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

This Active Extension Hub Pro must be installed as the final part of the extension system.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Ports & interfaces
DC-in jack Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity 4
Features
Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Nominal attenuation 0.064MHz - 0.08dB0.256MHz - 0.11dB0.512MHz - 0.13dB0.772MHz - 0.15dB1.0MHz - 0.20dB4MHz - 0.39dB8MHz - 0.57dB12MHz - 0.67dB24MHz - 0.95dB48MHz - 1.35dB96MHz - 1.90dB200MHz - 3.20dB400MHz - 5.80dB
Transmission medium Twisted pair
Bend radius (min) 3.6 cm
Plug and Play Yes
Contact material Brass
Connector contacts plating Gold
Conductor material Tinned copper
Cable diameter 7 mm
Cable length 10 m
AWG wire size 24/24/20
Cable jacket material Polyvinyl chloride (PVC)
Cable type Round cable
Plating material Nickel
LED indicators Yes
Product colour Black
Housing material Plastic
Data transfer rate 5000 Mbit/s
Power
Power note 3.5/1.35mm DC
Weight & dimensions
Connector 1 dimensions (WxDxH) 15 x 42 x 8 mm
Weight 790 g
Height 15 mm
Depth 38 mm
Width 80 mm
Packaging data
Package type Box
Package weight 900 g
Package height 70 mm
Package depth 200 mm
Package width 240 mm
Quantity per pack 1 pc(s)
Packaging content
Manual Yes
Operational conditions
Operating temperature (T-T) -20 - 60 °F
Design
Cable shielding Aluminum mylar foil
Logistics data
Harmonized System (HS) code 84719000

Specifications

  • Grade
    Brand New
  • Part Number
    43159

Grading Guide

Brand New – This product is Brand New and in it’s original
packaging.

New - Open Box - This product is unused but the box has been opened.

New – No Box – This product is unused but doesn’t come with
the original box/packaging.

Refurbished – This product has been refurbished by ourselves
or by the manufacturer.

Excellent Used – This item is used, tested and fully working
but in like new condition. It may come with it’s original packaging or not,
please check the product description.

Good Used – This item is used, tested and fully working but
will show signs of cosmetic wear and tear. It may come with it’s original packaging
or not, please check the product description.

Parts – This item is sold just for parts, meaning it is
unworking or unable to serve it’s purpose. It may come with it’s original packaging
or not, please check the product description.

Warranty

Brand New Products: All our Brand New products come with Manufaturer warranty. These can vary in length and it's important to check with the manufaturer of the product what warranty they provide and what is covered.

Used Products: All our used products come with 1 years warranty provided by us and some products may have manufaturer warranty.

Refurbished Products: With our refurbished products, we offer a free 3-month warranty which covers all software and hardware issues, that have not been influenced by the customer. There is also Manufactured Refurbished products which they will specify how long their warranty is.

Custom Gaming PCs: All our Custom PCs by default come with 3 years warranty. This includes parts and labour. You can also upgrade to 5 years warranty. Our warranty includes all hardware issues relating to the machine. If there is any faults, we will attempt to solve this remotely and if needed get the PC collected and back to base for repair.

Read more - Warranty Information

PDFs/Manuals

For extra information please see the manufaturers website
