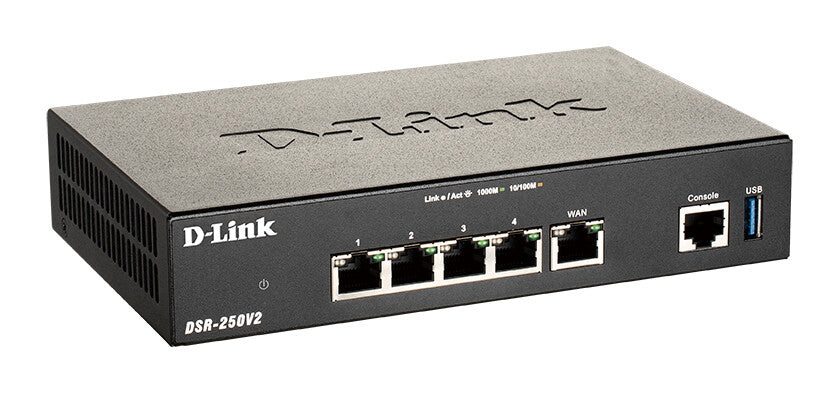

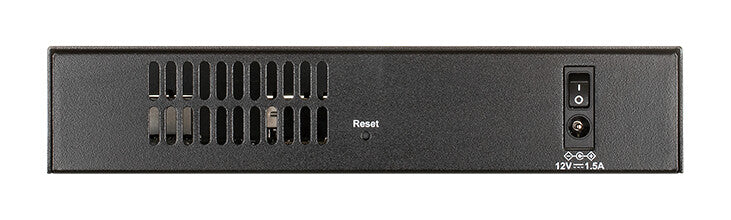

D-Link Unified Services VPN Router
Secure and private connection to the office, wherever you are.
Secure, high-performance networking solutions to address the changing needs of small and medium businesses. Full-featured VPN offers a private link between mobile/remote workers and the office.
Advanced VPN
Integrated VPN client and server with support for IPSec, PPTP, L2TP, GRE, and OpenVPN tunneling
3G/4G LTE network
Mobile connectivity lets you create an internet-enabled network, without the need for a fixed-line connection.
Failover/Load Balancing Mode
Dual Gigabit WAN and optional 3G/4G support provide high availability and traffic load balancing.
Captive Portal
Captive Portal allows employees and guest users to authenticate and authorise easily
Remote secure connections
With fully featured VPN (IPSec/PPTP/L2TP/GRE/OpenVPN), the DSR-250V2 provides secure connections between mobile or remote employees and the office.
Highly configurable and flexible with OpenVPN
OpenVPN uses various authentication and encryption protocols, such as SSL and TLS ensure users’ communications are secure and private. Not only is it highly secure, it is also incredibly configurable to provide secure point-to-point or site-to-site connections.
High-performance firewall and VPN
High-performance firewall with up to 950 Mbps throughput, and VPN (3DES) with up to 200 Mbps throughput, supporting up to 75 VPN tunnels, allows more devices to be connected, faster.
Multi-WAN support
Multi-WAN support (through dual Gigabit WAN ports and option 3G/4G dongle) with WAN failover and load balancing ensures a reliable and stable Internet connection.
Access through browser authentication
Captive Portal allows employees and guests to be easily authenticated and authorised through customisable welcome page.
Web Content Filtering
The DSR-250V2 also provides a web content filtering feature to help administrators monitor, manage and control employees’ Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies or to block URLs by keyword. Dynamic web content filtering, which requires a license subscription, allows administrators to filter content from a list of categories. Multiple global index servers, with millions of URLs and real-time website data, enhance performance and maximise service availability.
Control access and bandwidth priority based on application
Application Control can restrict or give priority to predefined applications to effectively manage network utilisation.
| WAN connection | |
|---|---|
| SFP WAN | No |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Concurrent connections | 50000 |
| Static route | Yes |
| VLAN support | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1Q |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of console ports | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Protocols | |
|---|---|
| Supported network protocols | IPv6, SNMP v1, v2c, v3 |
| Routing protocols | OSPF, OSPFv3, RIP-1, RIP-2 |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| VPN tunnels quantity | 75 |
| Network address translation (NAT) | Yes |
| URL filtering | Yes |
| Authentication method | Internal User Database, Radius, POP3, LDAP, AD, NT Domain |
| Firewall | Yes |
| Security algorithms | 3DES, AES, DES |
| Features | |
|---|---|
| Certification | FCC Class B, CE Class B, RCM, IC, VCCI |
| Safety | LVD (EN62368) |
| Mean time between failures (MTBF) | 1239157.85 h |
| Design | |
|---|---|
| On/off switch | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power source type | DC |
| Power consumption (typical) | 14.4 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 38 mm |
| Depth | 190 mm |
| Width | 120 mm |
| Packaging data | |
|---|---|
| AC adapter included | Yes |
-
