Configuring your product

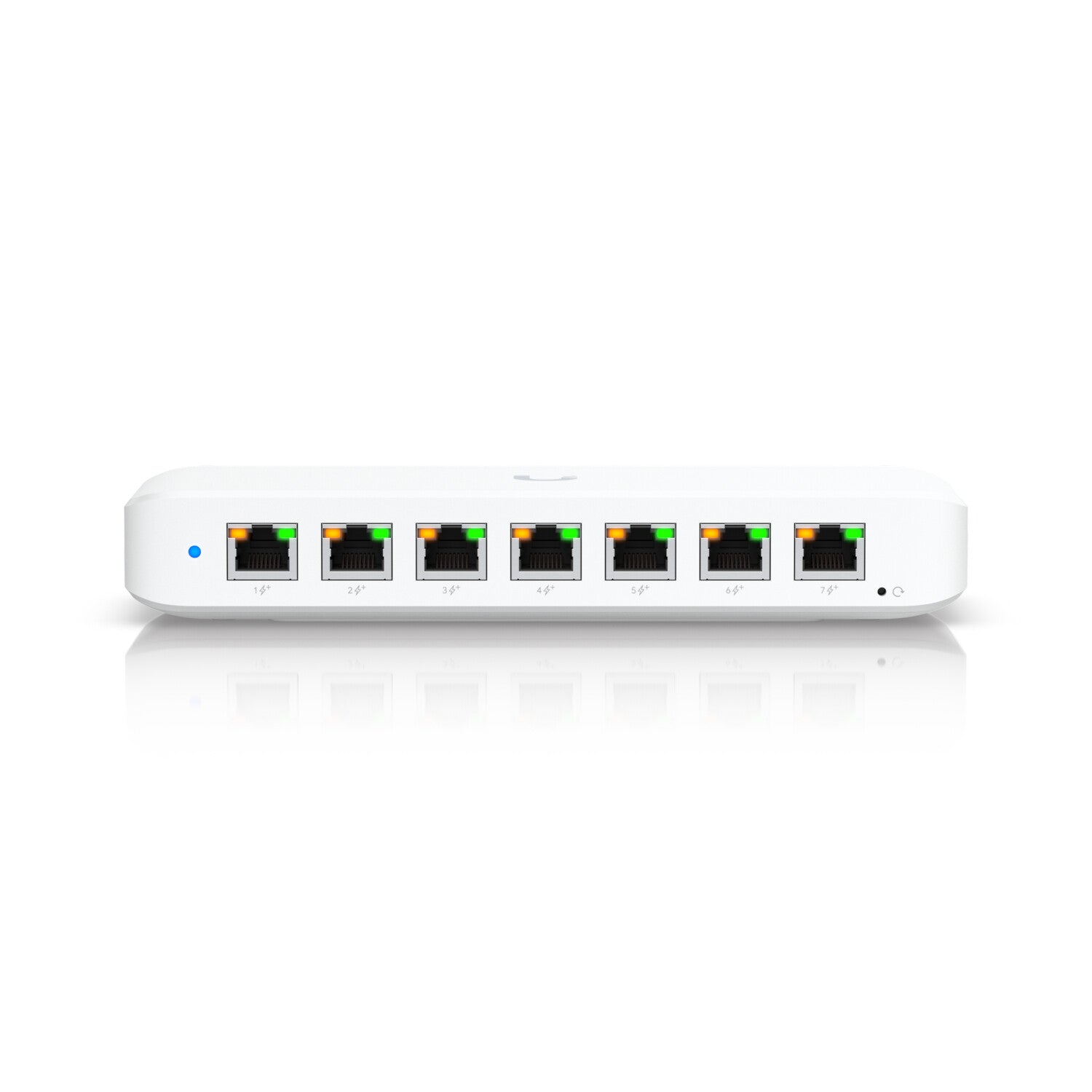

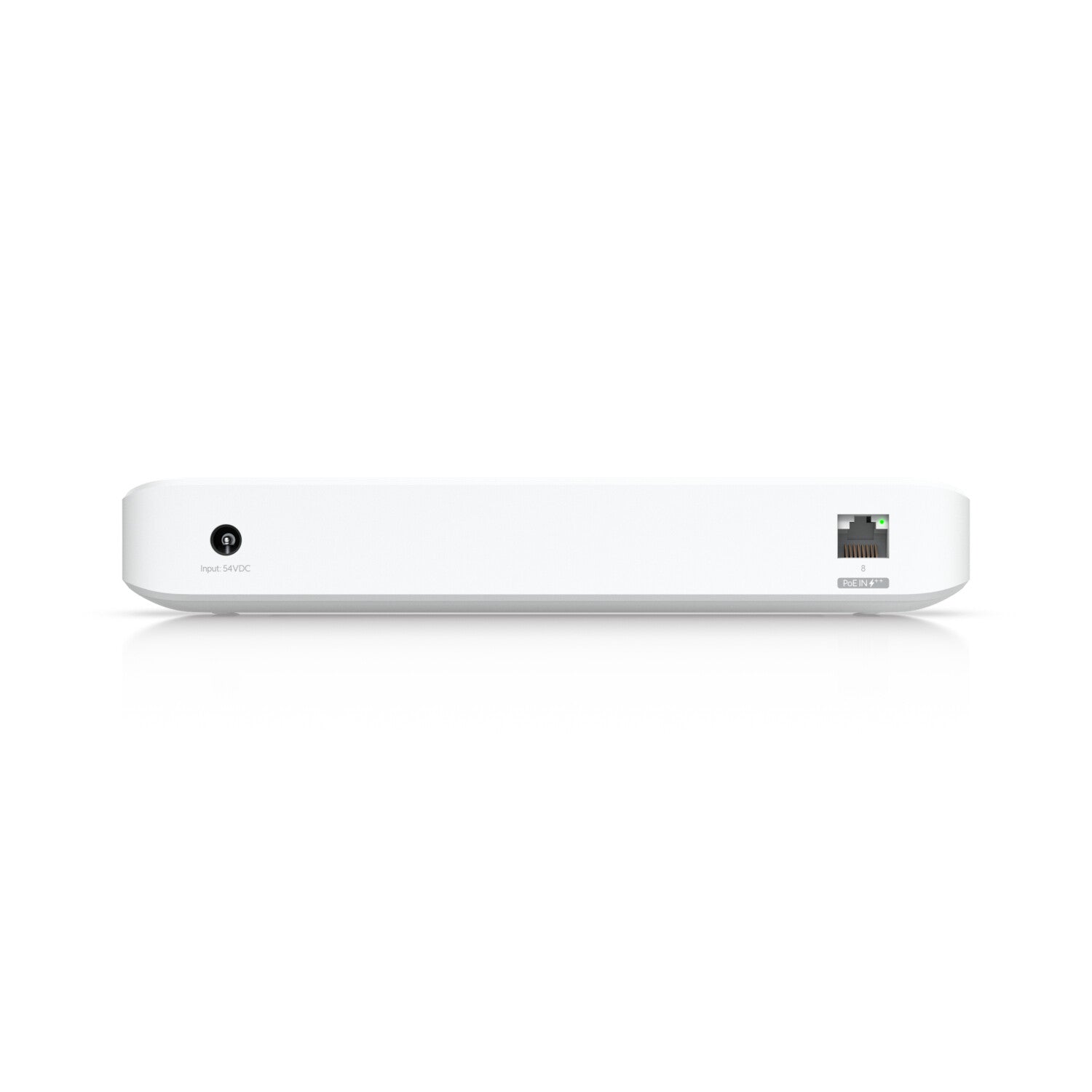

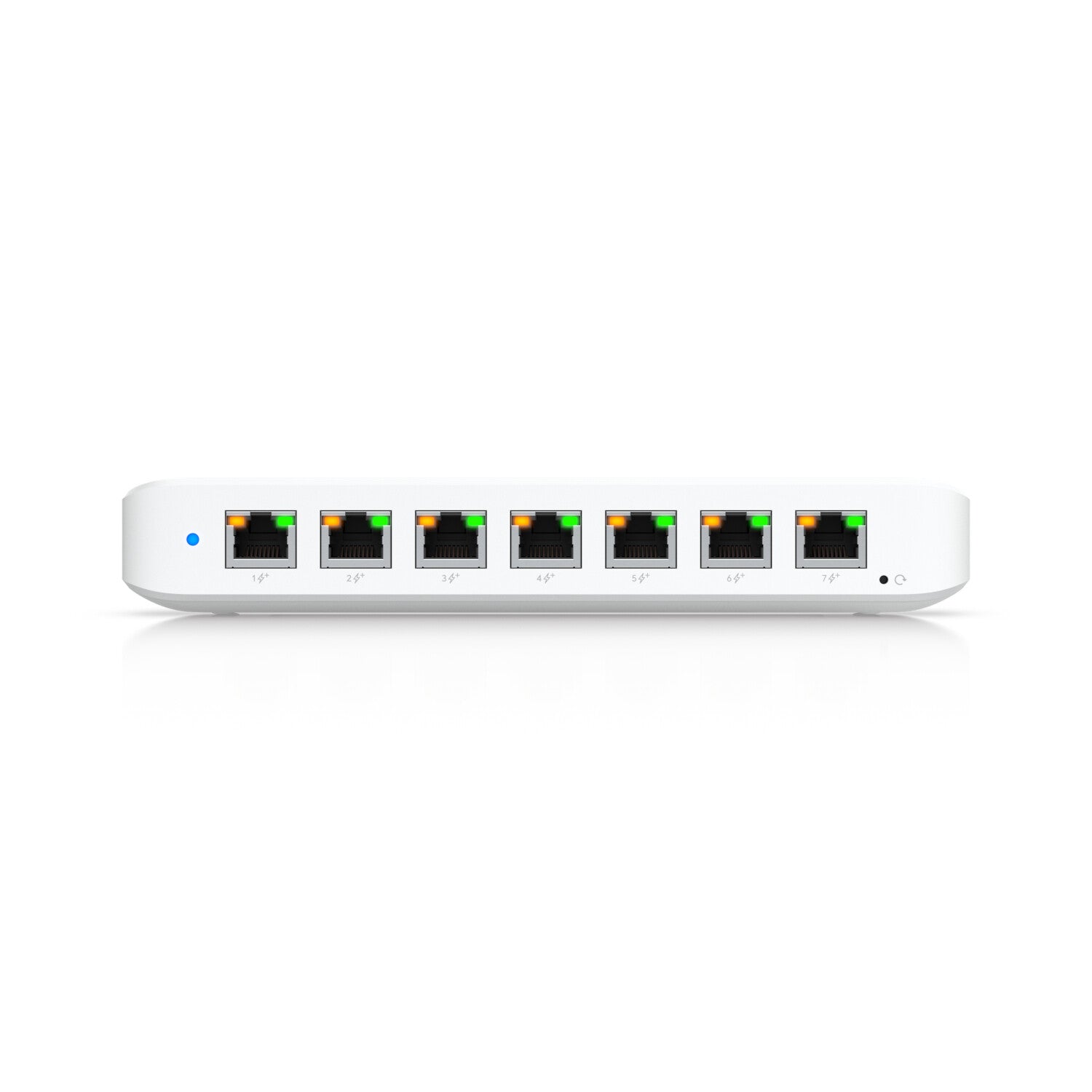

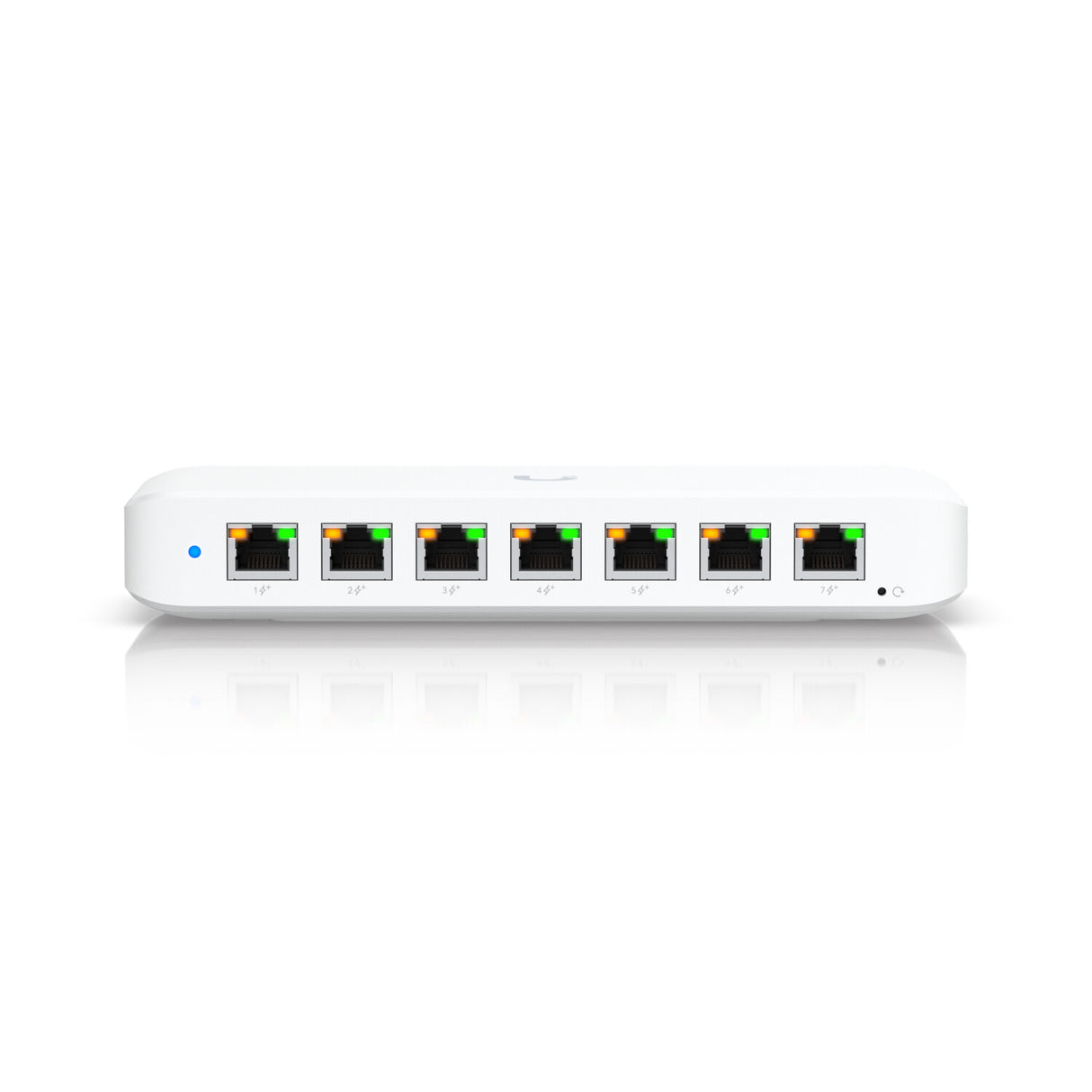

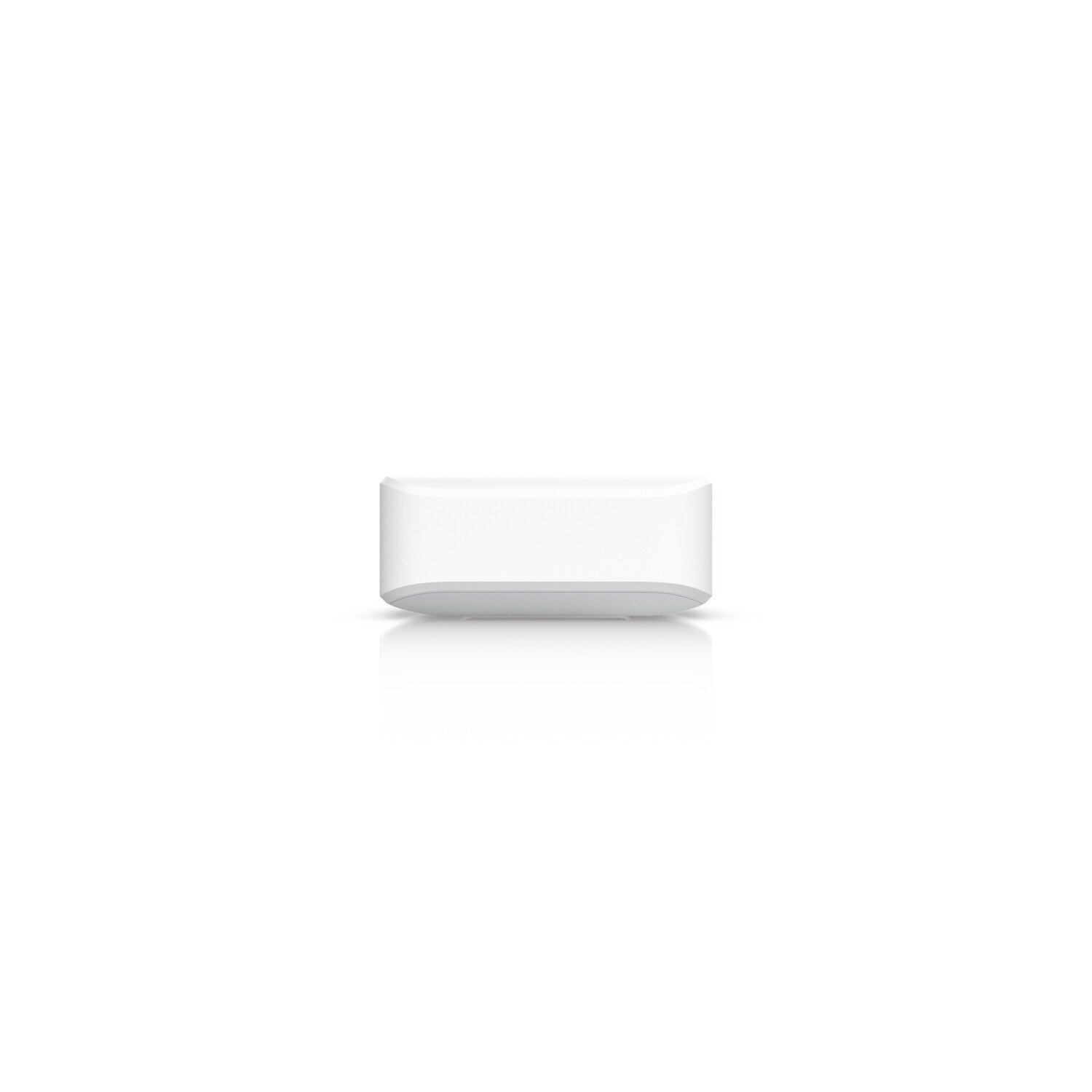

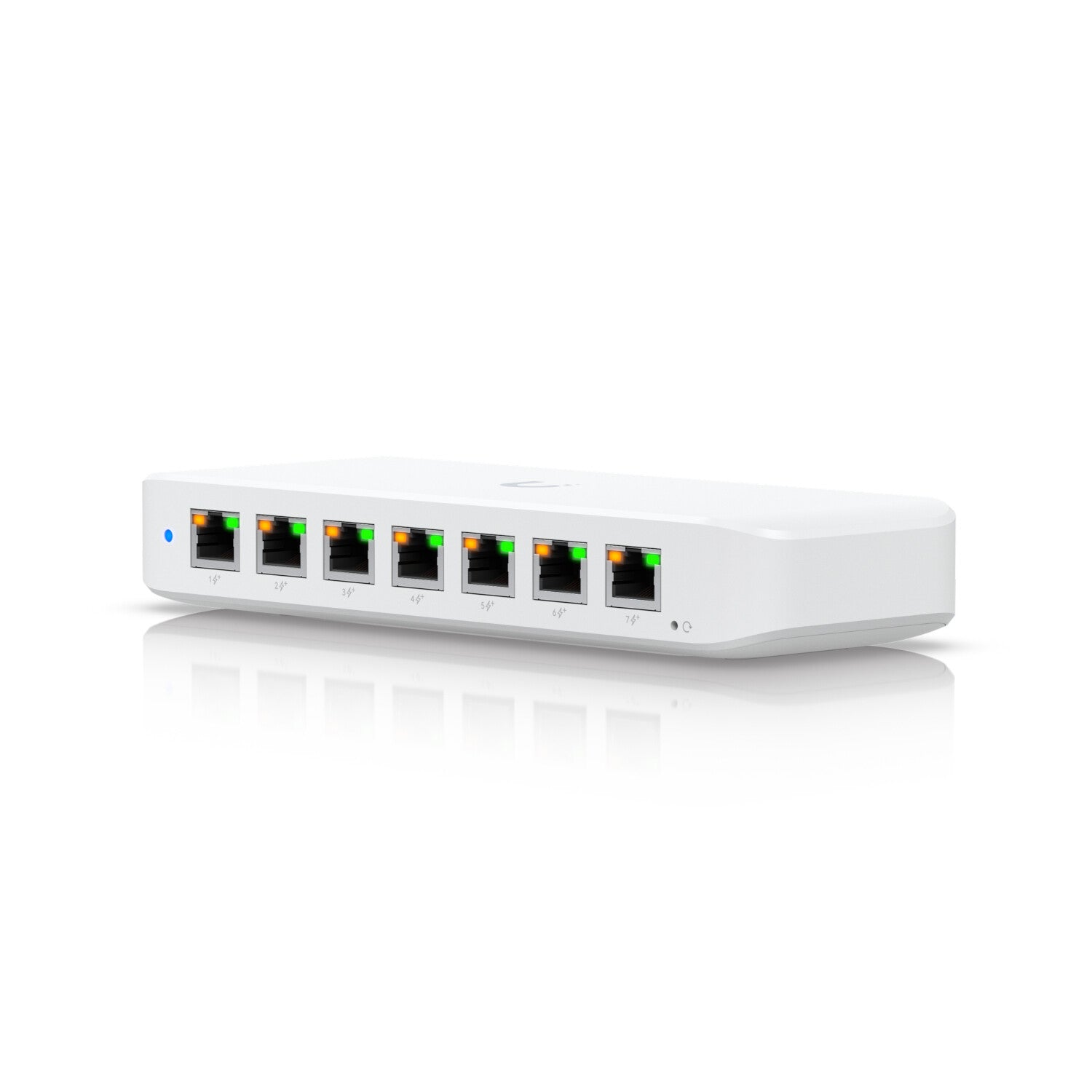

Ubiquiti USW-ULTRA-210W UniFi Switch Ultra 8 Port Gigabit POE+ Compact Layer 2 Managed Switch

£217.99 £222.99
Excl VAT £181.66
UBIQUITI  |  SKU: USW-Ultra-210W  |  Condition: Brand New  |  Barcode: 810084693735

Description

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

(7) GbE PoE+ output ports
(1) GbE port with optional PoE++ input
202W PoE availability with the included AC power adapter

Dimensions
203 x 76 x 33 mm (8 x 3 x 1.3")

Weight
Device: 320 g (11.3 oz)
Wall mount: 45 g (1.6 oz)
210W adapter: 770 g (1.7 lb)

Enclosure Material
Polycarbonate

Management Interface
Ethernet In-Band

Networking Interface
(8) GbE RJ45 ports

POE Interface
(7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total Non-Blocking Throughput
8 Gbps

Switching Capacity
16 Gbps

Forwarding Rate
11.904 Mpps

Power Method
(1) 54V, 3.9A power adapter (Included)
PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)

Power Supply
54V, external, 3.9A/210W

Supported Voltage Range
44—57V DC

Max. Power Consumption
9W with PoE input (Excluding PoE output)
8W with AC adapter input (Excluding PoE output)

Total Available POE
PoE++ input: 42W
PoE+ input: 16W
60W PoE adapter input: 42W
60W AC adapter input: 52W
210W AC adapter input: 202W

Max. Power Wattage Per Port by PSE
30W

Button
Factory Reset

Ambient Operating Temperature
PoE++ input: -30 to 60° C (-22 to 140° F)
60W AC adapter input: -20 to 45° C (-4 to 113° F)
210W AC adapter input: -20 to 60° C (-4 to 140° F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

LED - System
Status

LED - Ethernet
PoE
Link Activity

UniFi Network Requirement
Version 8.0.7 and later

  • Speed: Gigabit
  • Ports: 8
  • POE Capability: 48v
  • Managed or Unmanaged: Managed
  • Rack Mountable: No

Specifications

  • Grade
    Brand New
  • Part Number
    USW-Ultra-210W

Grading Guide

Brand New – This product is Brand New and in it’s original
packaging.

New - Open Box - This product is unused but the box has been opened.

New – No Box – This product is unused but doesn’t come with
the original box/packaging.

Refurbished – This product has been refurbished by ourselves
or by the manufacturer.

Excellent Used – This item is used, tested and fully working
but in like new condition. It may come with it’s original packaging or not,
please check the product description.

Good Used – This item is used, tested and fully working but
will show signs of cosmetic wear and tear. It may come with it’s original packaging
or not, please check the product description.

Parts – This item is sold just for parts, meaning it is
unworking or unable to serve it’s purpose. It may come with it’s original packaging
or not, please check the product description.

Warranty

Brand New Products: All our Brand New products come with Manufaturer warranty. These can vary in length and it's important to check with the manufaturer of the product what warranty they provide and what is covered.

Used Products: All our used products come with 1 years warranty provided by us and some products may have manufaturer warranty.

Refurbished Products: With our refurbished products, we offer a free 3-month warranty which covers all software and hardware issues, that have not been influenced by the customer. There is also Manufactured Refurbished products which they will specify how long their warranty is.

Custom Gaming PCs: All our Custom PCs by default come with 3 years warranty. This includes parts and labour. You can also upgrade to 5 years warranty. Our warranty includes all hardware issues relating to the machine. If there is any faults, we will attempt to solve this remotely and if needed get the PC collected and back to base for repair.

Read more - Warranty Information

PDFs/Manuals

For extra information please see the manufaturers website

Customer Reviews

Be the first to write a review
