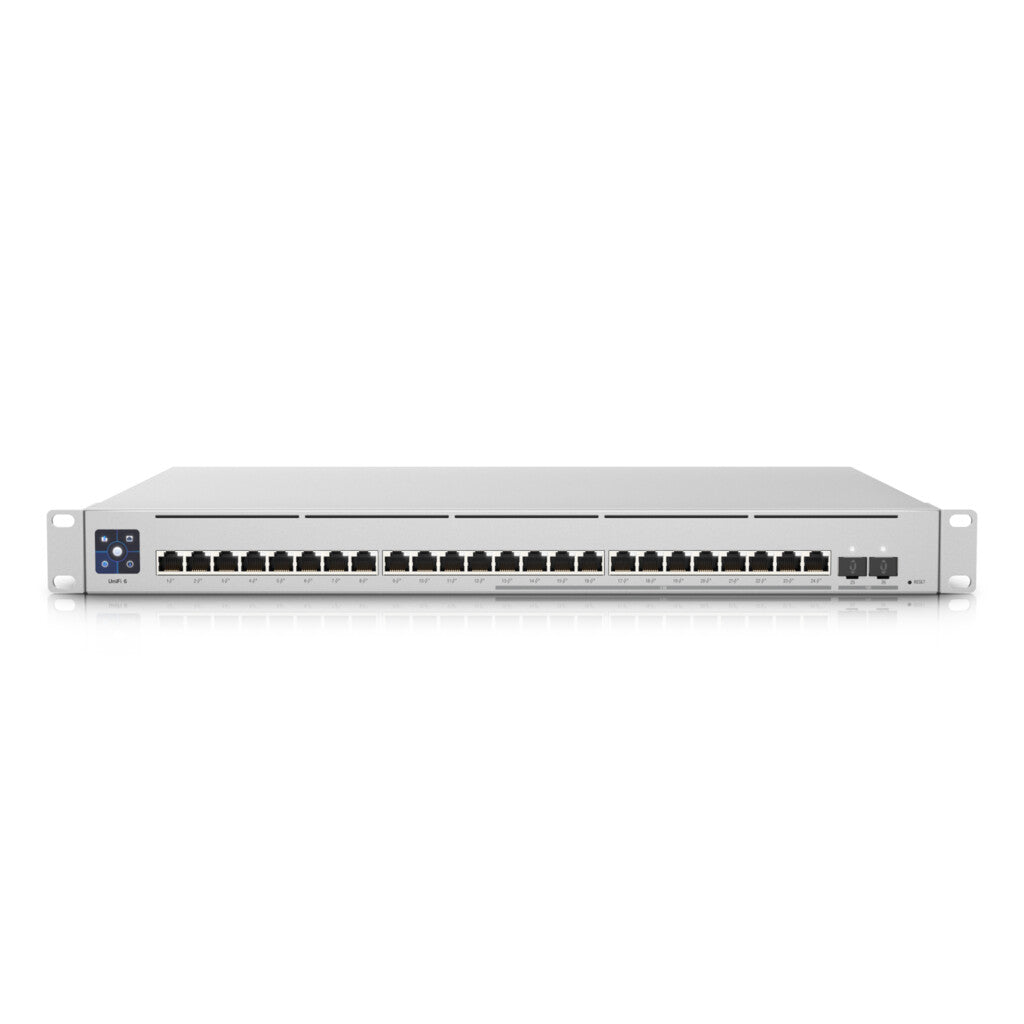

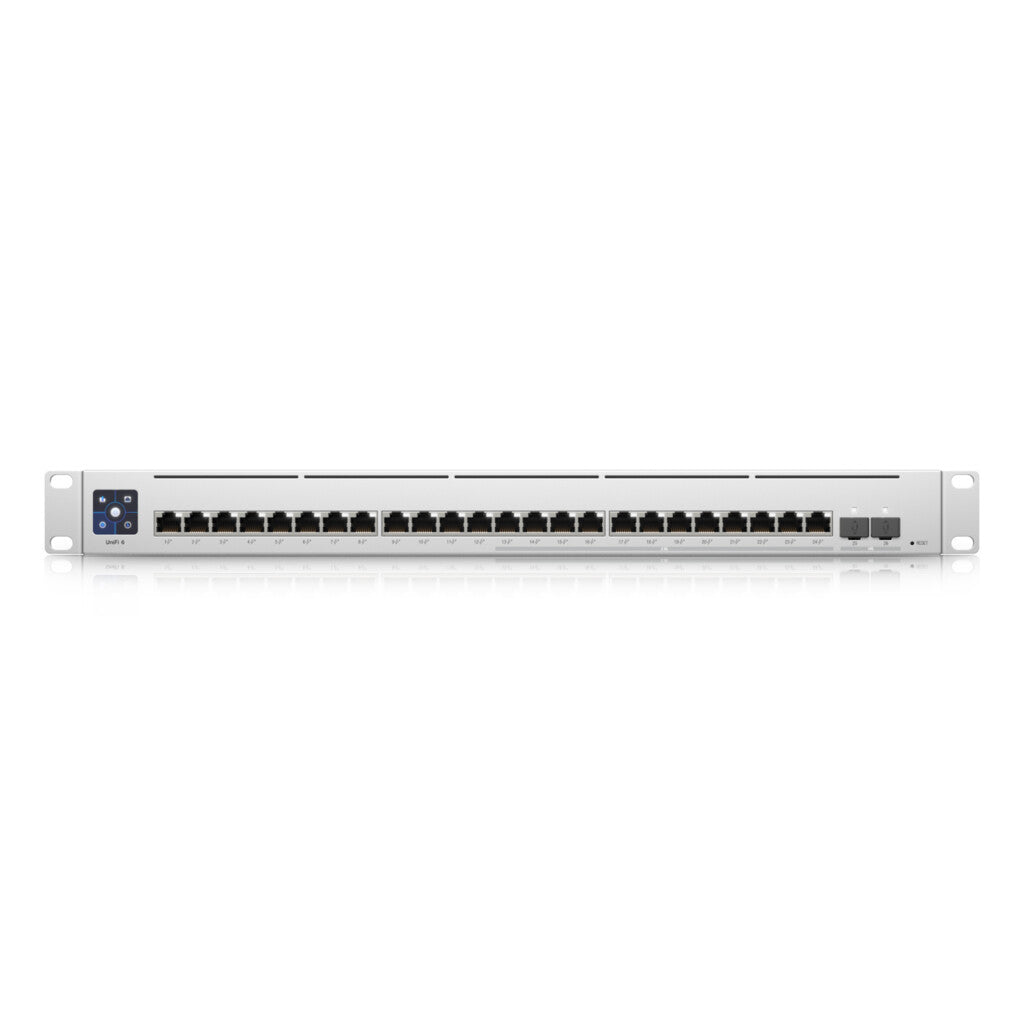

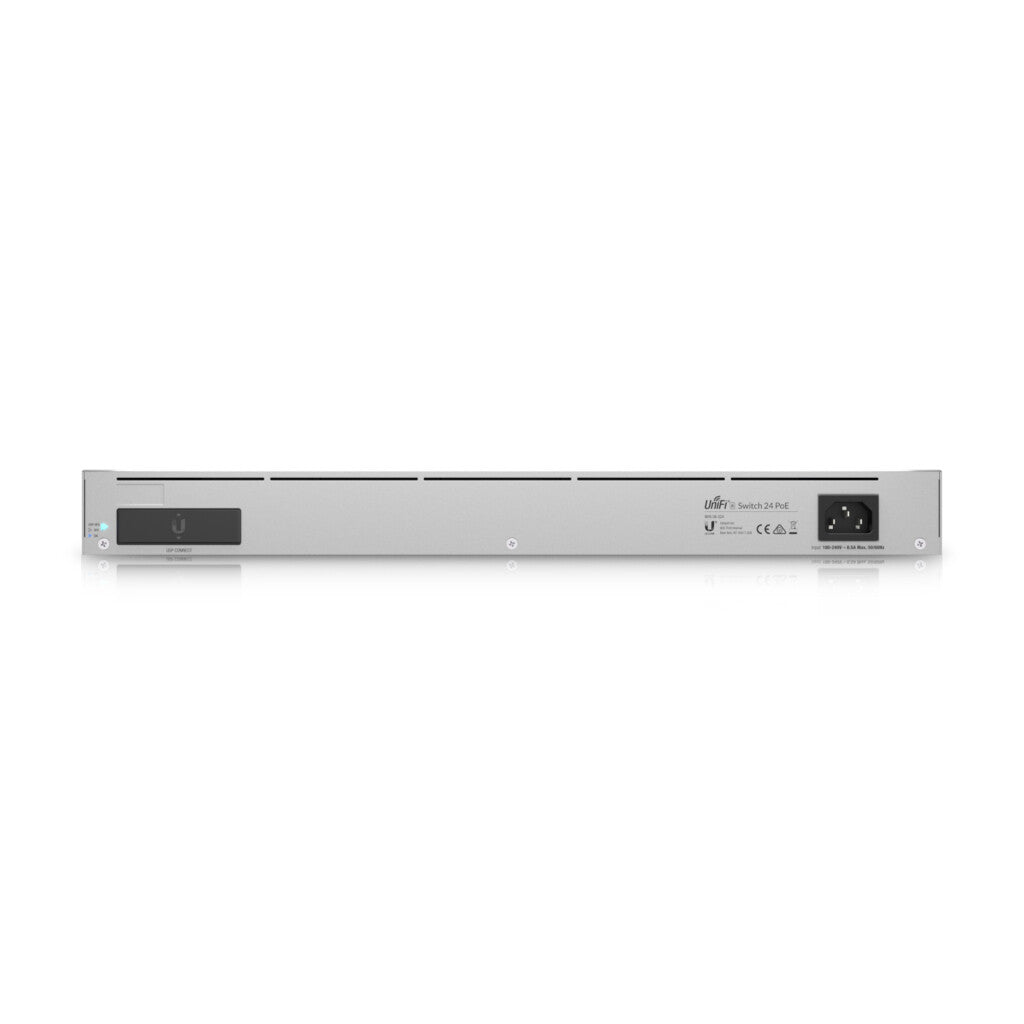

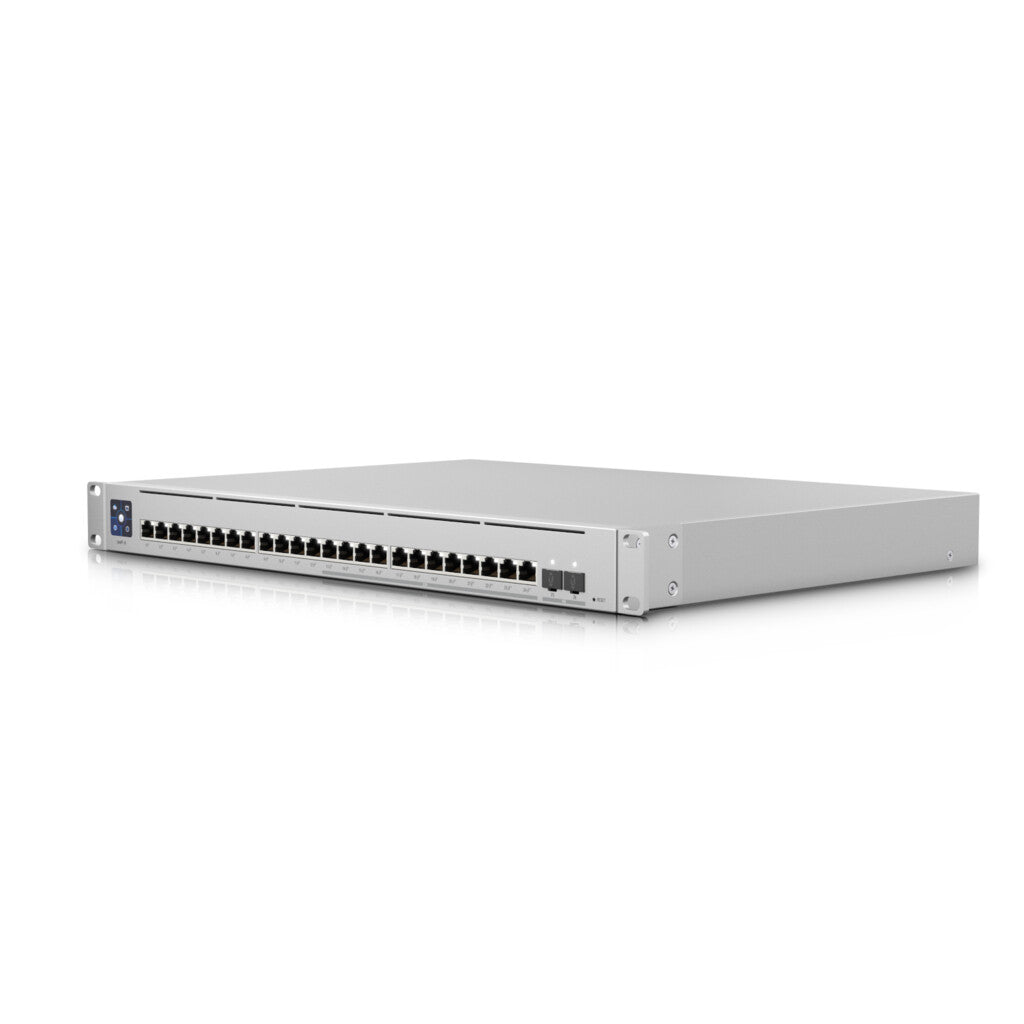

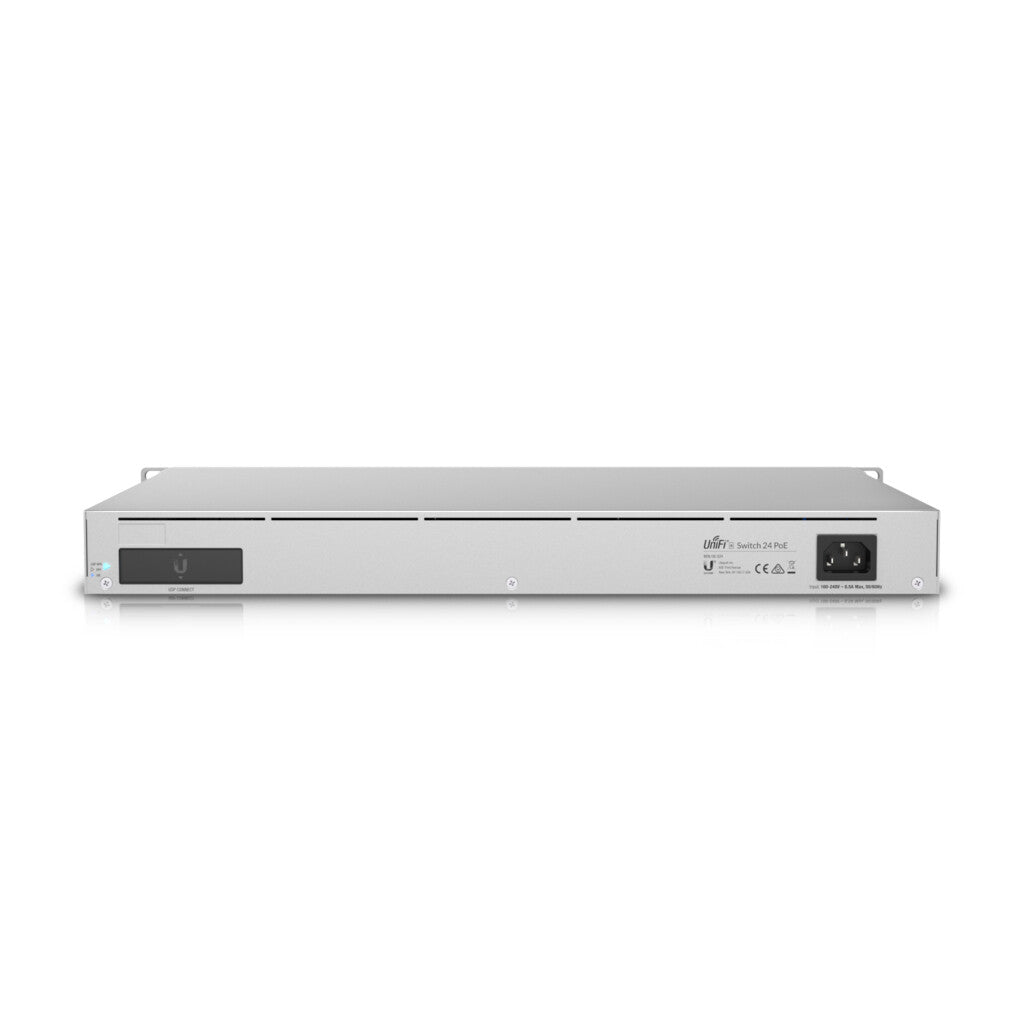

Ubiquiti USW-ENTERPRISE-24-POE UniFi Switch Enterprise 24 Port Layer 3 PoE Switch

UBIQUITI  |  SKU: USW-ENTERPRISE-24-POE  |  Condition: Brand New  |  Barcode: 0810010073068

MORE INFO

£794.99
£763.99 Save £31.00 £794.99
£636.66 excluding VAT @20%
iFrame
Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features
(1) 1.3" LCM color touchscreen with AR switch management
(12) GbE, 802.3at PoE+ RJ45 ports
(12) 2.5GbE, 802.3at PoE+ RJ45 ports
(2) 10G SFP+ ports
(1) USP RPS DC input
400W total PoE supply
Layer 3 switching features
Single-row RJ45 port layout for easy patch panel cable management

Specifications

Dimensions
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")

Weight
Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)

Total Non-Blocking Throughput
62 Gbps

Switching Capacity
124 Gbps

Forwarding Rate
92.25 Mpps

Max. Power Consumption
550W

Power Method
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A

Networking Interfaces
(12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet

SFP+ Interfaces
(2) 1/10G SFP+

PoE Interfaces
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

Max. PoE+ Wattage per Port by PSE
34.2W

Services
SMB Layer 3 PoE Gigabit Ethernet Switch

  • Speed: Gigabit
  • Ports: 24
  • POE Capability: 48v
  • Managed or Unmanaged: Managed
  • Rack Mountable: Yes
