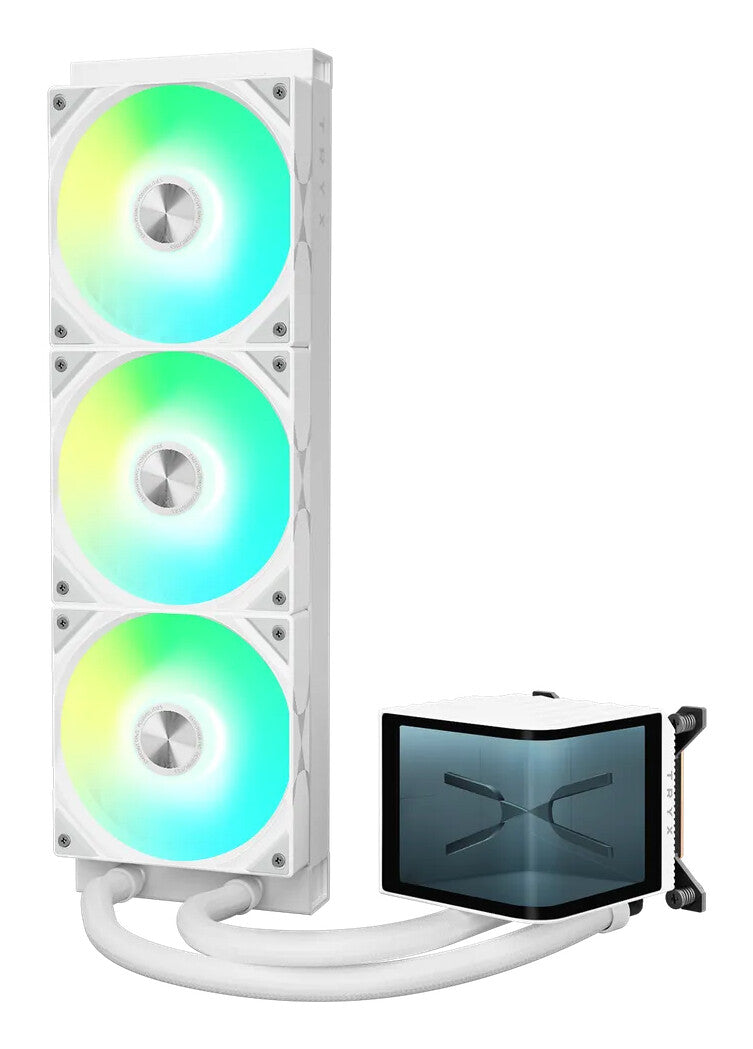

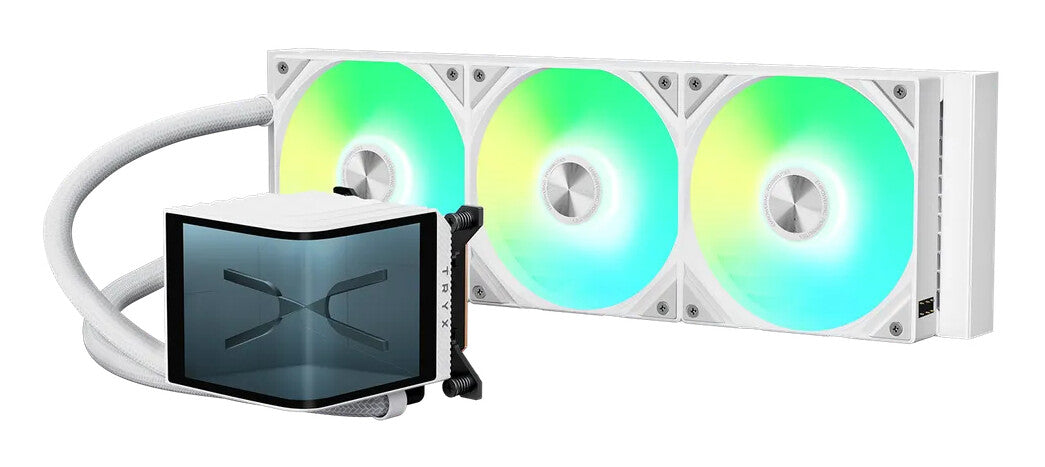

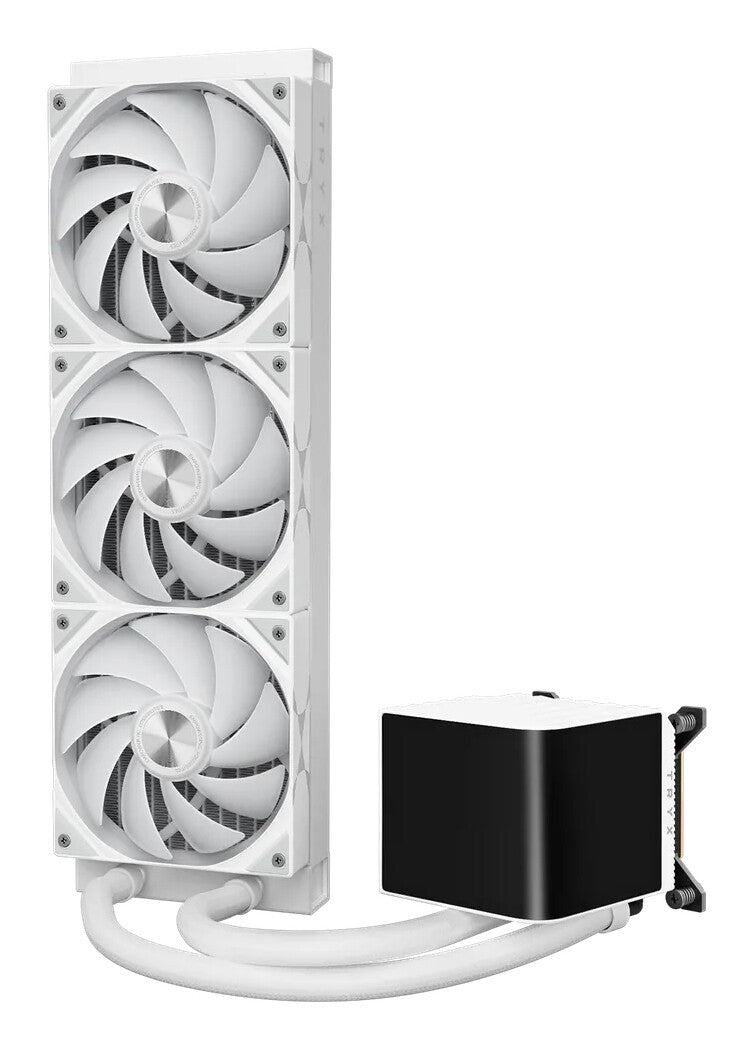

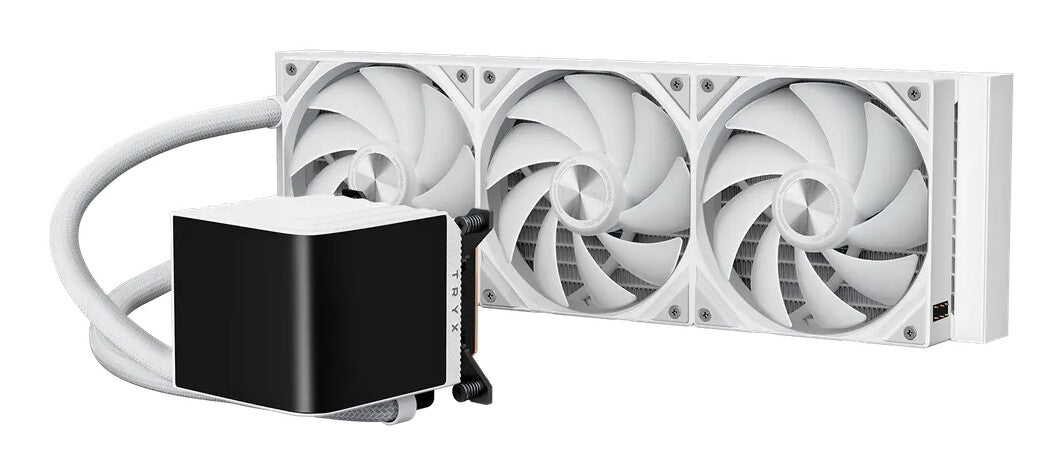

TRYX PANORAMA ARGB 360 Processor Liquid cooling kit 12 cm White 1 p...
The World's First AIO With An 6.67'' AMOLED L-shaped Screen
Advanced AMOLED Screen
6.67-Inch Curved Display
6.5-inch visible area
Ultra-Wide Viewing Angle
400 cd/m² Brightness
60Hz Refresh Rate
372 PPI Ultra-High Clarity
1,000,000:1 Ultra-High Contrast
Triple Layer Screen Technology
Anti-Glare Coating
TRYX uses a chemical etching process on high-quality glass, reducing reflection significantly.
Tempered Glass Cover
Full-Adhesion Technology
Near 0 Resource Usage
Powered by an Independent Embedded System
The display operates independently, delivering exceptional performance without taxing your PC's resources.
G2 Curvature
The screen features a meticulously designed G2 curvature, offering smoother, seamless transitions for an exceptional 3D visual experience.
VRM Fan
The fan beneath the screen provides additional cooling for the motherboard’s VRM, enhancing power delivery stability for the platform.
ROTA SL ARGB
Redesigned
Cleaner form, simpler build process.
Redesigned
One cable,Full control
Fans connect via integrated contacts for both power and signal. A single magnetic-adhesive cable manages lighting and speed across all fans. That's it.
Gen2 ARGB
Each fan is equipped with 8 ARGB GEN2 LEDs.
Fluid Dynamic Bearing
FDB offers better durability and quieter operation.
ASETEK 8th Generation V2 Water Pump Solution
30mm cold plate with high-density fins
Thicker plate, denser fin structure. Thermal performance is up roughly 2°C per 100W compared to the previous generation.
40% wider tubing
More flow, faster heat transfer.
Adjustable Mounting Bracket
Through a unique structural design, small adjustments to the water block position can be made without replacing the mounting components.
Enahanced Performance
By adjusting the position of the copper base, it better covers the CPU heat source, enhancing cooling performance and unleashing the full potential of the CPU.
KANALI Software Hub
Easily Create Your Personalized Setup
Display settings, fan speed control, and ARGB effects can all be centrally configured through the KANALI Software Center.
3D Content Library
KANALI comes preloaded with officially customized 3D format content.The content library will continue to grow, offering users more immersive 3D visual experiences. Constantly Updated
Custom Content Library
KANALI allows users to create a content library that supports a variety of formats, up to 500 MB each, including MP4, JPEG,GIF and more.
Split-Screen Display
PANORAMA allows the left and right screens to display different file formats, enhancing versatility and gameplay while elevating both functionality and user experience.
PC Build Gallery
Enjoy limitless creativity at your fingertips, a premium build experience.
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1200 (Socket H5), Socket AM4, Socket AM5 |
| Maximum airflow | 65.64 cfm |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 28.87 dB |
| Pump noise level | 25.3 dB |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (max) | 3600 RPM |
| Pump motor speed (min) | 800 RPM |
| Fan static pressure | 2.49 mmH2O |
| Fan speed (max) | 1850 RPM |
| Fan speed (min) | 500 RPM |
| Design | |
|---|---|
| Product colour | White |
| Base plate material | Copper |
| Display diagonal | 16.9 cm (6.67") |
| Display type | AMOLED |
| Display resolution | 2240 x 1080 pixels |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 320 W |
| Weight & dimensions | |
|---|---|
| Radiator width | 40 cm |
| Radiator depth | 12 cm |
| Radiator height | 3 cm |
| Tube length | 40 cm |
| Pump width | 9.2 cm |
| Pump depth | 11.8 cm |
| Pump height | 9.2 cm |
| Weight | 2 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |

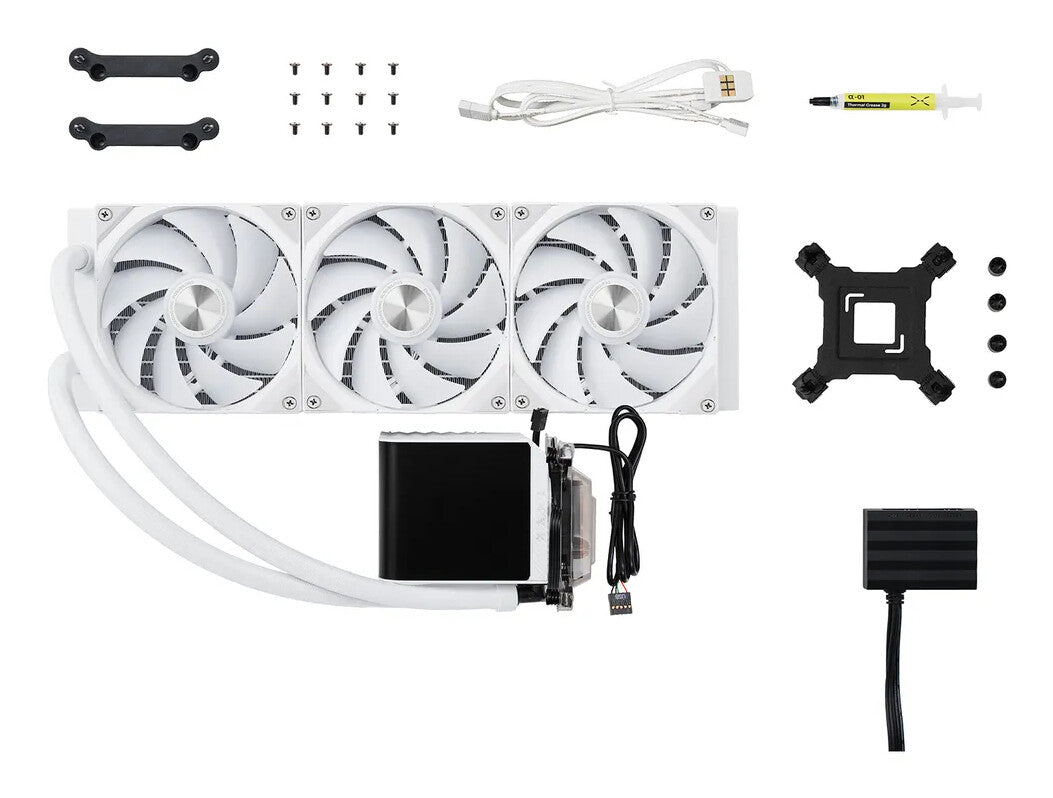

| Packaging content | |
|---|---|
| Mounting kit | Yes |
-
