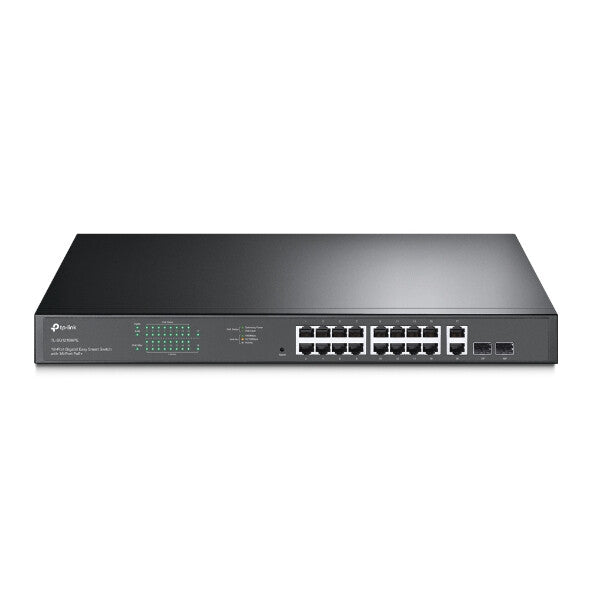

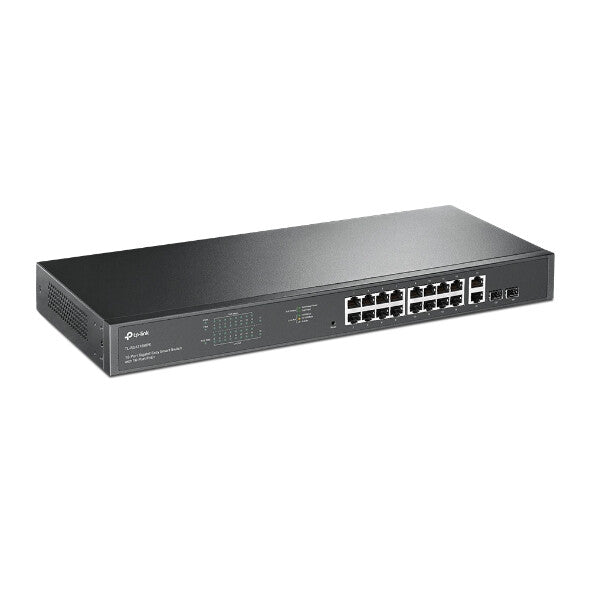

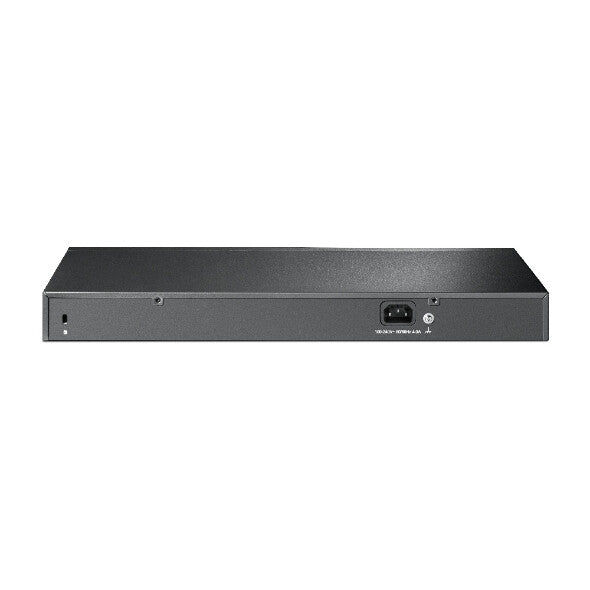

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch
Ideal for Surveillance

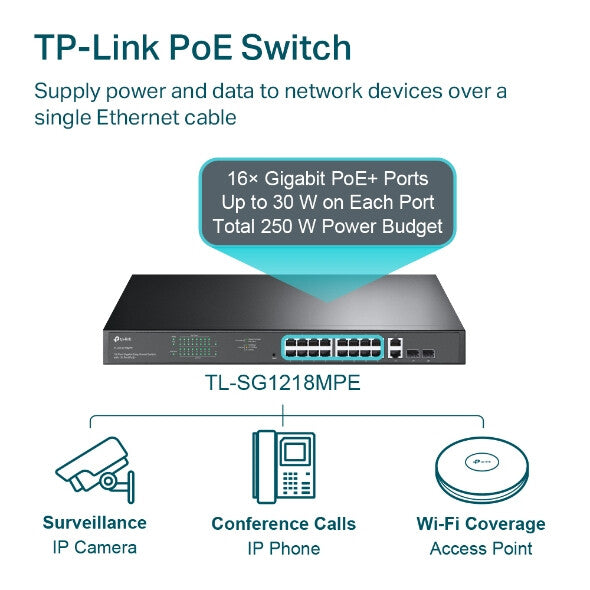

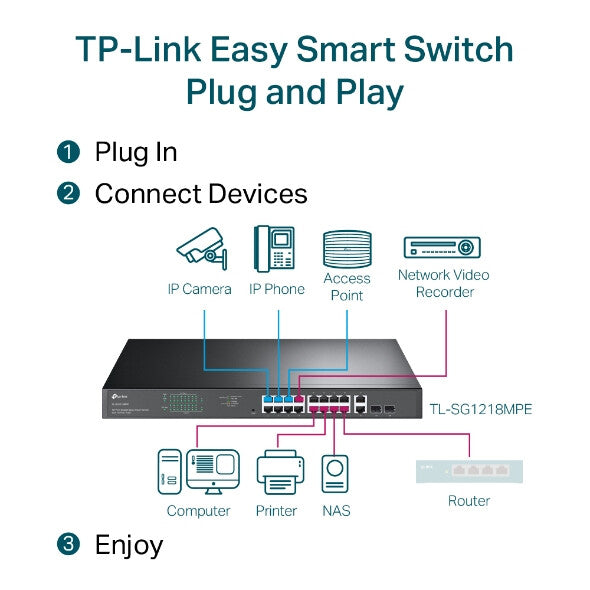

TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 32 |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| Security | |
|---|---|
| IGMP snooping | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Loop protection | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 217.22 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 192 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 741.15 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
|---|---|
| Cables included | AC |
| Rack mount kit | Yes |
| User guide | Yes |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.91 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
-
