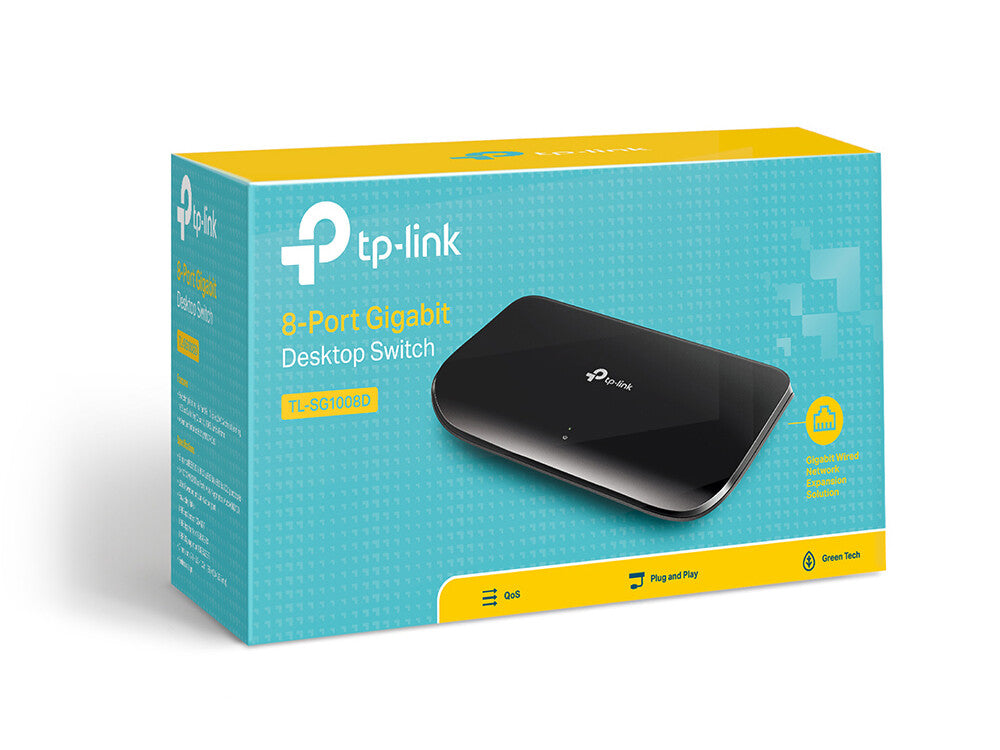

TP-Link 8-Port Gigabit Desktop Network Switch

TP-LINK  |  SKU: TL-SG1008D  |  Condition: Brand New  |  Barcode: 1210002616652
£27.99
£23.33 excluding VAT @20%
iFrame
8-Port Gigabit Desktop Switch, 8 x Gigabit Ethernet, Green Ethernet, 4.6W, 15KB Jumbo, 8K Mac, 2Mb Buffer, Black

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
Power connector DC-in jack
Network
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported Cat3, Cat4, Cat5, Cat5e
Full duplex Yes
Ethernet LAN data rates 10,100,480,800,1000 Mbit/s
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15000
Packet forwarding rate (10 Mbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (1 Gbps) 14880 pps
Packet buffer memory 2 MB
Design
Rack mounting No
Stackable No
Product colour Black
Housing material Plastic
LED indicators Yes
Wall mountable Yes
Certification CE, FCC, RoHS
Performance
Maximum cable length 100 m
Fanless Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power
Power source DC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
DC input voltage 9 V
Input current 0.6 A
Power consumption (typical) 4.63 W
Power consumption (max) 3.53 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation 15.8 BTU/h
Weight & dimensions
Width 180 mm
Depth 90 mm
Height 25.5 mm
Sustainability
Sustainability compliance Yes
Packaging data
Cables included AC
AC adapter included Yes
Package type Box
User guide Yes
Package width 110 mm
Package depth 185 mm
Package height 85 mm
Package weight 300 g
Logistics data
Harmonized System (HS) code 85176990
