TP-LINK  |  SKU: TL-SG3210  |  Condition: Brand New  |  Barcode: 6935364006402

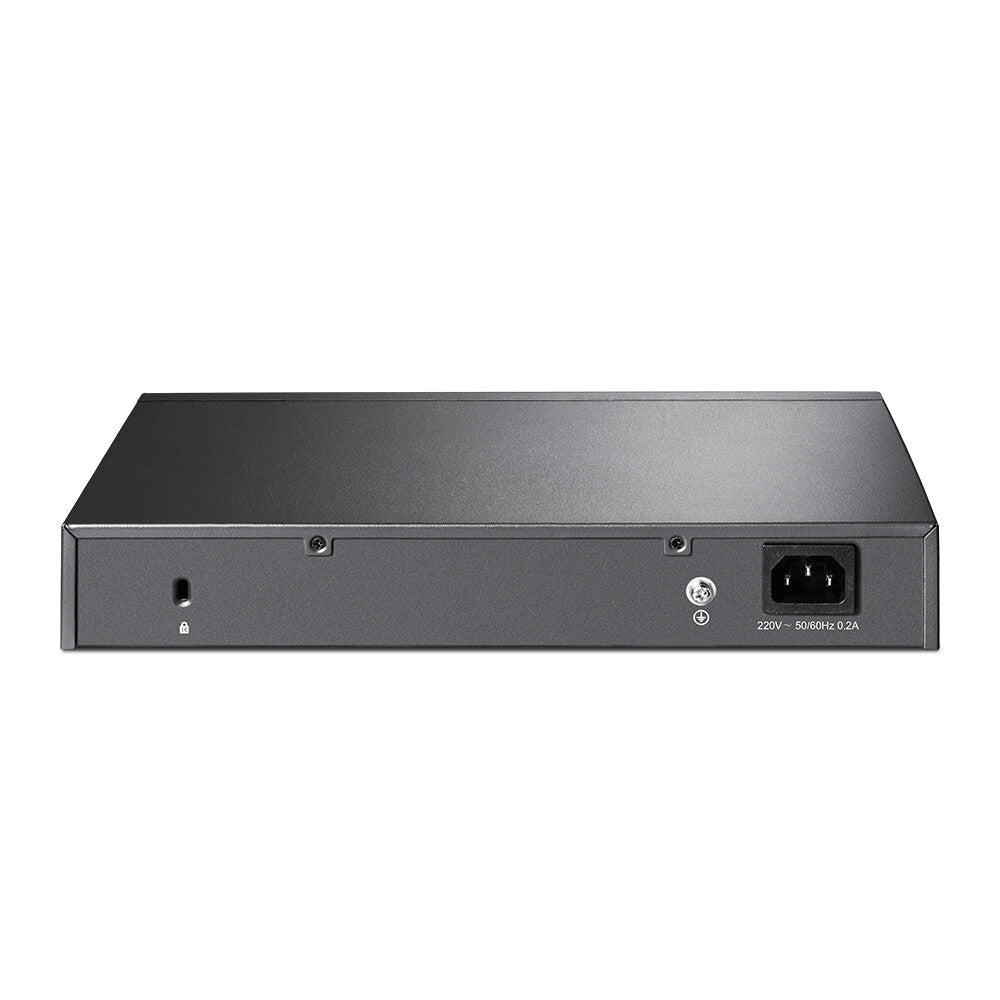

TP-Link JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

£110.99 £111.99
Excl VAT £92.49

Key Details:

  • Full Gigabit Ports: 8× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Static Routing: Helps route internal traffic for more efficient use of network resources
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
8× 10/100/1000 Mbps RJ45, 2× Gigabit SFP, 1× RJ45 Console, 1× Micro-USB, 20 Gbps, 14.89 Mpps, 294×180×44 mm

Convenient Gigabit Switch
for a Complete Omada Network
JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Management features
MIB support Yes
System event log Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
Console port RJ-45/micro-USB
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Number of VLANs 4000
Virtual LAN features Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
VLAN support Yes
IPv4 routes 48
IPv6 routes 48
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
IP routing Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 4.1 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of IP interfaces 16
Static route Yes
Store-and-forward Yes
Forwarding rate 14.9 Mpps
Switching capacity 20 Gbit/s
MAC address table 8000 entries
Security
MAC address filtering Yes
Static port security Yes
SSH/SSL support Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Authentication MAC-based authentication, Port-based authentication
Authentication type RADIUS
Loop protection Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast Listener Discovery (MLD) snooping Y
Multicast support Yes
Protocols
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
GARP VLAN Registration Protocol (GVRP) Yes
Management protocols SNMPv1/v2c/v3, SNTP
Design
LED indicators Yes
Product colour Black
Form factor 1U
Rack mounting Yes
General
Product family JetStream
Performance
Minimum system requirements Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Fanless Yes
Firmware upgradeable Yes
Power
Power consumption (max) 6.84 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 44 mm
Depth 180 mm
Width 294 mm
Packaging data
Package weight 1.9 kg
Package height 80 mm
Package depth 250 mm
Package width 400 mm
Rack mount kit Yes
Manual Yes
User guide Yes
Quick start guide Yes
Logistics data
Harmonized System (HS) code 85176990
