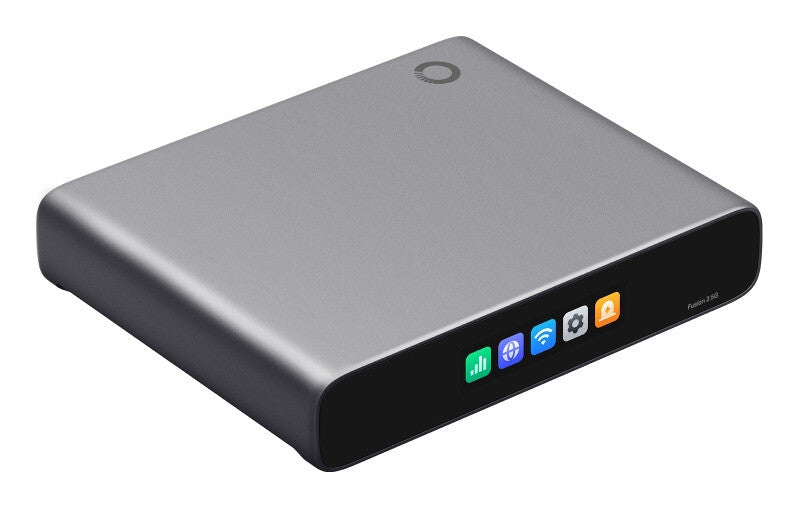

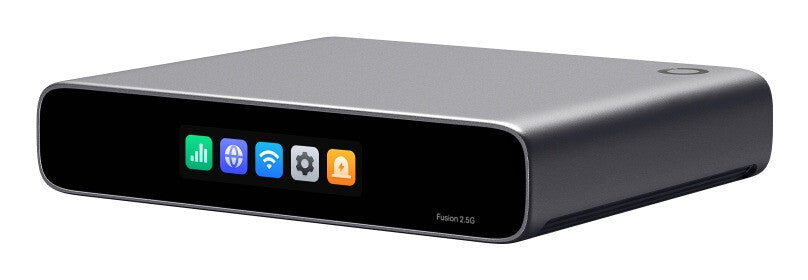

TP-Link Omada Fusion 2.5G gateway/controller 2500, 10, 100, 1000 Mb...
Fusion Gateway at the Center of the Omada Networking Ecosystem
Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem—ideal for single‑ and multi‑site small businesses.
Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion 2.5G via Bluetooth using the Omada App. Automatically discover and batch adopt all other Omada networking devices at once, saving time and simplifying IT deployment.
Quick Troubleshooting via Touchscreen,
Reducing On-Site Work

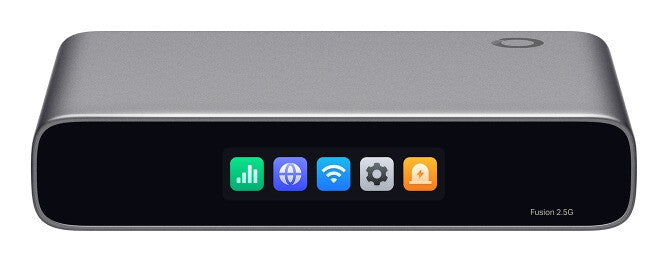

With an innovative 2.51-inch touchscreen, enjoy quick troubleshooting — all at your fingertips. Reduce on‑site work and save time with direct, on‑device monitoring.
Secure Remote Network Access, One Click Away
With Omada LightLink VPN, you can securely access your network from anywhere with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.
Advanced Software Capabilities for Secure and Intelligent Management
Simple Multi-Site Connectivity via Full Mesh SD-WAN
Connect up to 20 sites in minutes with direct inter-site links—simpler to deploy, smoother for multi-site networking.
App-Based Access Control
Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.
One-Click Auto QoS
Ensure critical traffic always gets priority, with one-click presets or full customization.
Content Filtering & Ad Blocking
Blocks unwanted sites and intrusive ads for a safer, cleaner experience.
| Design | |
|---|---|
| Product colour | Black, Grey |
| Enclosure material | Polycarbonate (PC) |
| Mounting type | Rack/Desktop/Wall |
| LED indicators | LAN |
| Performance | |
|---|---|
| Control display unit | Yes |
| Display type | LCM |
| Built-in processor | Yes |
| Number of processors installed | 1 |
| Internal memory type | DDR4 |
| Internal memory | 2048 MB |
| Data transmission | |
|---|---|
| Static route | Yes |
| Protocols | |
|---|---|
| DMZ support | Yes |
| DHCP server | Yes |
| Network | |
|---|---|
| Ethernet LAN data rates | 2500,10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1x |
| Dynamic DNS (DDNS) | Yes |
| VPN support | Omada LightLink VPN, WireGuard VPN, OpenVPN, IPsec VPN, SSL VPN, L2TP VPN, PPTP VPN |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | SNMP, SNMPv2c, SNMPv3 |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
| VLAN support | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |

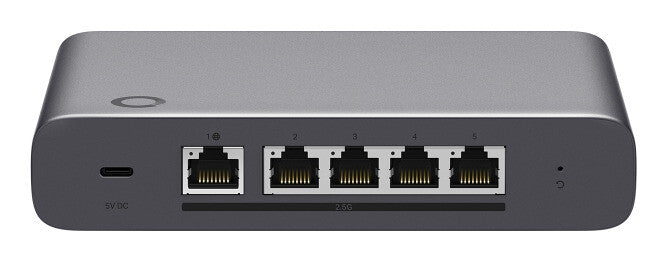

| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Power | |
|---|---|
| Power consumption (max) | 8.18 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Output voltage | 5 V |
| Output current | 3 A |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| Weight & dimensions | |
|---|---|
| Height | 31.5 mm |
| Depth | 130 mm |
| Width | 160 mm |
| Weight | 510 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| General | |
|---|---|
| Product family | Omada |
| Display | |
|---|---|
| Display diagonal | 6.38 cm (2.51") |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
-
