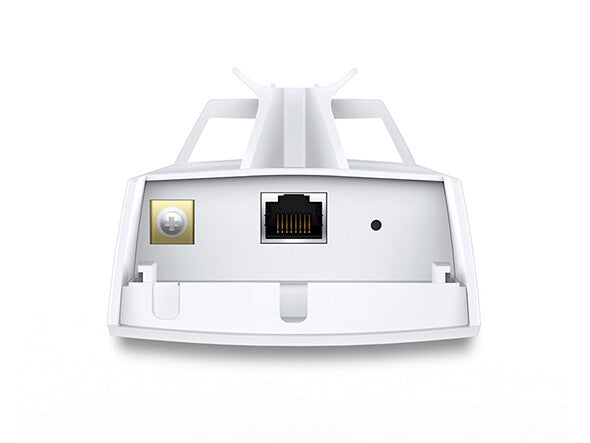

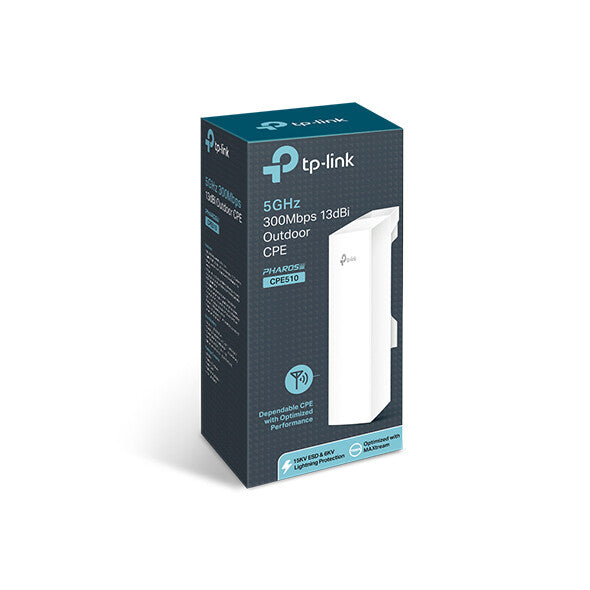

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Key Details:
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
TP-Link CPE510 wireless access point 300 Mbit/s White Power over Et...
Description
Description
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
| Features | |
|---|---|
| Receiver sensitivity | 802.11a:54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm802.11n:MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Maximum outdoor range | 15000 m |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Bandwidth | 5 GHz |
| Frequency band | 5.15 - 5.85 GHz |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Security | |
|---|---|
| MAC address filtering | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols | |
|---|---|
| Management protocols | TDMA |
| Management features | |
|---|---|
| Management platform | Pharos Control |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 13 W |
| Input current | 0.8 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Internal | No |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-markRoHS |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | White |
| Antenna | |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Antennas quantity | 1 |
| Antenna features | Integrated antenna |
| Performance | |
|---|---|
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Built-in processor | Yes |
| Weight & dimensions | |
|---|---|
| Height | 60 mm |
| Depth | 75 mm |
| Width | 224 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
