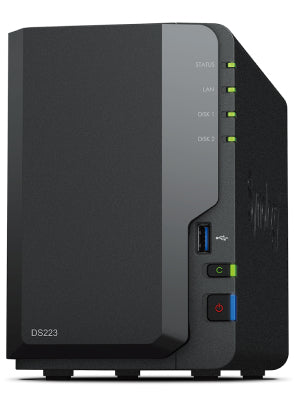

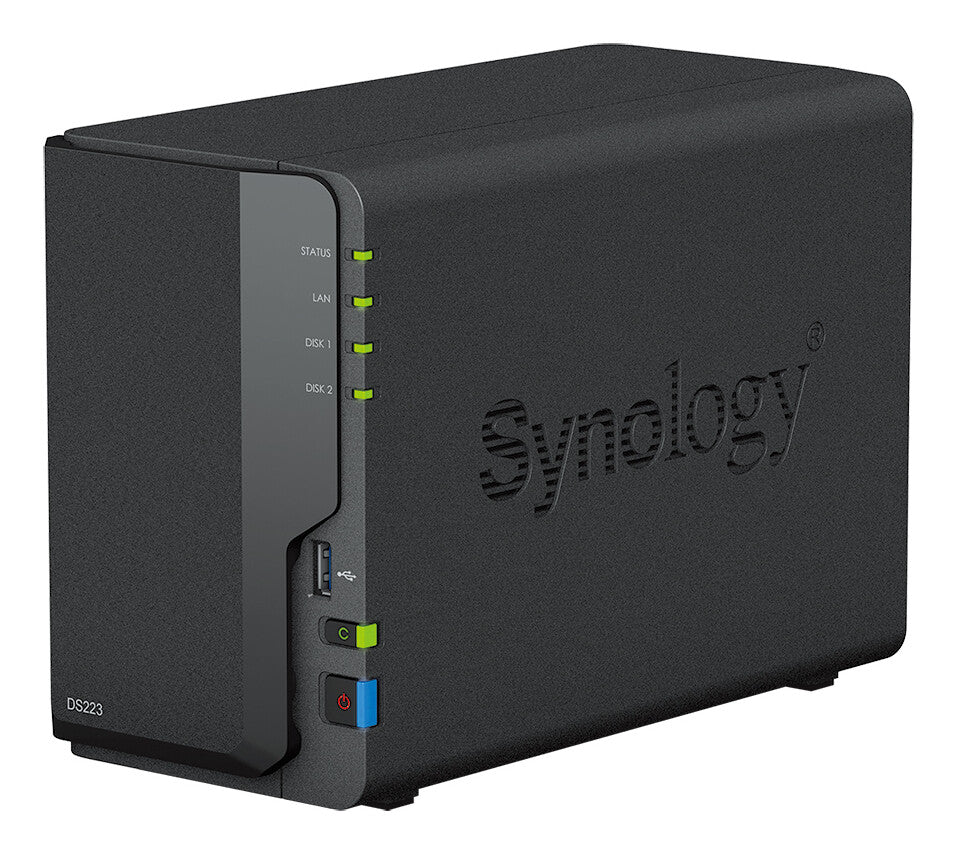

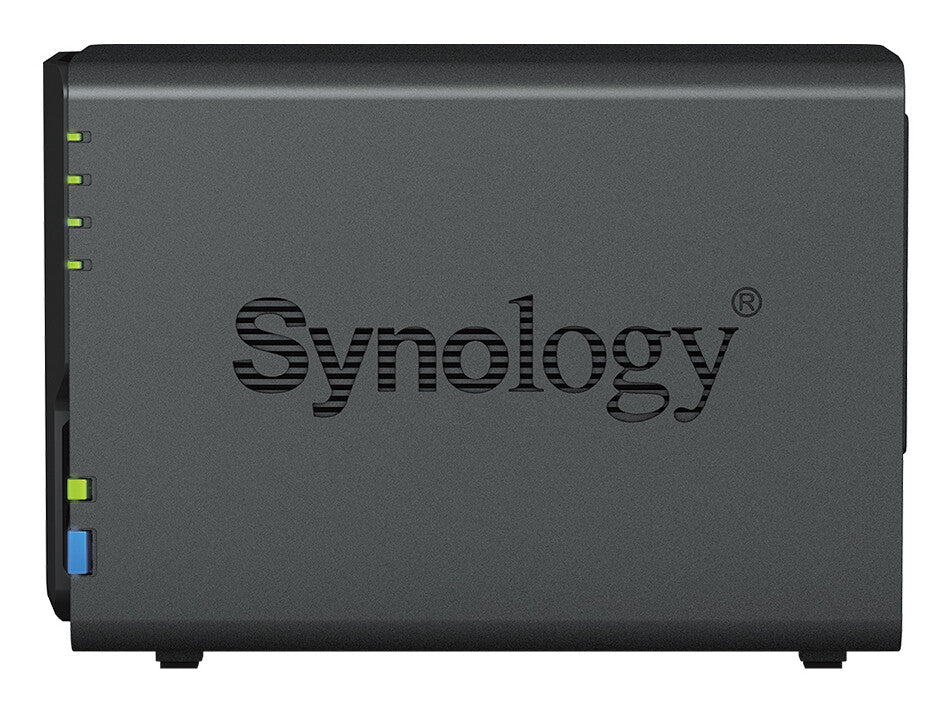

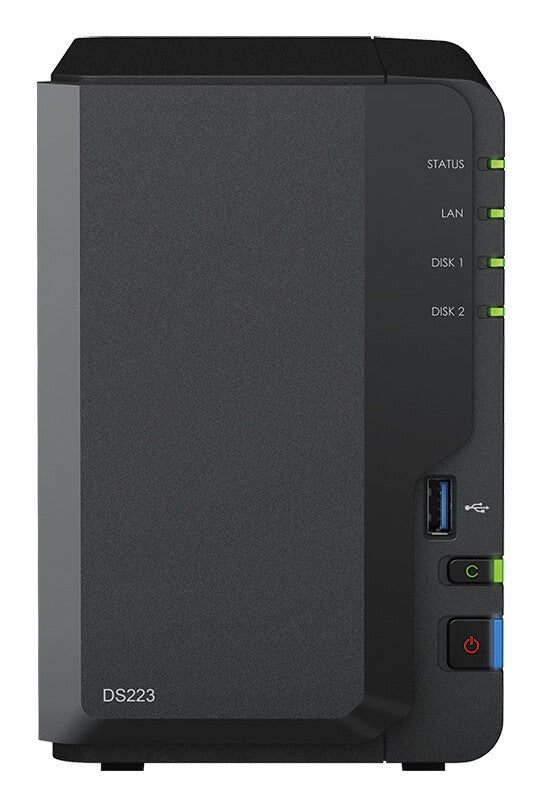

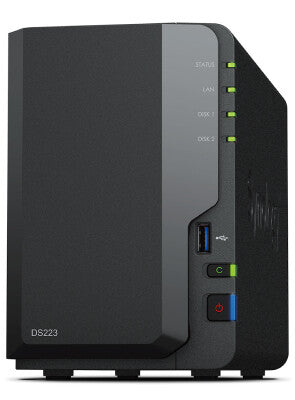

Synology DiskStation DS223 NAS/storage server Desktop Realtek RTD1619B 2 GB DDR4 0 TB
Synology DiskStation DS223 NAS/storage server Desktop Realtek RTD1619B 2 GB DDR4 0 TB is backordered and will ship as soon as it is back in stock.
Get your data under control
Consolidate files from various sources into your own private cloud. The DS223 keeps the process simple and offers everything you need to keep your data safe and organized.
Private cloud made easy
Quickly and easily import data from PCs, Macs, and external storage devices, and keep all your devices in sync for smoother file management.
Access from any device
Get to your files from PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Keep your data private or easily share it using secure links.
Save storage space
Enable on-demand mode to download files onto your Windows PC or Mac only when you access them. Pin the most important ones or the ones you access more frequently for convenient offline accessibility.
Integrate with the cloud
Sync files between your private cloud and public cloud services, including Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership.
Sync across locations
Say goodbye to long waits while downloading or uploading files. Continuously synchronize content between two Synology devices to enable fast local access at any location, no matter the amount of data.
Your data is in safe hands
Not all data storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers the DS223, leverages the efficient Btrfs file system to protect your data against data corruption and roll back any accidental or malicious changes thanks to the snapshot technology.
Versatile NAS for the modern home
Configure your DS223 to best suit your needs thanks to a host of complete solutions designed for every scenarios.
Data protection
Safeguard digital memories and important projects with intuitive backup tools.
Automatic media backup
Have photos and videos taken on mobile devices automatically uploaded to your private cloud with Synology Photos or Synology Drive.
Protection against cyberattacks
Leverage Synology Drive to protect data against ransomware attacks or accidental deletion with real-time or scheduled backups of your computer folders.
Wide compatibility
Connect up to 20 IP cameras by choosing from a wide selection of over 8,300 validated models or ONVIF devices.2
Universal access
Watch over your property the way your find most convenient. Watch camera streams through web browsers, desktop clients, or mobile apps. Get notified of events and take immediate action.
Protect your data platform
Add an extra layer of protection to your files with one of the built-in, license-free solutions available to back up your DS223.
Flexible backups
Back up your entire NAS, including system settings and applications, or select specific folders. Secure all backup data to multiple destinations.
Near-continuous protection
Take NAS protection to the next level by creating point-in-time copies of shared folders that can be replicated elsewhere and rapidly restored.
| Storage | |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 2 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA III |
| Storage drive size | 2.5/3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, JBOD |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4 |
| Processor | |
|---|---|
| Processor manufacturer | Realtek |
| Processor family | Realtek |
| Processor model | RTD1619B |
| Processor frequency | 1.7 GHz |
| Processor cores | 4 |
| Memory | |
|---|---|
| Internal memory type | DDR4 |
| Internal memory | 2 GB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Ports & interfaces | |
|---|---|

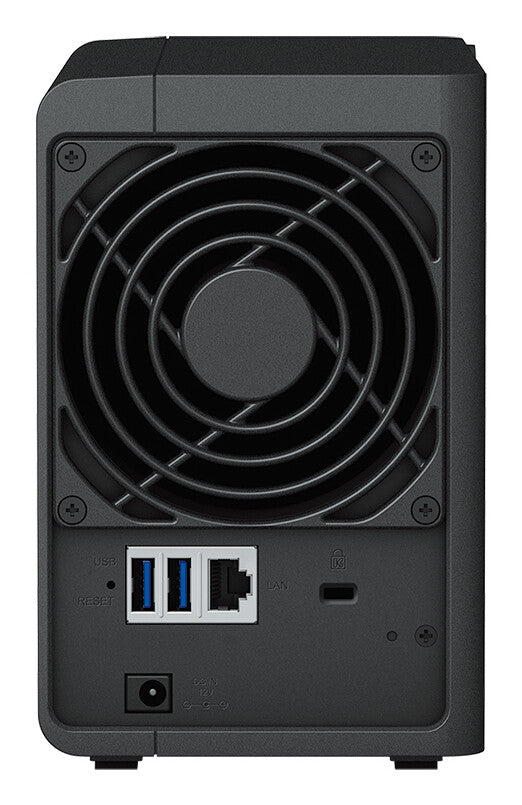

| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Design | |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan diameter | 9.2 cm |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Number of users | 1024 user(s) |
| Noise level | 14.6 dB |
| USB copy function | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari |
| On/off switch | Yes |
| Access Control List (ACL) | Yes |
| Power | |
|---|---|
| Power supply unit (PSU) capacity | 60 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| General | |
|---|---|
| Product family | DiskStation |
| Weight & dimensions | |
|---|---|
| Width | 108 mm |
| Depth | 232.7 mm |
| Height | 165 mm |
| Weight | 1.28 kg |
| Packaging content | |
|---|---|
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
-
