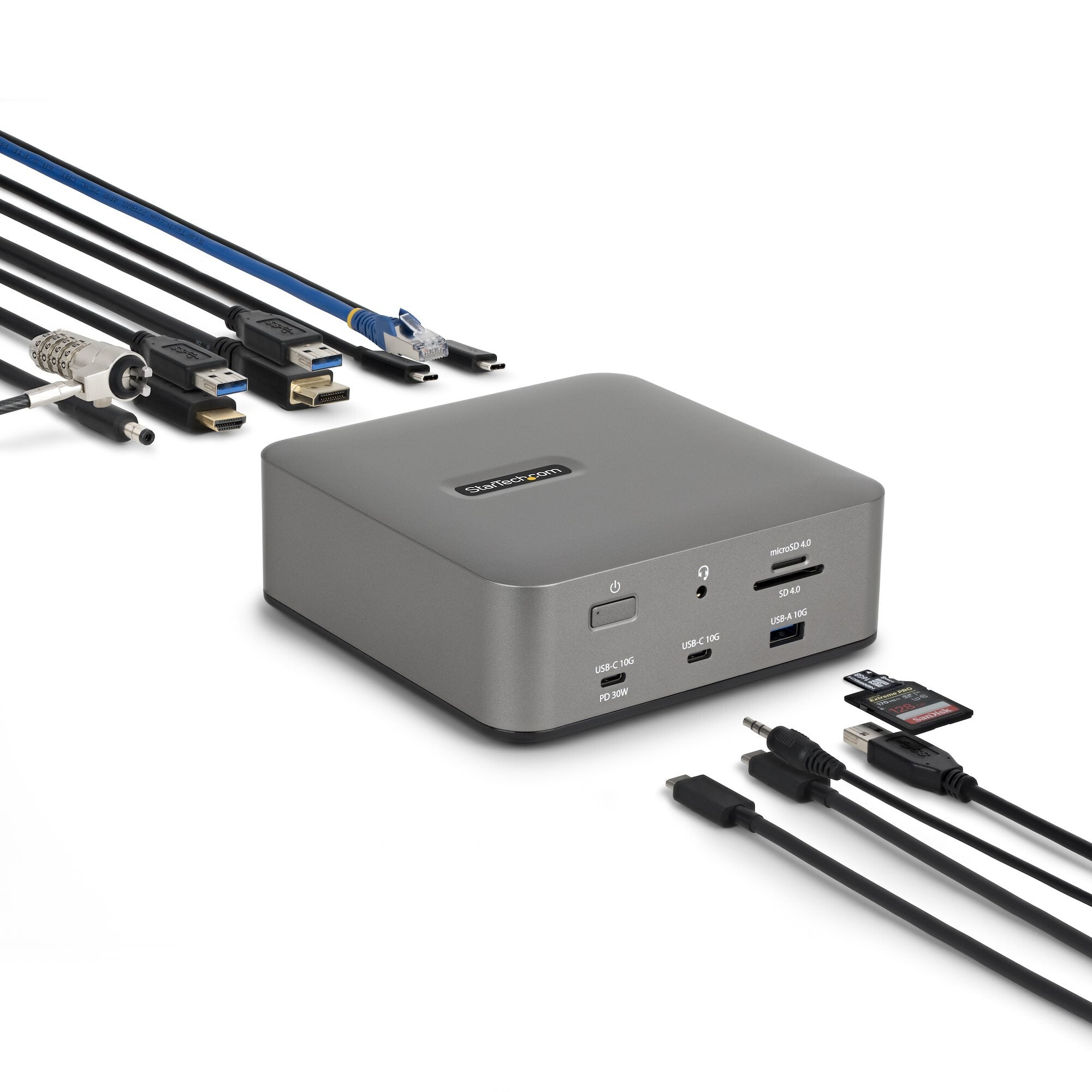

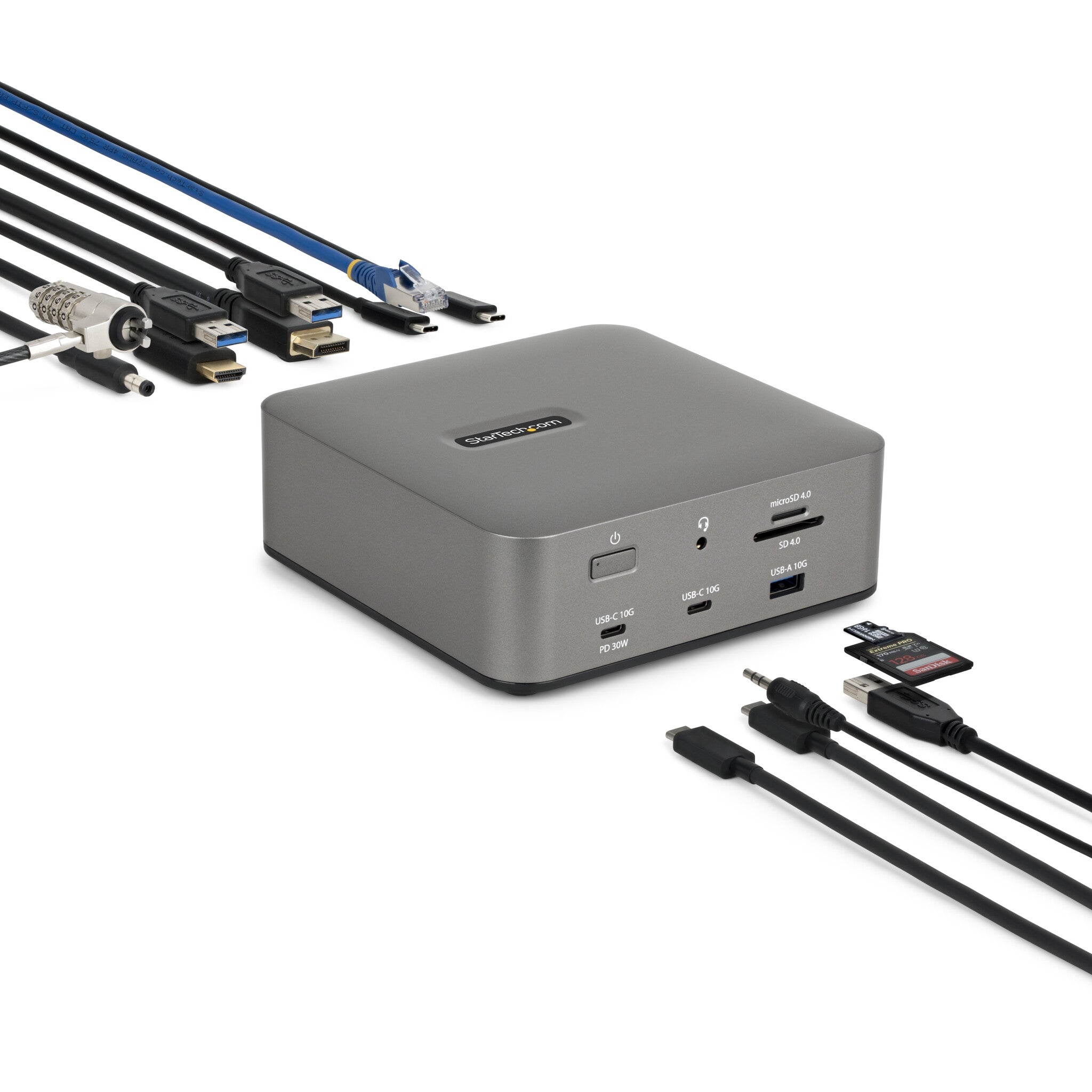

StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN
StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz or 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, 30W Phone Charging, USB 10Gbps, 2.5G LAN is backordered and will ship as soon as it is back in stock.
StarTech.com Thunderbolt 5 Universal Docking Station, Multi-Display...

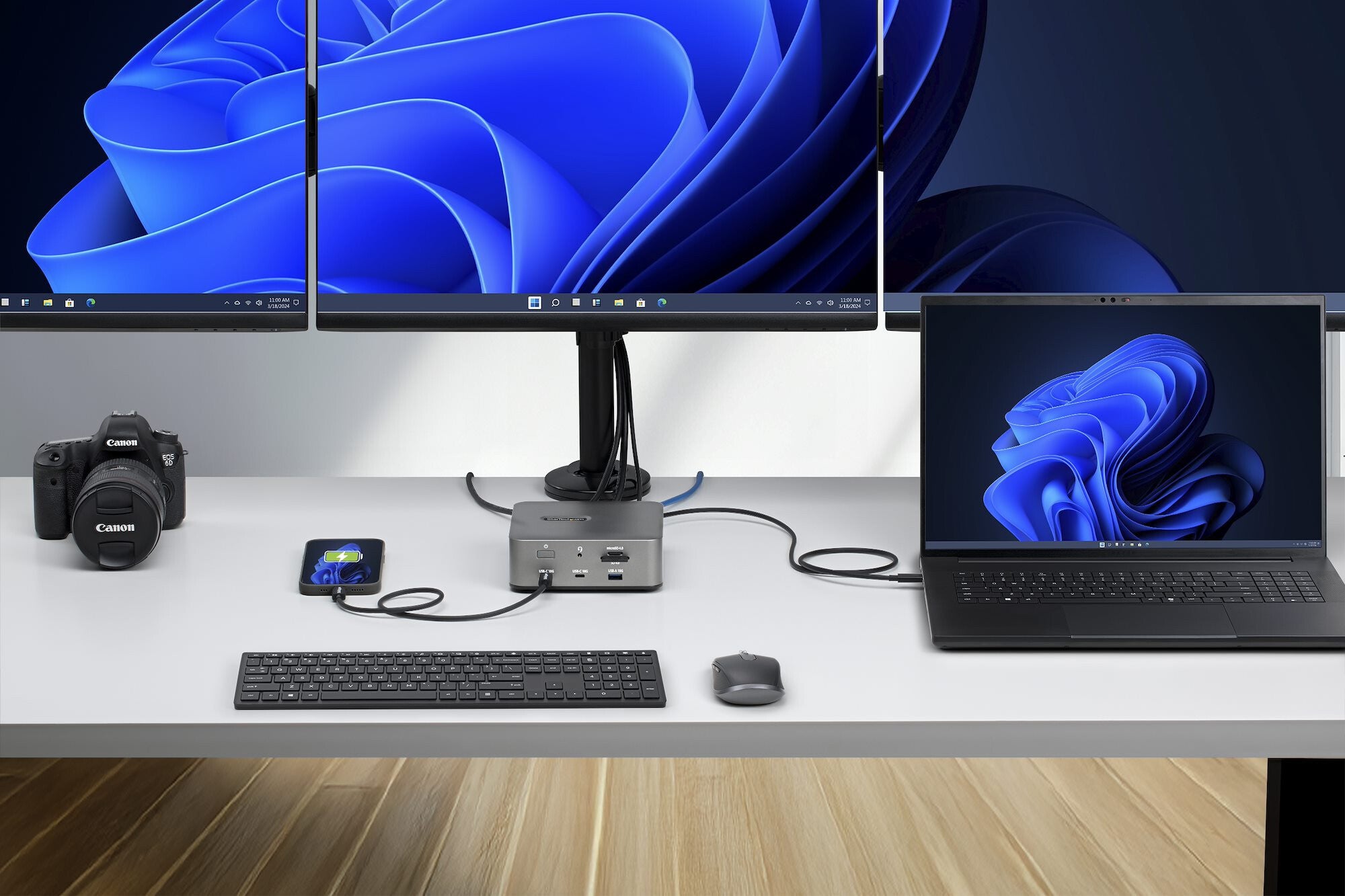

Transform your Thunderbolt 5 or USB4 laptop into a high-resolution, multi-monitor workstation

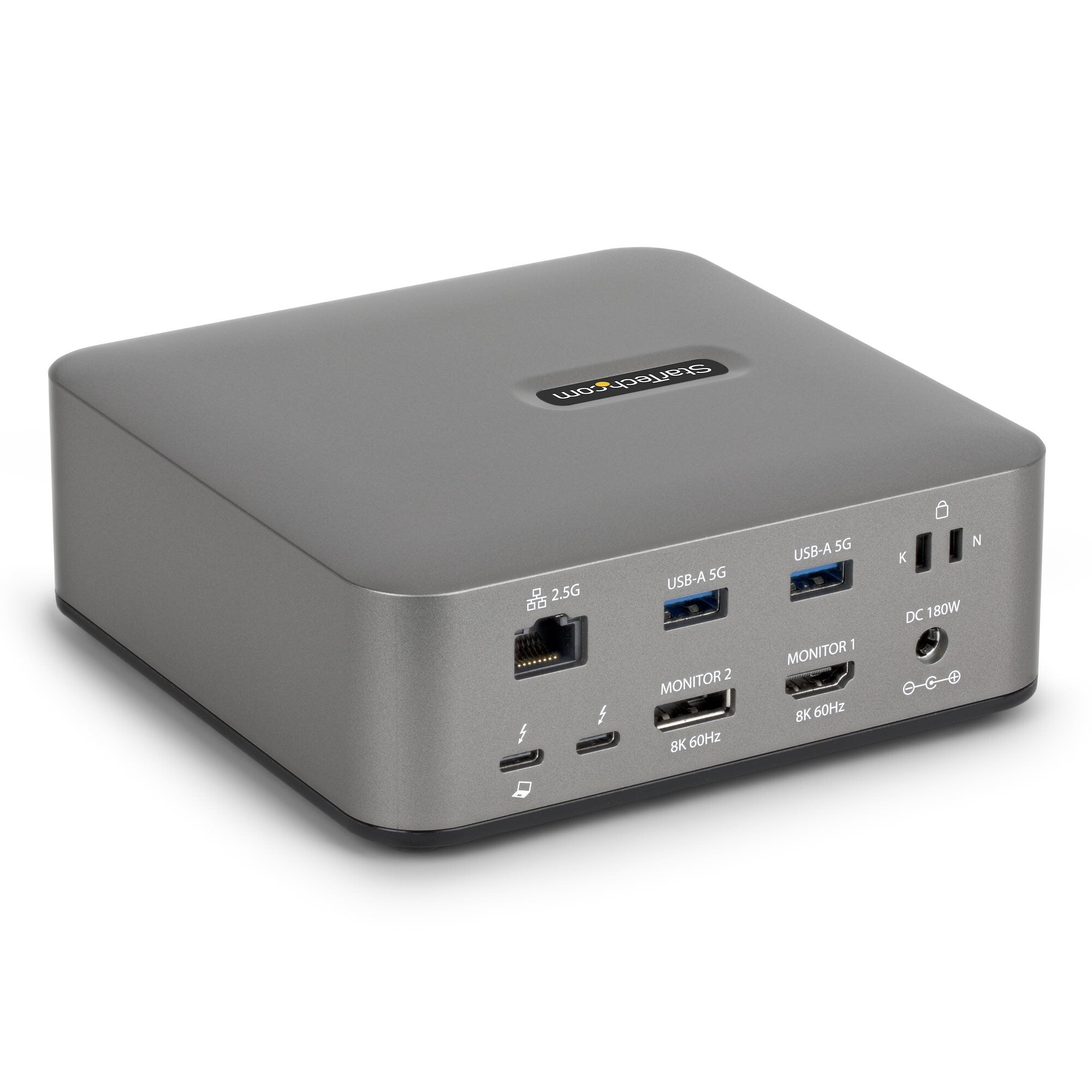

Simplify your workspace with a high-performance dock that supports Thunderbolt 5, Thunderbolt 4, and USB4 laptops. Supports multiple displays up to triple 4K displays, 140W laptop charging, and 2.5G Ethernet, all through a single connection.
Advanced Display and Charging Capabilities

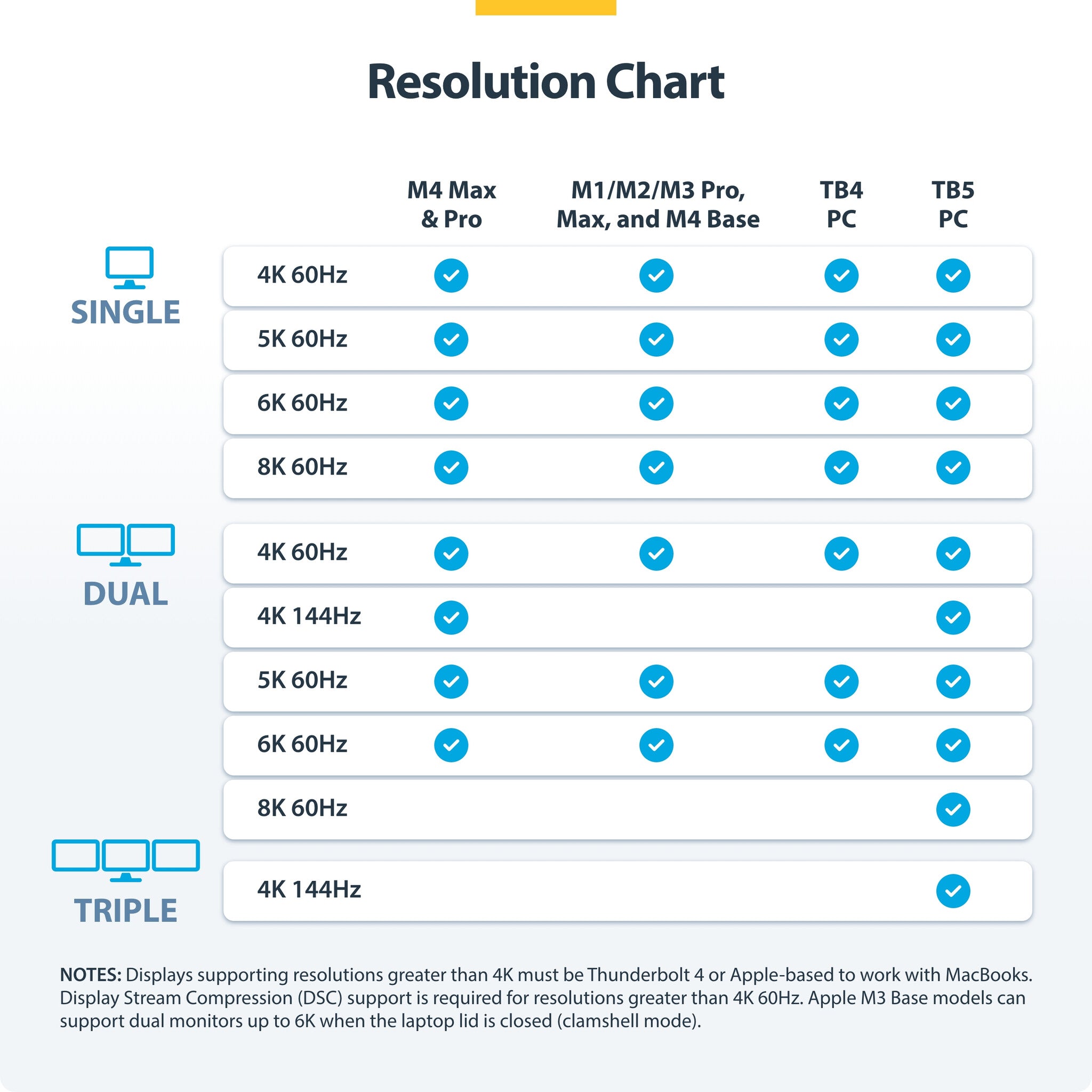

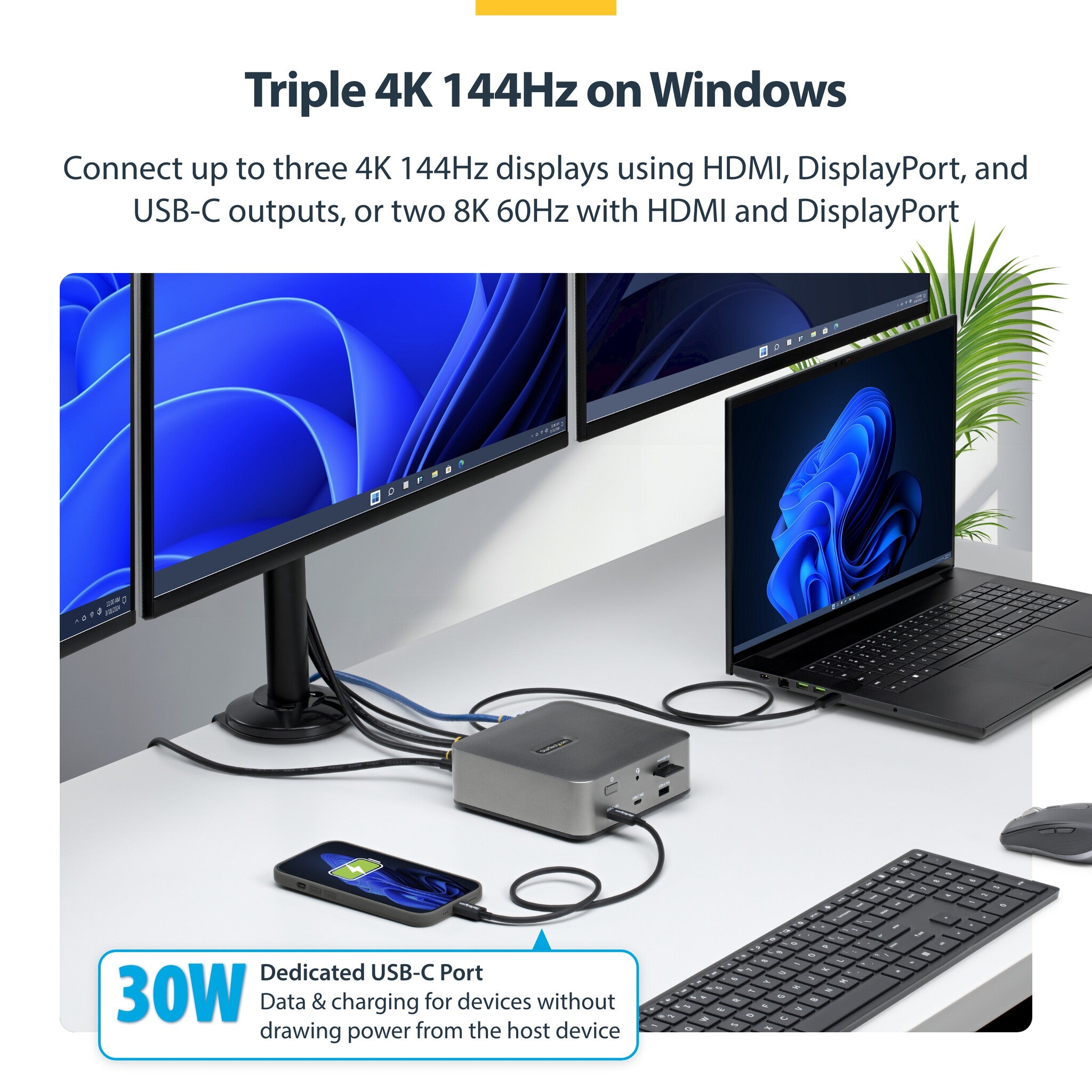

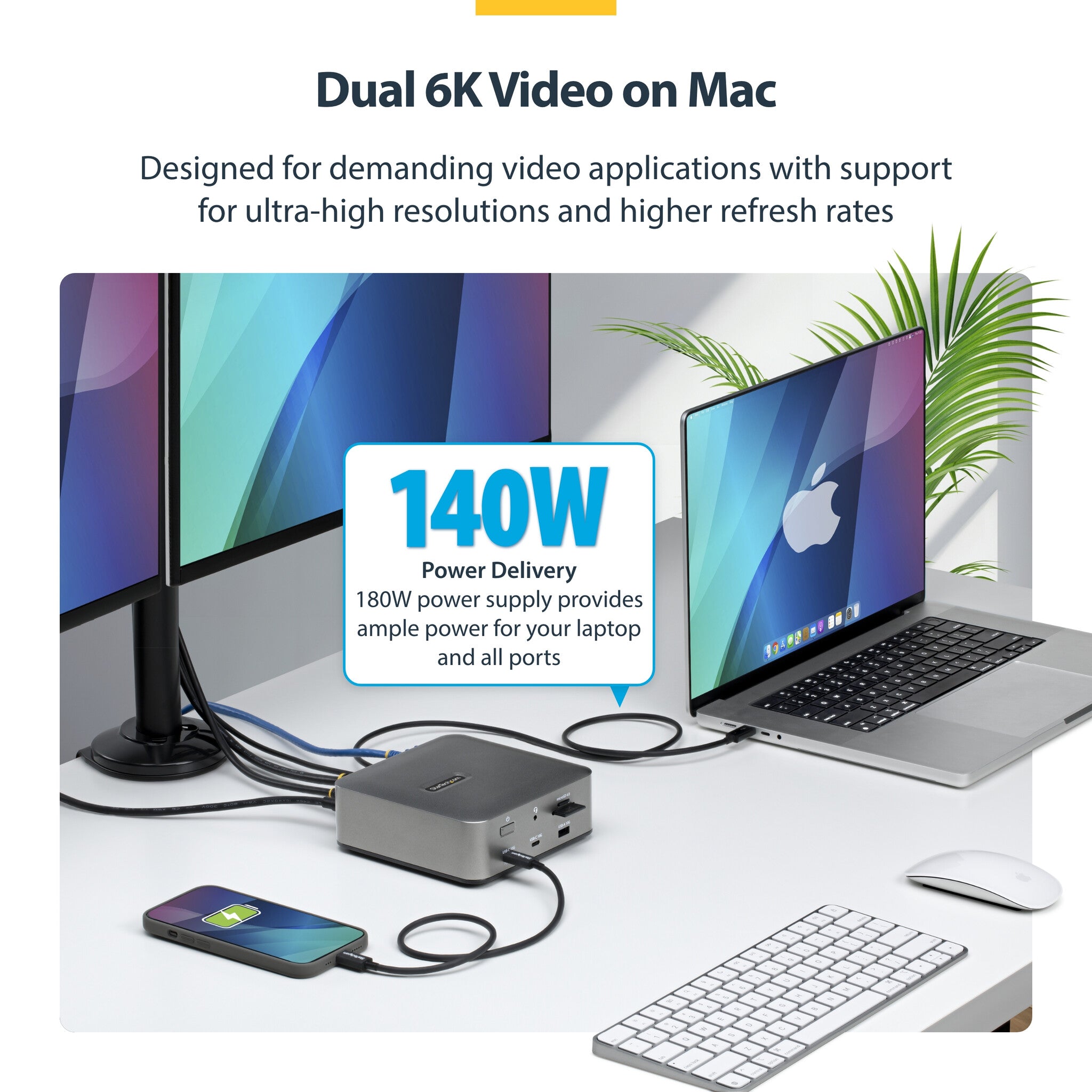

Connect up to three 4K 144Hz displays using a combination of HDMI, DisplayPort, and USB-C outputs or dual 8K 60Hz via HDMI and DisplayPort. The docking station includes an 180W power adapter that can supply up to 140W to charge high-performance laptops such as the MacBook Pro M4. A dedicated 30W USB-C port provides data connectivity and charging for phones or tablets without drawing power from the host computer.
Networking and Compatibility

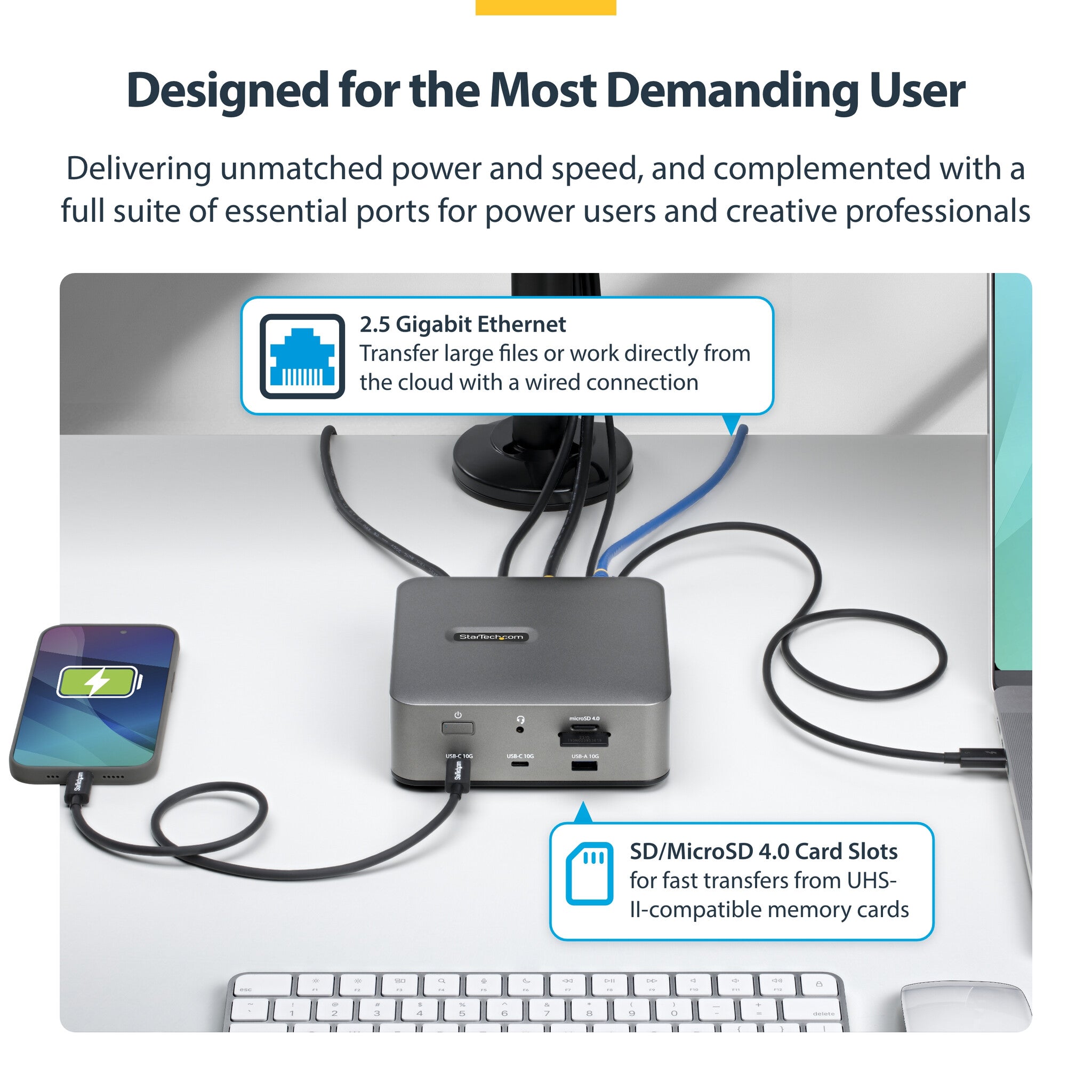

Enjoy faster cloud access, file transfers, and virtual collaboration with the wired 2.5G Ethernet RJ45 port. Driverless dock is compatible out of the box with Windows 11 and macOS 15 / 26 systems that feature Thunderbolt 5, 4, or USB4 connectivity, helping ensure IT-managed deployments stay efficient and consistent.
Secure and High-Functioning Workspace

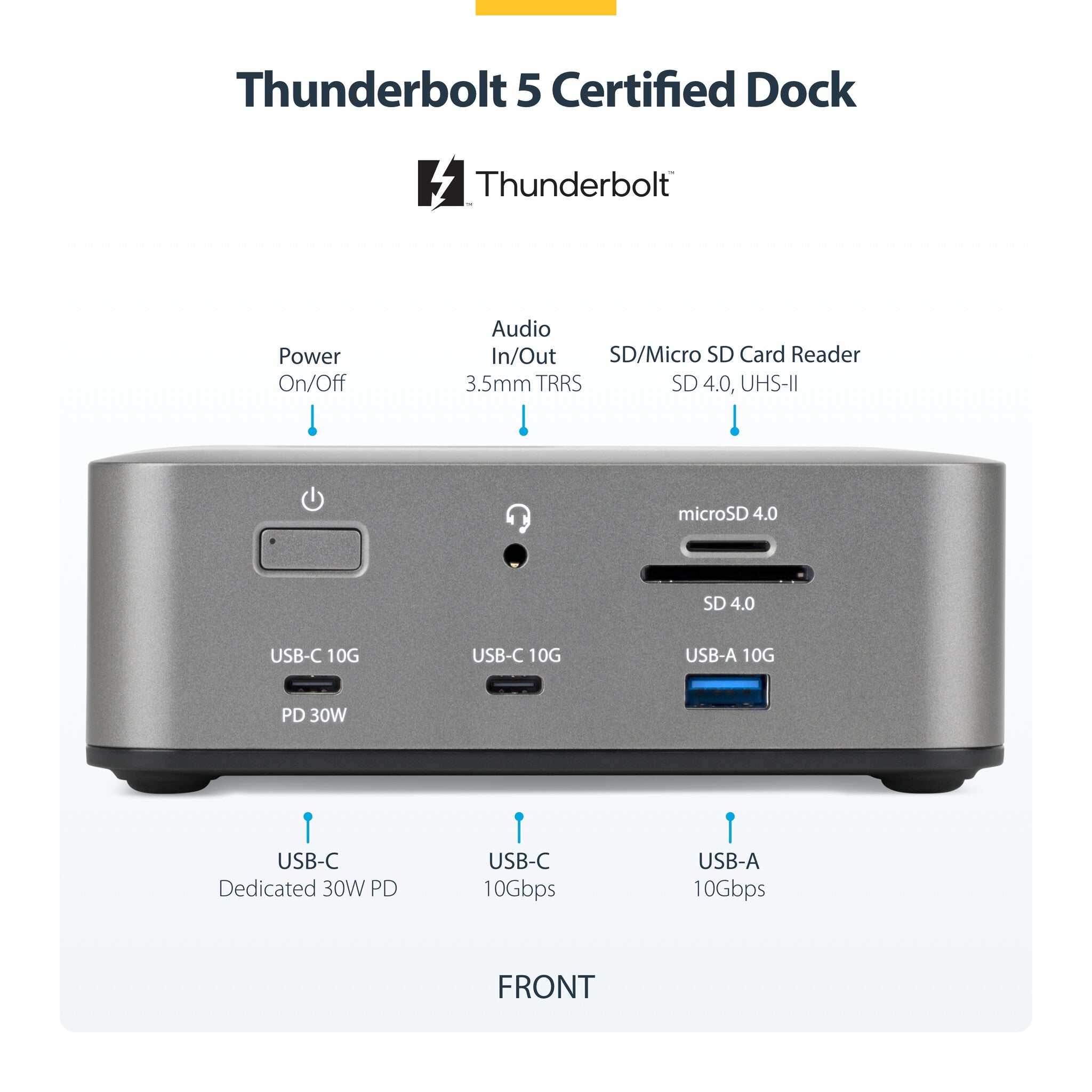

Dual security slots (K-Slot and Nano) let you physically secure the dock helping prevent theft in shared environments or high-traffic workspaces. This dock features built-in SD 4.0 and microSD 4.0 card slots for fast transfers from UHS-II-compatible memory cards. A 3.5mm audio jack supports headsets or speakers for seamless conferencing or media playback.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features such as MAC address pass-through, Wi-Fi auto-switch, and USB device monitoring, the software helps IT teams streamline deployment and enhance security across diverse setups.
Download the StarTech.com Connectivity Tools to optimize your device setup .

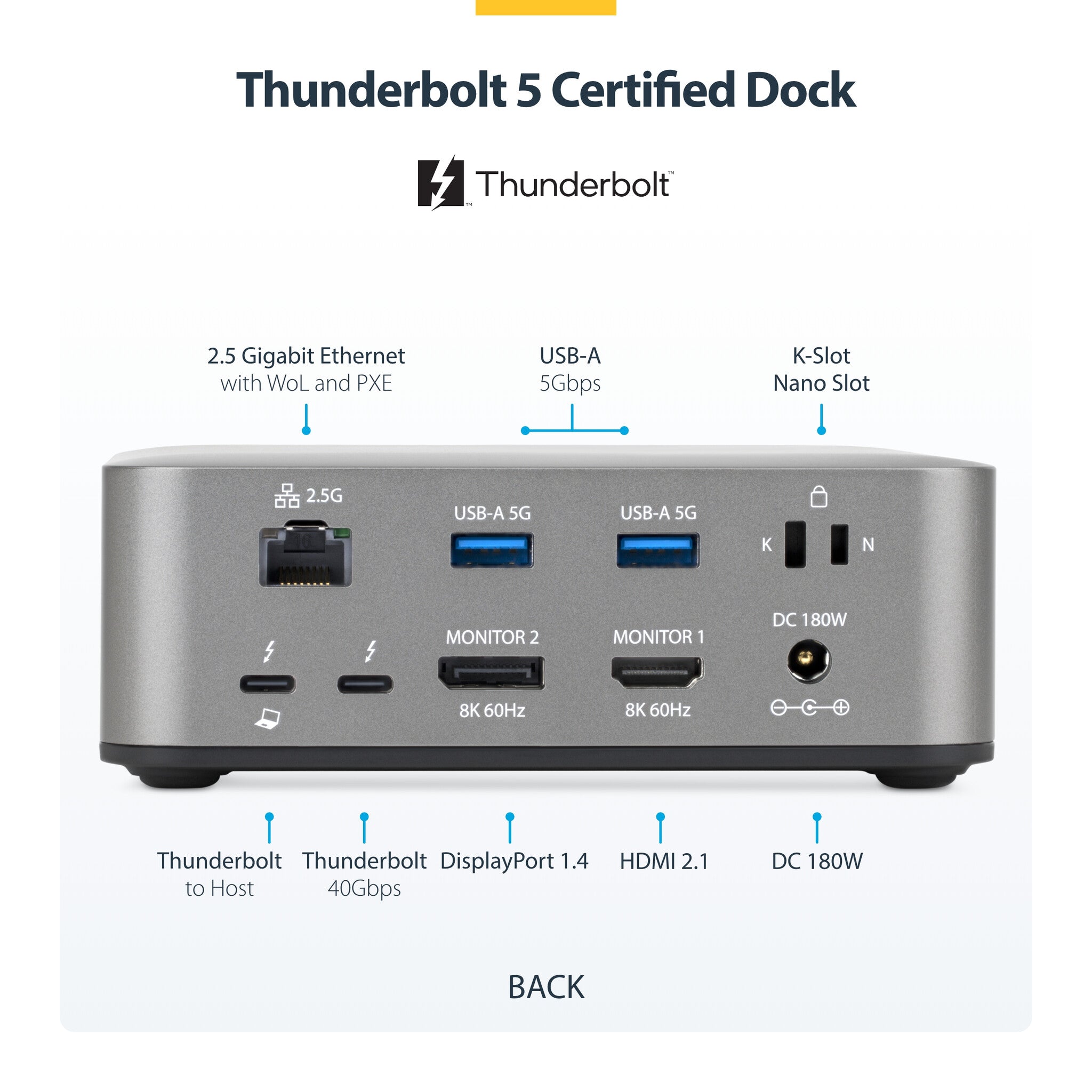

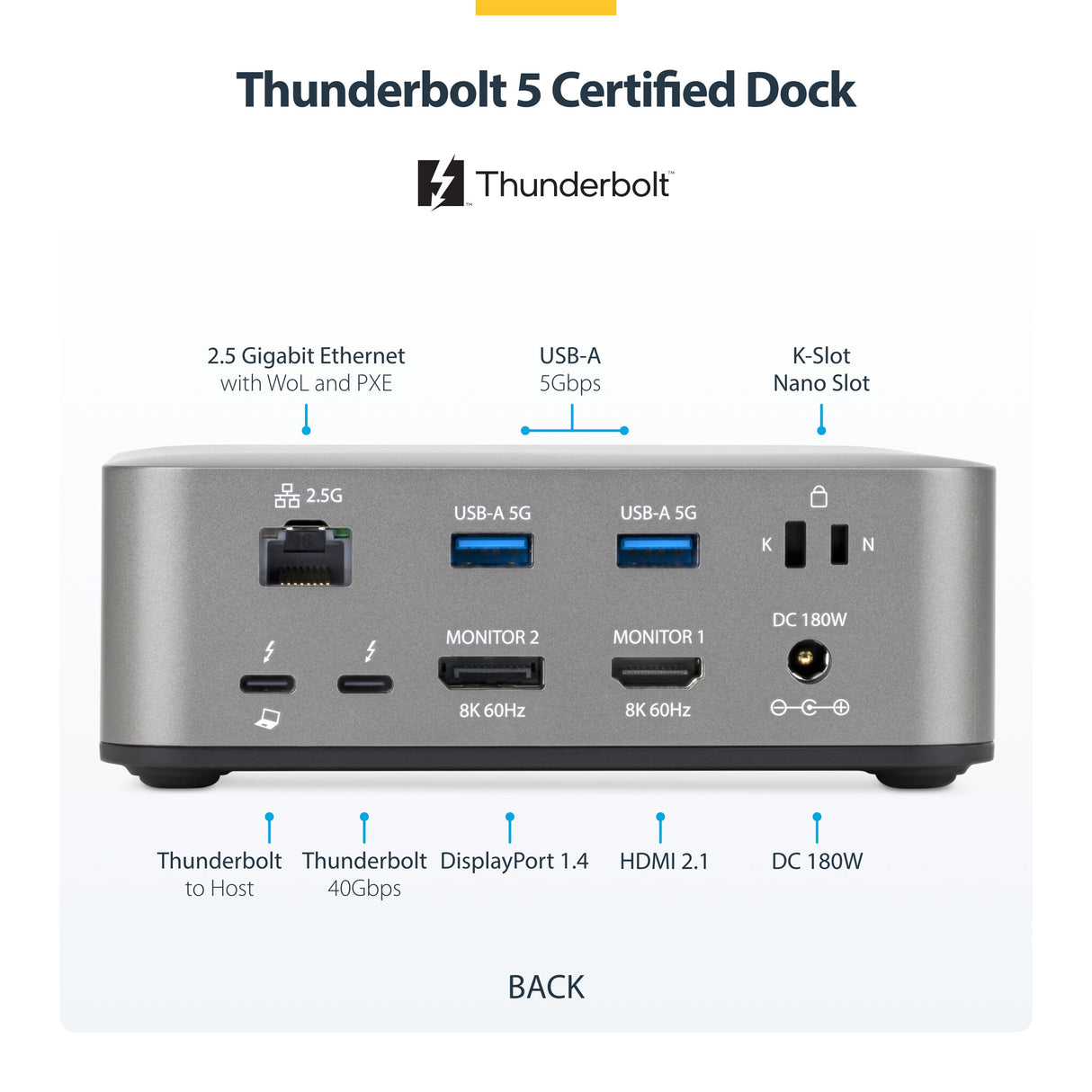

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 5 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3bz |
| Full duplex | Yes |
| Performance | |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 144 Hz |
| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| On/off switch | Yes |
| LED indicators | Yes |
| UASP support | Yes |
| Housing material | Plastic |
| Power | |
|---|---|
| Output current | 9 A |
| Output voltage | 20 V |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 50 mm |
| Weight | 592 g |
| Packaging data | |
|---|---|
| Package width | 302 mm |
| Package depth | 6.7 mm |
| Package height | 59 mm |
| Package weight | 1.8 kg |

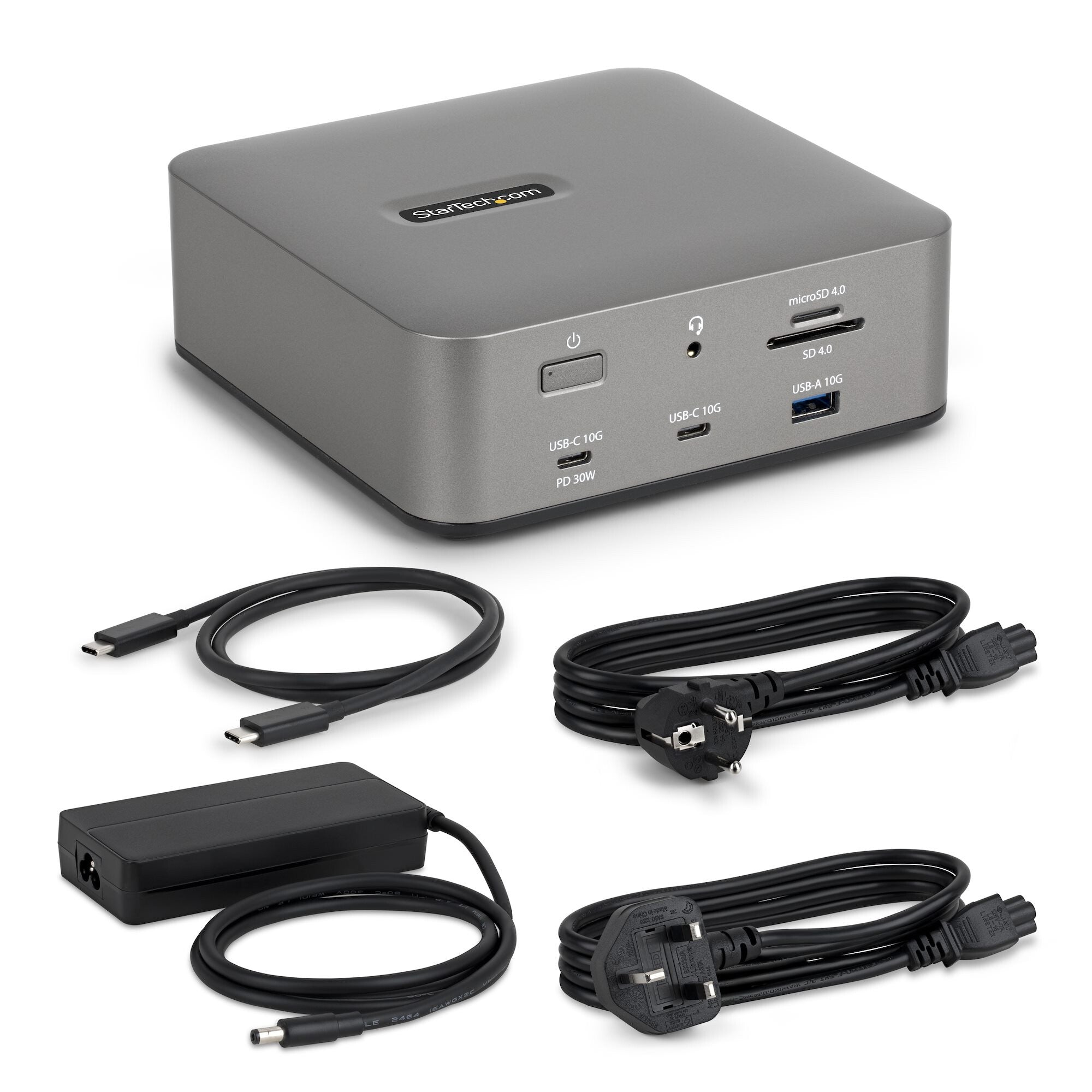

| Packaging content | |
|---|---|
| Cables included | Thunderbolt |
| User guide | Yes |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
|---|---|
| Master (outer) case height | 170 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case width | 360 mm |
| Products per master (outer) case | 5 pc(s) |
| Other features | |
|---|---|
| Chipset | Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U |
-
