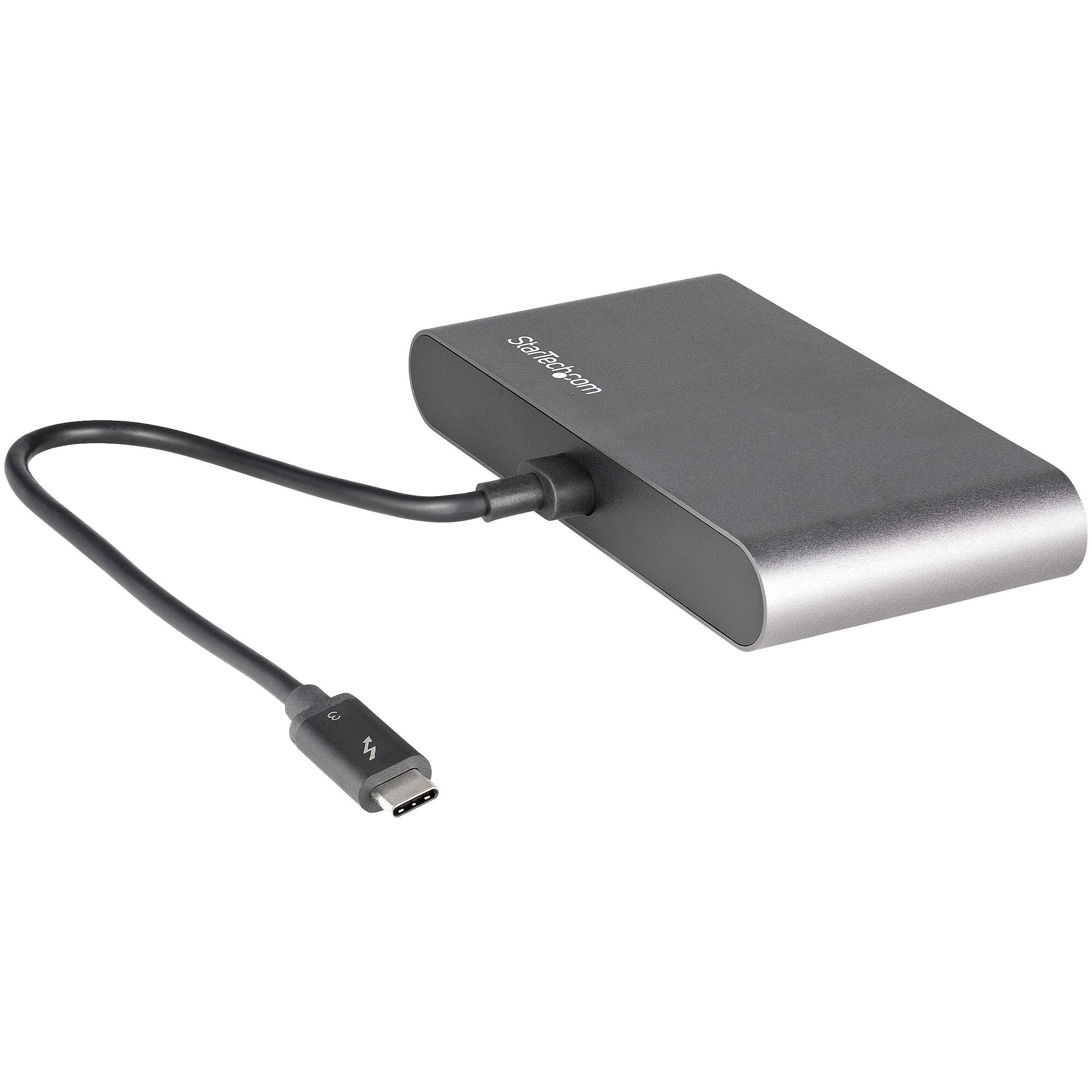

StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor Docking Station with DP 4K 60Hz, 1x USB-A Hub (USB 3.0/5 Gbps), GbE - 11in/28cm Cable - TB3 Multiport Adapter - Mac/Windows
Key Details:
- HIGH-PERFORMACNE THUNDERBOLT 3 CERTIFIED DOCK: Driverless setup for plug-and-play installation; Thunderbolt 3 (40 Gbps); Dual 4K 60Hz DisplayPort (DP) outputs; 1x USB 3.2 Gen 1 Type-A (5Gbps) port; Gigabit Ethernet port with PXE boot and WoL
- FOR HIGH-POWERED LAPTOPS: Dual 4K 60Hz video output with direct GPU performance and no software or compression; Ideal for high-performance laptops that need a direct power adapter connection, but require Thunderbolt 3 dock performance & functionality
- COMPATIBILITY: Mini dock is compatible with Windows, macOS & Ubuntu; Works with all Thunderbolt 3/4 laptops; Extended dual displays on Apple M1/M2/M3 Max & Pro MacBooks; Single Display on Apple M1/M2/M3 MacBooks & iPad Pro M1 and later
- EXTRA-LONG CABLE: Attached 11in (28cm) cable provides long reach for easy setup and prevents adapter from dangling on the host connector; Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor Dockin...
Description
Description
Laptop Docking Station | Mac & Windows® | Bus-Powered | 1x USB-A
This certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K DisplayPort displays, Gigabit Ethernet, and one USB-A (USB 3.2) port and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).

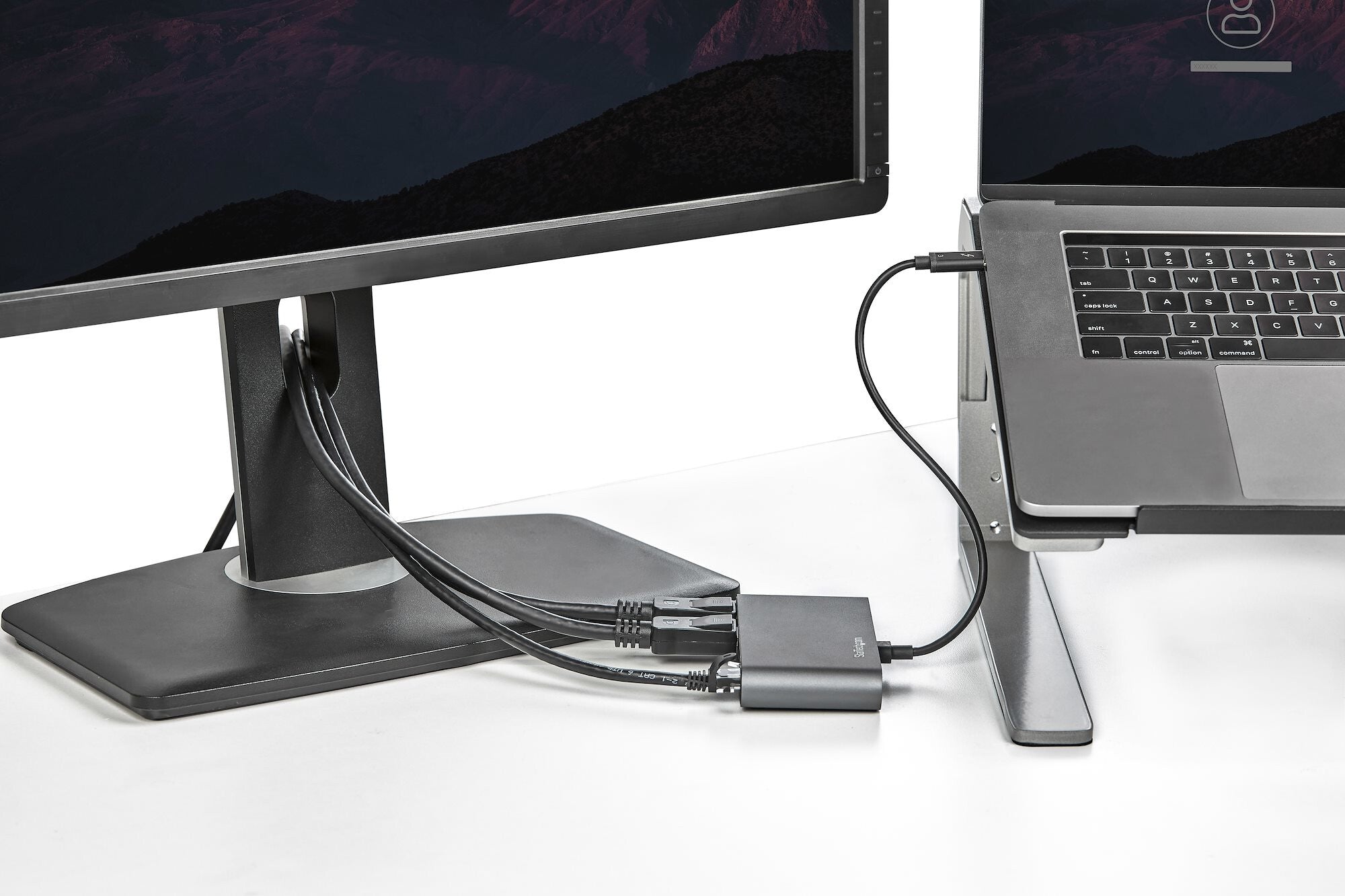

Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to DisplayPort dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual DisplayPort monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to:
• 2x 4K DisplayPort (DP) displays (up to 4096 x 2160p @ 60Hz)

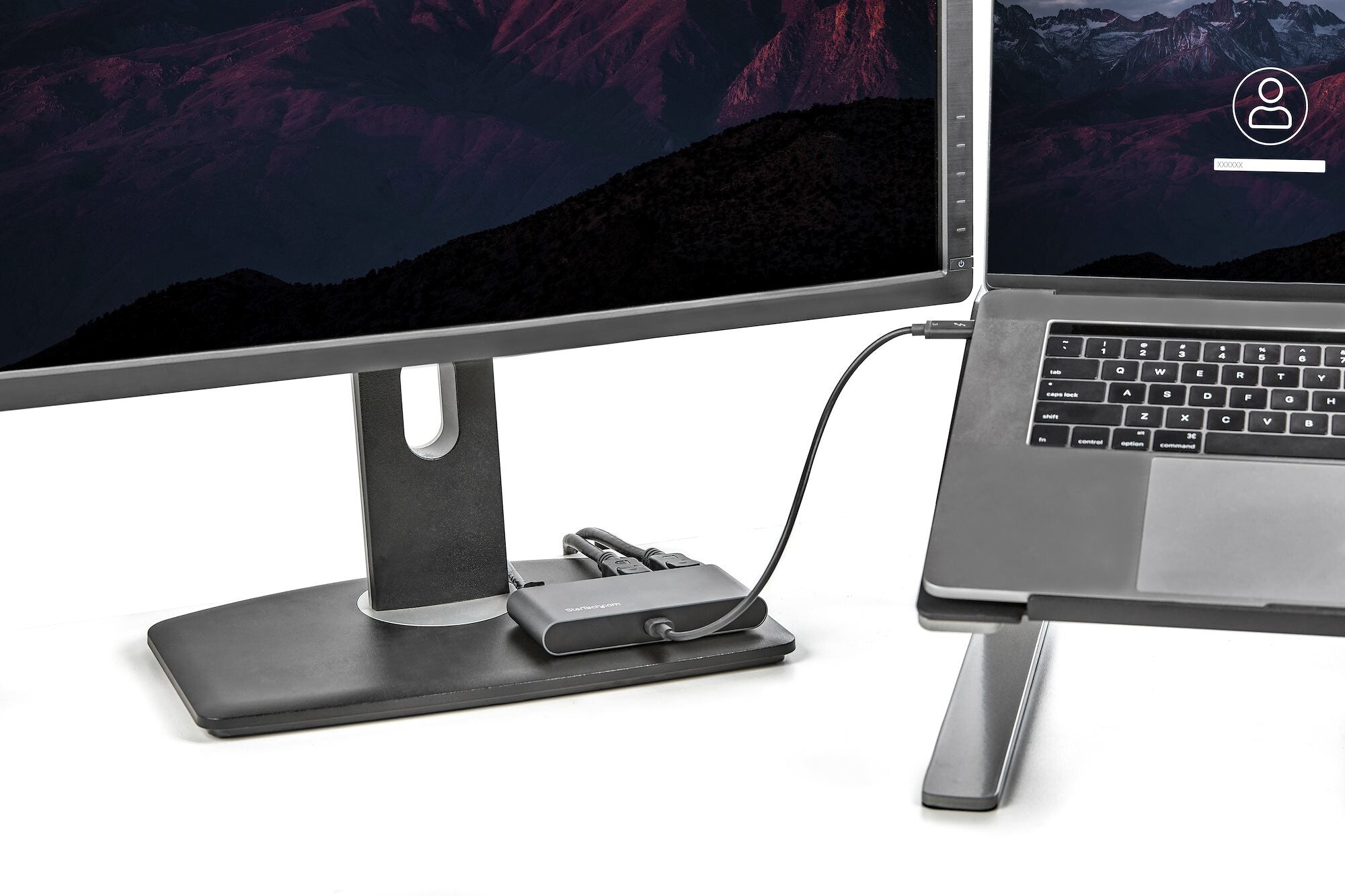

Compact Size & 11-Inch Attached Host Cable
At just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.

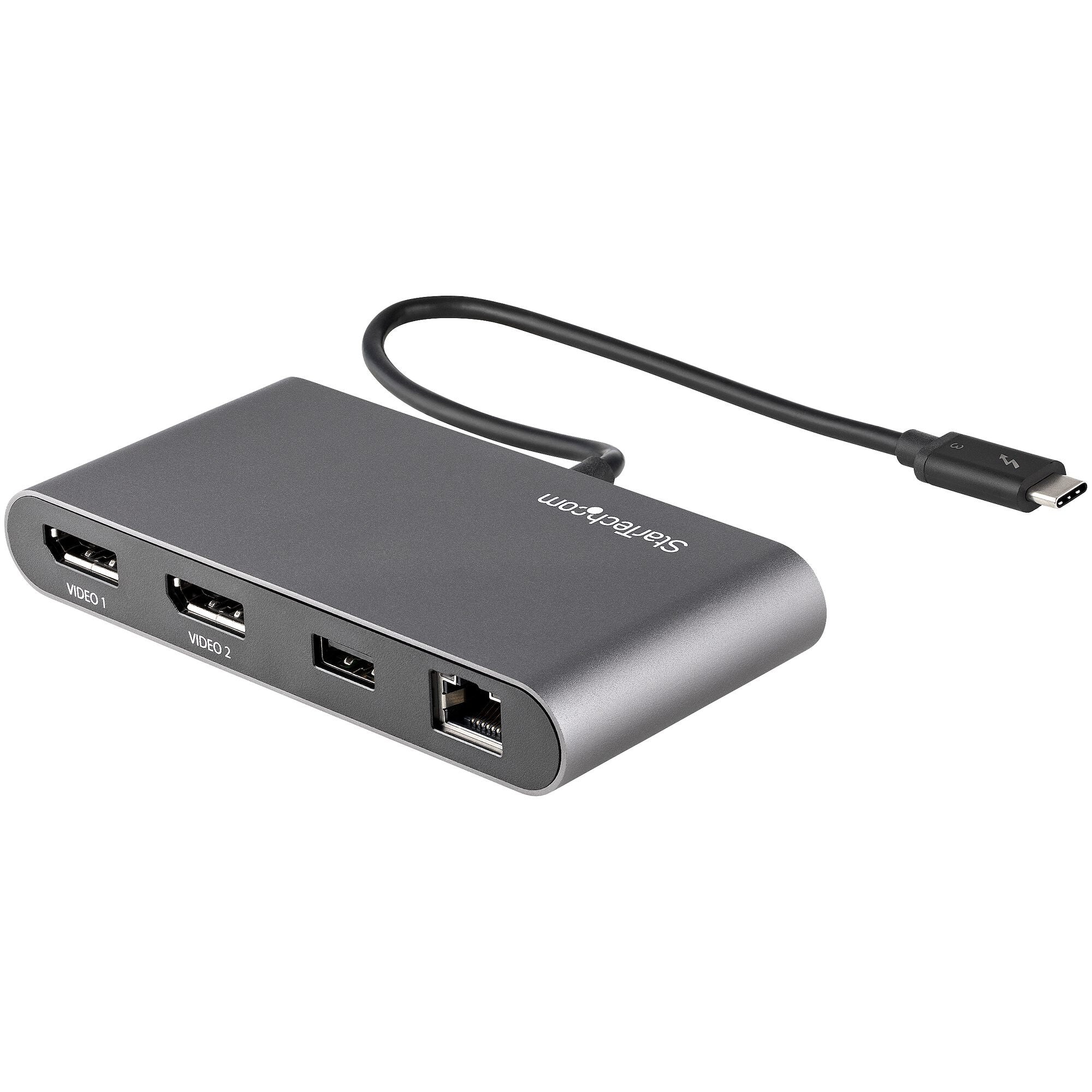

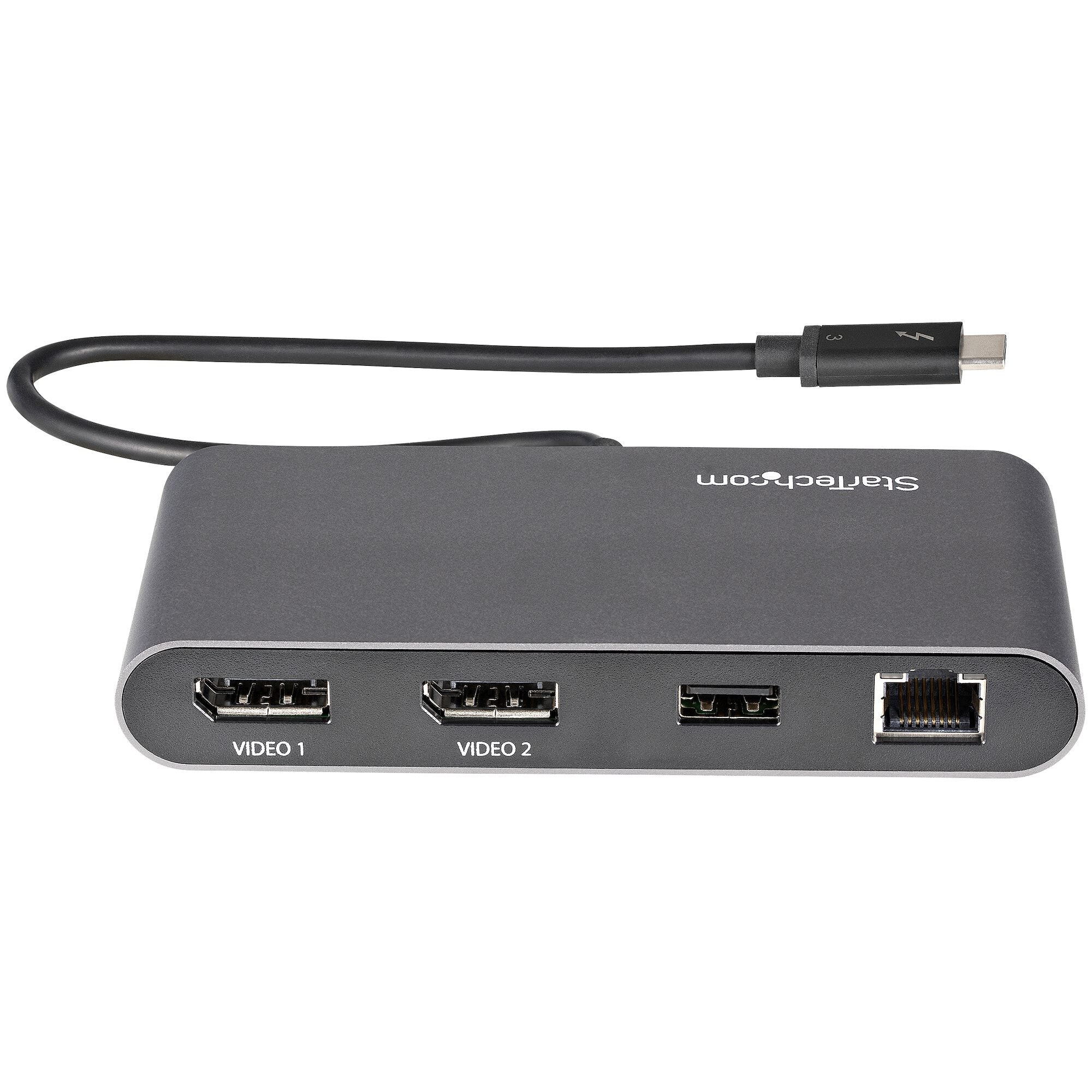

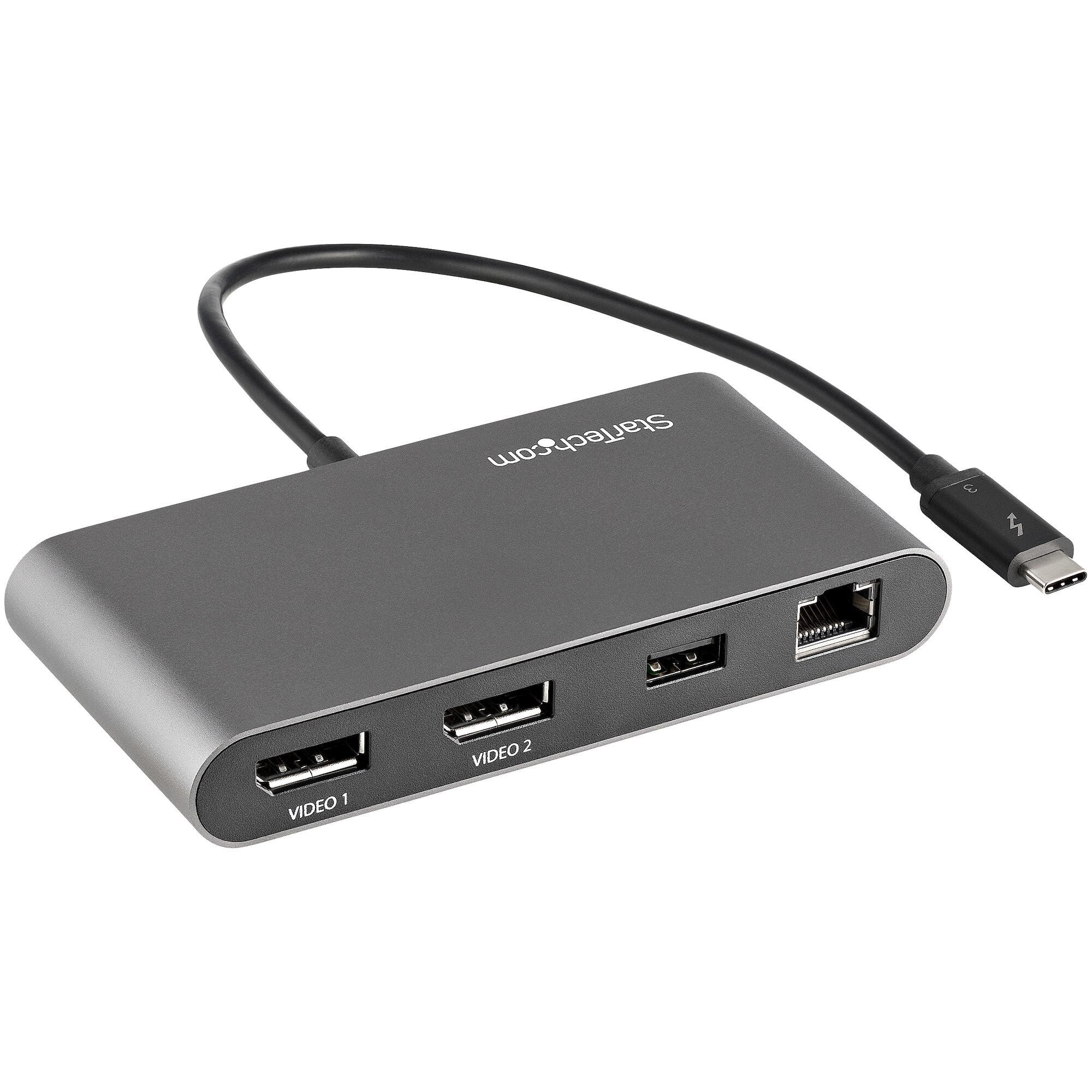

The Ports You Need Most
• 1x USB 3.2 Gen 1 Type-A port (5 Gbps)
• 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)
Ideal for Power-Demanding Workstation Setups
As many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.
This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged."
The TB3DKM2DPL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Microphone in | No |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Host interface | Thunderbolt 3 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Housing material | Aluminium, Plastic |
| Number of displays supported | 2 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Data transfer rate | 5 Gbit/s |
| Card reader integrated | No |
| Product colour | Grey |
| Software | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 147.8 g |
| Height | 27 mm |
| Depth | 124 mm |
| Width | 69 mm |
| Packaging data | |
|---|---|
| Package weight | 270 g |
| Package height | 37 mm |
| Package depth | 195 mm |
| Package width | 139 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 24 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 437 mm |
| Master (outer) case height | 270 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Cable length | 0.28 m |
| Chipset | Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210 |
