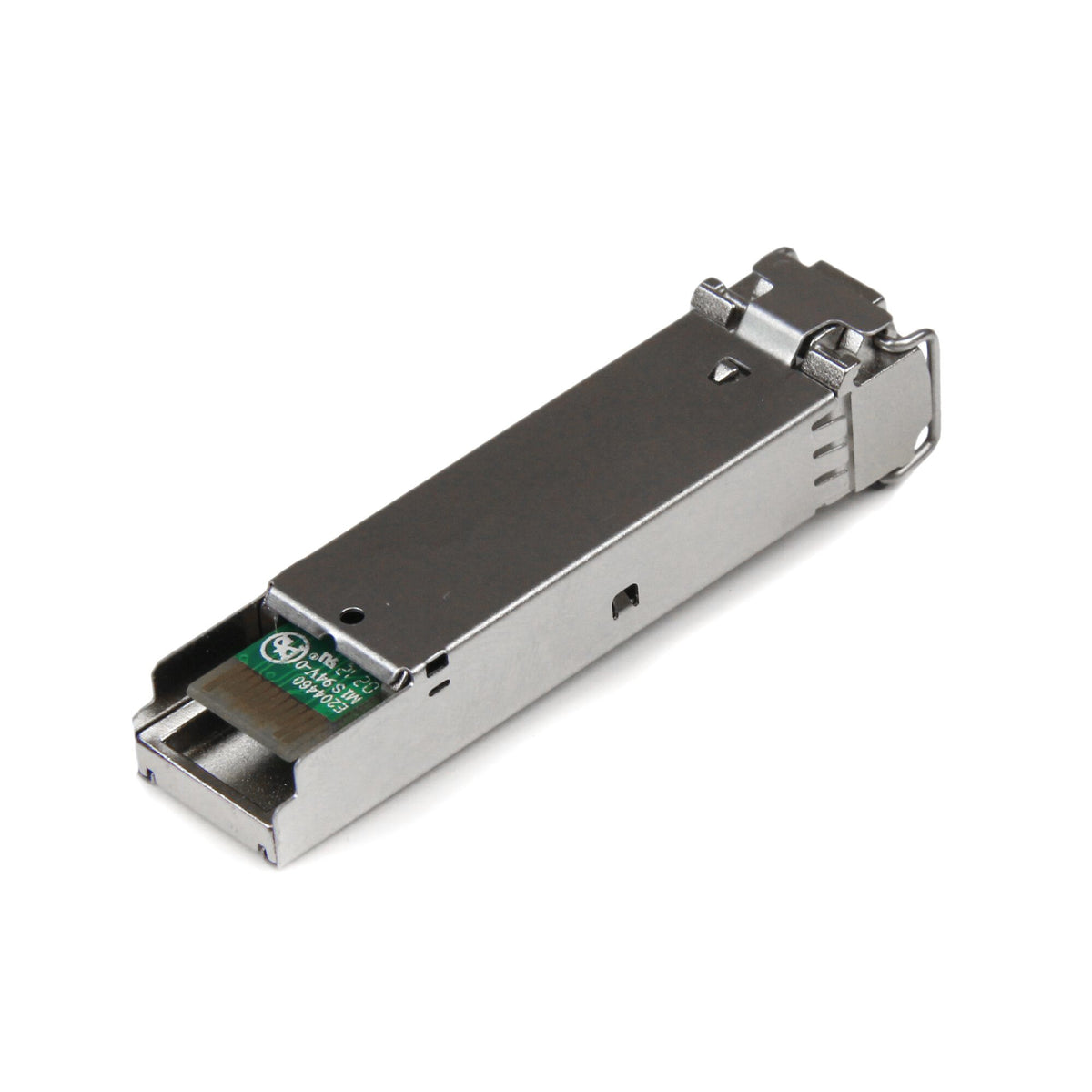

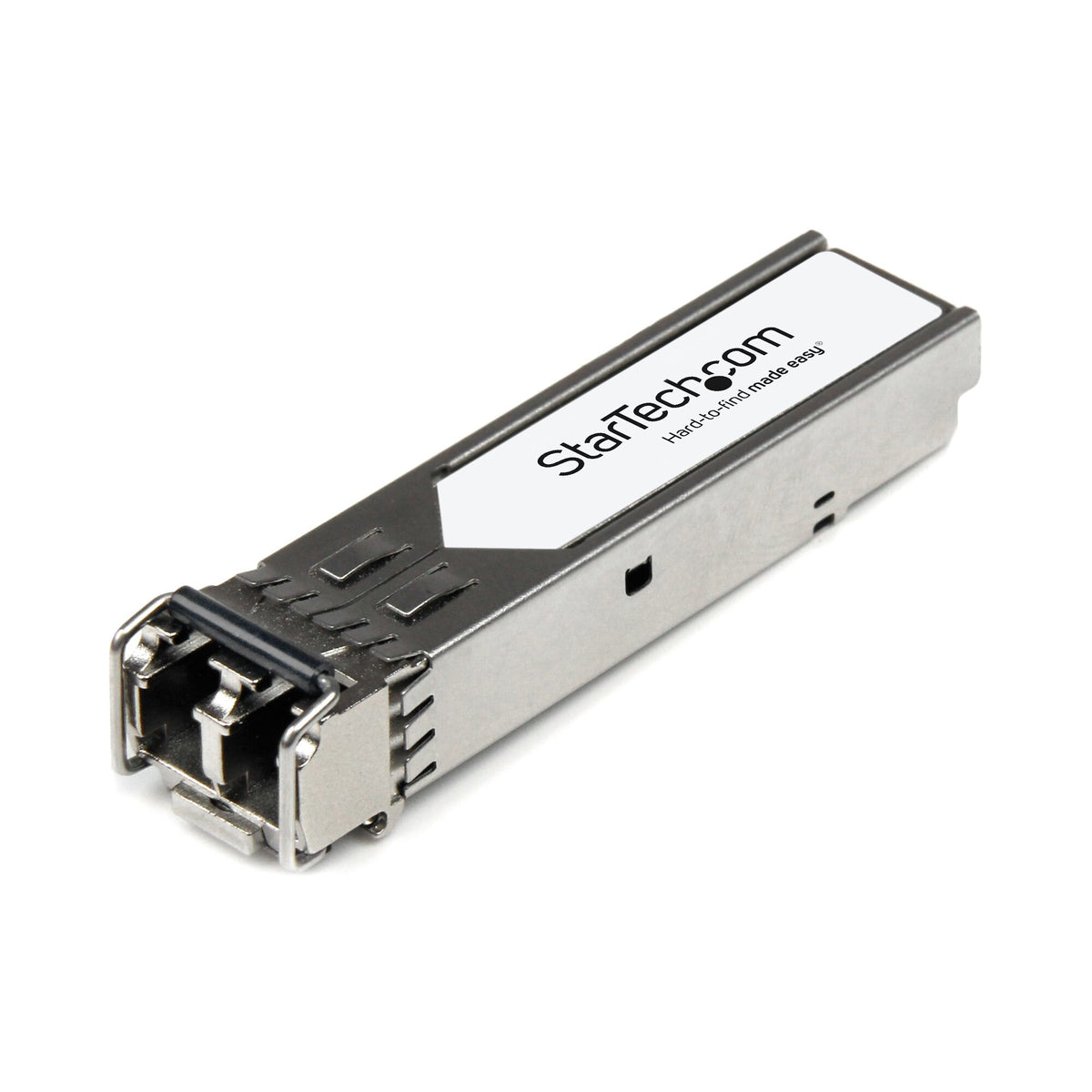

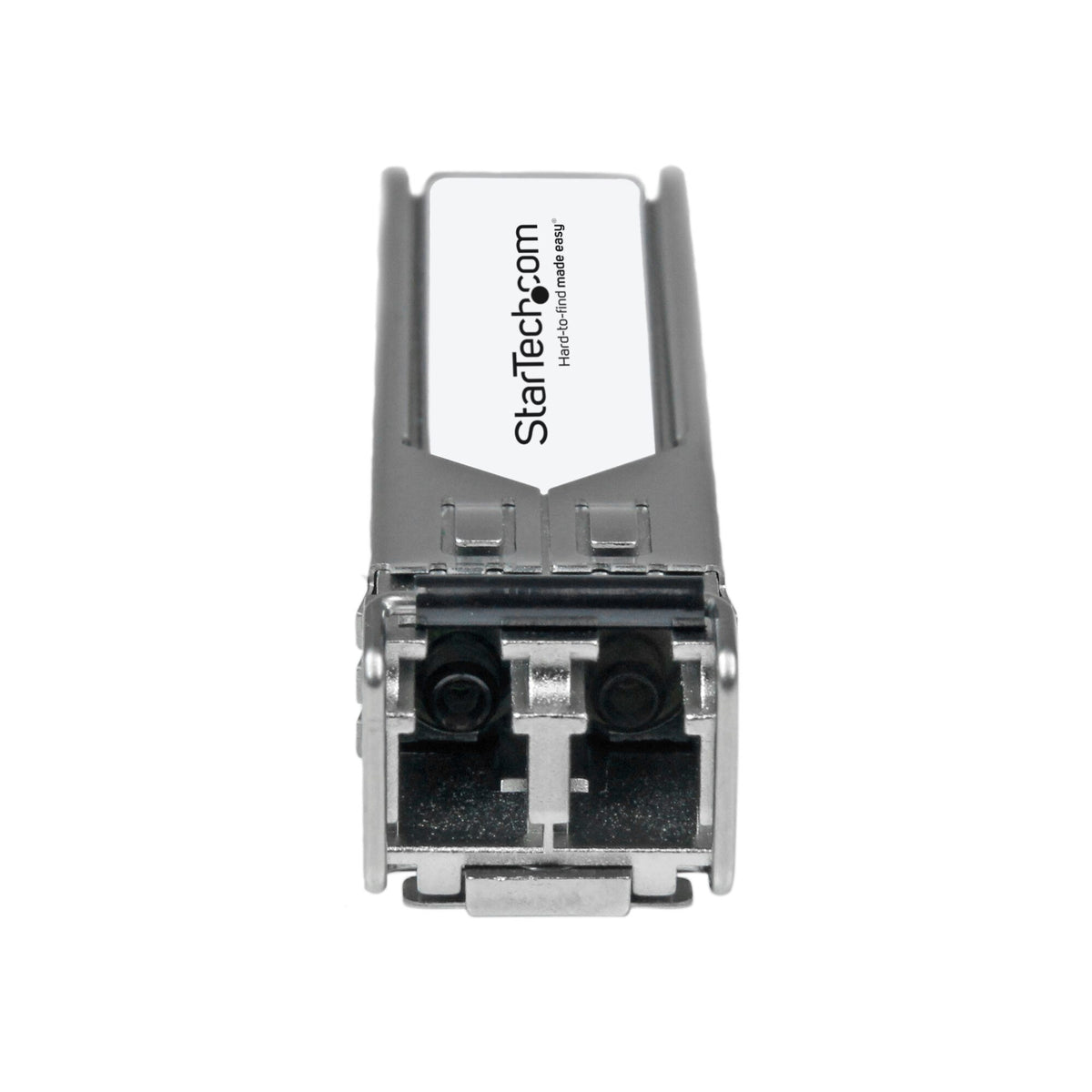

StarTech.com Palo Alto Networks SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM
StarTech.com Palo Alto Networks SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM is backordered and will ship as soon as it is back in stock.
Powered by Autify Digital Ltd
StarTech.com Palo Alto Networks SX Compatible SFP Module - 1000BASE...
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The SX-ST is a Palo Alto PAN-SFP-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Multi Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 95,832,027 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
|---|---|
| Digital Diagnostics Monitoring (DDM) | Yes |
| Duplex system | Full |
| Fiber ethernet cabling technology | 1000BASE |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| SFP transceiver standard | SX |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | CE, FCC, UR |
| Compatible products | SX |
| Brand compatibility | Palo Alto Networks |
| Mean time between failures (MTBF) | 95832027 h |
| Hot-swap | Yes |
| Product colour | Silver |
| Weight & dimensions | |
|---|---|
| Weight | 20 g |
| Height | 13.7 mm |
| Depth | 13.9 mm |
| Width | 58.4 mm |
| Packaging data | |
|---|---|
| Package weight | 50 g |
| Package height | 31 mm |
| Package depth | 115 mm |
| Package width | 90 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case height | 31 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case width | 90 mm |
| Quantity per pack | 1 pc(s) |
-
