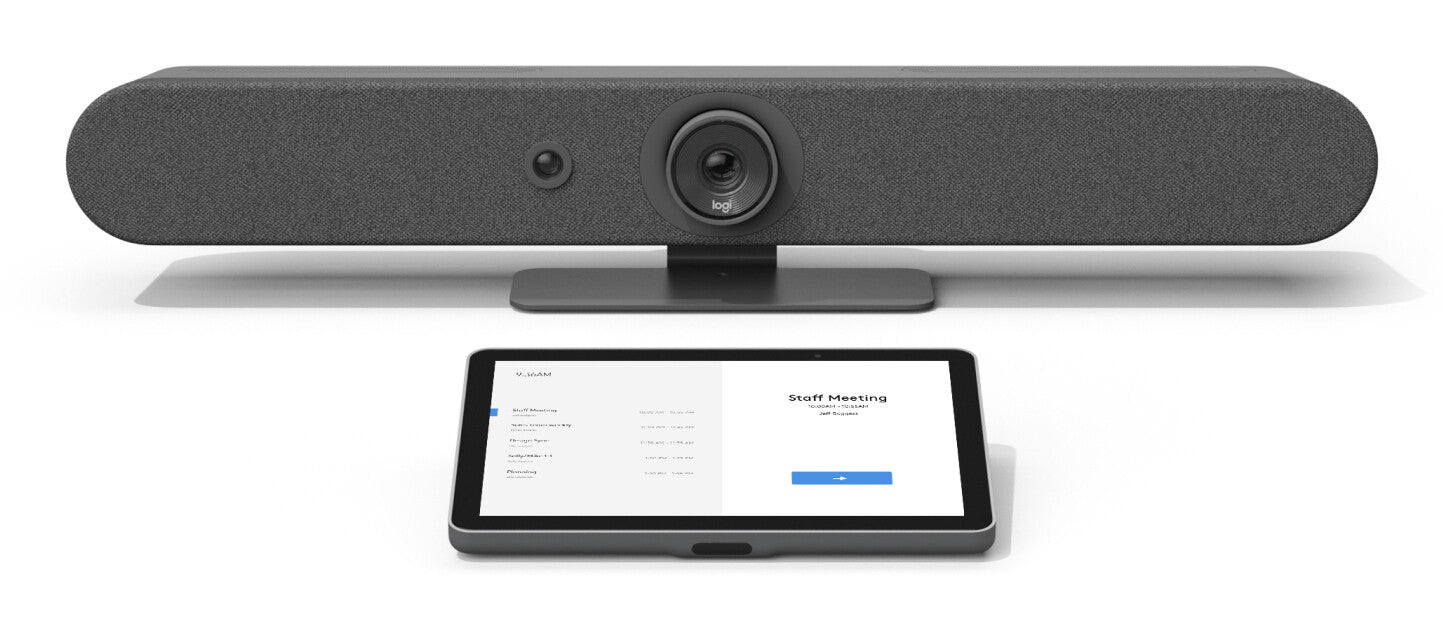

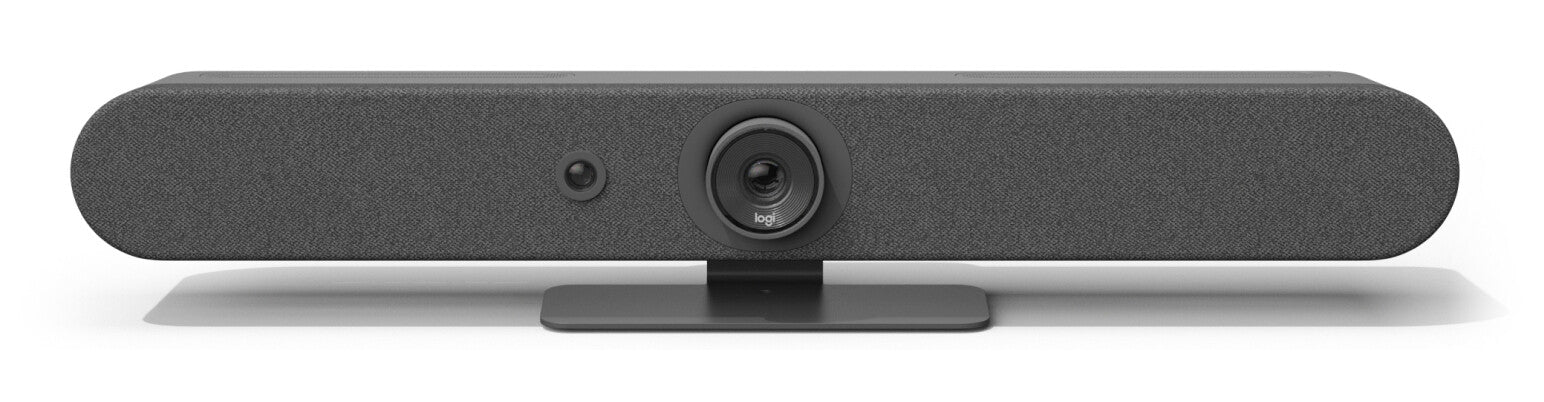

Logitech Rally Bar Mini
| Performance | |
|---|---|
| Product colour | Graphite |
| Pan range | -25 - 25° |
| Tilt angle range | -15 - 15° |
| PTZ control | Yes |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Supported video modes | 576p, 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Output level | 92/99 dB |
| Line-out impedance | 4 Ω |
| Audio beamforming | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Sample rates | 0 - 48 kHz |
| Microphone pick-up range | 4.5 m |
| RMS rated power | 5 W |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Microphone in | Yes |
| Interface module | |
|---|---|
| Interface module RJ-45 ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Supported network protocols | IPv4, IPv6 |
| Security algorithms | 128-bit AES |
| Camera | |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 4x |
| Horizontal field of view | 113° |
| Vertical field of view | 80.7° |
| Diagonal field of view | 120° |
| Remote control interface | Bluetooth |
| Display | |
|---|---|
| Display | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Viewing angle, vertical | 85° |
| Viewing angle, horizontal | 85° |
| Display brightness | 400 cd/m² |
| Oleophobic coating | Yes |
| Microphone | |
|---|---|
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Sound pressure level (max) | 90 dB |
| Number of microphones | 6 |
| System requirements | |
|---|---|
| Minimum system requirements | Internet Connection: Wired or wireless USB Mode: Windows 11, Windows 10, the two most recent versions of macOS Appliance Mode: Room solution software licence (not included) |
| Computer system | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Battery | |
|---|---|
| Battery capacity | 0.675 Wh |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 302 mm |
| Master (outer) case width | 258 mm |
| Master (outer) case length | 808 mm |
| Master (outer) case gross weight | 8.87 kg |
| Features | |
|---|---|
| Telepresence | No |
| Motion sensor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Operational conditions | |
|---|---|
| Heat dissipation | 64 BTU/h |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| DC input voltage | 19 V |
| Number of batteries supported | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium |
| Power plug type | Type G |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Interface module weight | 1 kg |
| Width | 719 mm |
| Depth | 101 mm |
| Height | 91.4 mm |
| Weight | 4.03 kg |
| Package width | 252 mm |
| Package depth | 802 mm |
| Package height | 289 mm |
| Package weight | 8.87 kg |
| Packaging content | |
|---|---|
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Batteries included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Packaging content | Logitech Rally Bar Mini video bar Rally Bar Mini Power supply Cables Lens caps Remote control User documentation Logitech Tap IP touch controller Tap IP VESA mounting screws (4) Microfiber Cloth Documentation |
-
