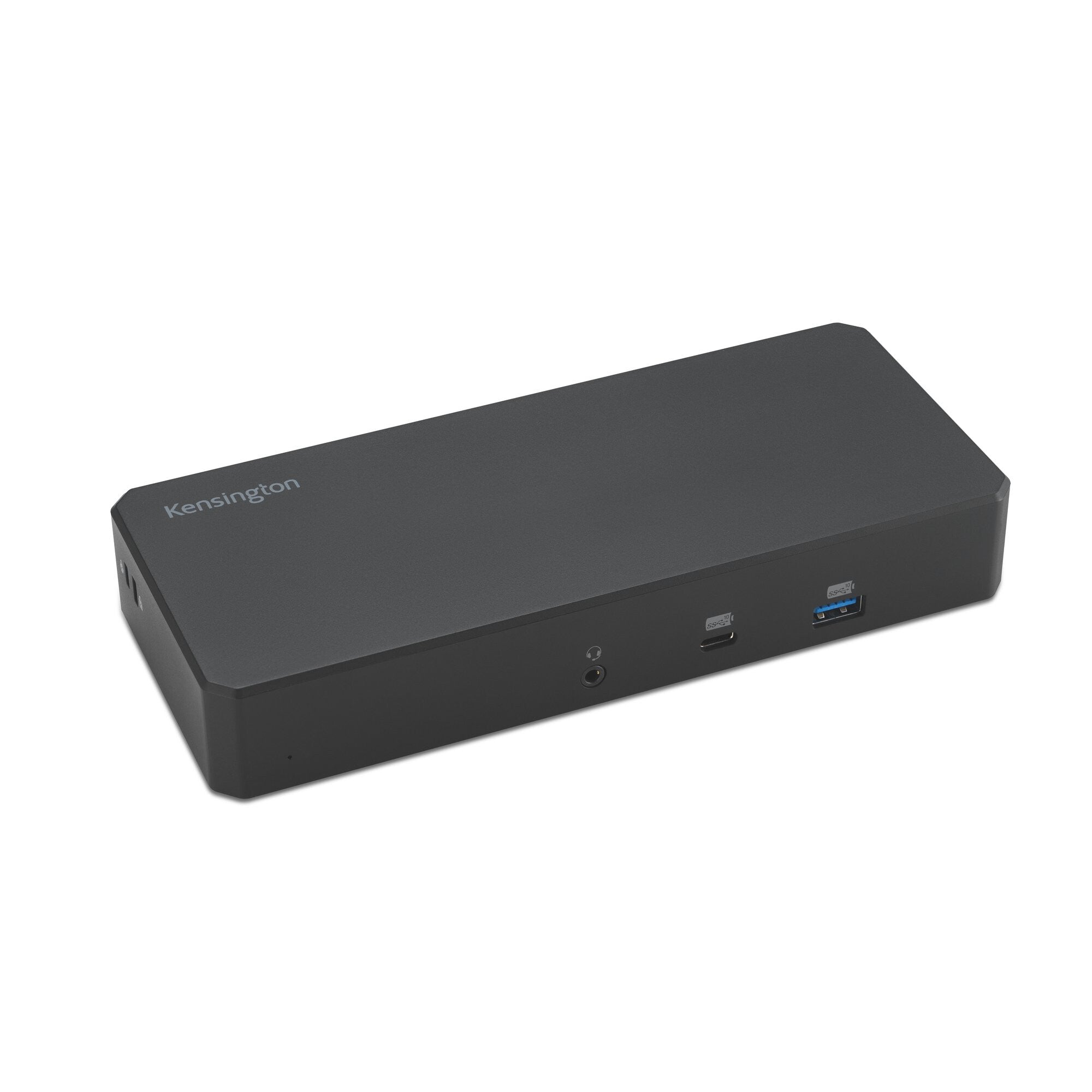

Kensington SD4843P EQ USB-C 10Gbps Triple Video Driverless Dock

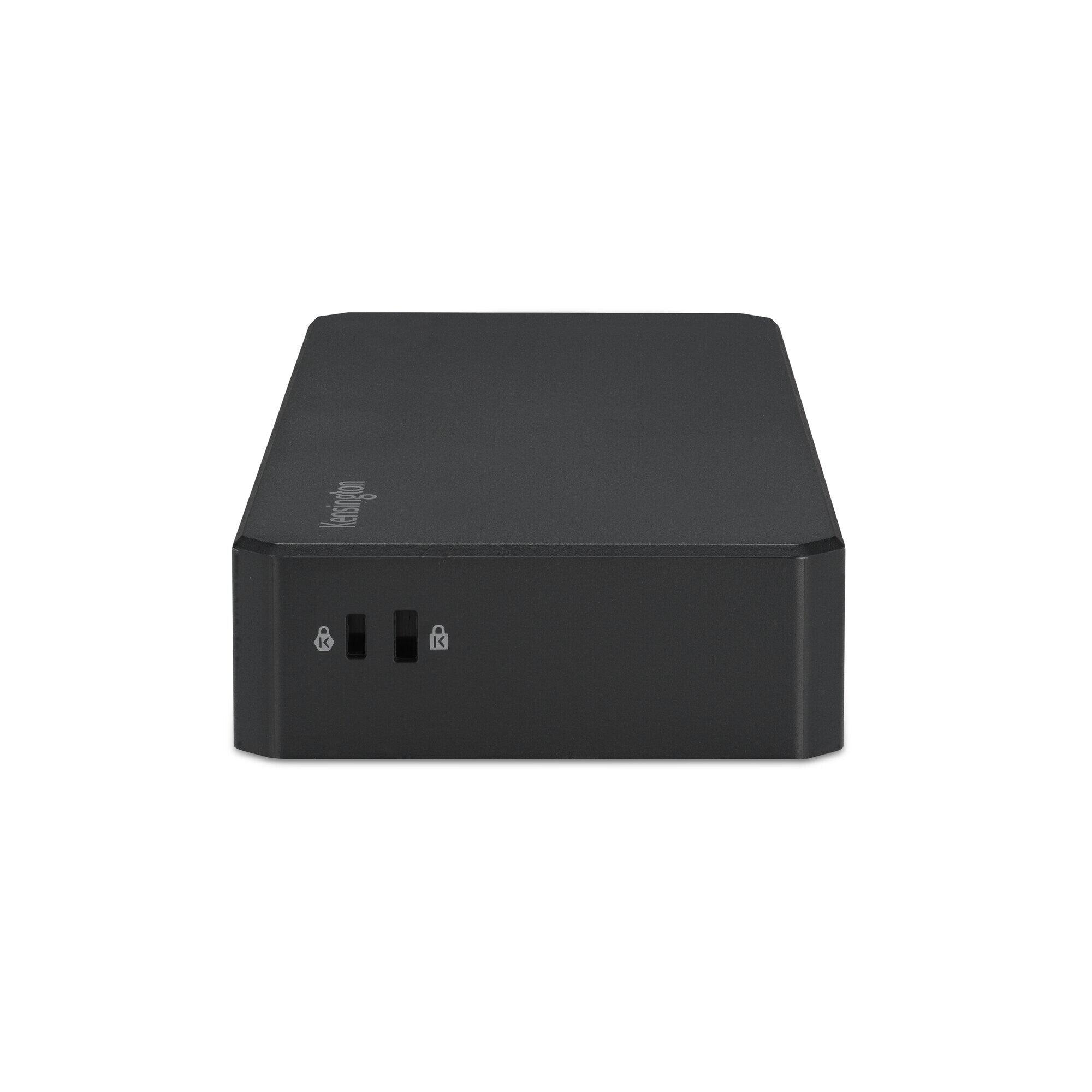

The SD4843P EQ USB-C® 10Gbps Triple Video Driverless Dock is a versatile docking station supporting Thunderbolt™ 5, Thunderbolt™ 4, USB4® and USB-C® Alt Mode laptops with up to three external monitors. 1 x HDMI® and 2 x DisplayPort™ (DP) ports support up to Triple 4K @ 30Hz* or up to Single 8K @ 30Hz*. SD4843P provides up to 100W Dynamic Power Delivery and includes KonstantCharge™, delivering power to connected accessories even when the host laptop is undocked. The 10-in-1 design features five high-speed USB 3.2 Gen2 10Gbps ports (4 x USB-A and 1 x USB-C®), three video ports, a combo audio jack and a Gigabit Ethernet port**. The dock incorporates partially recycled materials and includes lock slots, free Kensington DockWorks™ software and a 3-year limited warranty.
* For maximum resolution, the DSC-enabled laptop, docking station, monitor and laptop all need to support DSC v1.2 (Display Stream Compression).
** This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches and the hardware and firmware performance of the host computer.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery | Yes |
| USB4 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Host interface | USB4 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Plug and Play | Yes |

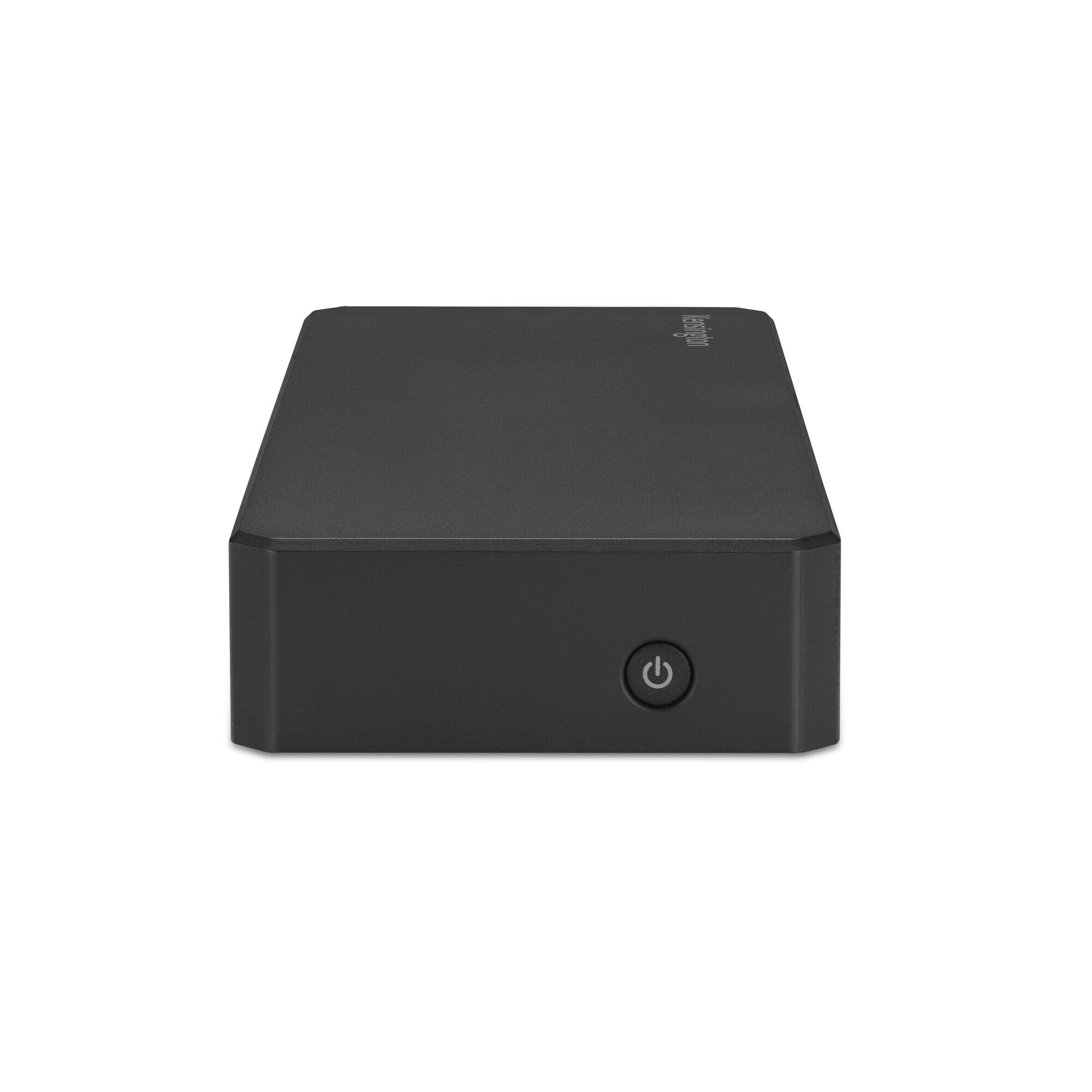

| On/off switch | Yes |
| Number of displays supported | 3 |
| HD type | 4K Ultra HD |
| Data transfer rate | 10 Gbit/s |
| Card reader integrated | No |
| Product colour | Black |
| Power | |
|---|---|
| Output voltage | 12 V |
| Power source type | DC |
| Software | |
|---|---|
| Windows operating systems supported | Yes |
| Packaging data | |
|---|---|
| Package weight | 1.4 kg |
| Package height | 87 mm |
| Package depth | 235 mm |
| Package width | 145 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 9 kg |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 9 kg |
| Other features | |
|---|---|
| USB ports quantity | 5 |
| Compatible operating systems | Windows 10 or above |
-
