APC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2...
Description
Description

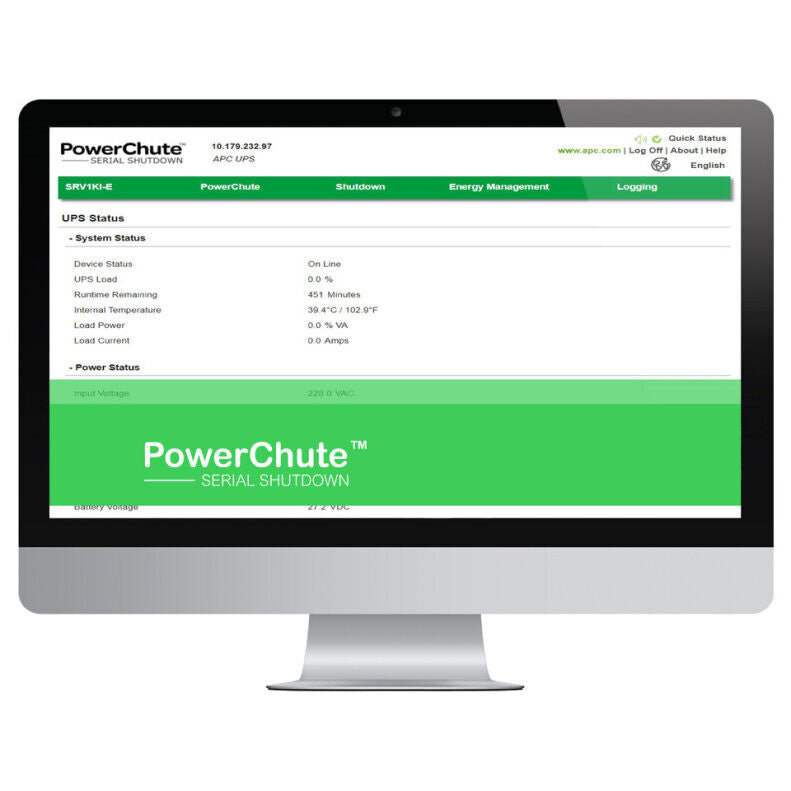

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
| Features | |
|---|---|
| Auto-restart | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Noise level | 40 dB |
| Emergency Power Off (EPO) | Yes |
| Efficiency | 98.2% |
| Surge energy rating | 600 J |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency regulation | 50/60 Hz |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Output power | 800 W |
| Output power capacity | 1 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |
| USB port | Yes |
| Number of output IEC jumpers | 2 |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Cold start | Yes |
| Automatic battery test | Yes |
| Hot-swap battery | No |
| Battery recharge time | 3 h |
| Battery life (max) | 5 year(s) |

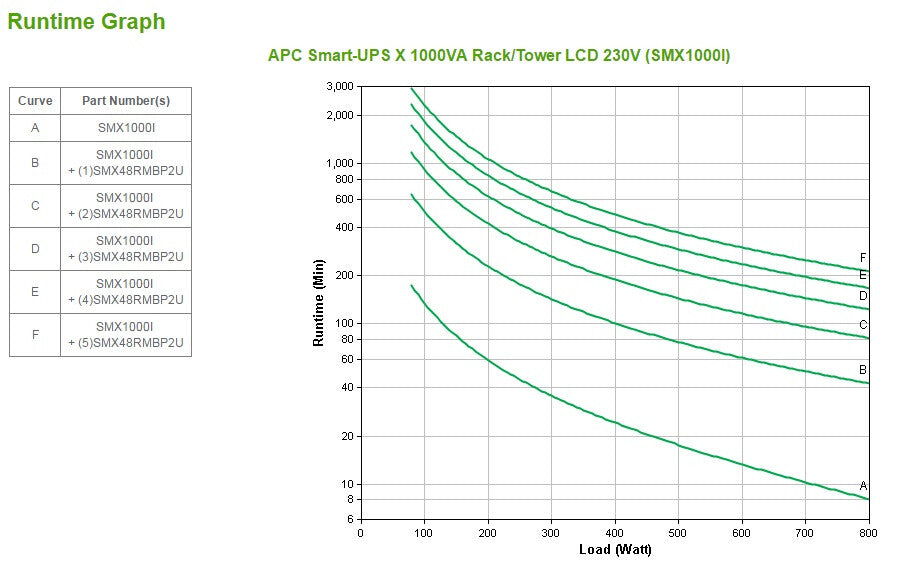

| Typical backup time at half load | 24.2 min |
| Typical backup time at full load | 8.1 min |
| Battery capacity | 299 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Certification | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI |
| LED indicators | Yes |
| Cable length | 1.83 m |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Sustainability certificates | Green Premium |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Package weight | 27.3 kg |
| Package height | 246 mm |
| Package depth | 620 mm |
| Package width | 589 mm |
| Weight | 22.9 kg |
| Height | 89 mm |
| Depth | 490 mm |
| Width | 432 mm |
| Packaging data | |
|---|---|
| Software CD | Yes |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Products per pallet | 8 pc(s) |
| Other features | |
|---|---|
| Packaging content | Removable support feet |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
