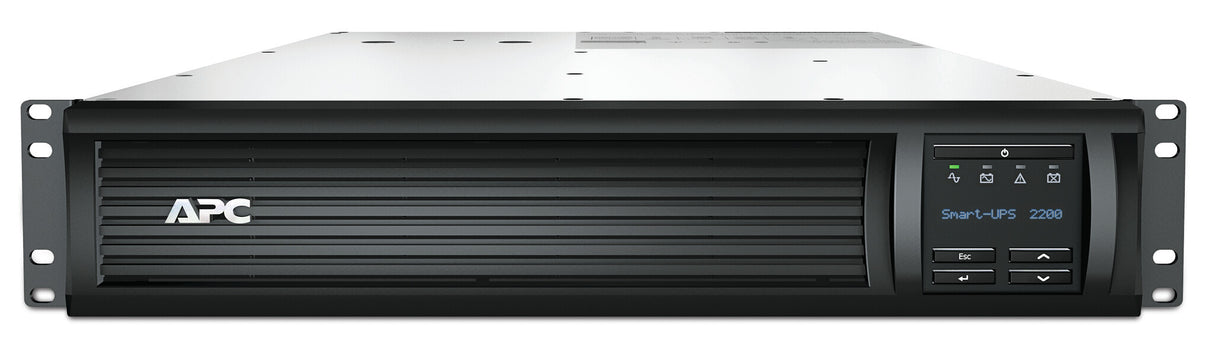

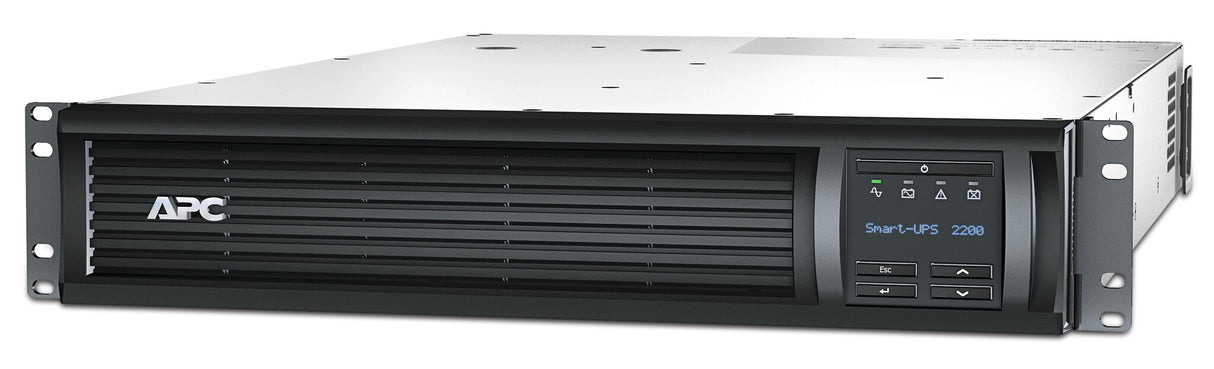

APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC C13+2x IEC C19 outlets, Network Card, AVR, LCD
Key Details:
- Line-Interactive
- 2.2 kVA 1980 W
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA) 509 Ah
- Rackmount Black
APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 230V, 8x IEC...
Description
Description

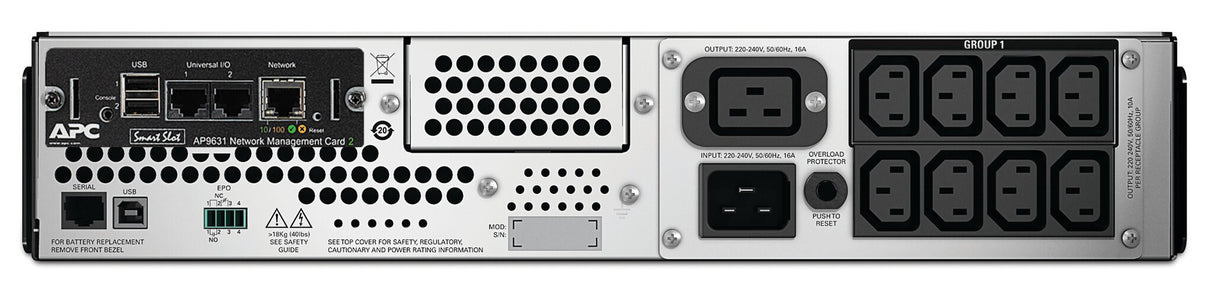

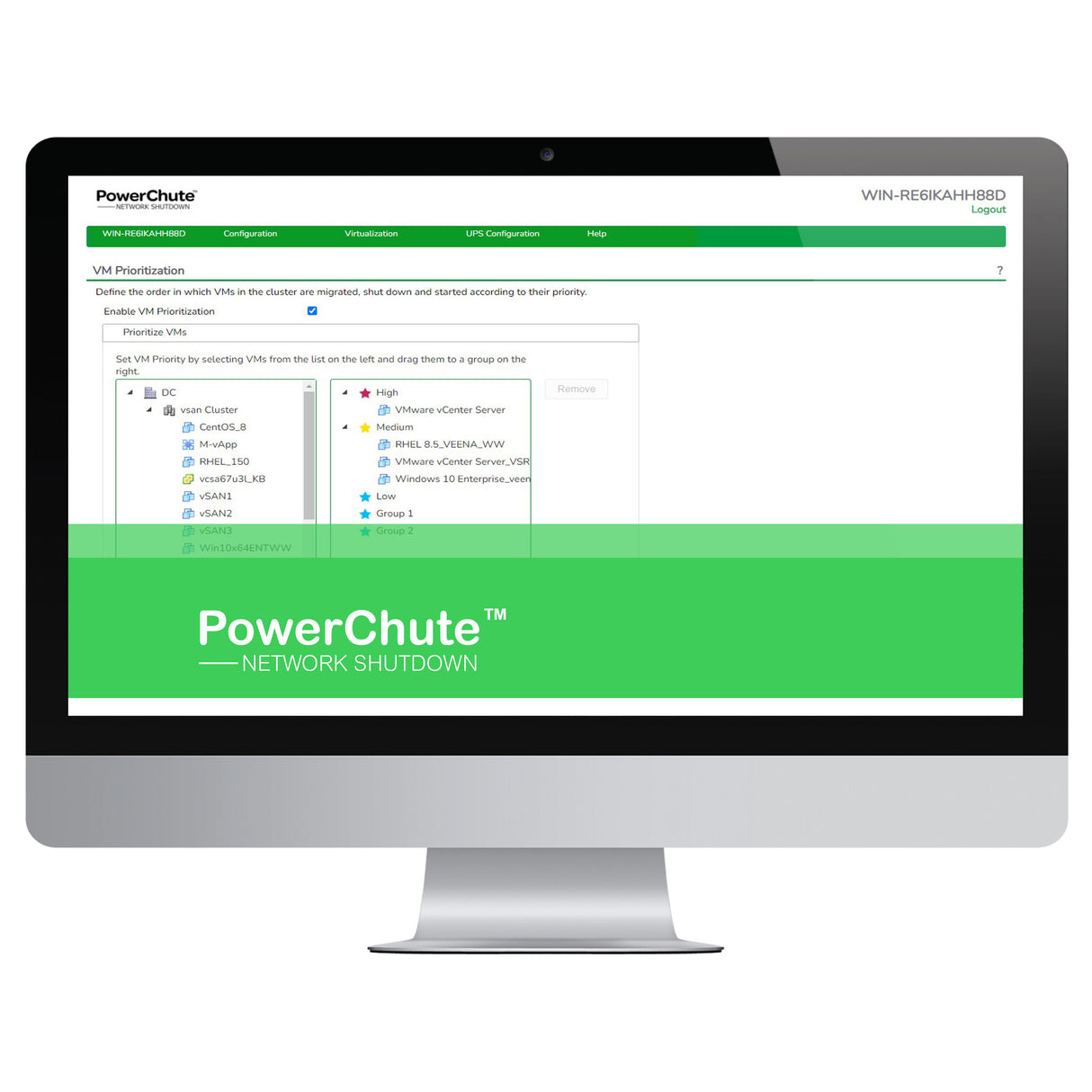

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Features | |
|---|---|
| Auto-restart | Yes |
| Audible alarm modes | Battery replacement |
| Web-based management | Yes |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Emergency Power Off (EPO) | O |
| Response time | 4 ms |
| Surge energy rating | 375 J |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| AC outlets quantity | 9 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C20 coupler |
| Battery | |
|---|---|
| Cold start | Yes |
| Automatic battery test | Yes |
| Hot-swap battery | Yes |
| Battery recharge time | 5 h |
| Battery capacity | 509 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
| LED indicators | Yes |
| Display type | LCD |
| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Rackmount |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Sustainability certificates | Green Premium |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Package weight | 49.6 kg |
| Package height | 254 mm |
| Package depth | 980 mm |
| Package width | 600 mm |
| Weight | 42.2 kg |
| Height | 86 mm |
| Depth | 683 mm |
| Width | 480 mm |
| Packaging data | |
|---|---|
| Resource CD | Yes |
| Quick installation guide | Yes |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Products per pallet | 8 pc(s) |
| Other features | |
|---|---|
| Output voltage | 230 V |
