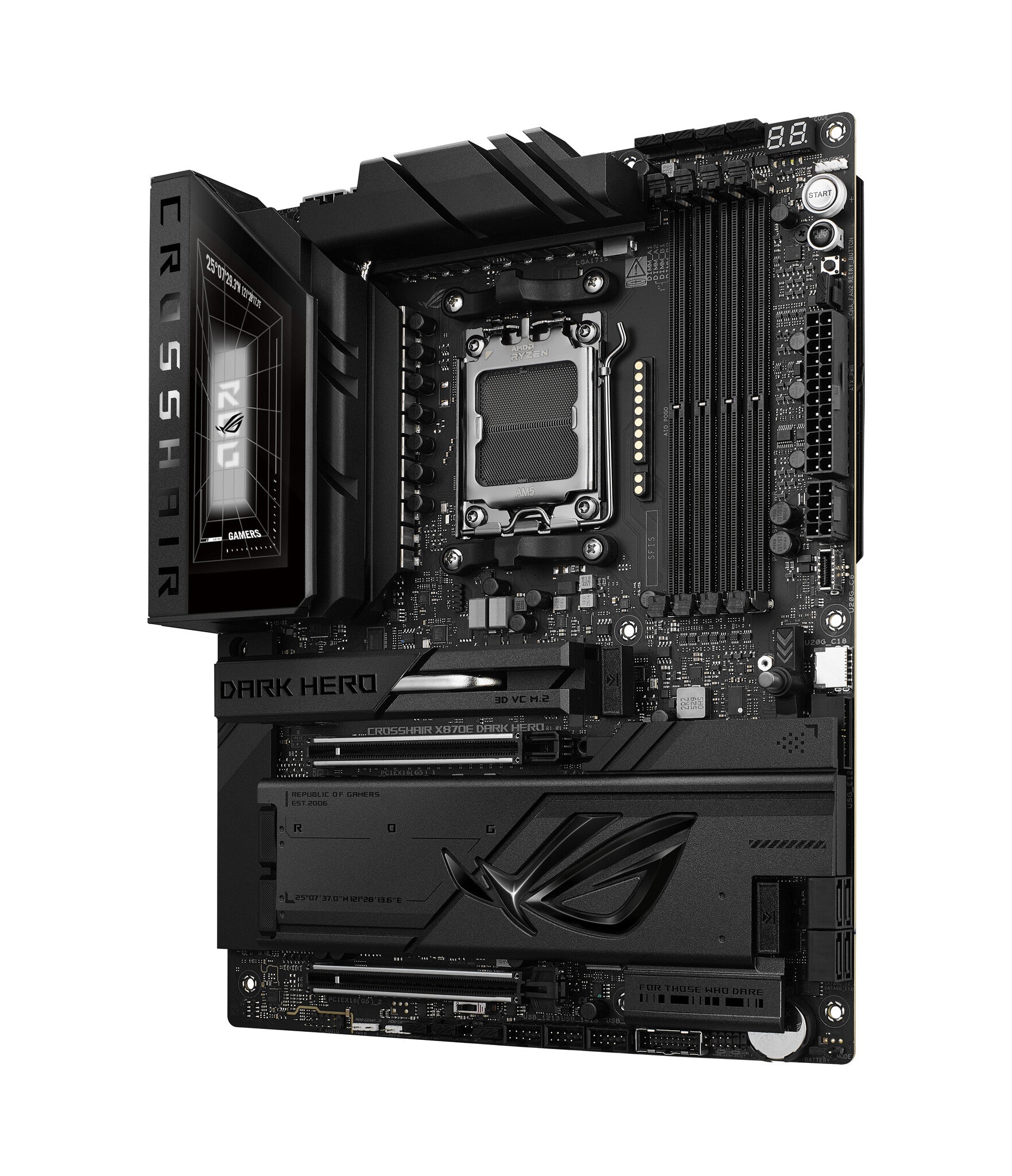

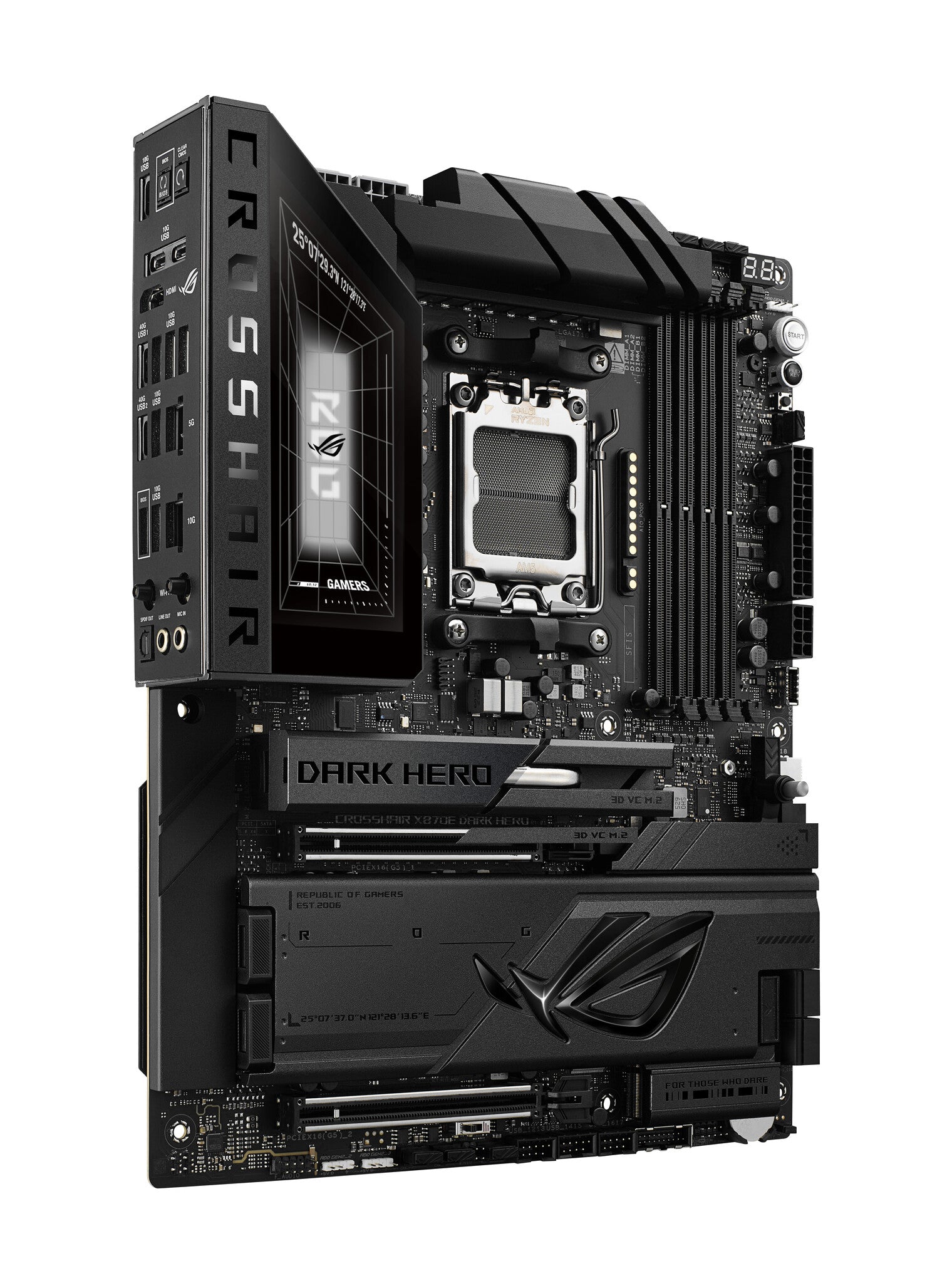

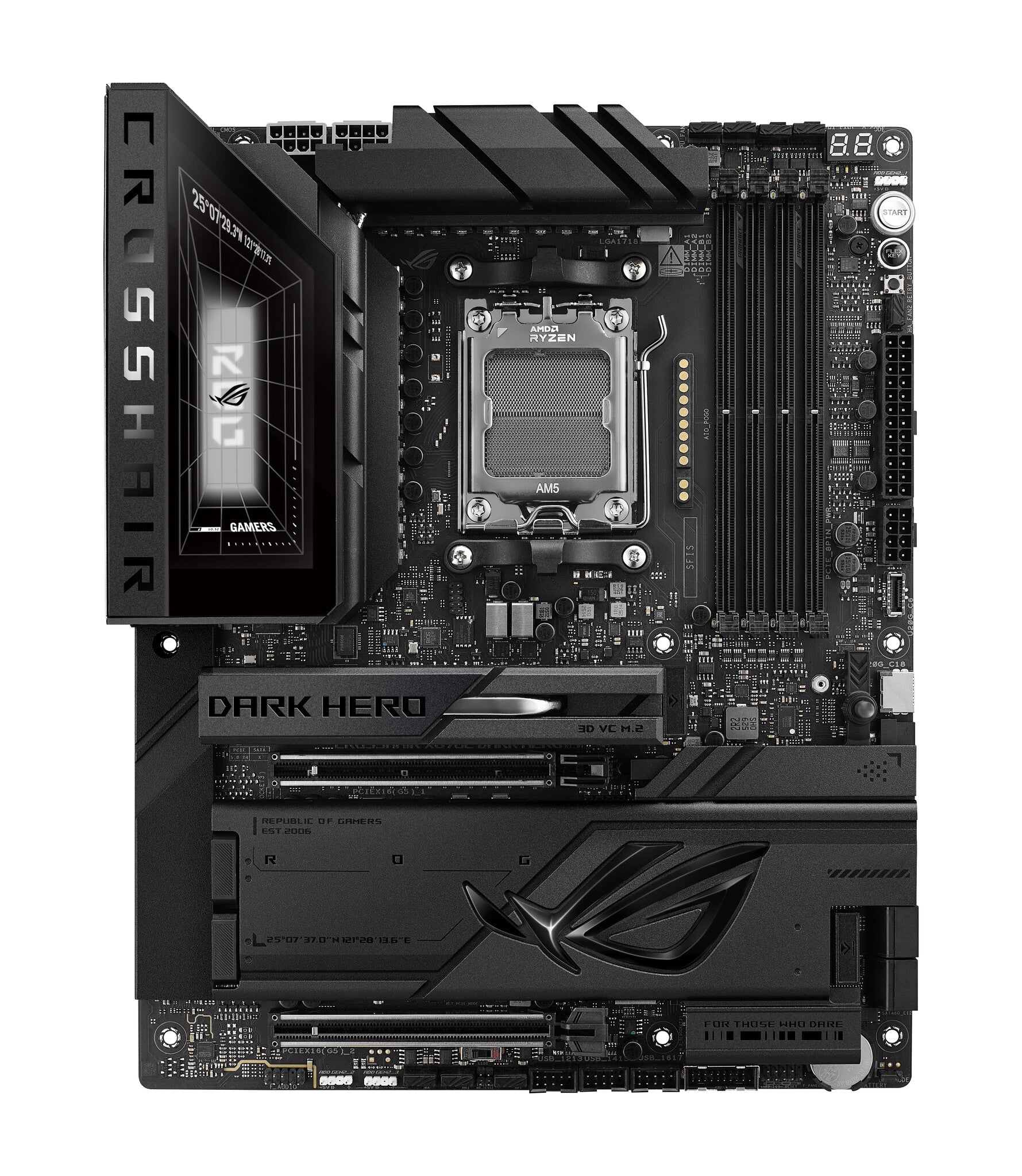

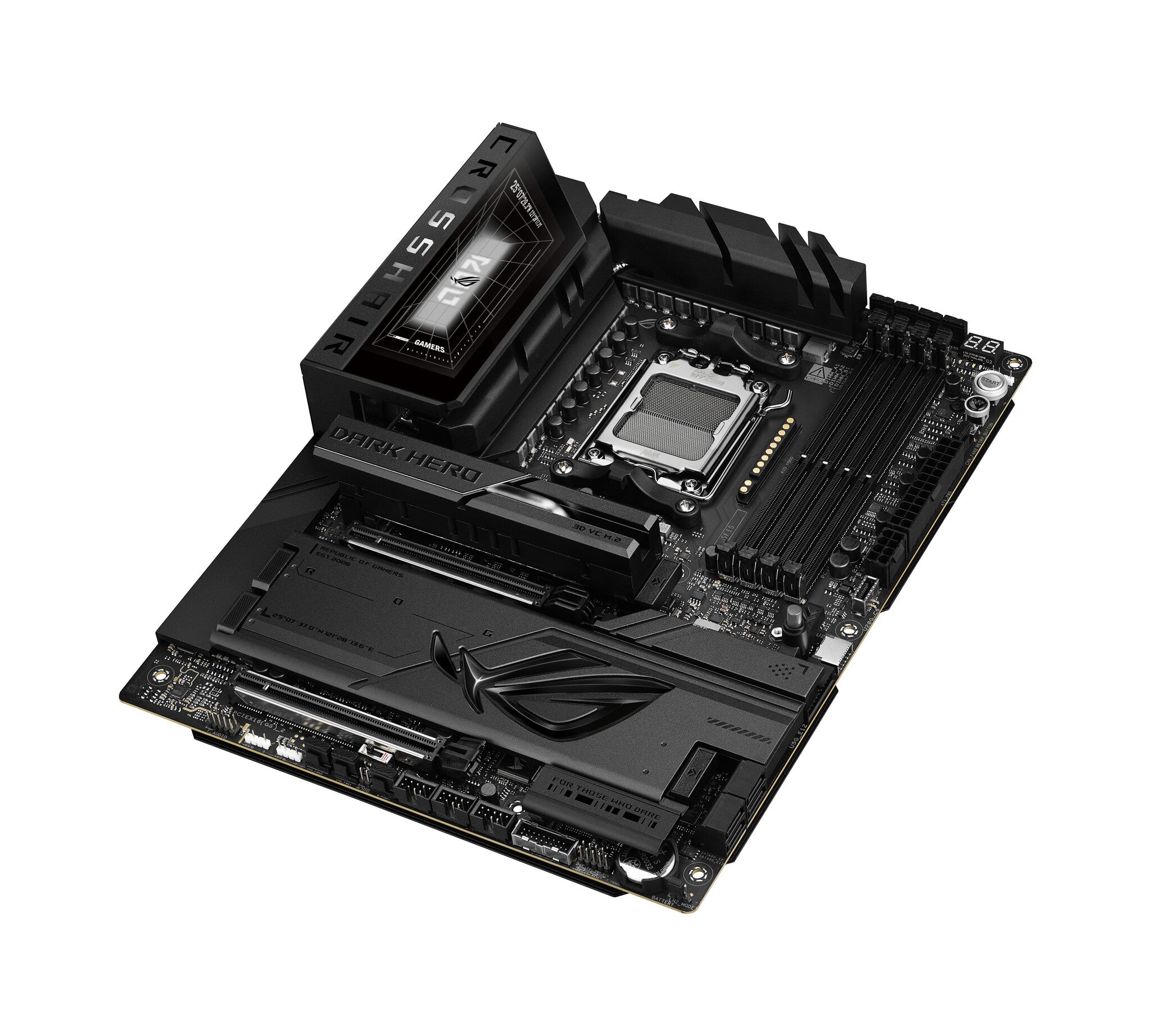

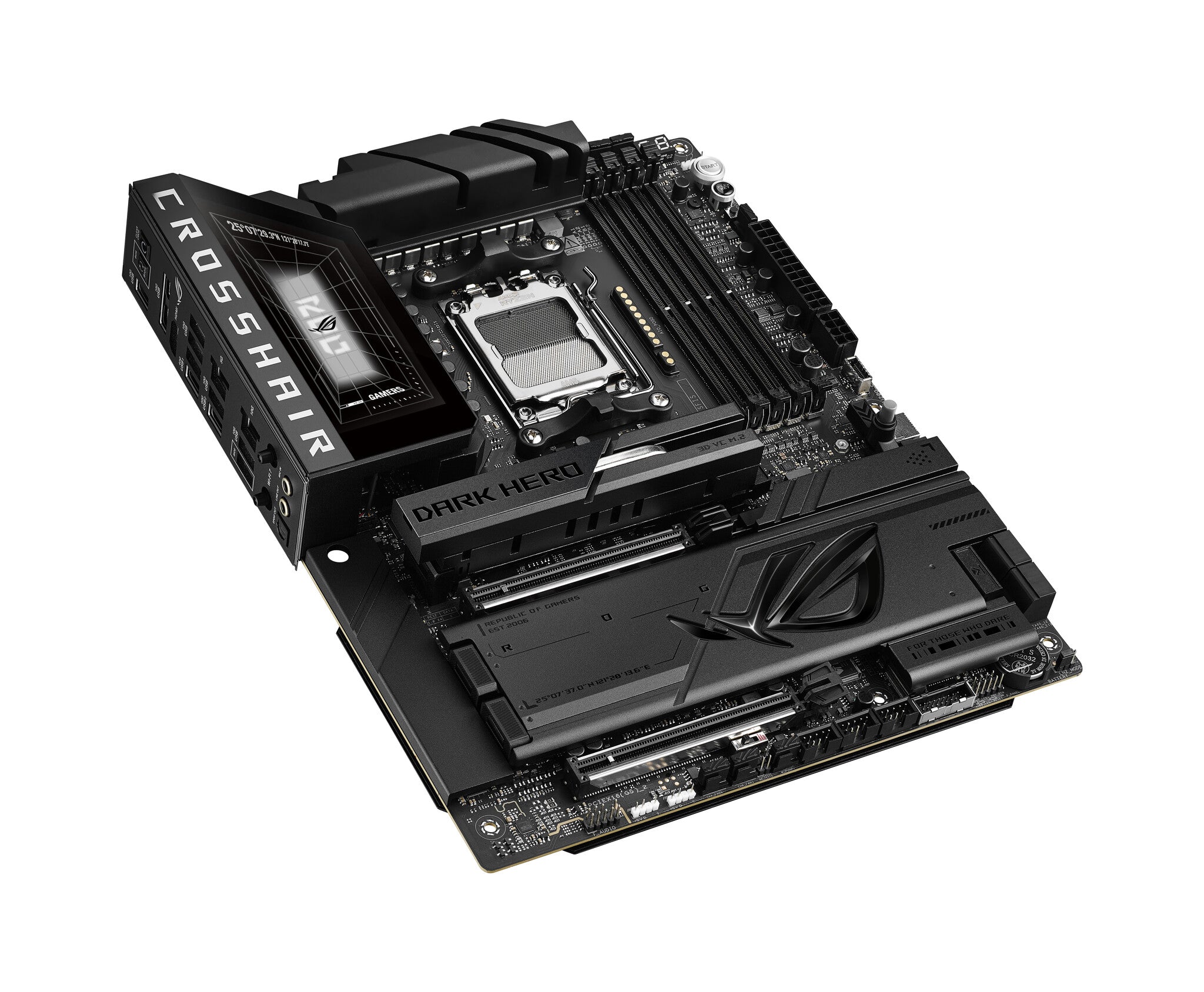

ASUS ROG CROSSHAIR X870E DARK HERO AMD X870E Socket AM5 ATX
Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
| Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| 12V power connector | Yes |
| Number of temperature sensor headers | 1 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2x2 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 3 |
| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| Network | |
|---|---|
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| WLAN controller model | MediaTek MT7927 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet interface type | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4082 |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 5th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 4.43 kg |
| Package height | 110 mm |
| Package depth | 367 mm |
| Package width | 308 mm |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA |
| Antenna included | Yes |
-
