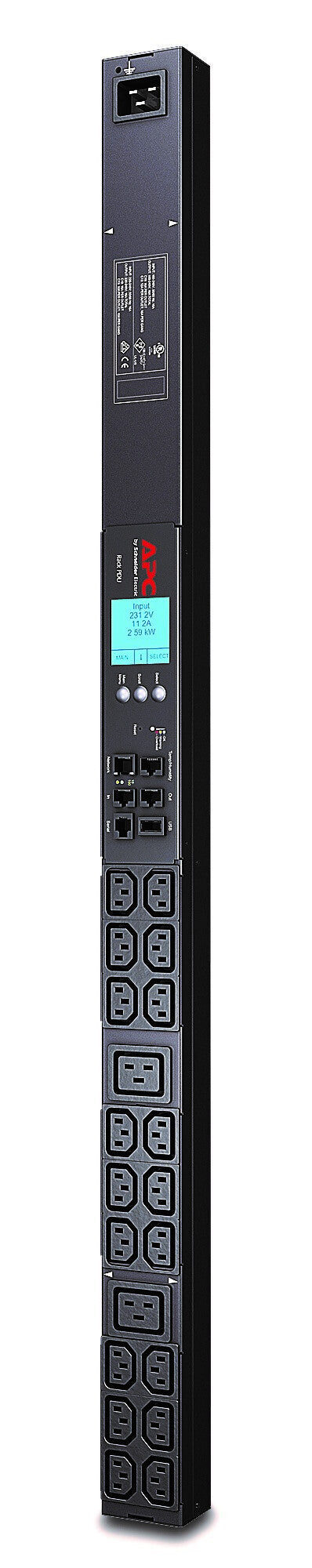

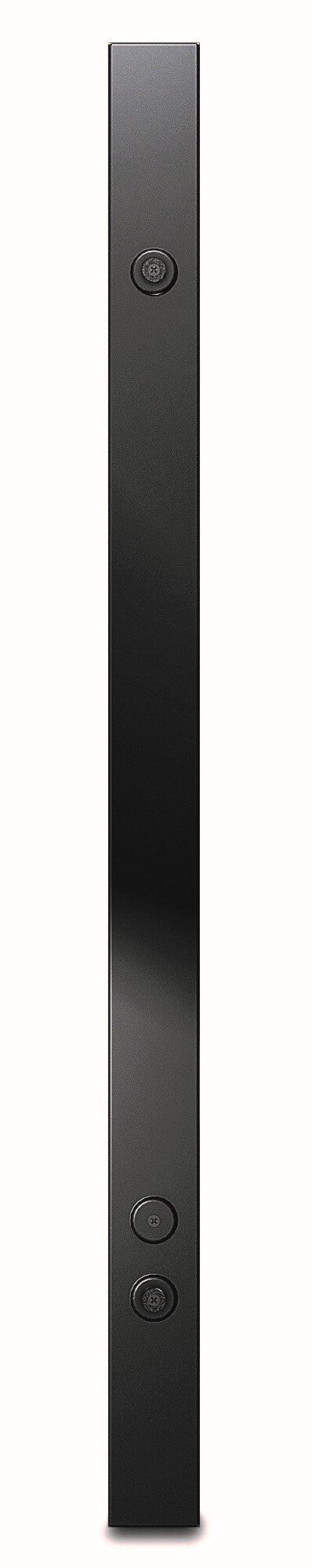

APC AP8858 power distribution unit (PDU) 20 AC outlet(s) 0U Black

APC  |  SKU: AP8858  |  Condition: Brand New  |  Barcode: 731304277026
£787.99
£785.99 Save £2.00 £787.99
£654.99 excluding VAT @20%
iFrame
NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Design
PDU types Metered
Rack capacity 0U
Mounting Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 20 AC outlet(s)
AC outlet types C13 coupler, C19 coupler
Input connection type IEC-320 C20
Output connections 18x IEC 320 C13
2x IEC 320 C19
Features
Certification CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS, REACH
Management features
Monitoring Current, Power, Voltage
Power
Nominal input voltage 230 V
AC input frequency 50 - 60 Hz
Load capacity 3680 VA
Maximum input current per phase 16 A
Maximum total current draw per phase 16 A
Maximum power 3680 W
Weight & dimensions
Width 56 mm
Depth 44 mm
Height 902 mm
Weight 2.93 kg
Packaging data
Package weight 4.2 kg
Package width 162 mm
Package depth 107 mm
Package height 1124 mm
Operational conditions
Operating temperature (T-T) 5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Logistics data
Total carbon footprint 12787.89
