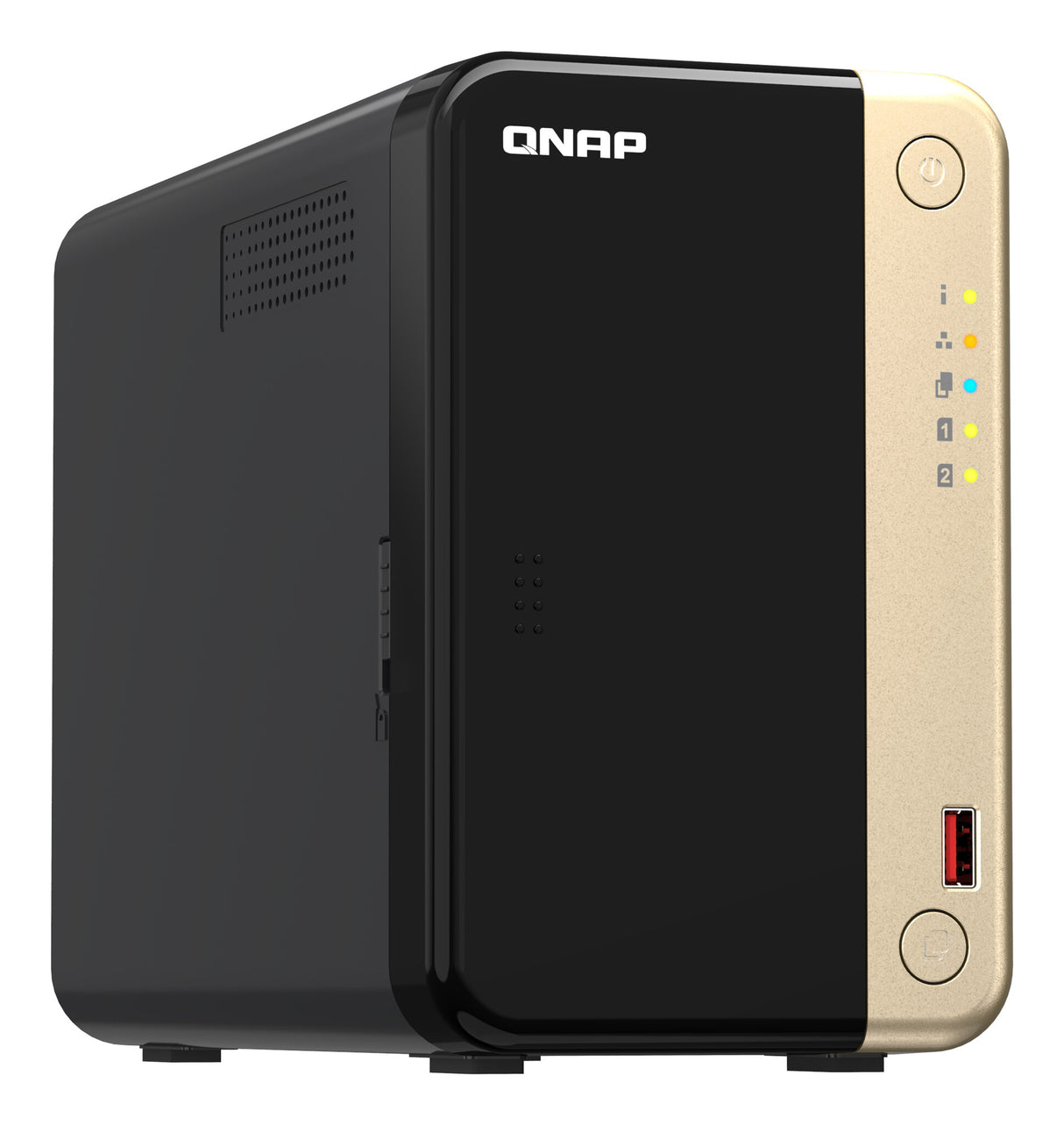

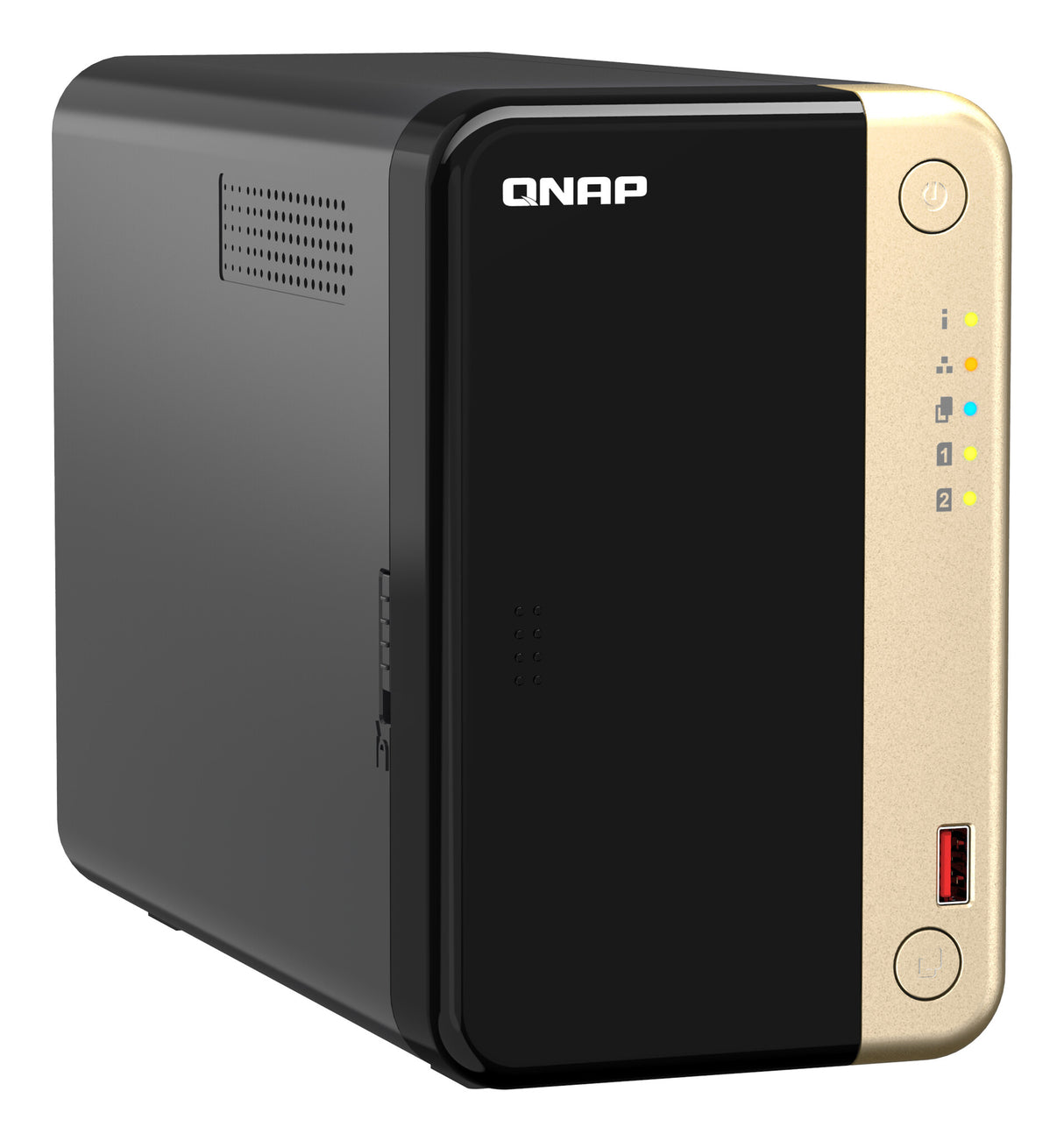

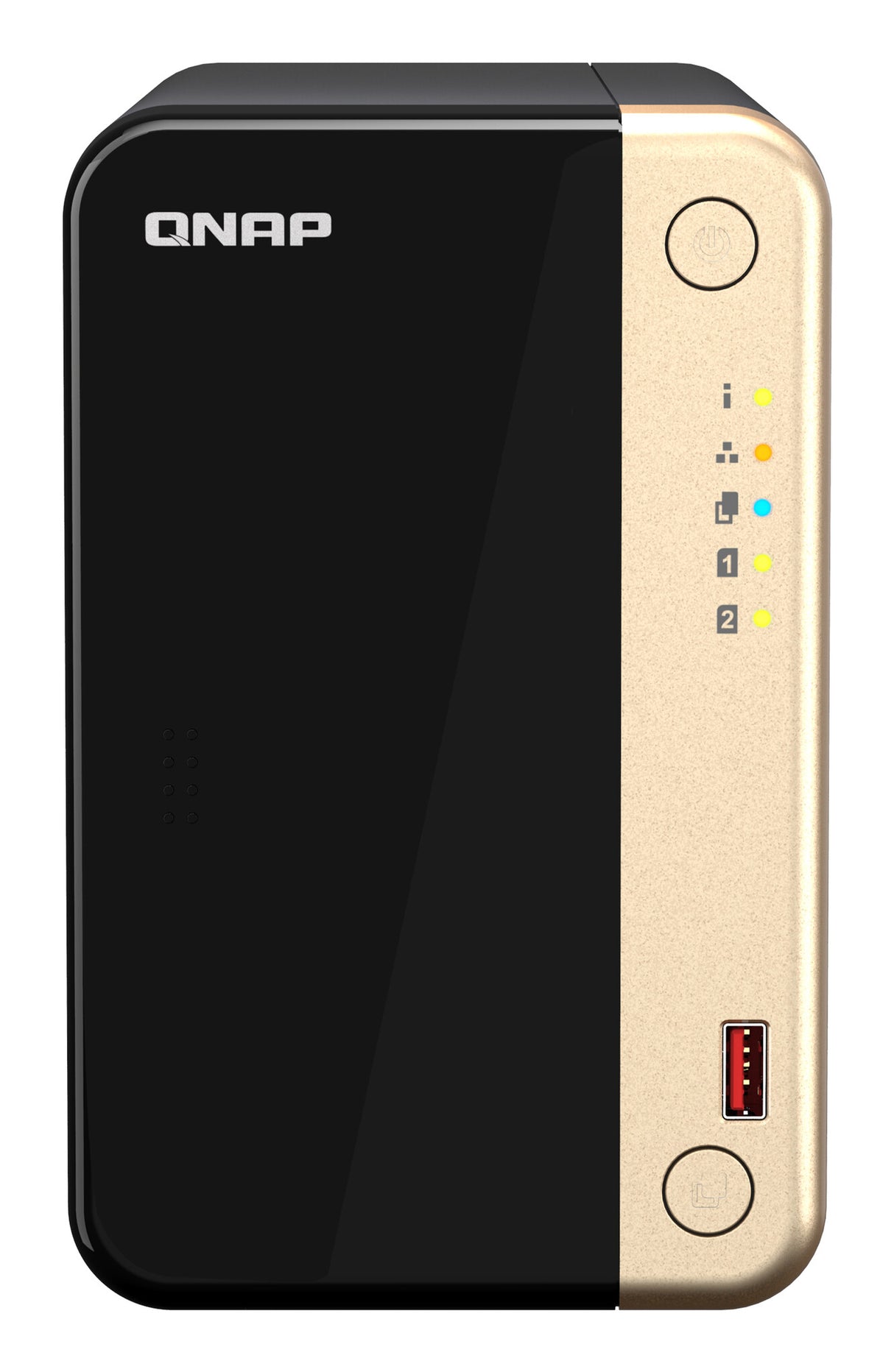

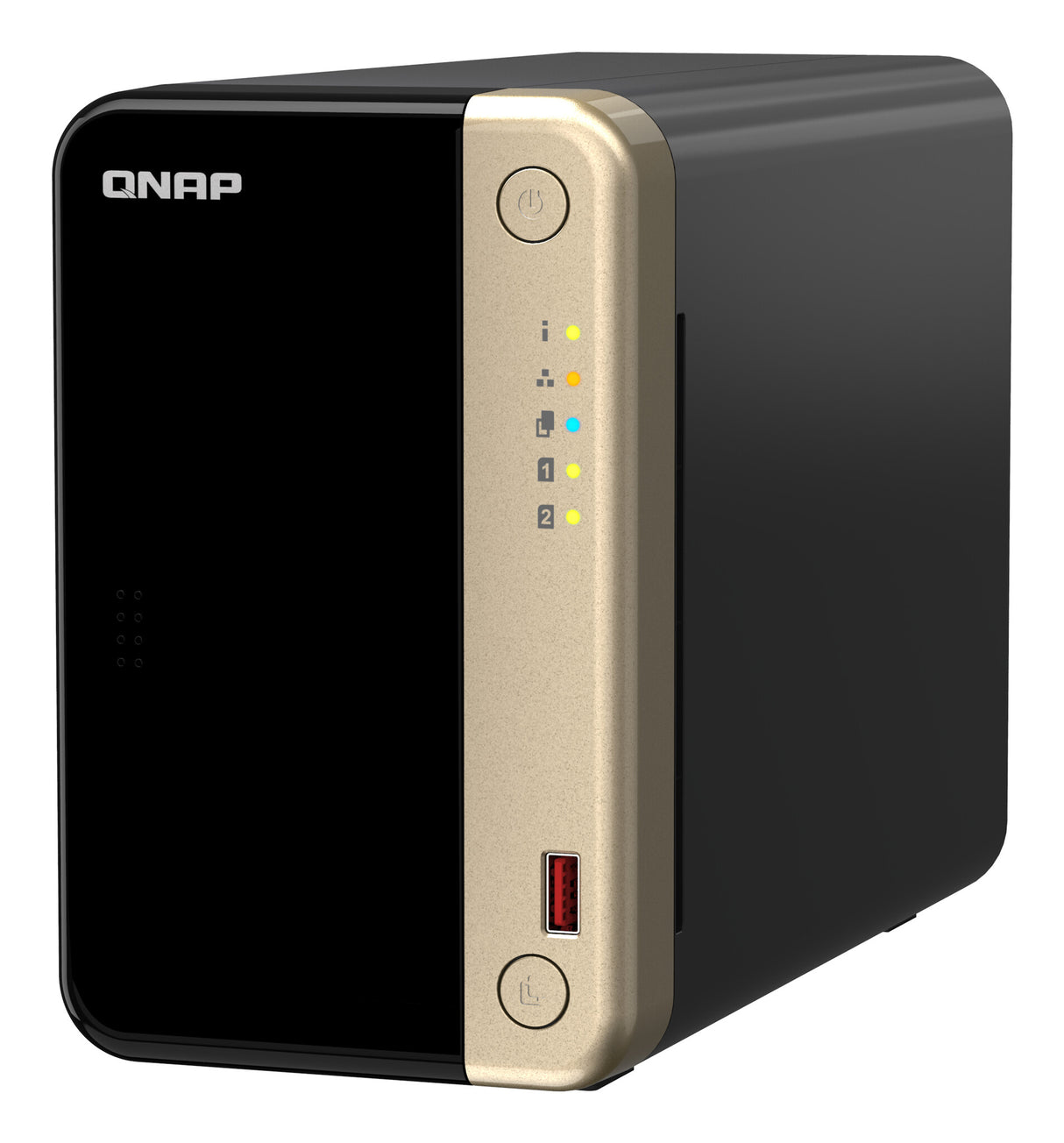

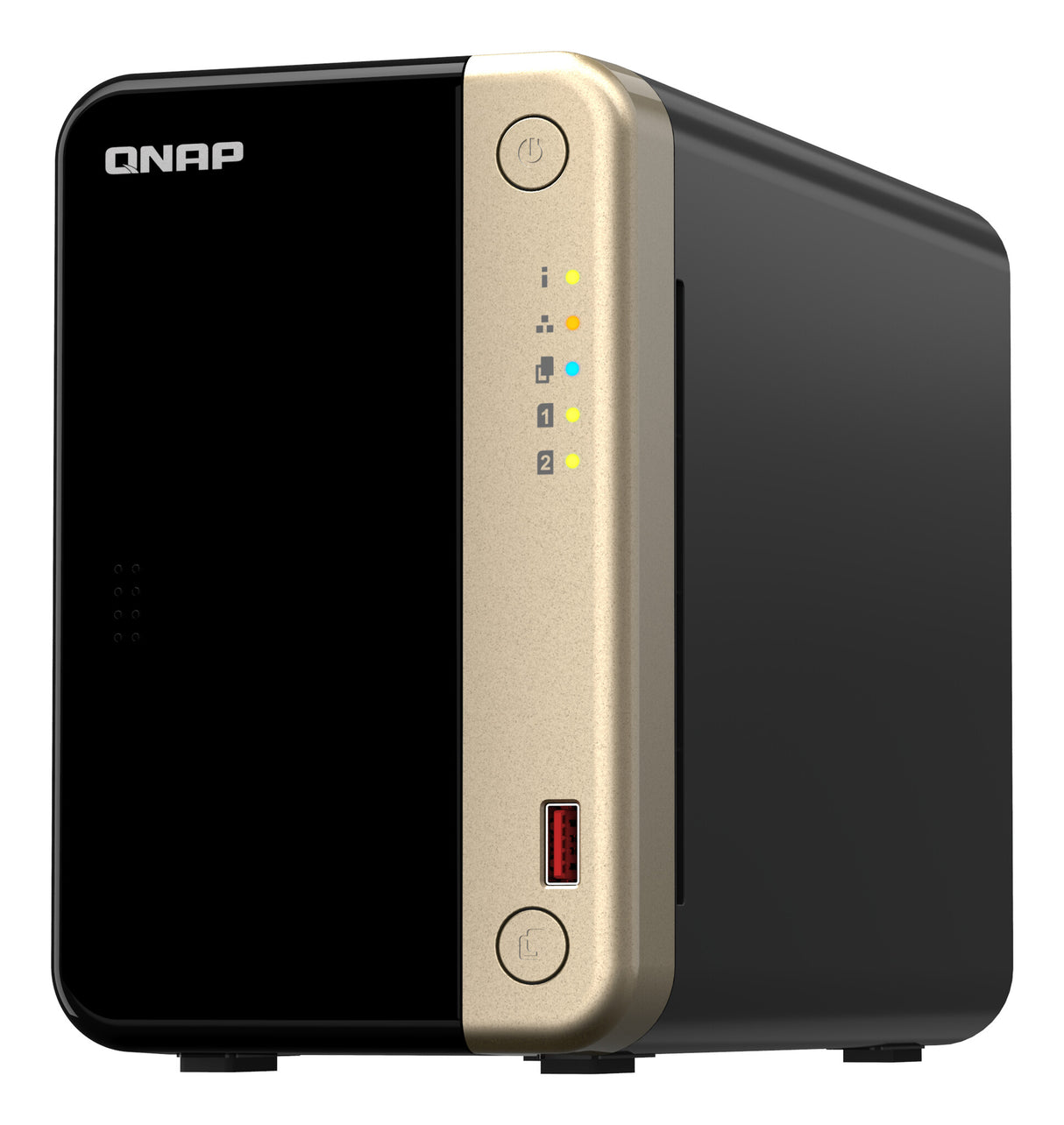

QNAP TS-264 NAS Tower Ethernet LAN Black, Gold N5095
Key Details:
- TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports
- Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking
- Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices
- Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed
- Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices
- If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots
Description
Description
TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 22 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
2.5GbE NAS is a must in 2023
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-264 delivers up to 589 MB/s transfer speeds for fast data access workflow
Processor
Intel® Celeron® N5095 quad-core processor, burst up to 2.9 GHz
GPU
Built-in Intel® UHD Graphics to speed up video processing and graphical computing
Memory
Built-in 8 GB DDR4 memory..
Encryption Engine
Features Intel® AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-264. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-264 unleashes its full performance potential.
Expand storage capacity up to 14 hard drives
TS-264 supports a storage capacity of up to 22 TB by installing two 3.5-inch 22 TB hard drives in RAID 1. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional fourteen hard drives to the TS-264 to achieve up to 240 TB storage space to meet growing storage requirements.
Accelerate AI–powered image recognition and caching with TPU and PCIe expansion
TS-264 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer®, Micron®, Seagate®, WD®, and more) or Edge TPU.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-264 by configuring its two M.2 SSDs as a cache disk.
When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-264 allows you to enjoy exceptional application performance.
Accelerate AI–powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-264 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-264 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.
One Touch Copy backup with USB 3.2 Gen 2
TS-264 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-264 with a single button press.
Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-264. With Intel® UHD Graphics, the TS-264 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.
Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows®/Linux® virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-264 as a PC.
| Storage | |
|---|---|
| Disk roaming | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Hot-swap drive bays | Yes |
| RAID rebuild | Yes |
| Online RAID expansion | Yes |
| Online RAID migration | Yes |
| RAID levels | 0, 1, JBOD |
| Number of M.2 (M & B) slots | 2 |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive interfaces | Serial ATA III |
| Supported storage drive types | HDD & SSD |
| Installed storage drive type | HDD |
| Total installed storage capacity | 8 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| CPU configuration (max) | 1 |
| Processor cache | 4 MB |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor boost frequency | 2.9 GHz |
| Processor frequency | 2 GHz |
| Processor model | N5095 |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Flash memory | 4000 MB |
| Maximum RAM supported | 8 GB |
| Internal memory | 8 GB |
| Network | |
|---|---|
| Dynamic DNS (DDNS) | Yes |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| DHCP server | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| PCI Express x2 (Gen 3.x) slots | 1 |
| Concurrent connections | 1500 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| LED indicators | HDD, LAN, Power, Status, USB |
| Fan diameter | 7 cm |
| Number of fans | 1 fan(s) |
| Product colour | Black, Gold |
| Cooling type | Active |
| Chassis type | Tower |
| Performance | |
|---|---|
| Security algorithms | 256-bit AES, FIPS 140-2 |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Apple Safar, Google Chrome, Microsoft Edge, Mozilla Firefox |
| System log | Yes |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | 512 |
| Share folder access right management | Yes |
| Snapshot | Yes |
| Number of users | 4096 user(s) |
| Multilingual support | Yes |
| Buzzer | Yes |
| Backup features | Cloud, iSCSI LUN |
| Backup function | Yes |
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Other operating systems supported | IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 10 SPARC, Solaris 11, Solaris 11 SPARC |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operating system version | 5.0.1 |
| Operating system installed | QNAP Turbo System |
| Power | |
|---|---|
| Fan voltage | 12 V |
| AC input voltage | 100 - 240 V |
| Power consumption (HDD standby) | 18.288 W |
| Power consumption (typical) | 29.086 W |
| Power supply unit (PSU) capacity | 65 W |
| Power supply location | External |
| Weight & dimensions | |
|---|---|
| Height | 168 mm |
| Depth | 226 mm |
| Width | 105 mm |
| Packaging content | |
|---|---|
| Number of screws | 12 |
| Power cables quantity | 1 |
| Cables included | AC, LAN (RJ-45) |
| External power adapter | Yes |
| Processor special features | |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
