StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W - SFP to RJ45 - Singlemode/Multimode Fiber to Copper Gigabit Ethernet - Compact Size - IP-30/ -40 to +75C is backordered and will ship as soon as it is back in stock.
StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 60W ...
Industrial PoE Media Converter | 10/100/1000 Mbps | 60 Watts | Open SFP | DIN Rail Mountable
This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector
It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.
Designed for Harsh Environments

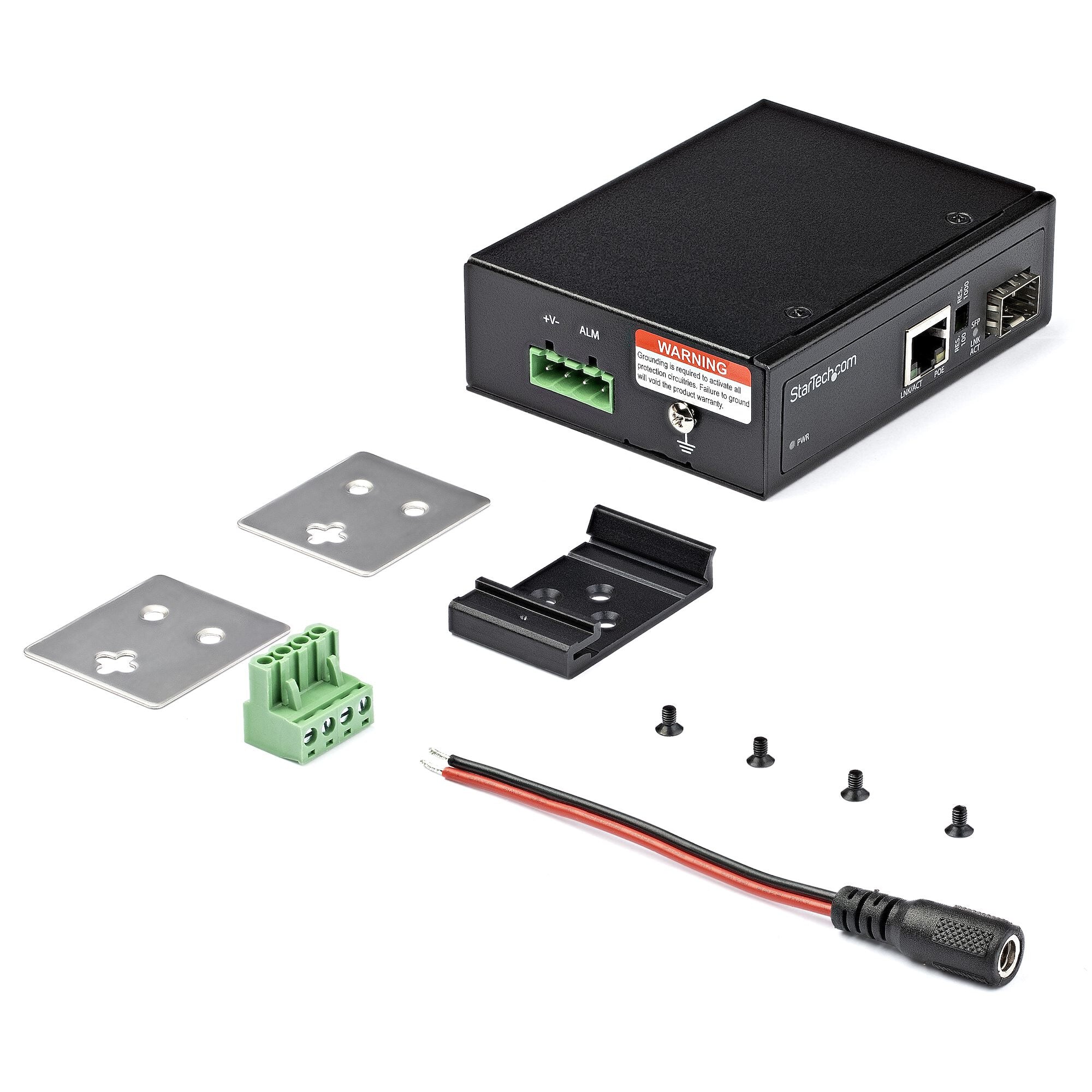

This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options.
OPERATING TEMPERATURE
STORAGE TEMPERATURE
-40°C to 75°C
-40°C to 85°C
-40°F to 167°F
-40°F to 185°F
Up to 60 Watts of Power for Connected Devices
60 watts of available support a wide range of PD devices such as:
Pan-and-Tilt Cameras
Lighting
Cameras
Sensors
WiFi Access Points
Open SFP Slot to Leverage Your Current Infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements.

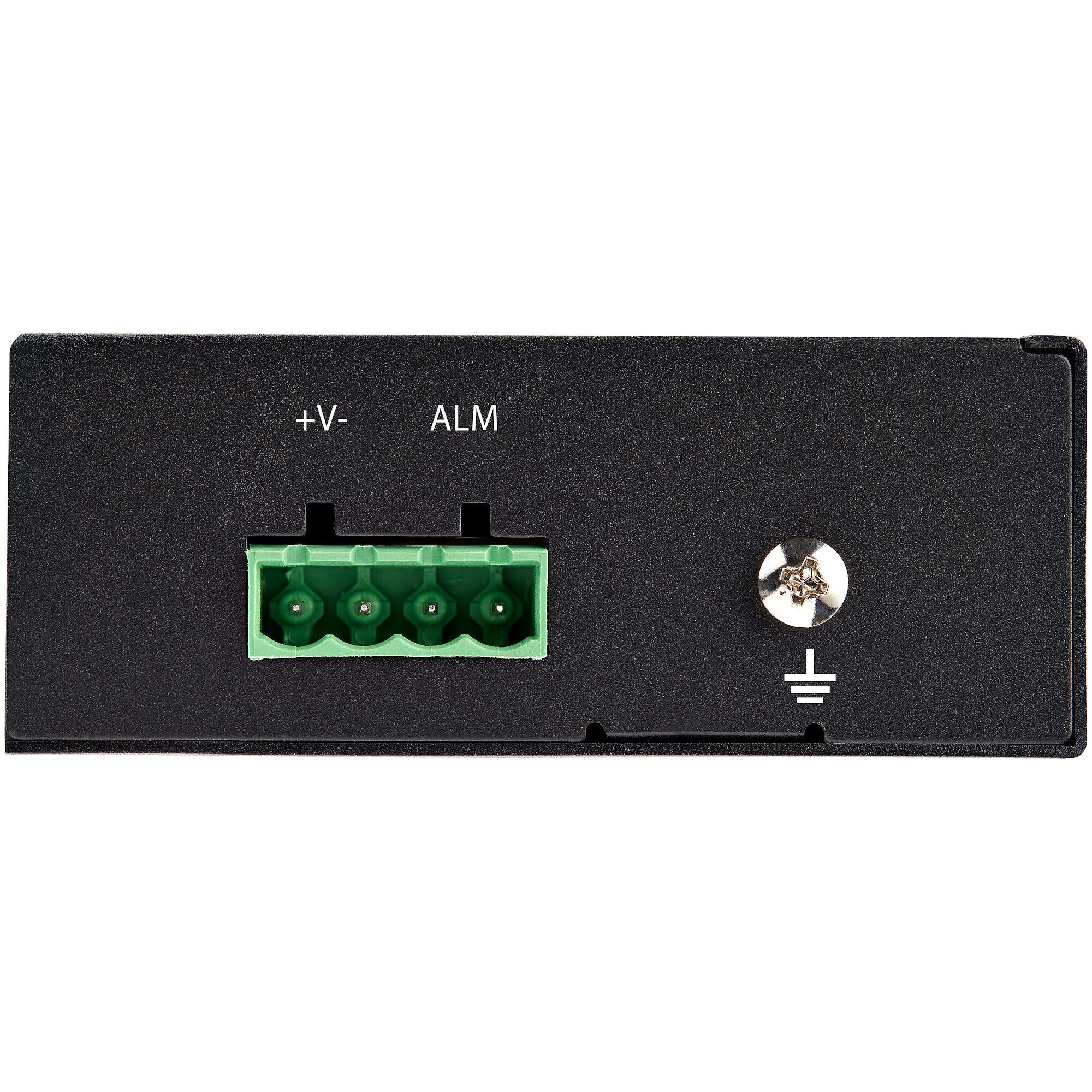

Dual Power Inputs
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- EXTEND, CONVERT, POWER: Fiber to Ethernet media converter with PoE extends & converts fiber to RJ-45 copper; Provides up to 60W of PSE power to PoE/PoE+/PoE++ PD devices like cameras and sensors
- TECH SPECS: 1 Gbps
- 1 x Open SFP (MSA Compliant)
| Features | |
|---|---|
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| Network | |
|---|---|
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Maximum data transfer rate | 1000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 500000 h |
| Buffer size | 512 KB |
| Fiber mode structure | Multi-mode, Single-mode |
| Maximum transfer distance | 100 m |
| Design | |
|---|---|
| Product colour | Black |
| Internal | No |
| Power | |
|---|---|
| Power plug type | Type N |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 48 - 56 V |
| Weight & dimensions | |
|---|---|
| Weight | 153 g |
| Height | 32 mm |
| Depth | 104 mm |
| Width | 81.5 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Packaging data | |
|---|---|
| Package volume | 395 cm³ |
| Package height | 64 mm |
| Package depth | 162 mm |
| Package width | 211 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case height | 225 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case width | 355 mm |
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Full duplex | Yes |
-
