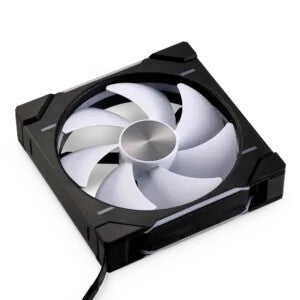

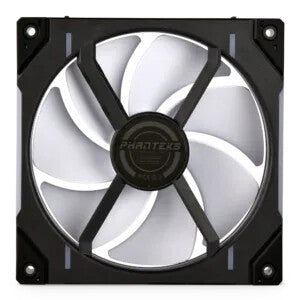

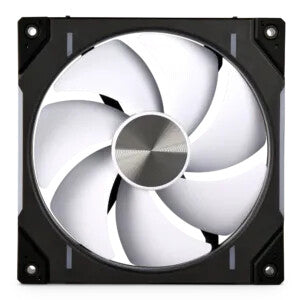

Phanteks D30-140 Computer case Fan 14 cm Black 1 pc(s)
The Phanteks D30-140 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-140 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-140 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-140 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Regular & Reverse Models
D30 REGULAR
Air moves from front to rear.
D30 REVERSED
Air moves from rear to front.
Clean look in both positions
Clean look with regular and reversed models combined.
Hub spokes blocked view with only regular models.

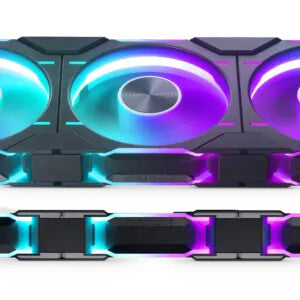

Link Together as One
Connect up to four D30 fans together with the bridge connectors.
Hide the fan screws with the screw covers for a super-clean look.
Standard PWM fan header to control directly from the motherboard.
30 mm of Performance
Increased thickness improves noise-normalized performance.
Designed to excel on radiators and mesh / dust filters.

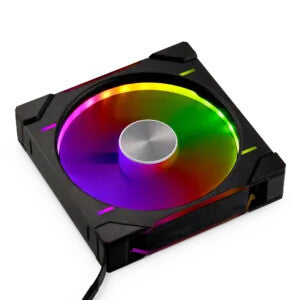

D-RGB All the Way
The integrated D-RGB lighting is visible from all sides of the D30 frame.
The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Rotational speed (min) | 250 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (high speed) | 29.5 dB |
| Maximum airflow | 71.93 cfm |
| Maximum air pressure | 3.32 mmH2O |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 29.5 dB |
| Quantity per pack | 1 pc(s) |
| Fan static pressure | 3.32 mmH2O |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 250 RPM |
| Mean time between failures (MTBF) | 50000 h |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 7 |
| Illumination LED | Yes |
| Number of LEDs | 30 |
| Fan connector | 4-pin |
| Power | |
|---|---|
| Power consumption (typical) | 1.8 W |
| Voltage | 5 - 13.2 V |
| Fan power consumption | 1.8 W |
| Maximum current | 0.45 A |
| Fan current | 0.15 A |
| LED voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 30 mm |
| Height | 140 mm |
| Fan dimensions (W x D x H) | 140 x 140 x 30 mm |
| Fan thickness | 3 cm |
| Fan weight | 350 g |
| Cable length | 0.7 m |
| Package weight | 430 g |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Packaging content | |
|---|---|
| Package type | Box |
| Cables included | 4-pin |
-
