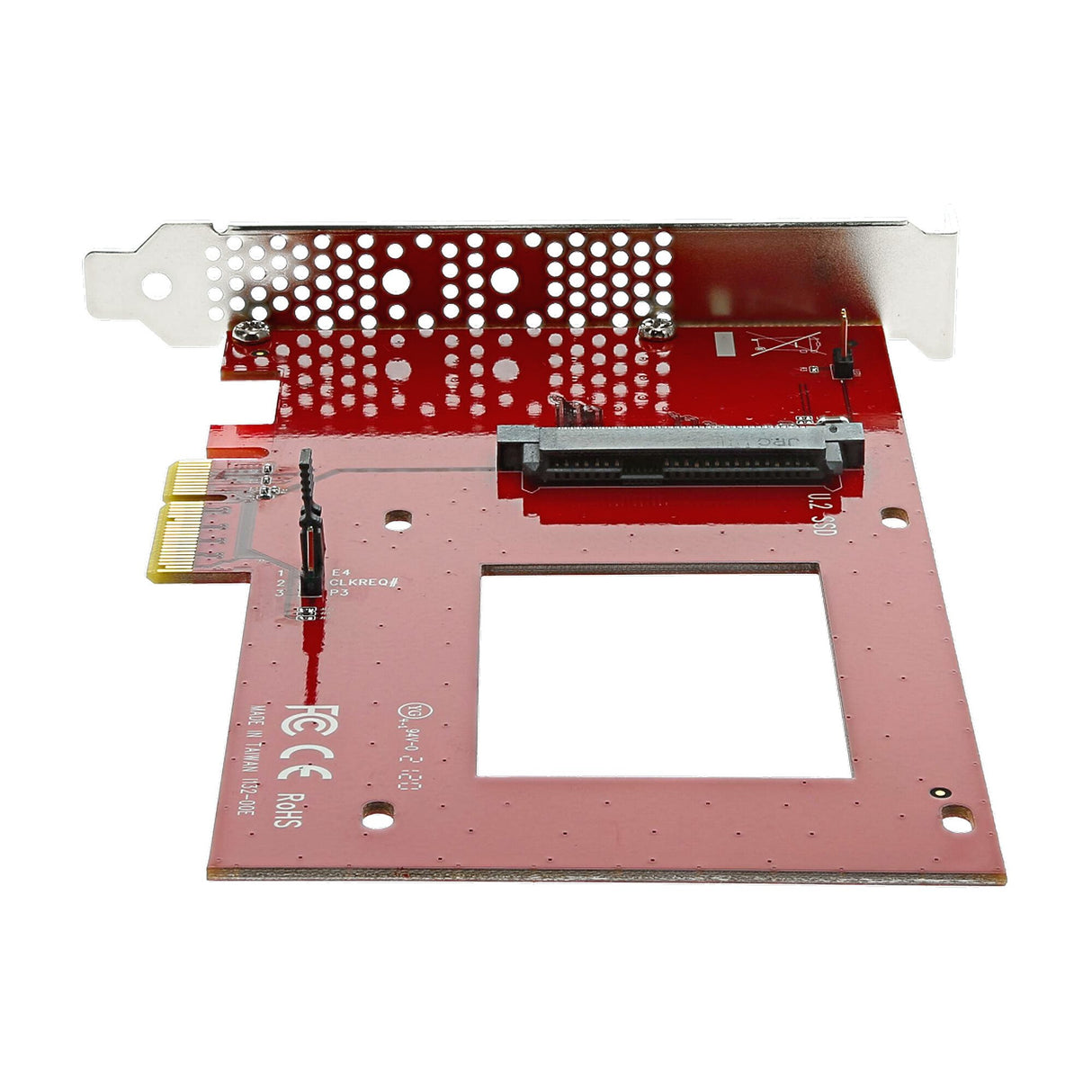

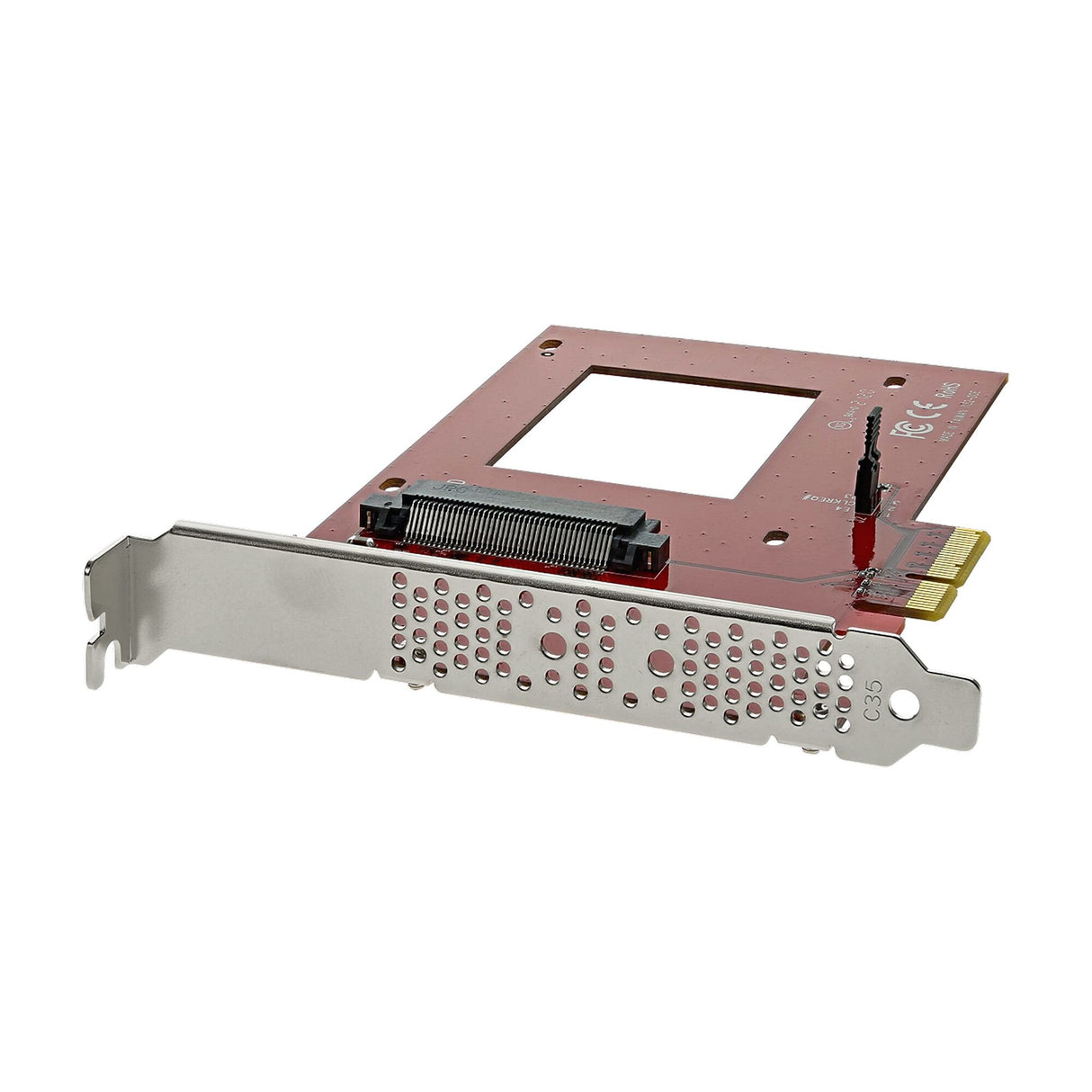

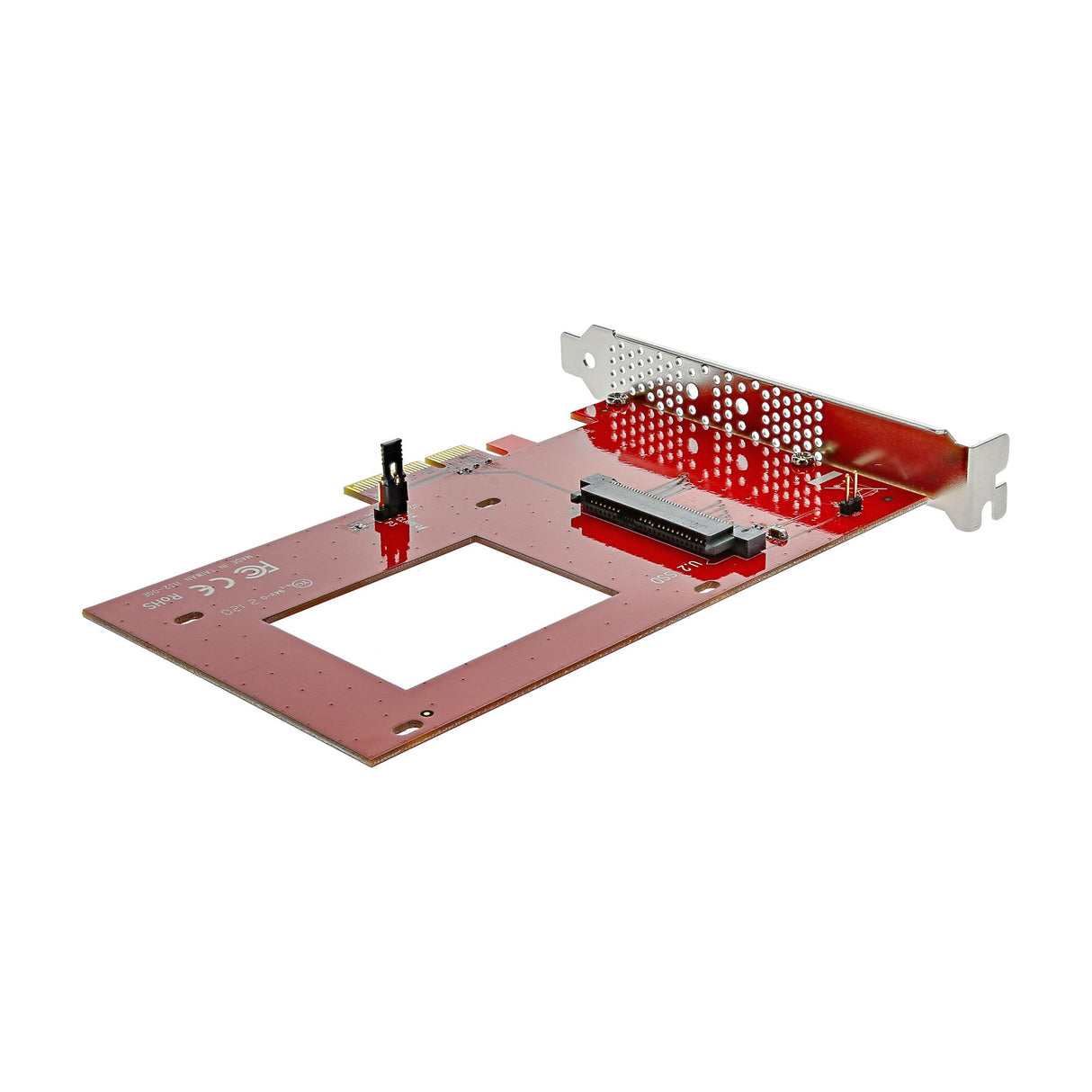

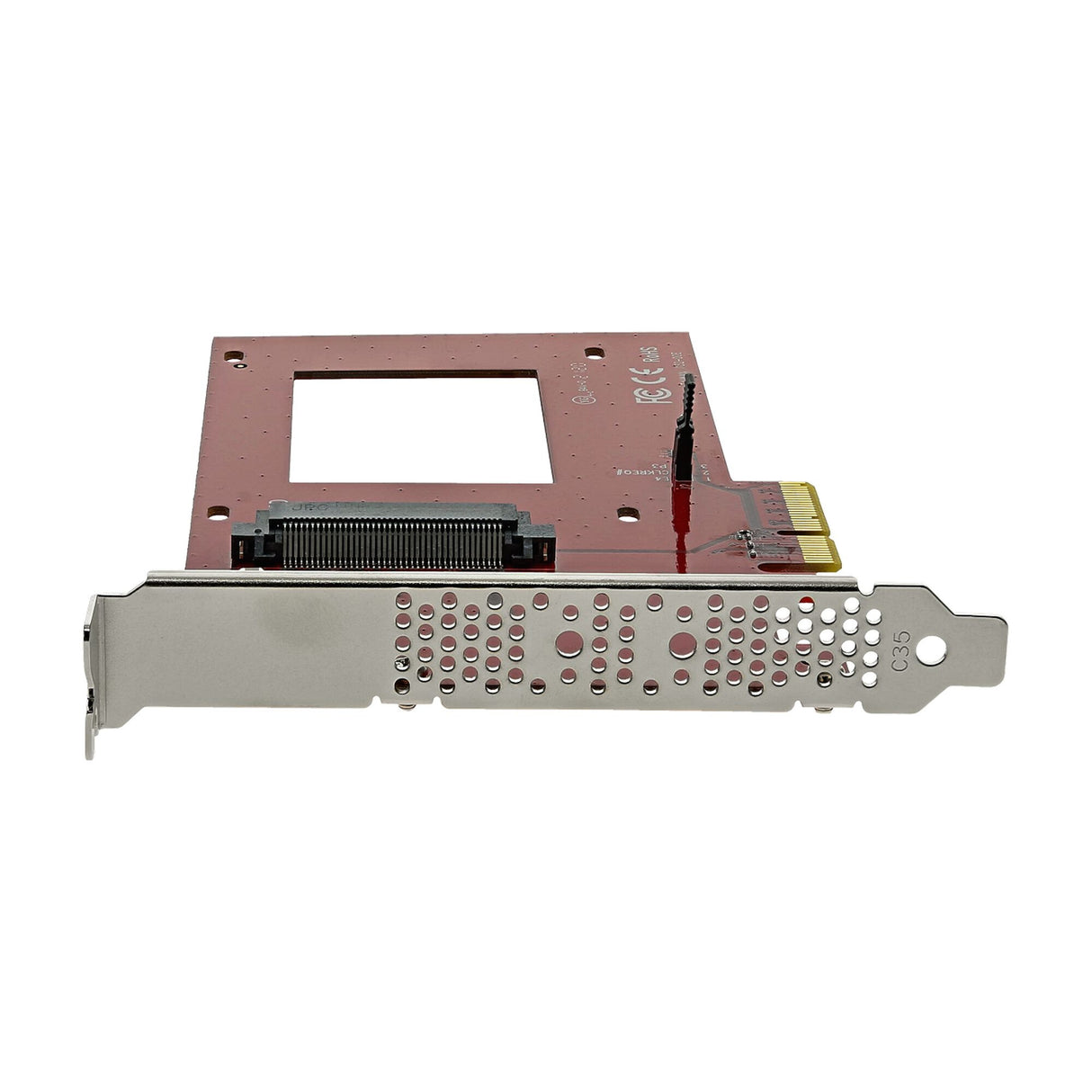

StarTech.com U.2 to PCIe Adapter for 2.5" U.2 NVMe SSD - SFF-8639 - x4 PCI Express 4.0

STARTECH  |  SKU: PEX4SFF8639  |  Condition: Brand New  |  Barcode: 0065030872591

MORE INFO

£61.99
£51.66 excluding VAT @20%
iFrame
StarTech.com U.2 to PCIe Adapter - x4 PCIe - For 2.5" U.2 NVMe SSD - SFF-8639 PCIe Adapter - U.2 SSD - PCIe SSD - U.2 drive (PEX4SFF8639)

Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slot

Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.

You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.

Easy to install

The expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.

The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0.

The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
Expansion card standard PCIe 4.0
Output interface U.2
Host interface PCIe
Design
Certification CE, FCC
Hot-swap No
LED indicators Activity
Product colour Red
Internal Yes
Features
Plug and Play Yes
Operational conditions
Operating relative humidity (H-H) 15 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 5 - 50 °C
Technical details
Compliance certificates RoHS
Weight & dimensions
Weight 65 g
Height 22 mm
Depth 165 mm
Width 122 mm
Packaging data
Package weight 161 g
Package height 45 mm
Package depth 220 mm
Package width 160 mm
Quick installation guide Yes
Screws included Yes
Logistics data
Master (outer) case height 490 mm
Master (outer) case length 450 mm
Master (outer) case width 340 mm
Products per master (outer) case 40 pc(s)
Harmonized System (HS) code 84733020
