Neomounts DS70-450WH1 Monitor arm 17-42" - gas spring - Topfix...

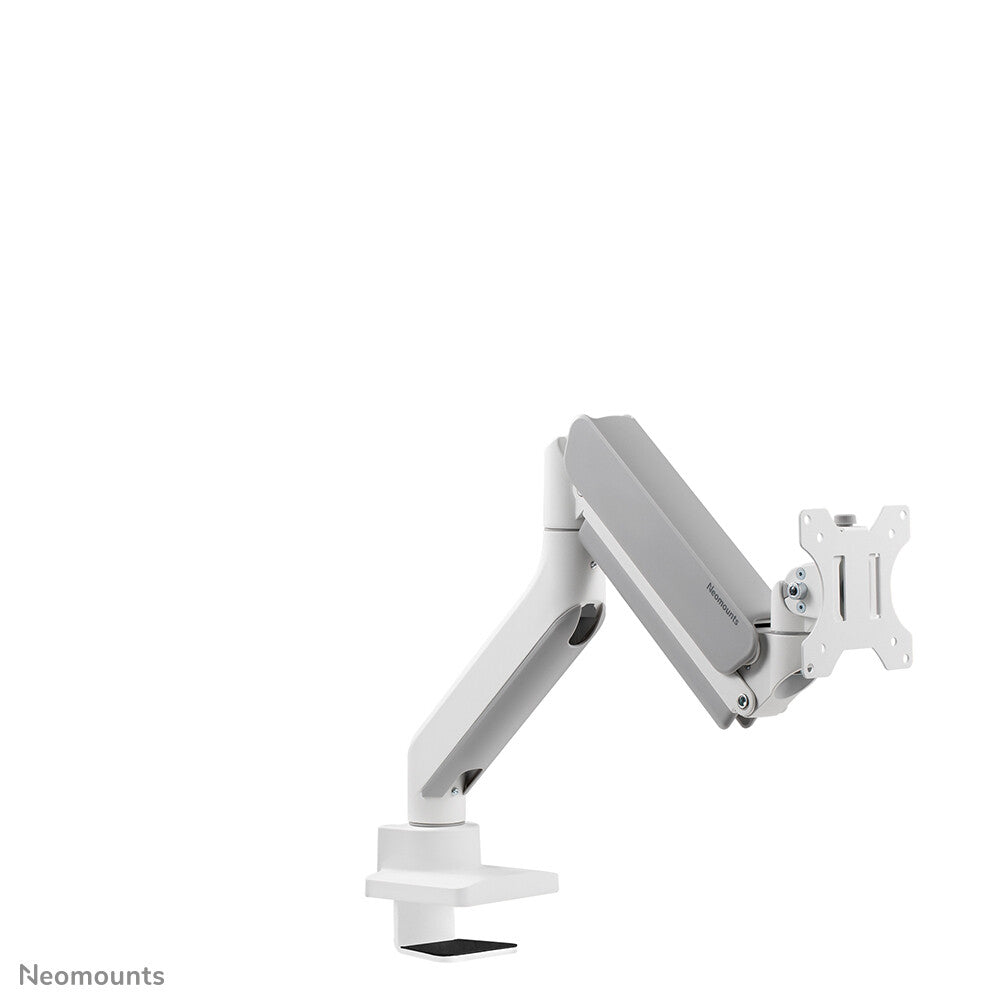

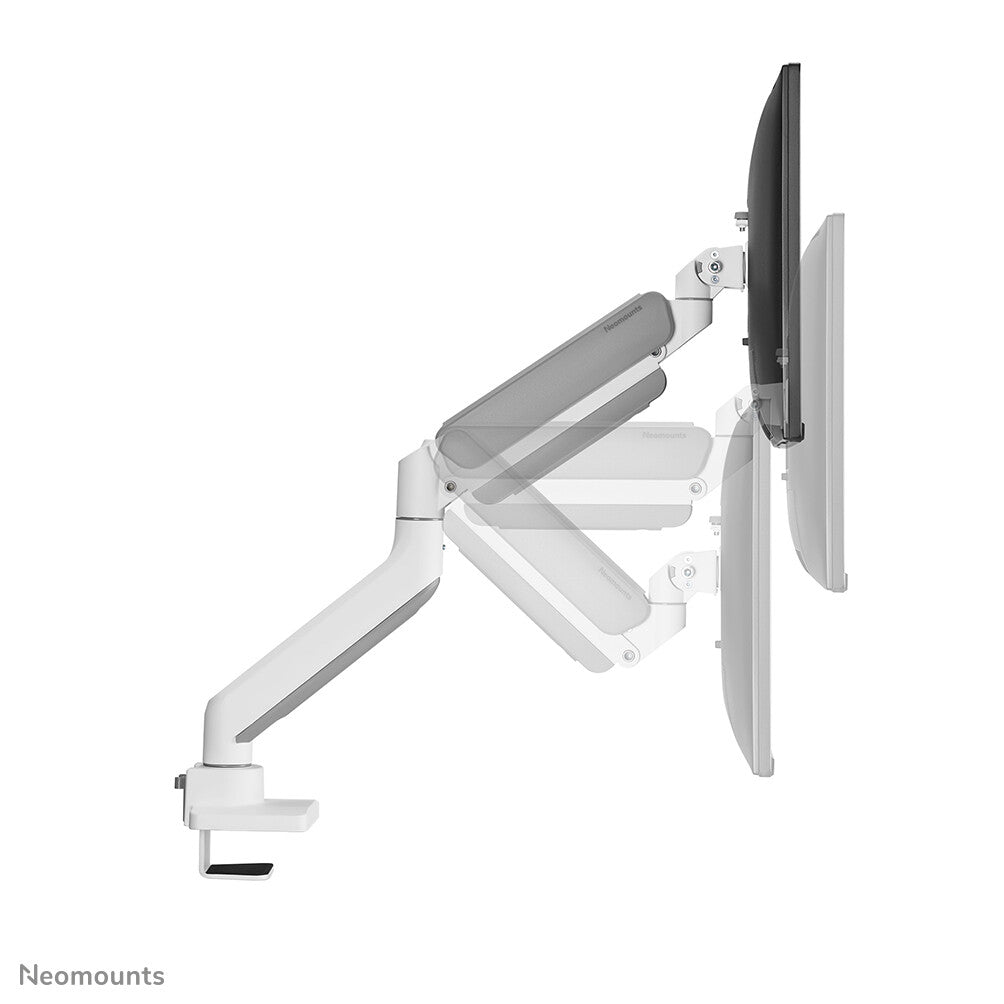

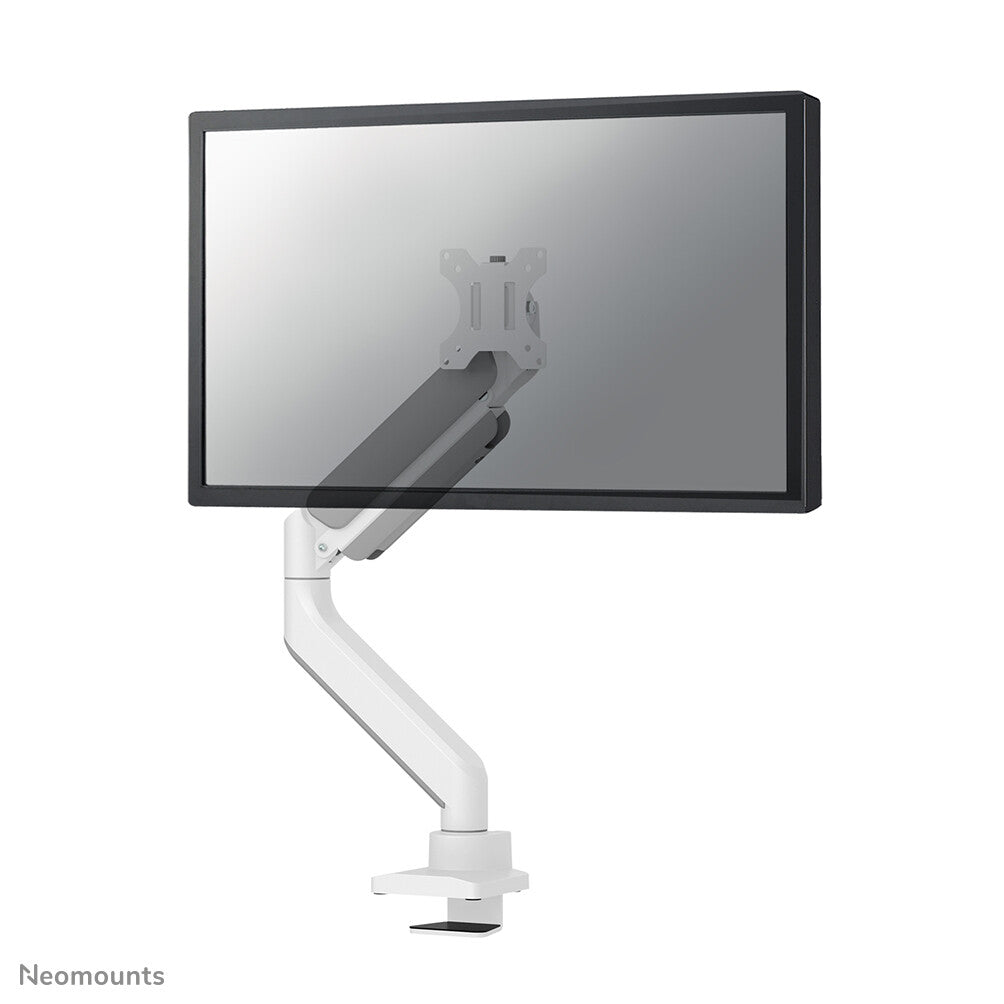

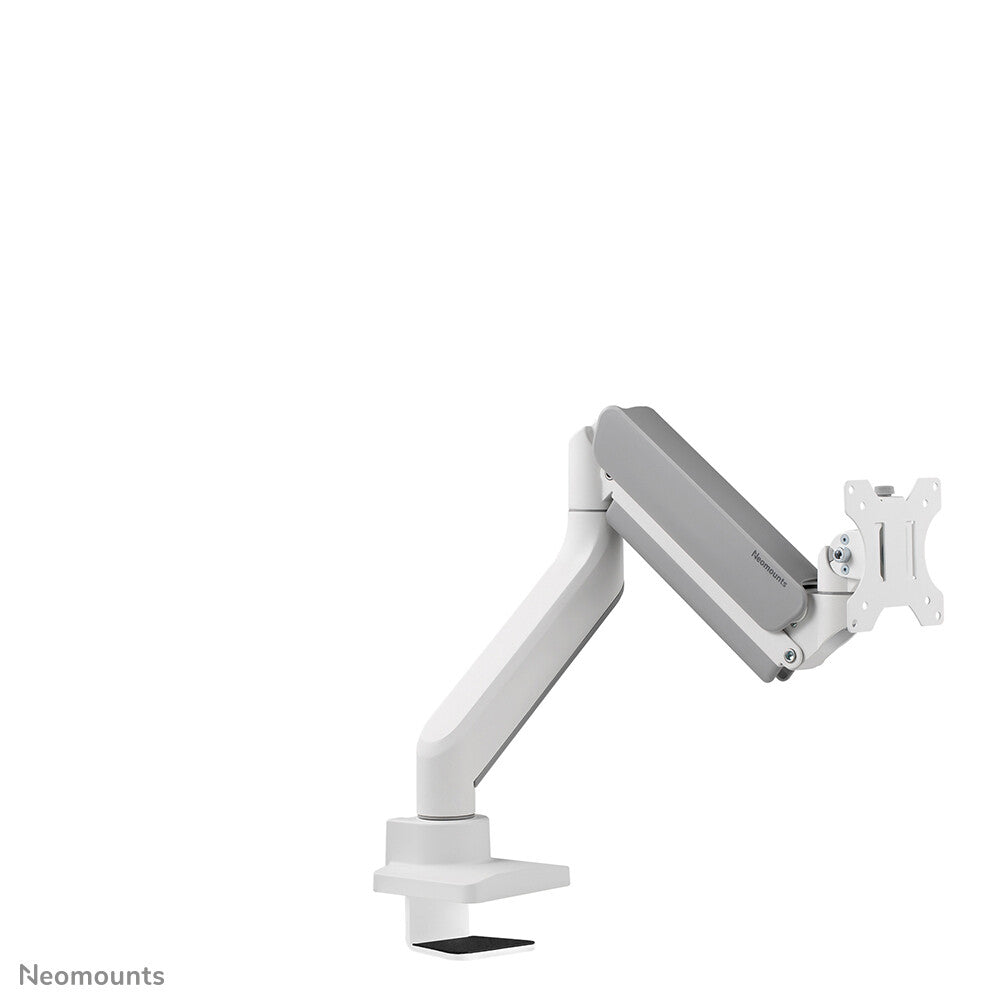

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

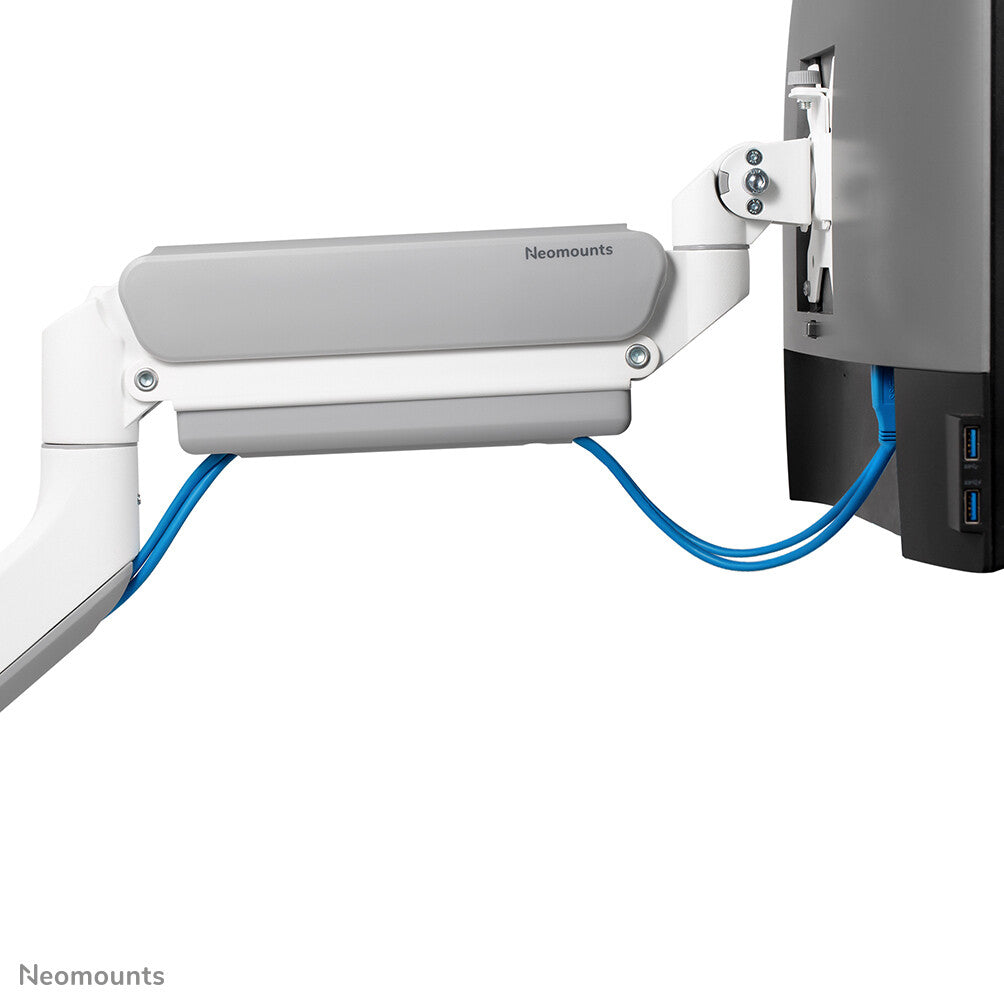

The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

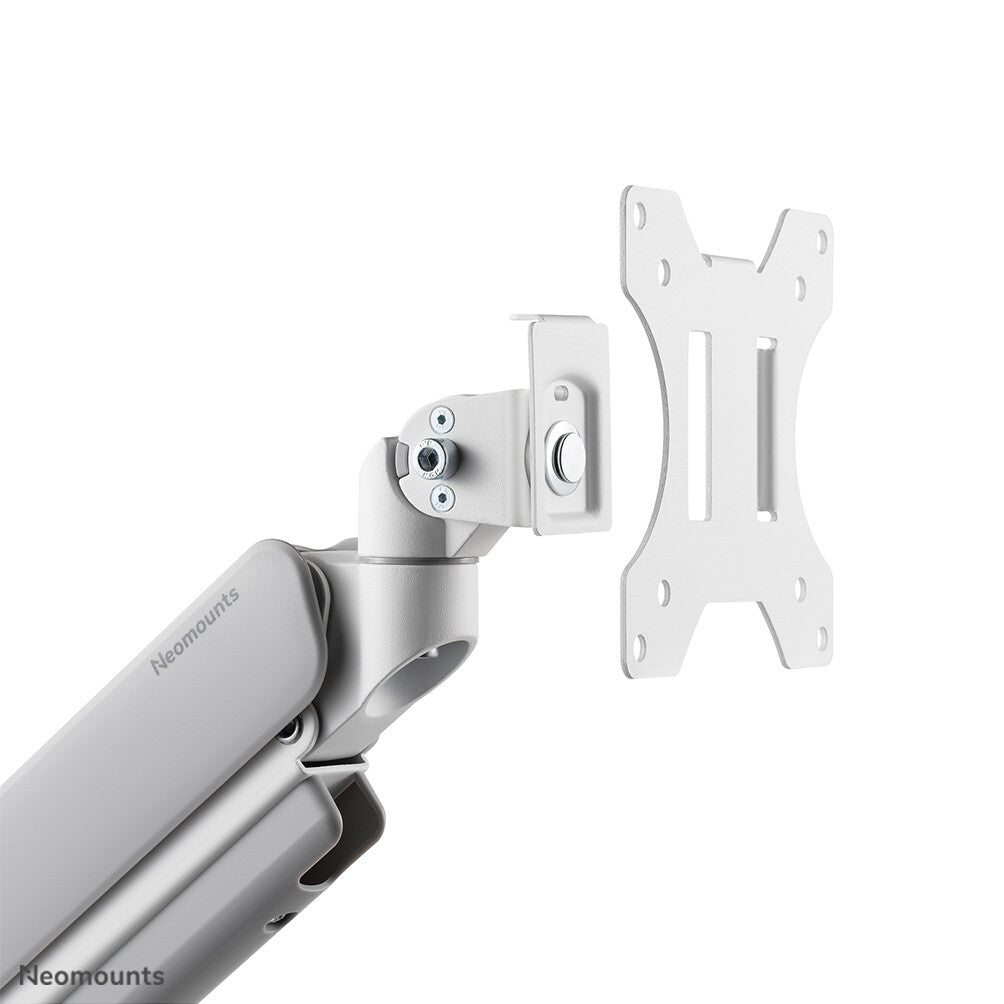

The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
| Mounting | |
|---|---|
| Distance to the wall (max) | 56.8 cm |
| Distance to the wall (min) | 10.8 cm |
| Desk thickness (max) | 4.5 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity (per curved/ultra-wide display) | 11 kg |
| Maximum weight capacity (per display) | 15 kg |
| Mounting type | Desk |
| Maximum screen size | 106.7 cm (42") |
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 15 kg |
| Ergonomics | |
|---|---|
| Rotating | Yes |
| Tilt adjustment | Yes |
| Cable management | Yes |
| Pivot angle | -180 - 180° |
| Angle of rotation | 360° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 180° |
| Swivelling | Yes |
| Tilt angle range | -45 - 45° |
| Width adjustment | 92 cm |
| Depth adjustment range | 54 - 511 mm |
| Adjustable depth | Yes |
| Height adjustment range | 261 - 555 mm |
| Height adjustment type | Gas spring |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Package weight | 5.1 kg |
| Package height | 445 mm |
| Package depth | 127 mm |
| Package width | 280 mm |
| Weight | 3.98 kg |
| Height | 653 mm |
| Depth | 568 mm |
| Width | 120 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Packaging data | |
|---|---|
| Package net weight | 5.1 kg |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 18.4 kg |
| Products per pallet (EU) | 64 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case gross weight | 20.5 kg |
| Master (outer) case height | 580 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case width | 460 mm |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 920 mm |
| Country of origin | China |
-
