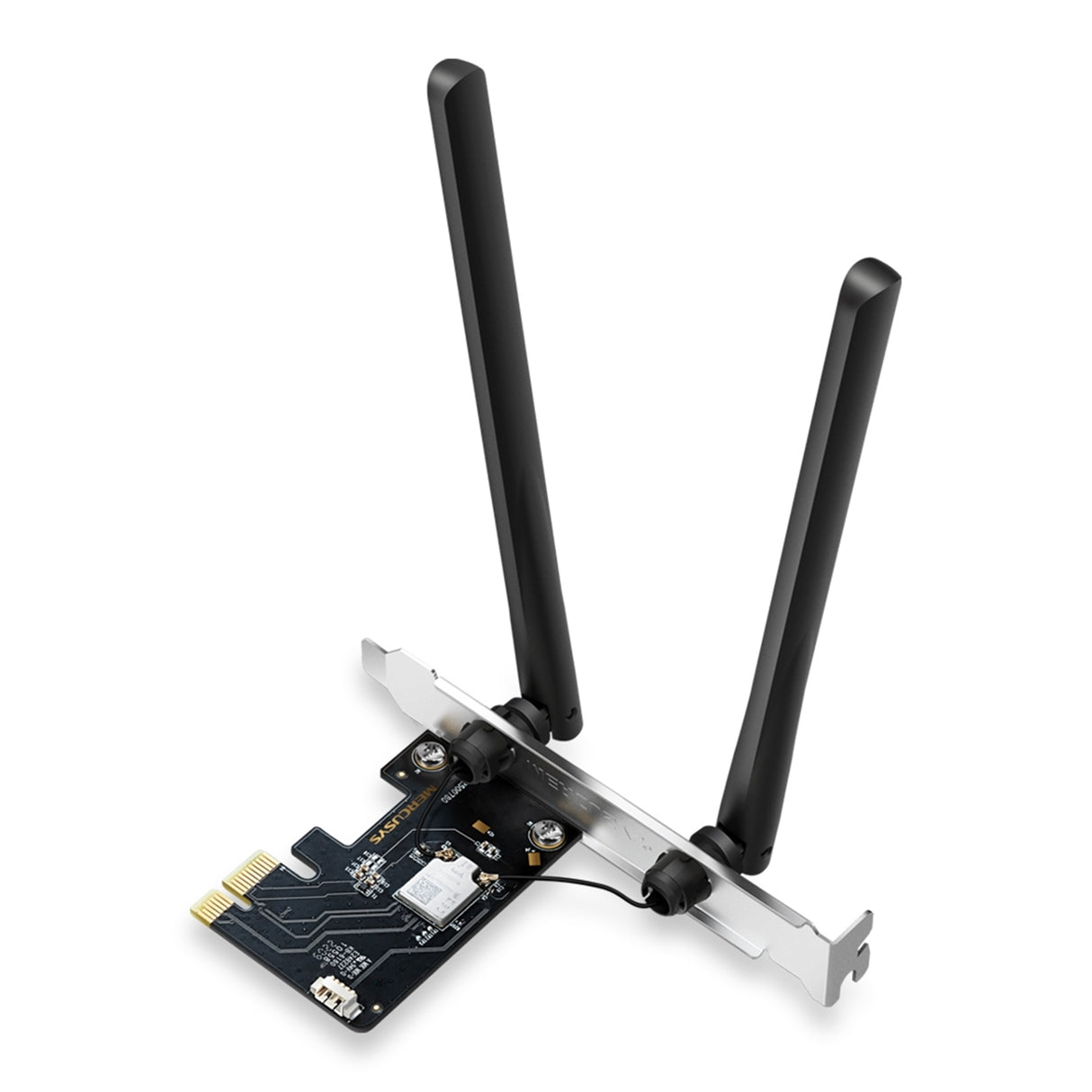

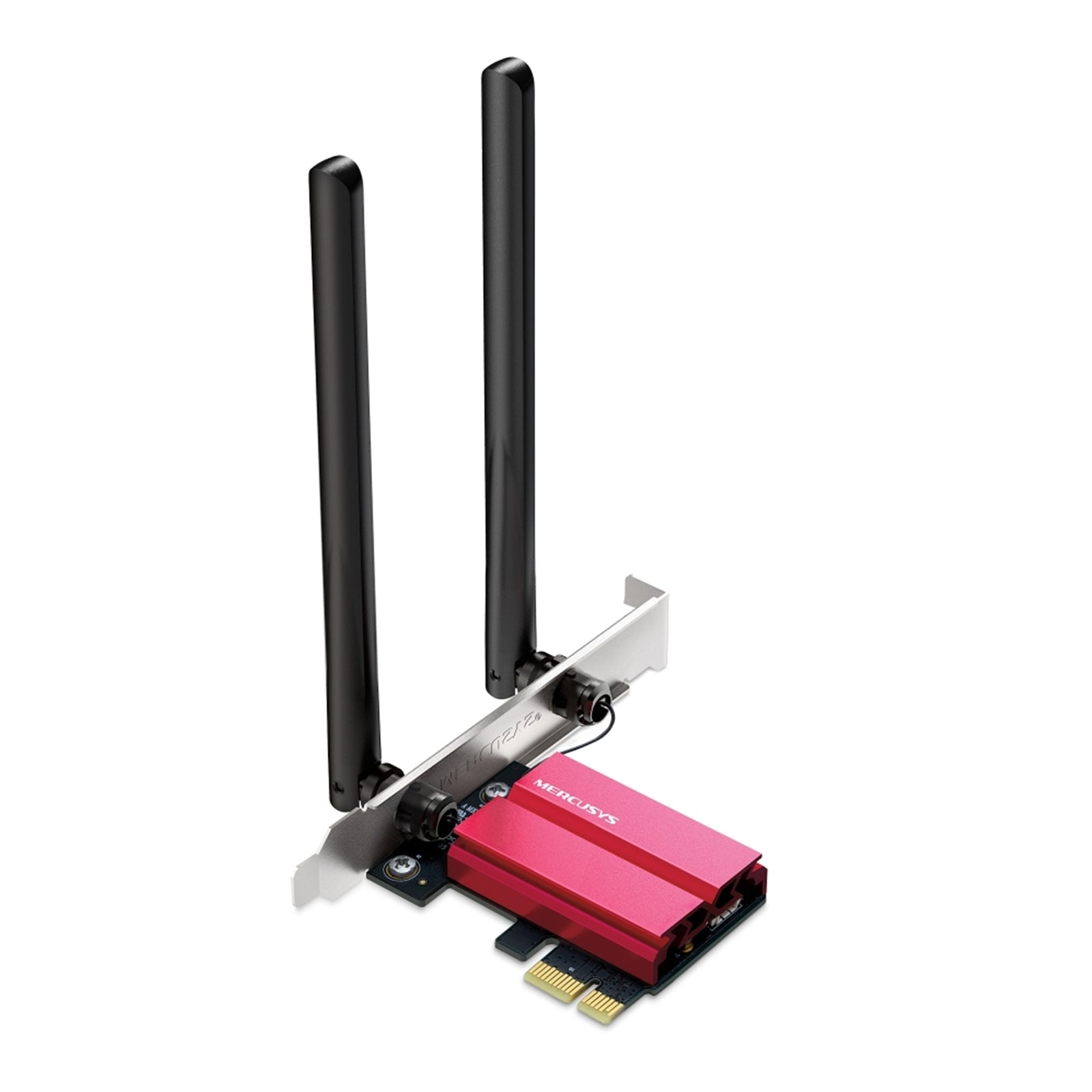

Mercusys MA86XE AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter
Powered by Autify Digital Ltd
Mercusys MA86XE AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter is backordered and will ship as soon as it is back in stock.
Mercusys MA86XE AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Ada...
Unstoppable Tri-Band Speed
Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard
Expand to the clearer, broader 6 GHz band
Reliable Connections
The latest Intel Wi-Fi 6E chipset
Wider Signal Coverage
Two high-performance antennas
Bluetooth 5.2
The latest Bluetooth technology achieves faster speeds and broader coverage
Improved Security
The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Backward Compatibility
Full support for 802.11ax/ac/a/b/g/n standards
Windows Compatible
Supported operating system: Windows 10, 11 (64 bit), and the 6 GHz is now available on Windows 11
Specifications
Wireless
Wireless Standards
IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz
Signal Rate
2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz
Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE
Hardware
Dimensions (W X D X H)
8.9 x 4.8 x 0.85 in (226.3 x 120.8 x 21.5 mm)
Antenna Type
2x Fixed High-Performance Omni-Directional Antennas
Others
Package Contents
AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
System Requirements
Supported operating systems include Windows 10, 11(64-bit)
- Internal/External: Internal
- Speed: 5400Mbps
- High-Gain Antenna: Yes
-
