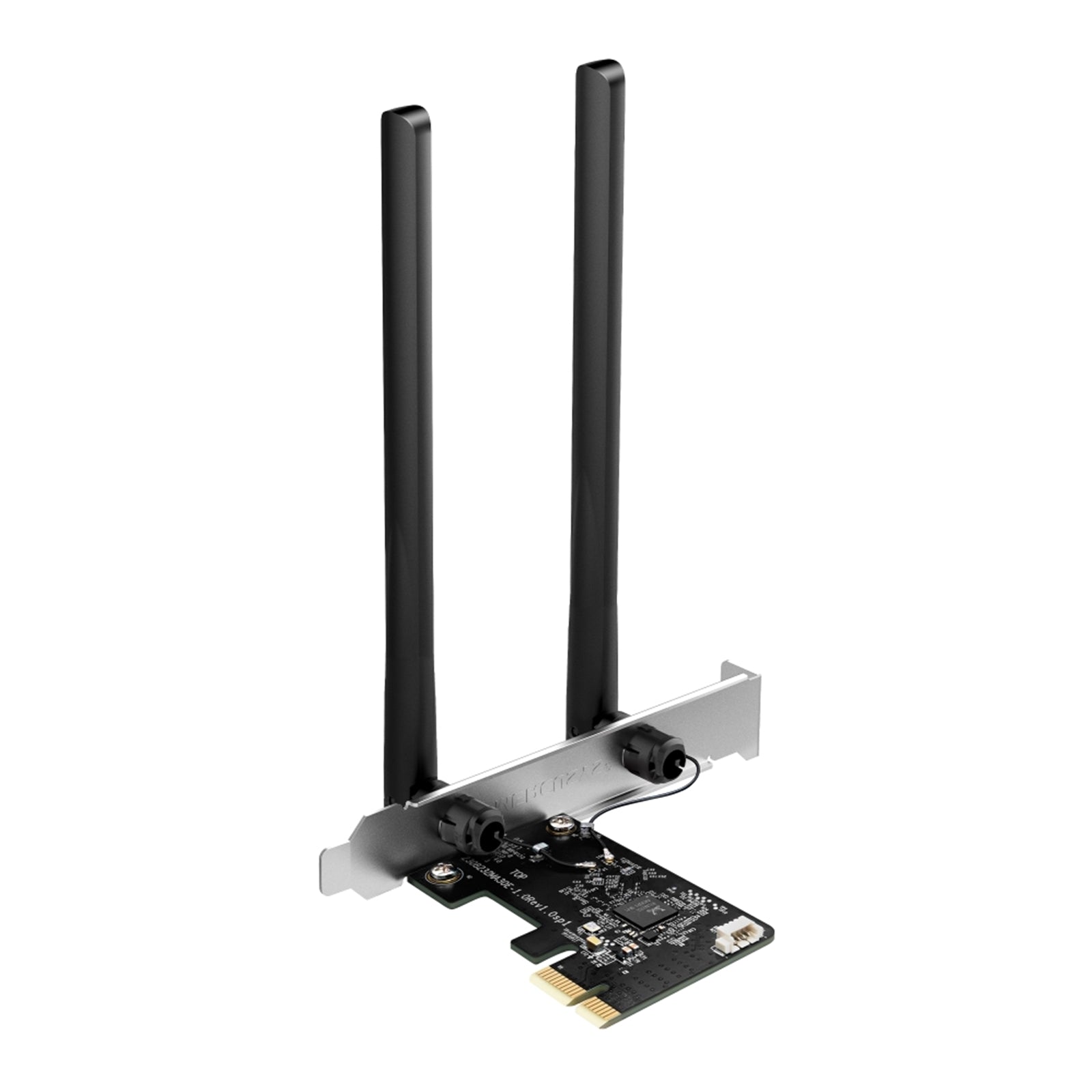

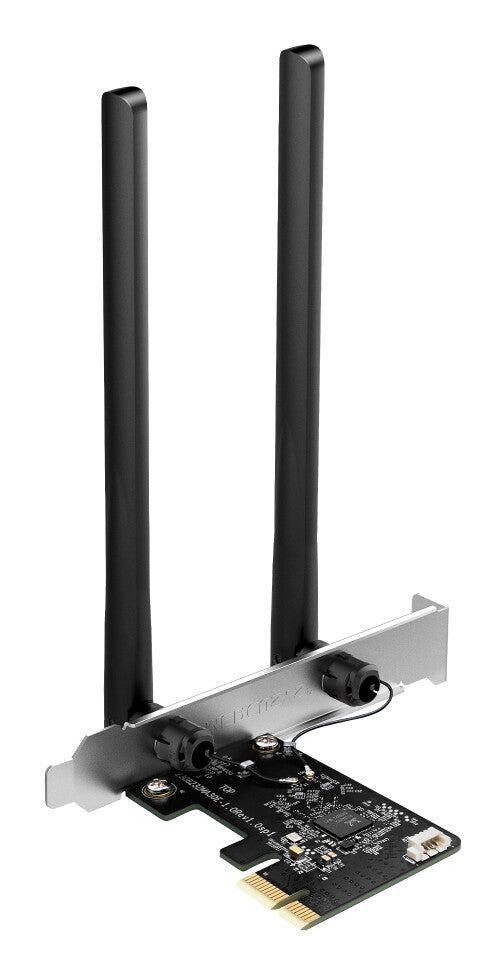

Mercusys AC1200 Wi-Fi Bluetooth PCIe Adapter
AC1200 Dual Band Wi-Fi for Lag-free Work and Entertainment
The MA30E connects devices on both 2.4 GHz and 5 GHz bands simultaneously, offering a superior lag-free experience for work and play. Combining 300 Mbps 2.4 GHz (perfect for surfing and emailing) and 867 Mbps 5 GHz (ideal for HD streaming and gaming), you have the flexibility to allocate your devices to dedicated networks to do more at the same time.
Bluetooth 5.0 Supported
MA30E makes your PC Bluetooth-capable with ultra-fast Bluetooth 5.0 which achieves more stable connection, farther range and faster transmission speeds than Bluetooth 4.2. Just connect your Bluetooth devices to your computer and enjoy with ease.
Boost Wireless Range
Two high-performance antennas reach your router from farther away with more precise directional range, sustaining faster and more stable wireless connections.
Overall Security Protection
The latest security standard, WPA3, provides improved comprehensive Wi-Fi protection to defend your devices and private information against brute-force attacks.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Network | |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,867 Mbit/s |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-SAE |
| Design | |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
| Antenna | Yes |
| Antenna direction type | Omni-directional |
| Receiver sensitivity | 5 GHz: 11ac HT80: -59.0dBm; 11n HT40: -68.5dBm; 11a 54Mbps: -73.5dBm; 11a 6Mbps: -91dBm , 2.4 GHz: 11n HT40: -69.5dBm; 11g 54Mbps: -74dBm; 11b 11Mbps: -87dBm |
| Certification | FCC, CE, RoHS |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 226.3 mm |
| Depth | 120.8 mm |
| Height | 21.5 mm |
| Packaging content | |
|---|---|
| Resource CD | Yes |
| Quick installation guide | Yes |
-
