GIGABYTE  |  SKU: B760 GAMING X DDR4  |  Condition: Brand New  |  UPC/EAN: 4719331850906

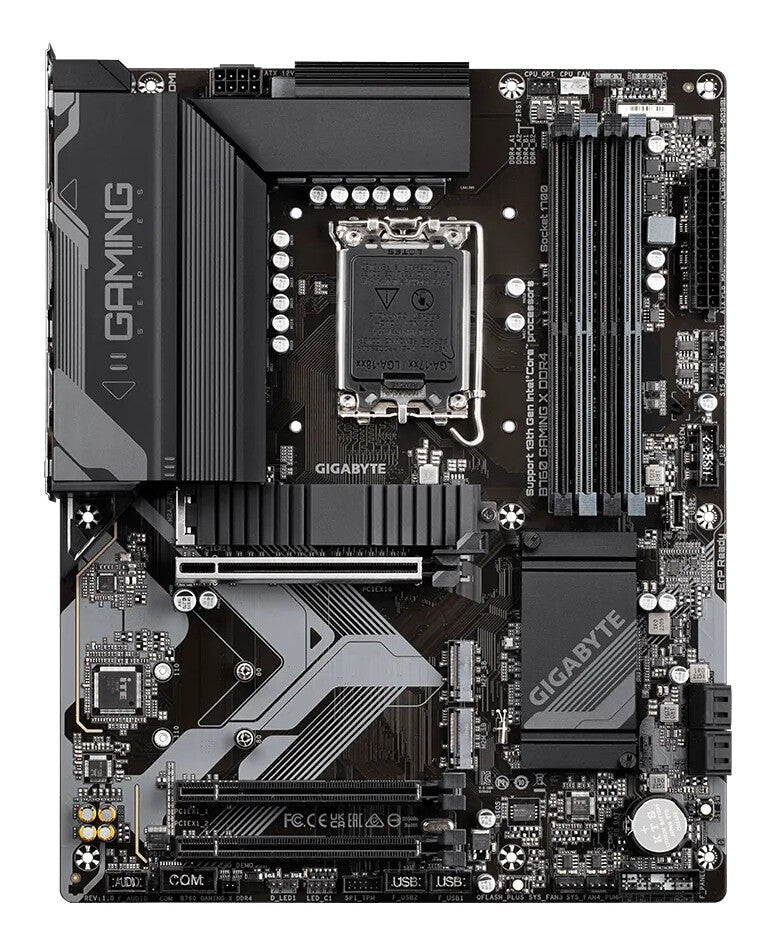

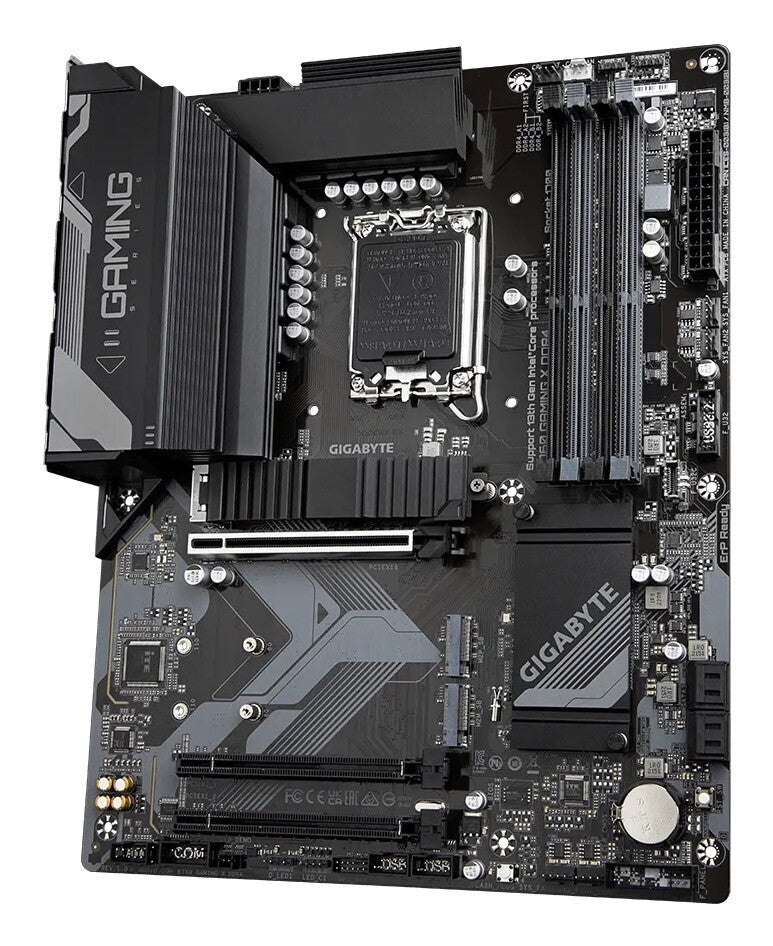

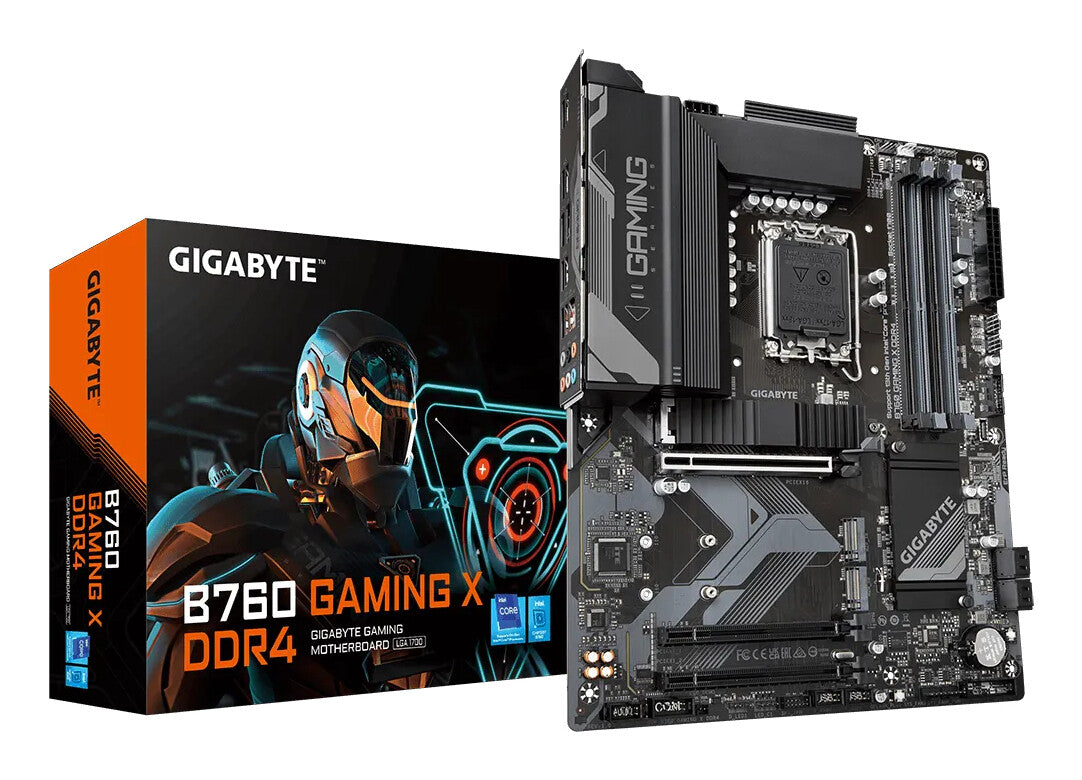

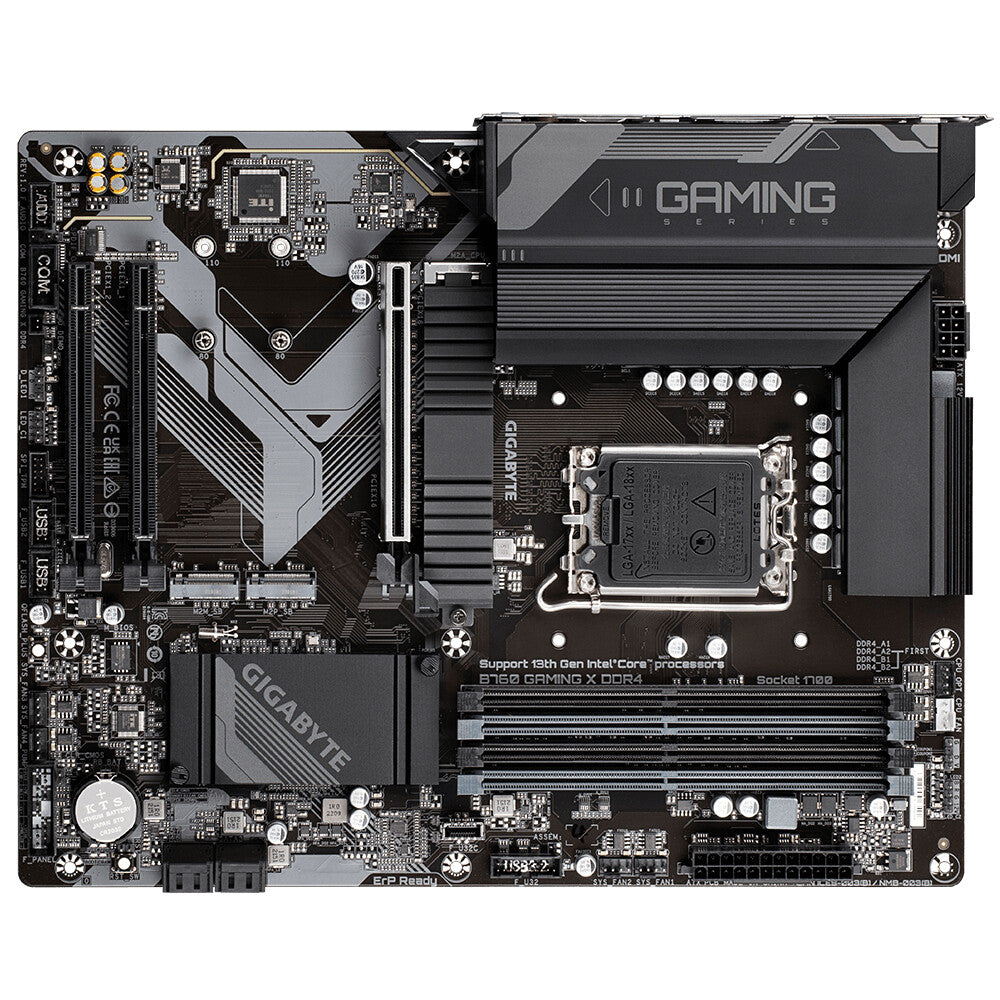

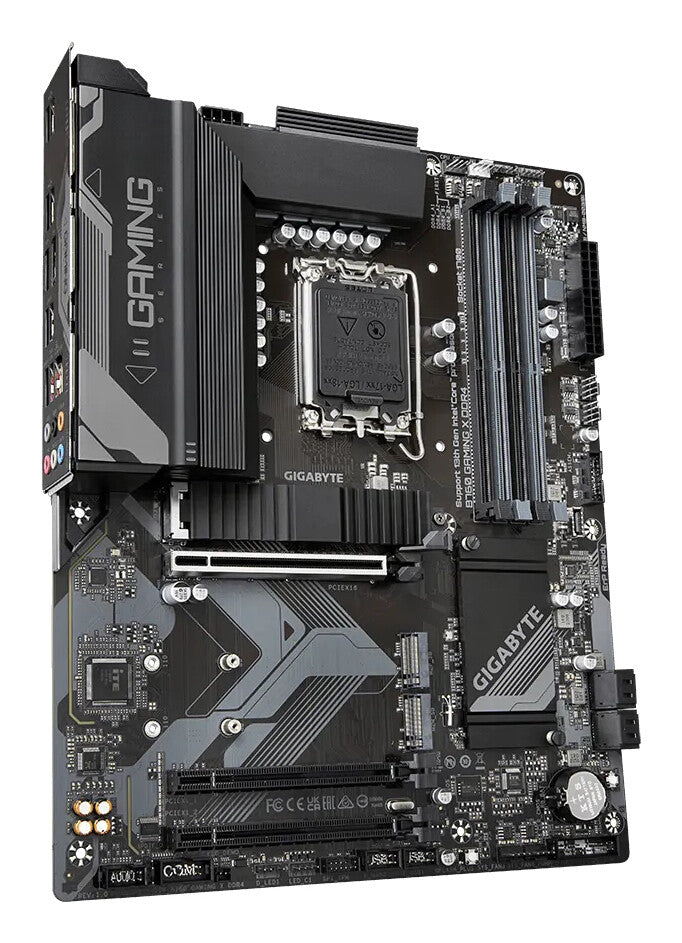

GIGABYTE B760 GAMING X DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 8+1+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

£129.99 £136.99
Excl VAT £108.33

Key Details:

  • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Final Price after Configuration:
£129.99 £136.99
Excl VAT £108.33
B760 GAMING X DDR4 (rev. 1.0), LGA1700, 4 x DDR DIMM sockets, 128 GB max, HDMI, DisplayPort, 2.5GbE

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor
Maximum internal memory supported by processor 128 GB
Supported processor sockets LGA 1700
Compatible processor series Intel® Celeron®, Intel® Pentium® Gold
Processor socket LGA 1700
Memory
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speed (max) 533 MHz
Supported memory clock speeds 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Non-ECC Yes
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 4
Number of storage drives supported 78
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
On-board graphics card model Intel® HD Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2304 pixels
Graphics card HD Graphics
Graphics card family Intel
On-board graphics card Yes
Parallel processing technology support Not supported
Internal I/O
RGB LED pin header Yes
TPM connector Yes
Serial port headers 1
EPS power connector (8-pin) Yes
Number of chassis fan connectors 3
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
Audio connector Yes
S/PDIF out connector Yes
Total number of SATA connectors 4
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 4
Rear panel I/O ports
USB connector type USB Type-A, USB Type-C
DisplayPort version 1.2
DisplayPorts quantity 1
HDMI version 2.0
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 ports quantity 5
Network
Wi-Fi No
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
PC health monitoring Fan, Temperature, Voltage, Water cooling
Product colour Brown
Audio output channels 7.1 channels
Motherboard chipset Intel B760 Express
Motherboard chipset family Intel
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
BIOS
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7
Clear CMOS jumper Yes
ACPI version 5.0
BIOS memory size 256 Mbit
BIOS type EFI AMI
Packaging data
Package weight 1.79 kg
Package height 80 mm
Package depth 270 mm
Package width 335 mm
Logistics data
Country of origin China
Products per shipping (inner) case 1 pc(s)
Battery
Battery type CR2032
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells 1
Battery weight 3 g
Lithium weight per battery 0.07 g
Weight & dimensions
Height 35 mm
Depth 244 mm
Width 305 mm
Packaging content
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Batteries included Yes
Technical details
Warranty period 3 year(s)
