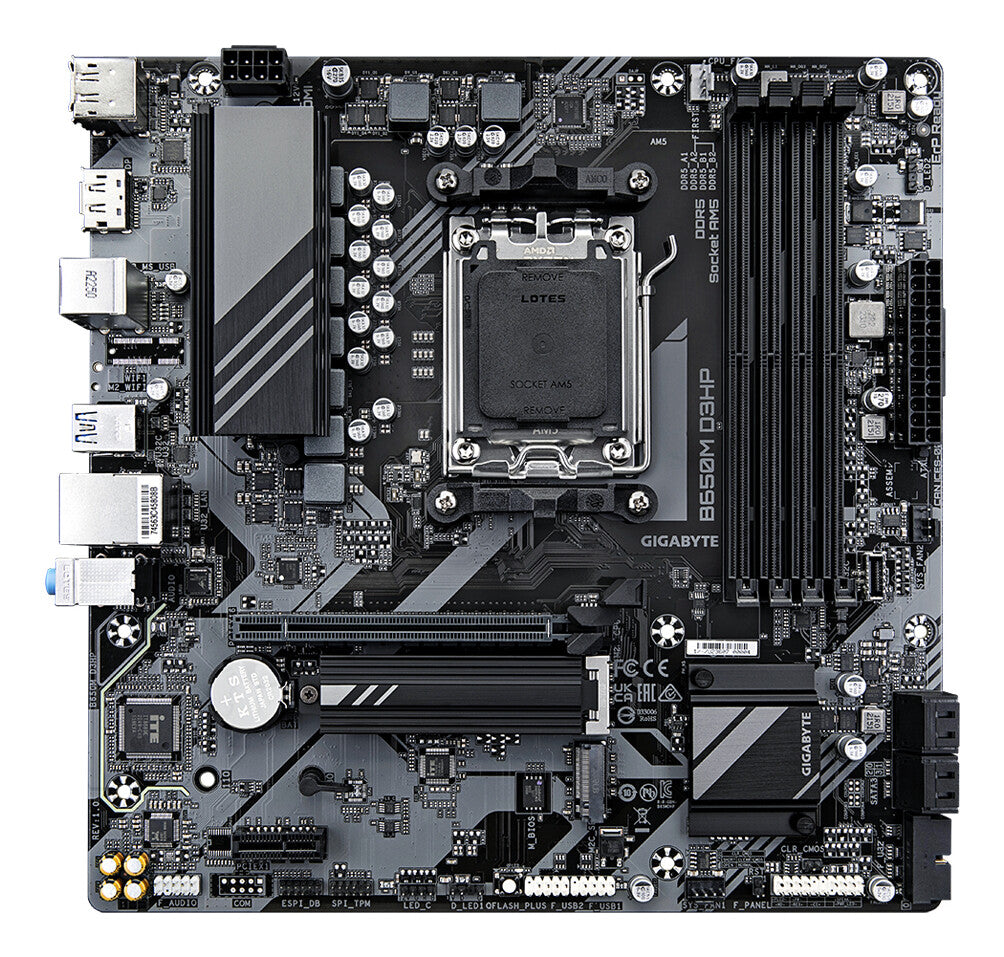

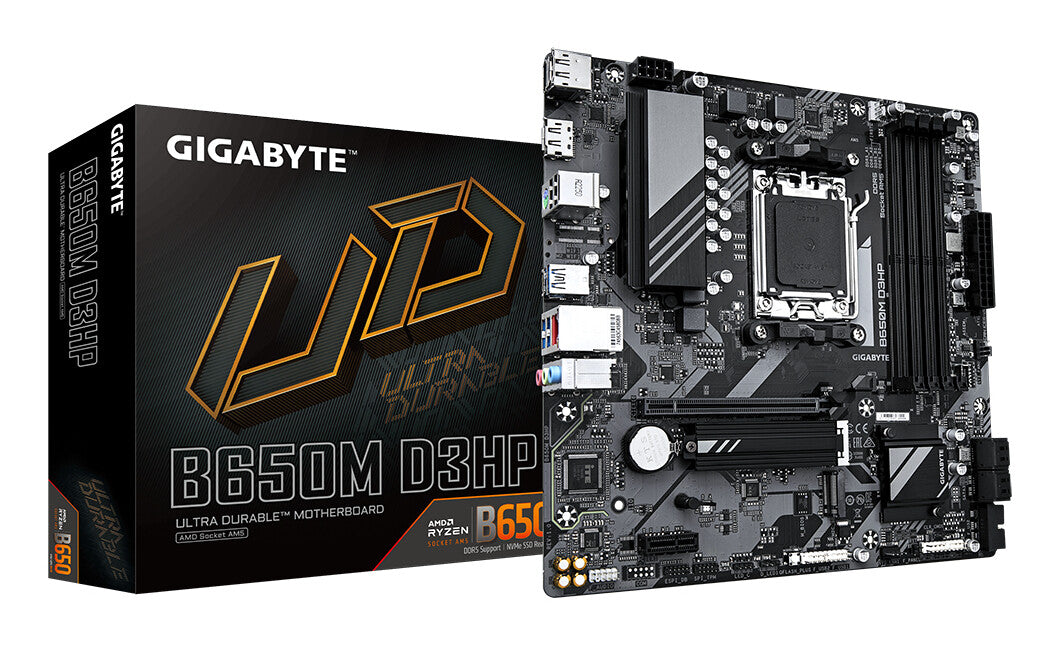

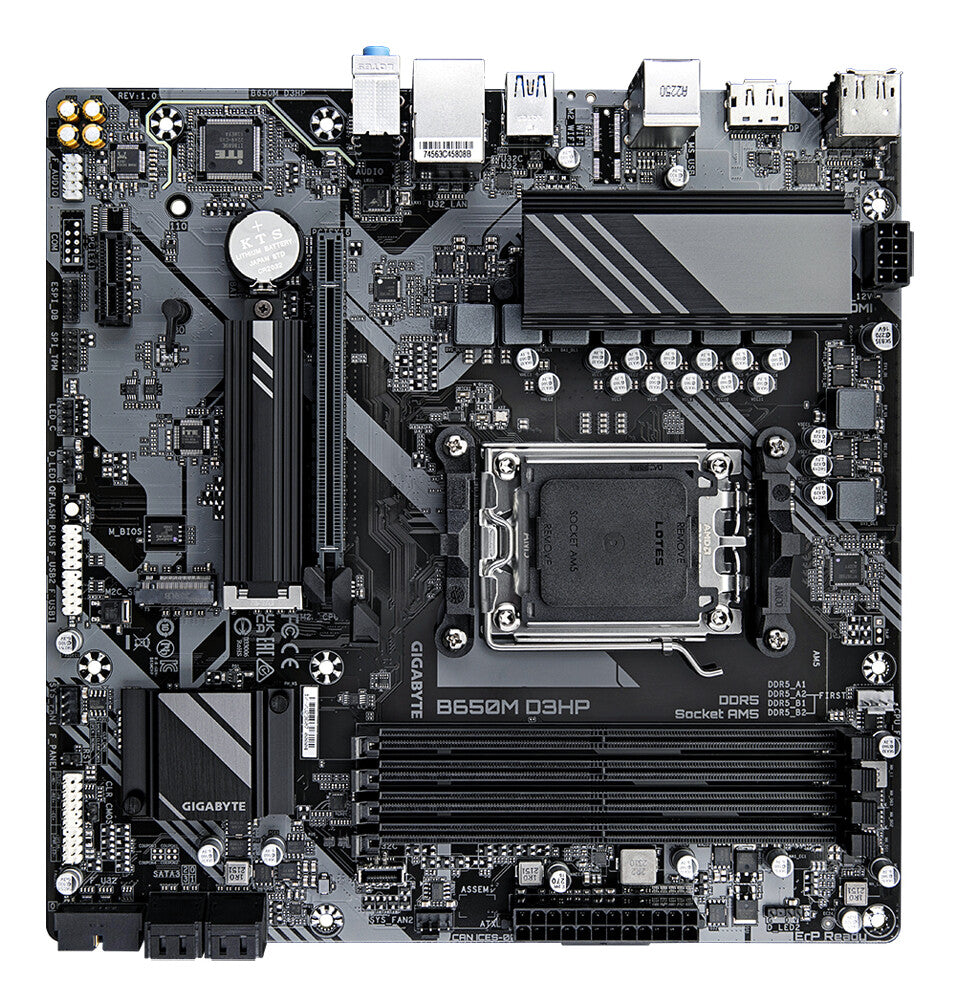

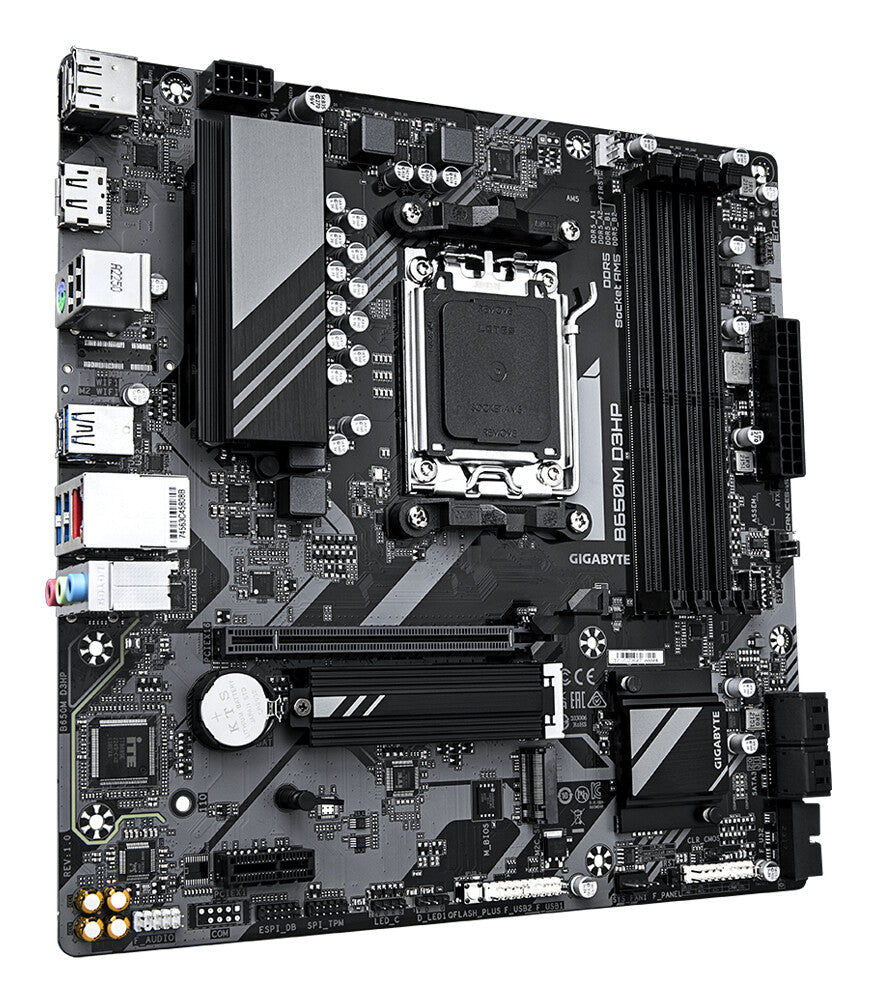

Gigabyte B650M D3HP DDR5 Motherboard, AMD Socket AM5, Micro ATX, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 2x M.2 2280 PCIe 4.0, Realtek 2.5GbE LAN, HDMI/DisplayPort
Flexible credit available
Flexible credit available
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
EXPO & XMP Support
GIGABYTE Exclusive DDR5 Circuit Design
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
STEP 1: Plug 24pin & 8pin power supply cable on motherboard
STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control: Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode: Slope/Stair dual mode for different user scenario
Fan Stop: Fan can stop completely below users' specified temperature point
Smart Fan 6 BIOS UI
Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input: For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
AMD Socket AM5:Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance:5+2+2 Phases Digital VRM Solution
Dual Channel DDR5:4 SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
EZ-Latch:PCIe x16 Slot with Quick Release Design
Fast Networks:2.5GbE LAN
Extended Connectivity:2 DP, HDMI
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Integrated Graphics Processor with AMD Radeon Graphics support
2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support for native HDMI 2.1 TMDS compatible ports.
Support for up to triple-display at the same time
(Graphics specifications may vary depending on CPU support.)
Realtek Audio CODEC
High Definition Audio
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Integrated in the CPU
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port on the back panel
1 x USB 2.0/1.1 port on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
2 x USB 3.2 Gen 1 ports available through the internal USB header
5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

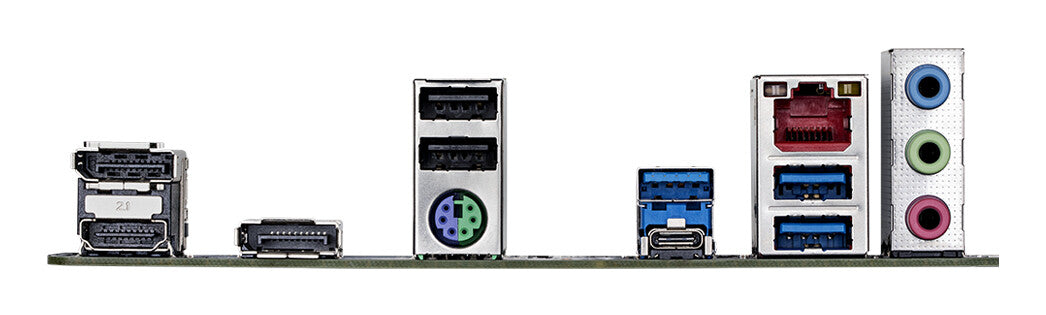

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
1 x RJ-45 port
3 x audio jacks
iTE I/O Controller Chip
Fan speed detection
Fan fail warning
Fan speed control
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Support for GIGABYTE Control Center (GCC)
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Norton Internet Security (OEM version)
LAN bandwidth management software
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Micro ATX Form Factor; 24.4cm x 24.4cm
