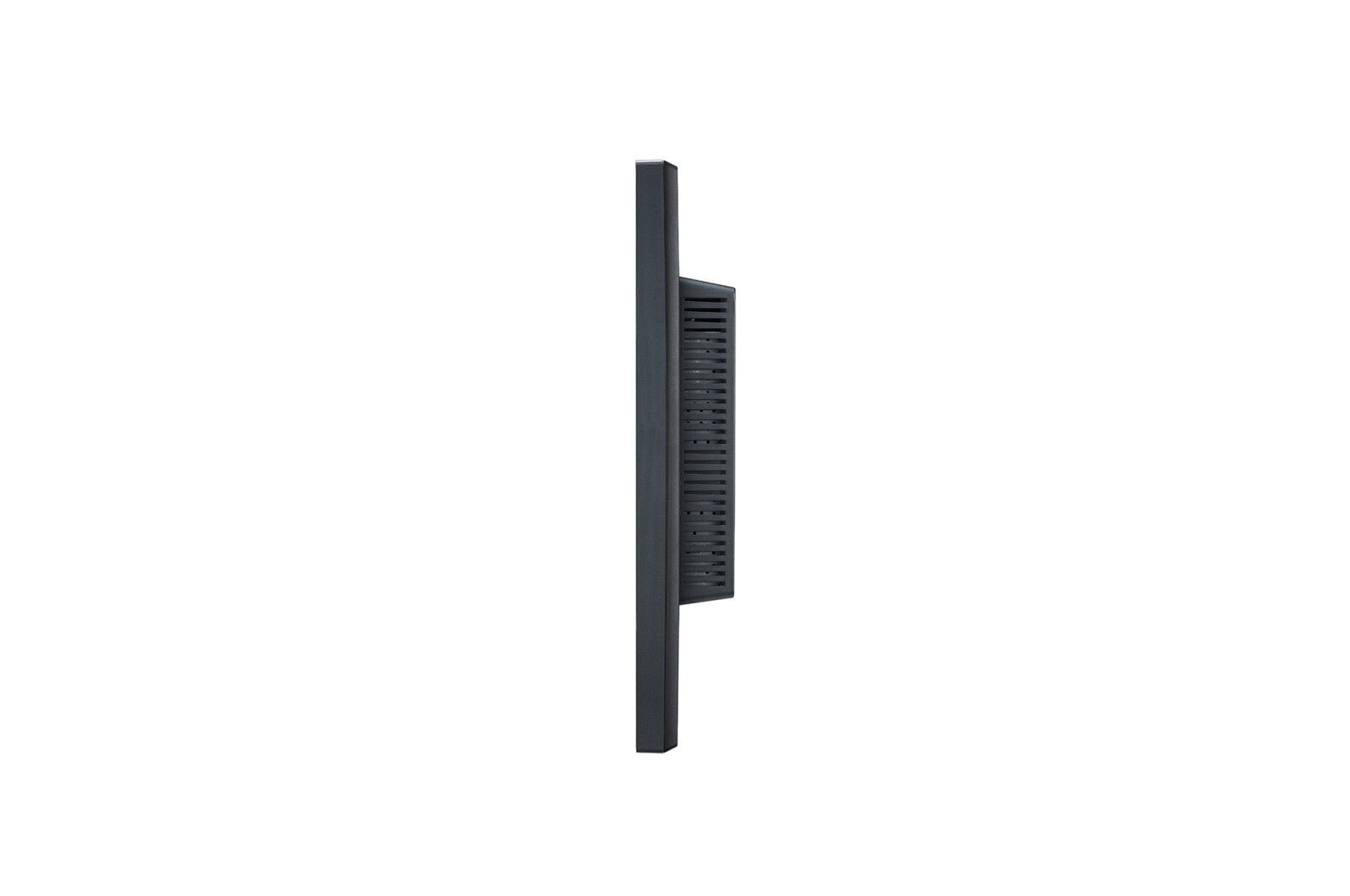

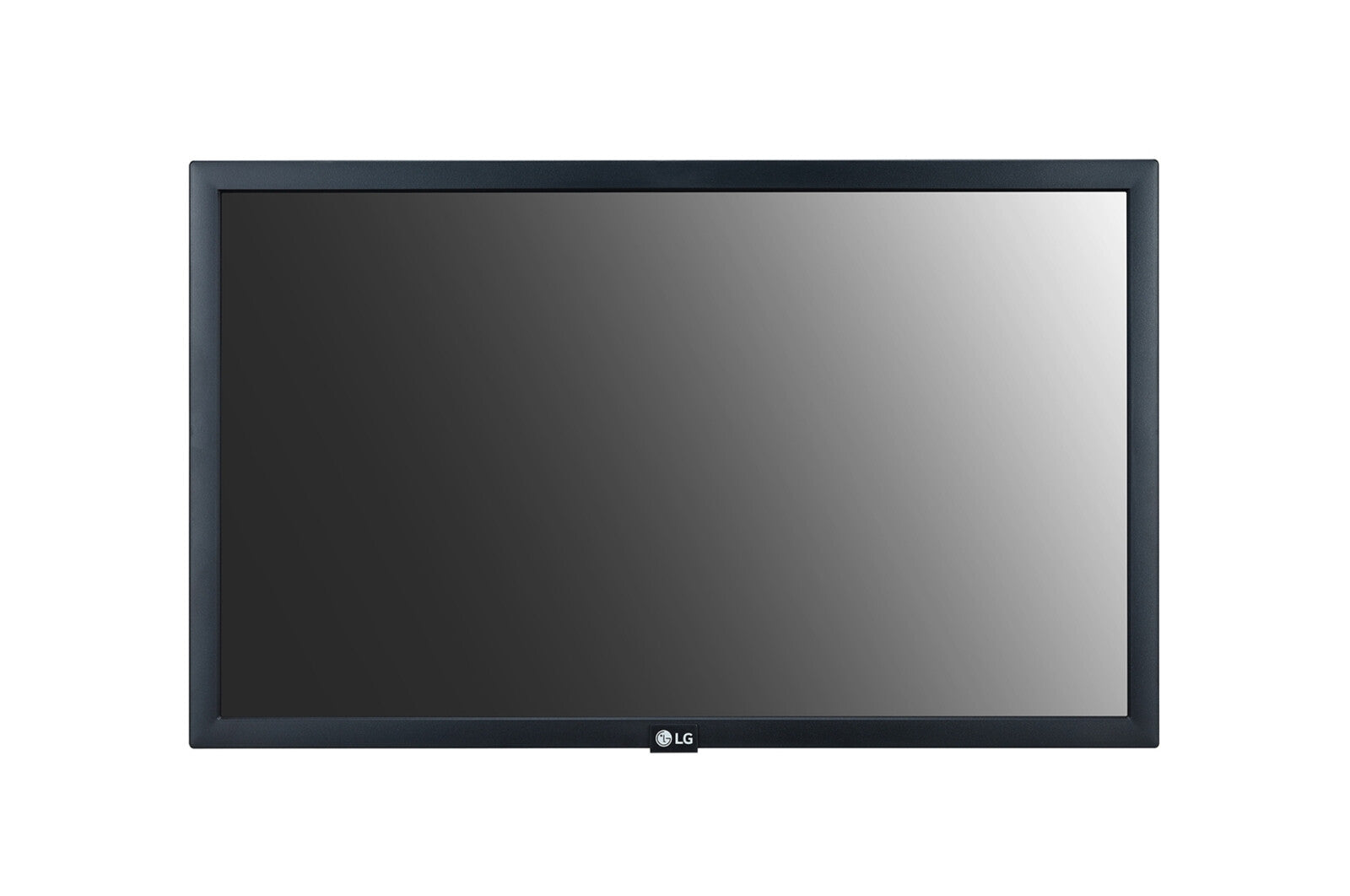

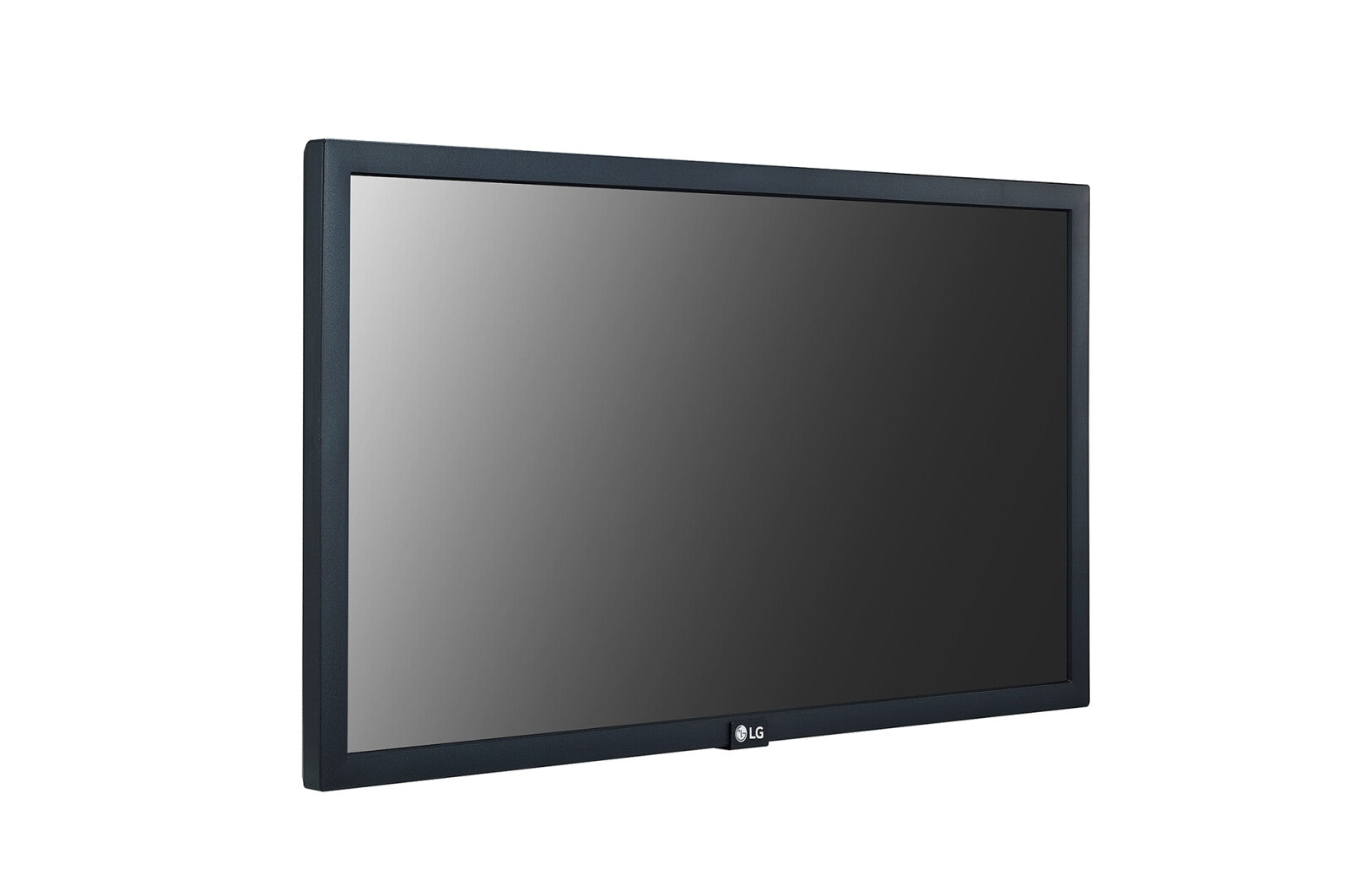

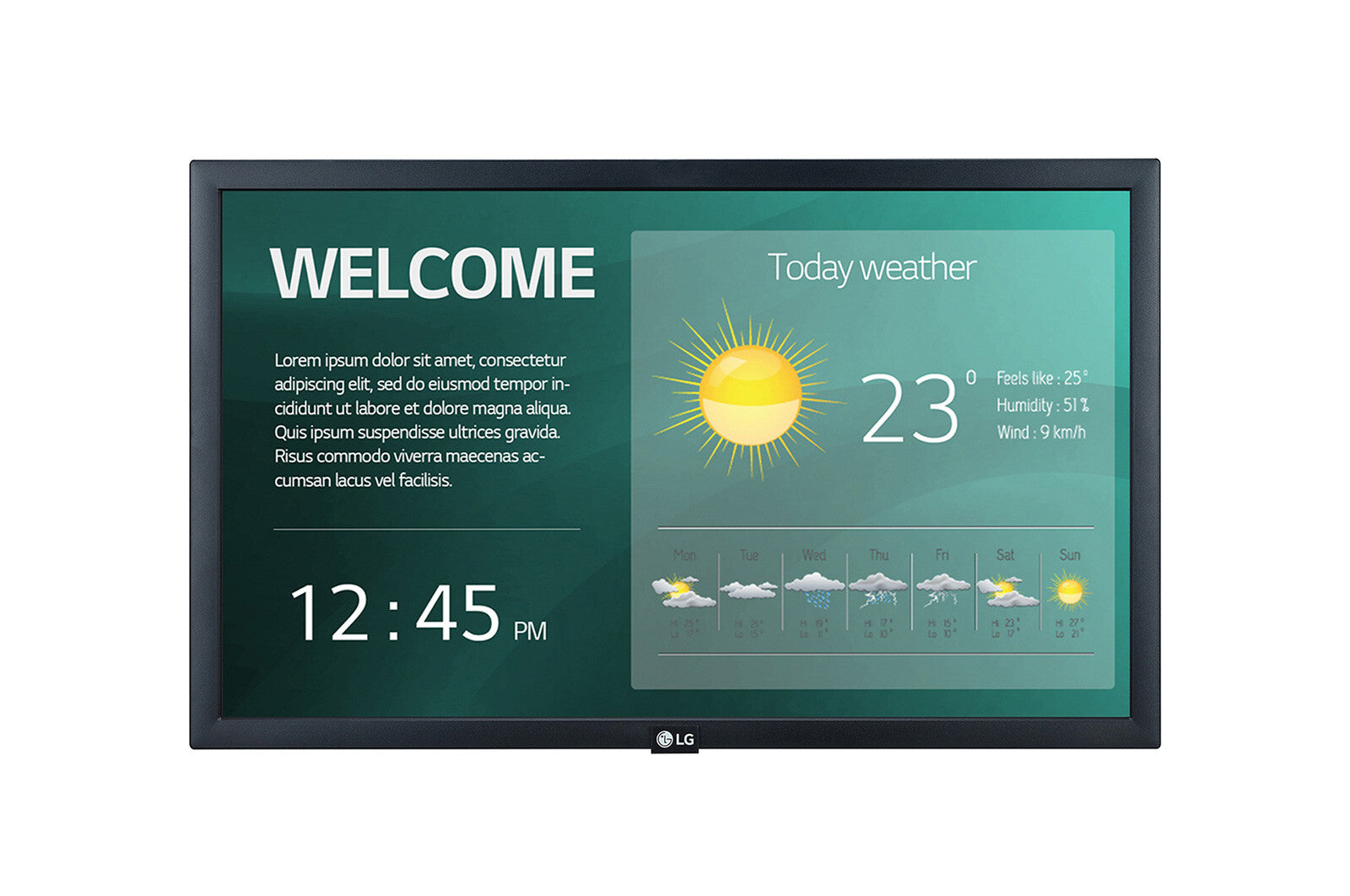

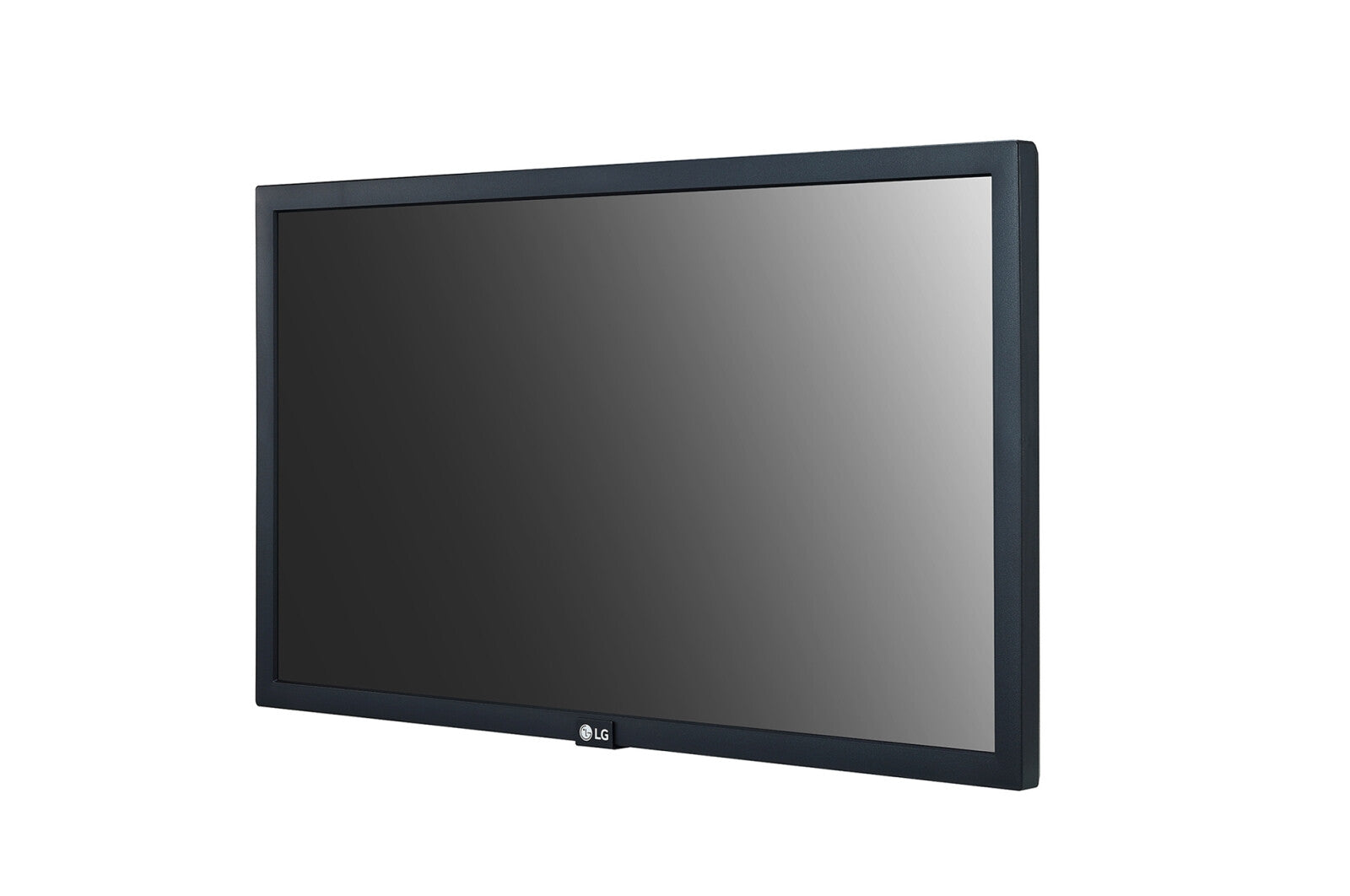

LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7
Powered by Autify Digital Ltd
LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 250 cd/m² Full HD Black Built-in processor 16/7 is backordered and will ship as soon as it is back in stock.
LG 22SM3G-B Digital signage display 54.6 cm (21.5') IPS Wi-Fi 2...
22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with the optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client’s business.
| Display | |
|---|---|
| Display diagonal (metric) | 55.88 cm |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (dynamic) | 400000:1 |
| Contrast ratio (typical) | 1000:1 |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | Full HD |
| Display brightness | 250 cd/m² |
| Display resolution | 1920 x 1080 pixels |
| Display technology | IPS |
| Display diagonal | 54.6 cm (21.5") |
| Ports & interfaces | |
|---|---|
| RS-232C | Yes |
| RS-232 interface | Yes |
| Audio (L/R) in | 1 |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| USB version | 2.0 |
| USB ports quantity | 1 |
| USB port | Yes |
| DVI port | No |
| HDMI ports quantity | 2 |
| Audio | |
|---|---|
| RMS rated power | 2 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Orientation | Horizontal |
| Product colour | Black |
| Product design | Digital signage flat panel |
| Performance | |
|---|---|
| Operating hours (hours/days) | 16/7 |
| Purpose | Universal |
| Power | |
|---|---|
| Heat dissipation | 7.89 BTU/h |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.5 W |
| Power consumption (sleep) | 1 W |
| Power consumption (standby) | 30 W |
| Power consumption (typical) | 33 W |
| Computer system | |
|---|---|
| Internal memory | 4 GB |
| Processor cores | 4 |
| Built-in processor | Yes |
| Computer system | No |
| Weight & dimensions | |
|---|---|
| Weight | 3.34 kg |
| Height | 302.1 mm |
| Depth | 53.8 mm |
| Width | 510.3 mm |
| Packaging data | |
|---|---|
| Package weight | 3.5 kg |
| Package height | 357 mm |
| Package depth | 103 mm |
| Package width | 565 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Cables included | AC |
| Batteries included | Yes |
| Remote control included | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CB, NRTL, EMC, FCC Class "A", CE, ErP |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
-
