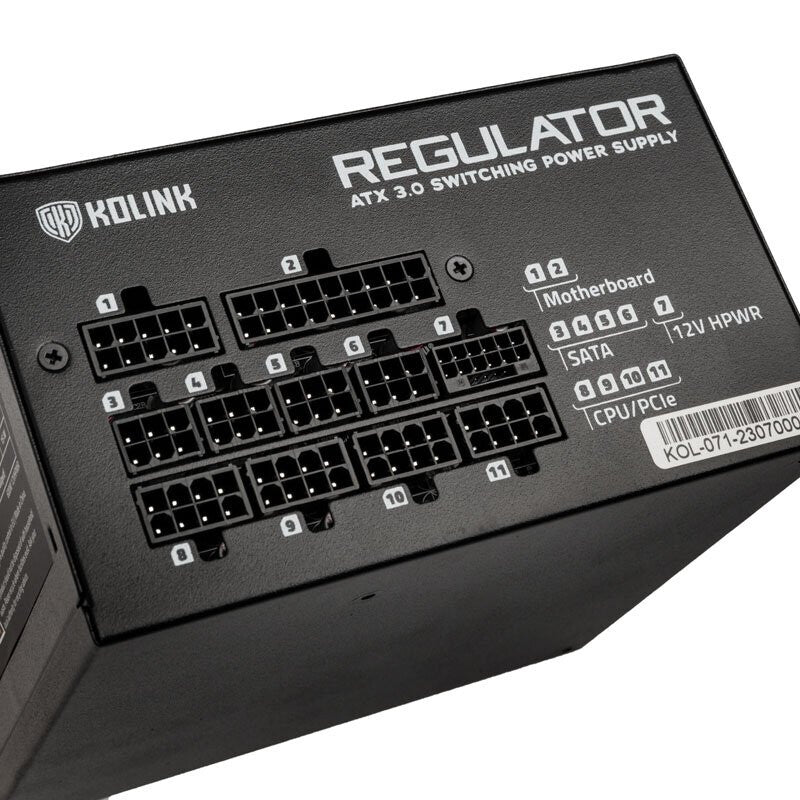

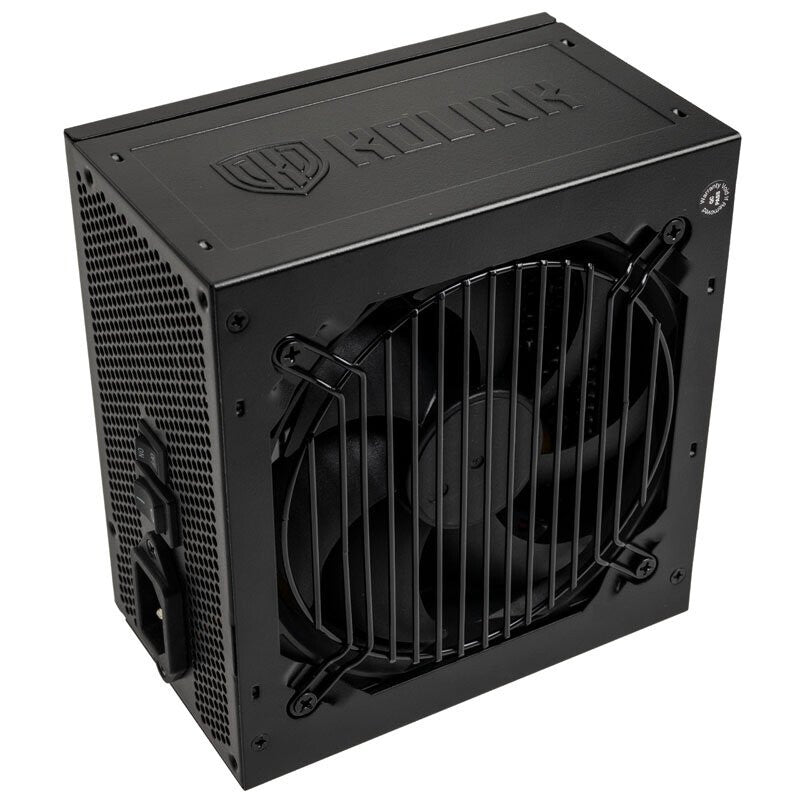

Kolink Regulator power supply unit 1200 W 20+4 pin ATX ATX Black
The REGULATOR series from Kolink offers a comprehensive set of modern features to enhance any system. With high-quality premium components and an efficient 80-Plus-Gold certified design, REGULATOR delivers a reliable supply of power, while the Fluid Dynamic Bearing fan provides whisper-quiet cooling. Thanks to its compact design, complex protection features, and a switchable semi-fanless mode, the fully modular REGULATOR series stands for flexibility, reliability, and performance.
ATX 3.0 ready with 12VHPWR 600W connector
The REGULATOR series uses an LLC + DC/DC single-rail design with full ATX 3.0 and PCIe 5.0 compatibility, to supply modern graphics cards with up to 600W via the 12VHPWR connector. To negate the need for additional adapters, a 12VHPWR 600W cable with AWG16 is provided
Switchable semi-fanless mode
The REGULATOR Series has a dedicated semi-fanless mode, which you can easily activate thanks to the switch next to the power button. This mode passively cools the power supply, when operating at up to 40%, for whisper-quiet performance at low or medium loads. At higher loads, the fan starts at low speed and is then regulated according to temperature, supporting cooling. Protecting the power supply from heat build-up, the fan switches on automatically when the temperature becomes too high.
When semi-fanless mode is disabled, the fan continues to run at a low speed even under light load.
100% Japanese capacitors
To ensure excellent performance and reliability, the REGULATOR series utilises premium Japanese capacitors.

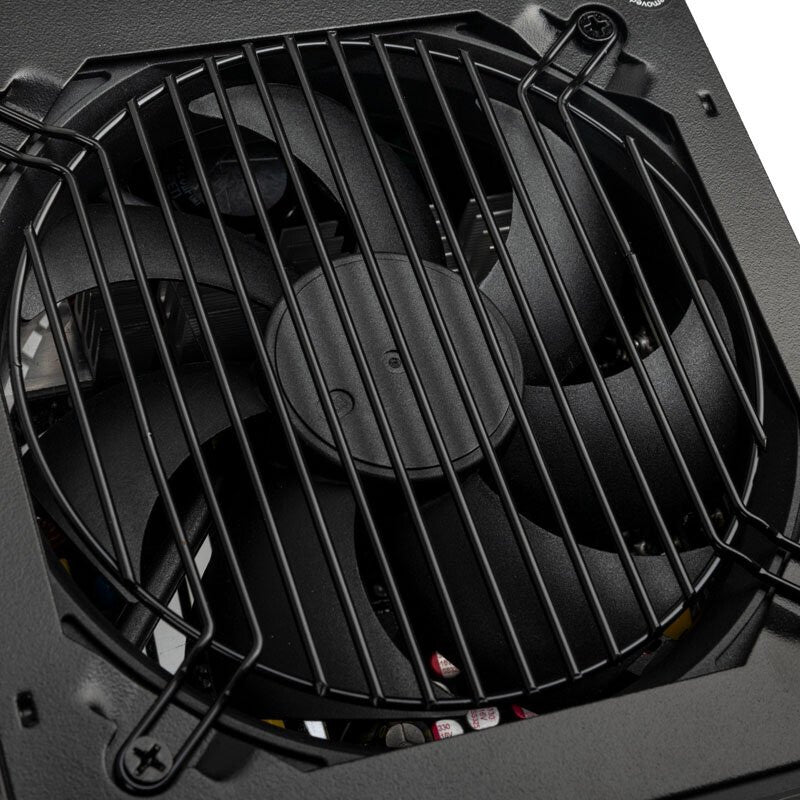

Super-quiet FDB fan
The 120mm fan is equipped with a Fluid Dynamic Bearing (FDB), enhancing longevity and durability. The blades have an optimized curve design, to draw in air more efficiently and quietly. The wide 8mm spacing between fan grill and the fan blades guarantees low influx turbulence and better airflow performance while lowering noise.
Stable voltages with low ripple
Ensuring great stability and enhanced longevity, the REGULATOR Series offers clean supply and tight voltage regulation over the entire load range.
Strikingly compact design
A carefully curated circuit board layout allows for a housing only 15cm deep. As a result, the REGULATOR Series fits into a wide range of systems, guaranteeing quick and easy installation even when space is limited.
Extensive protective functions
Extensive safety functions have been implemented to ensure the safety of the power supply unit and the connected components. The REGULATOR Series offers a 7-fold protection circuit with overvoltage protection (OVP), undervoltage protection (UVP), overpower protection (OPP), short-circuit protection (SCP), overcurrent protection (OCP), overtemperature protection (OTP), and surge / inrush current protection (SIP).
| Power | |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 8 - 15 A |
| Maximum input current (@110V) | 8 A |
| Maximum input current (@220V) | 15 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Efficiency | 92% |
| Power protection features | Over voltage, Under voltage, Over current, Over power, Overheating, Short circuit, Surge and inrush |
| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 3 |
| SATA power cable length | 500,650,800 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500,650,800,950 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 15000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | |
|---|---|

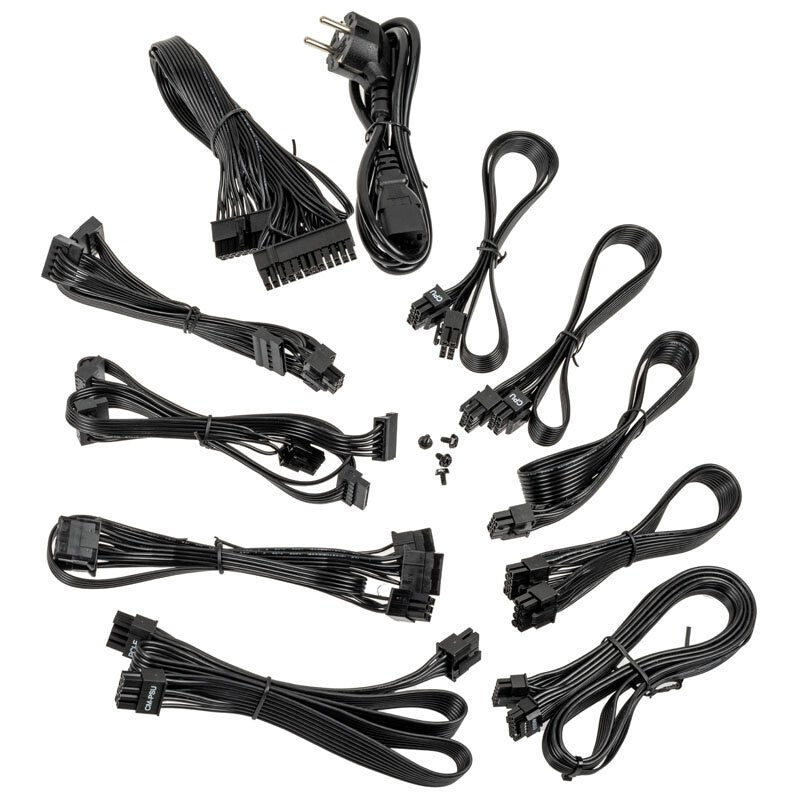

| Cables included | CPU, PATA, SATA |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Packaging data | |
|---|---|
| Package width | 295 mm |
| Package depth | 210 mm |
| Package height | 110 mm |
| Package weight | 2.66 kg |
| Package type | Box |
-
