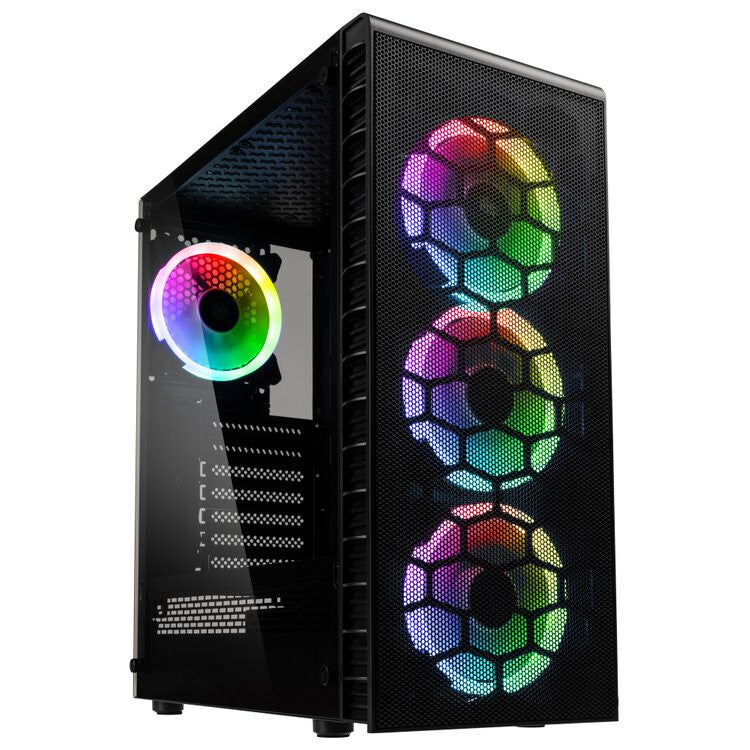

Kolink Observatory Lite Mesh Midi Tower Black

Combining cooling performance and affordability, the Kolink Observatory Lite Mesh Midi-Tower is a perfect mix of features and functionality. With no less than 4 ARGB LED 120mm fans included as standard, controlled with a supplied remote which allows a variety of modes, lighting options and even speed control, the Observatory Lite Mesh also has a fully mesh front panel for superior airflow capabilities. The hardware you choose to install is also key; the tempered glass side panel allows you to create a showstopping system build. All in all the Observatory Lite Mesh is an extremely feature filled chassis with plenty to offer.

Kolink Observatory Lite Mesh: Airflow where it matters

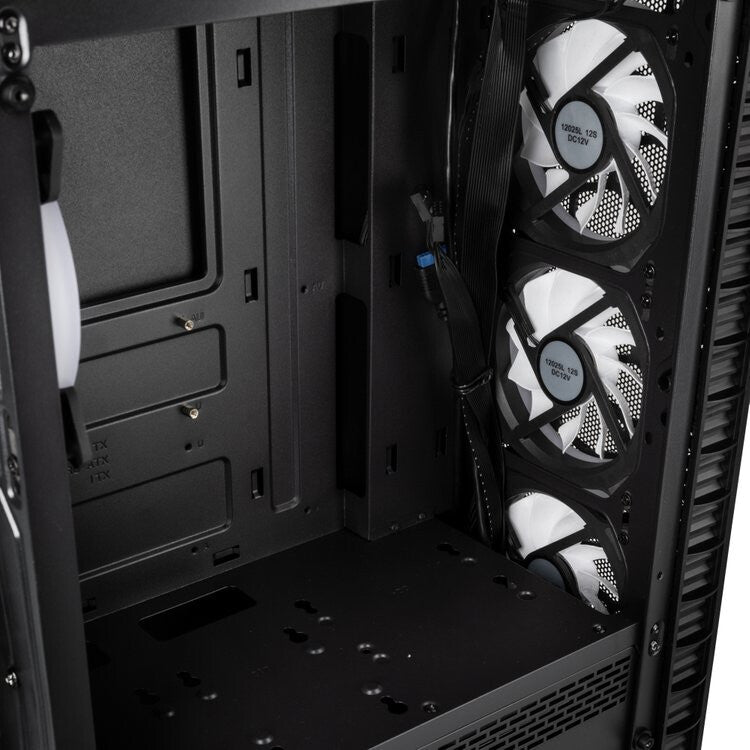

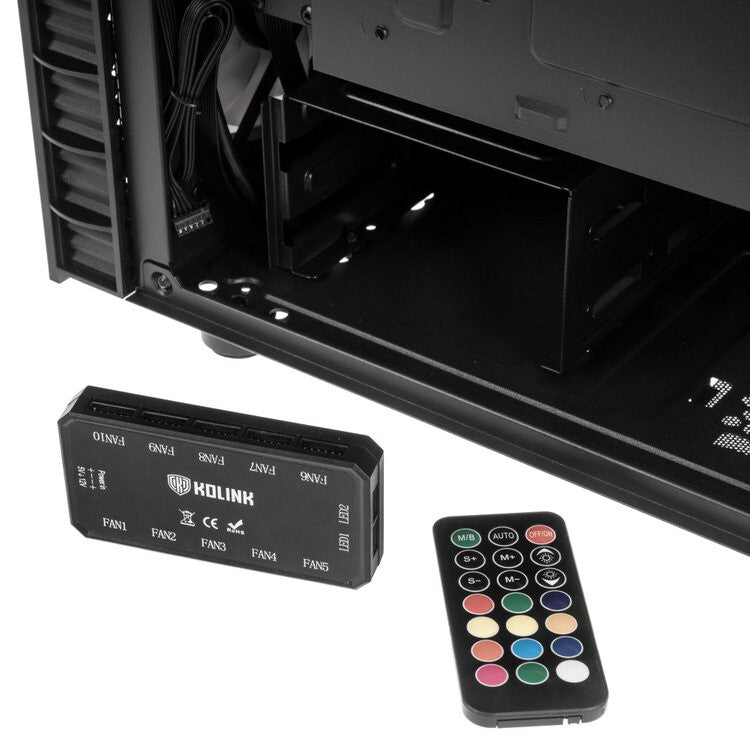

The digitally addressable RGB-LED fans, 4 of which are preinstalled, are controlled by the supplied remote & RGB hub. Alternatively, the fans can be hooked up and controlled using a compatible motherboard thanks to its use of a standard 3-pin (5VDG) connector. The tempered glass side panel allows users to enjoy a panoramic view of the lighting used inside the Kolink Observatory Lite Mesh.

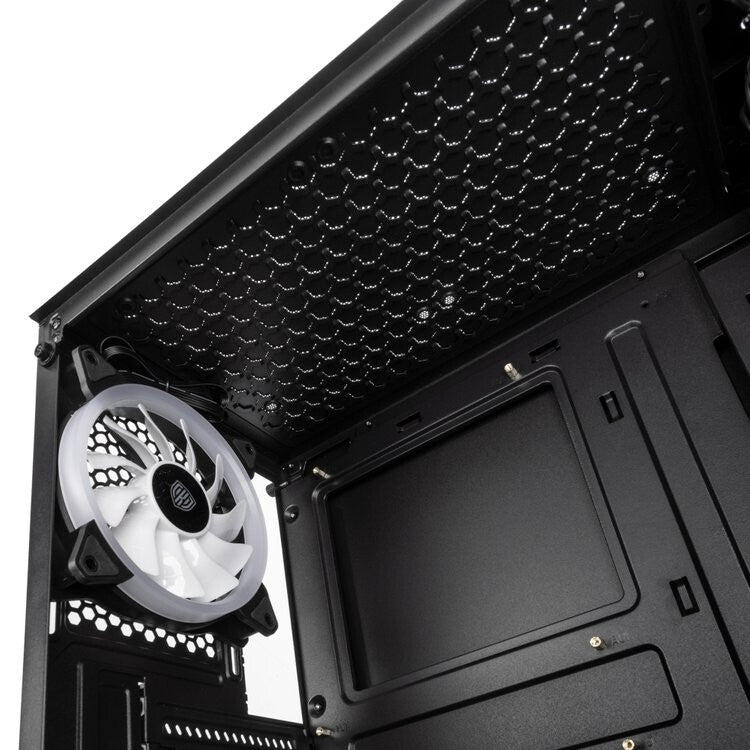

Aside from the pre-installed fans, users are also free to install two more 120mm fans in the roof. This is where a magnetic dust filter can be found installed on the honeycomb-style mesh. The full mesh front panel and air inlets in the PSU shroud also contribute to the excellent airflow of the case. Users are also free to install a 280 mm radiator in the front.

The Kolink Observatory Lite Mesh: Hardware focused

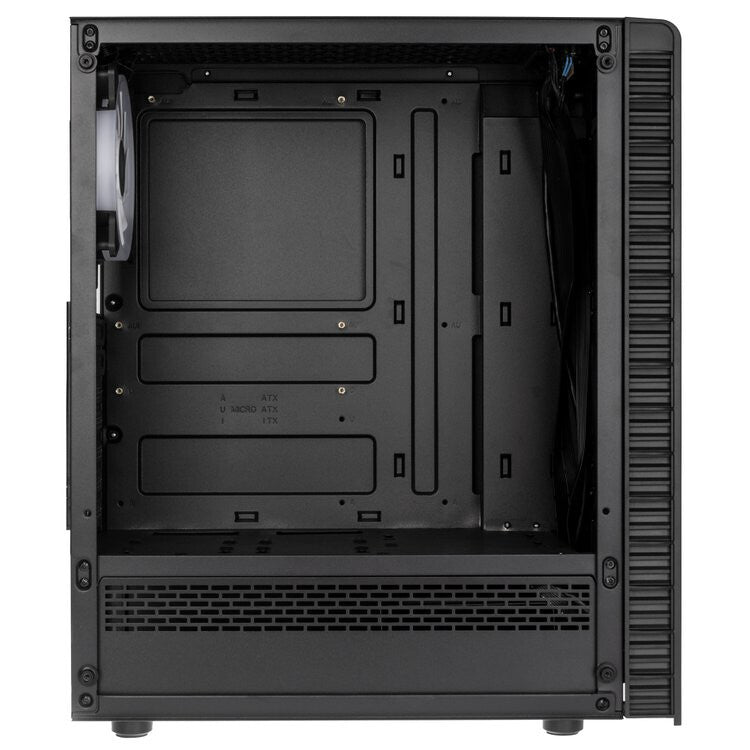

The interior comes entirely in black, with a PSU shroud that only adds to the sleek and unobtrusive look. Behind the shroud is where users will find space for a pair of 3.5" HDD's in the HDD cage provided, which also has anti-vibration mountings. Alternatively, 2.5" SSD's can be installed here, or next to the motherboard. The motherboard tray and PSU shroud both offer numerous openings for optimum cable management, with up to 30mm cable management space. Underneath the case is a removable dust filter appropriate to an ATX-form factor PSU, which can itself be up to 18 cm in length.

Graphics cards can be up to 33.5cm long (31cm if mounting an AIO) and CPU coolers up to 16 cm tall. Additionally, the I/O panel located at the front possesses two USB 2.0 ports as well as an USB 3.0 Type-A port.
