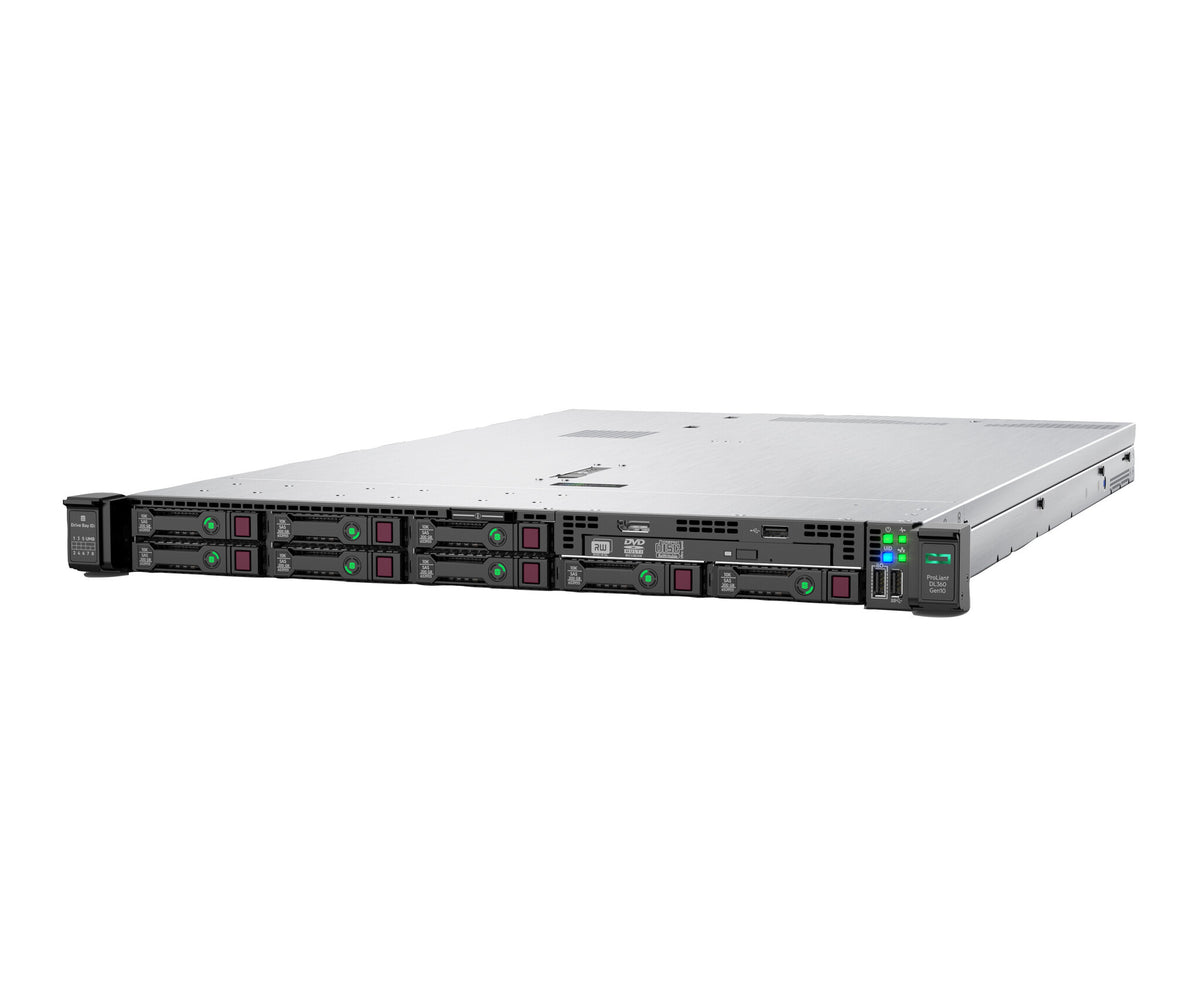

HPE ProLiant DL360 Gen10 4214R 2.4GHz 12-core 1P 32GB-R P408i-a NC 8SFF 500W PS Server
HPE ProLiant DL360 Gen10 4214R 2.4GHz 12-core 1P 32GB-R P408i-a NC 8SFF 500W PS Server is backordered and will ship as soon as it is back in stock.
HPE ProLiant DL360 Gen10 4214R 2.4GHz 12-core 1P 32GB-R P408i-a NC ...
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain [1] and 27% increase in cores [2], along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB [2] with an increase in performance of up to 82% [3]. With the added performance that Intel Optane™ persistent memory 100 series for HPE [6], HPE NVDIMMs [7] and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
What is new supporting point:
HPE 800 Watt Flex Slot Titanium hot-plug power supply available for EMEA
Support for additional second generation Intel Xeon Scalable processors with improved price/performance.
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [5]
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4214R |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 12 |
| Processor cache | 16.5 MB |
| Motherboard chipset | Intel® C621 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 100 W |
| Processor cache type | L3 |
| Scalability | 2S |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Processor package size | 76.0 x 56.5 mm |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum internal memory supported by processor | 1 TB |
| Tcase | 79 °C |
| Processor codename | Cascade Lake |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Embedded options available | Yes |
| Maximum number of SMP processors | 2 |
| Execute Disable Bit | Yes |
| Memory types supported by processor | DDR4-SDRAM |
| Processor threads | 24 |
| Memory | |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 2933 MHz |
| ECC | Yes |
| Memory slots | 24x DIMM |
| Maximum internal memory | 1.53 TB |
| Storage | |
|---|---|
| Maximum storage capacity | 26.4 TB |
| Total storage capacity | 0 GB |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| SSD interface | PCI Express 4.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| Supported RAID controllers | HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-T4 |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Remote administration | iLO 5 ASIC |
| Management platform | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES): 12 SP4 & 15 SP1 (inc. Xen) |
| Processor special features | |
|---|---|
| Processor ARK ID | 197100 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply type | 1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Power supply | 500 W |
| Number of main power supplies | 1 |
| General | |
|---|---|
| Product series | DL |
| Product family | ProLiant |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Width | 42.9 mm |
| Height | 707 mm |
| Depth | 434.6 mm |
| Weight | 13 kg |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| Security features | Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0 |
| Weight (imperial) | 13 kg (28.7 lbs) |
| Dimensions (W x D x H) (imperial) | 42.9 x 434.6 x 706.9 mm (1.69 x 17.1 x 27.8") |
| Storage drive type | None ship standard, 8 SFF supported |
| Standard fans | 5 standard hot plug fans |
-
