GIGABYTE UD1600PM PG5 AI TOP power supply unit 1600 W 20+4 pin ATX ...
16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.

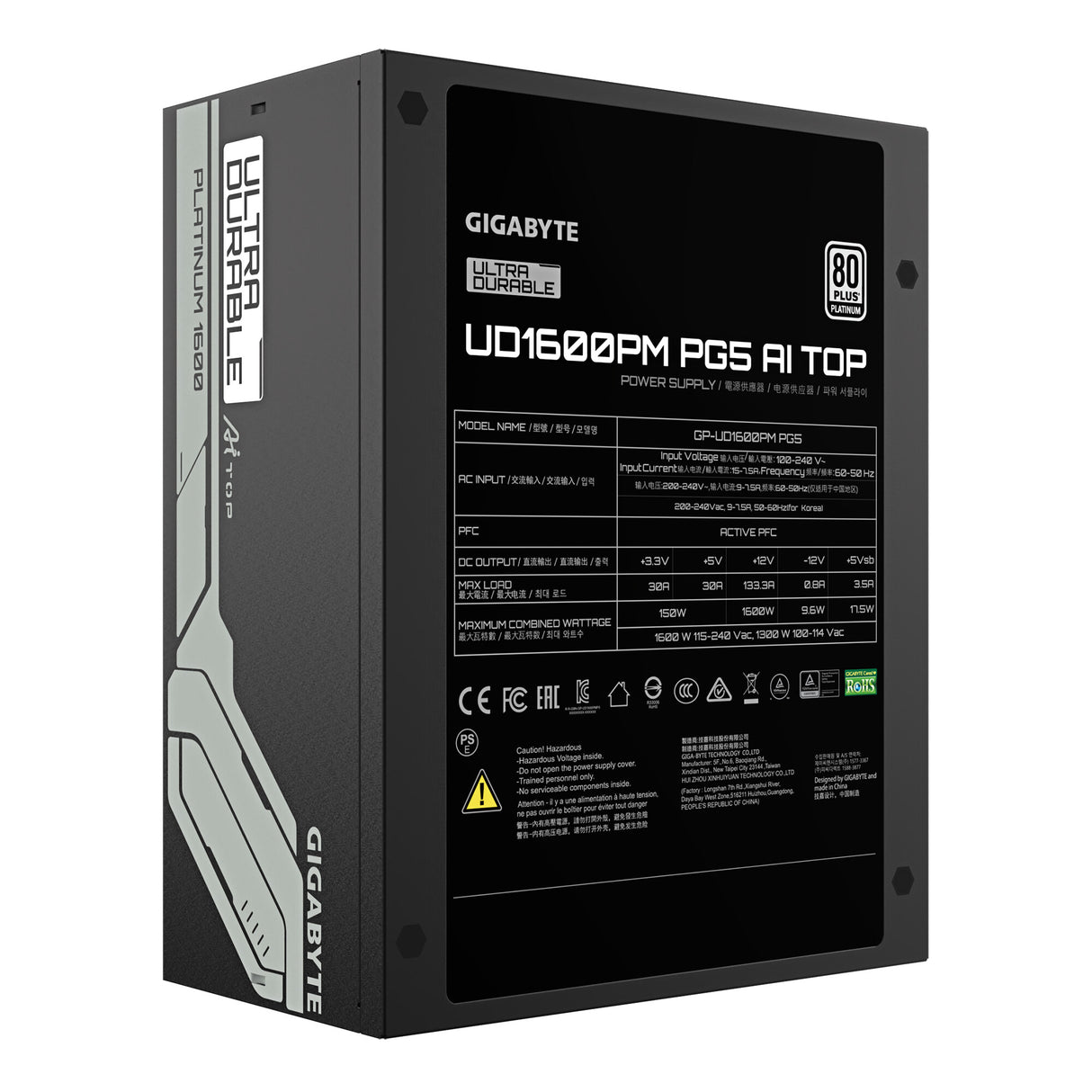

| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 92% |
| Power Good signal delay range | 100 - 150 ms |
| Hold time | 16 ms |
| Max output current (+5Vsb) | 3.5 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+3.3V) | 30 A |
| Combined power (+5Vsb) | 17.5 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+3.3V) | 150 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.9 |
| Input current | 15 - 7.5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1600 W |

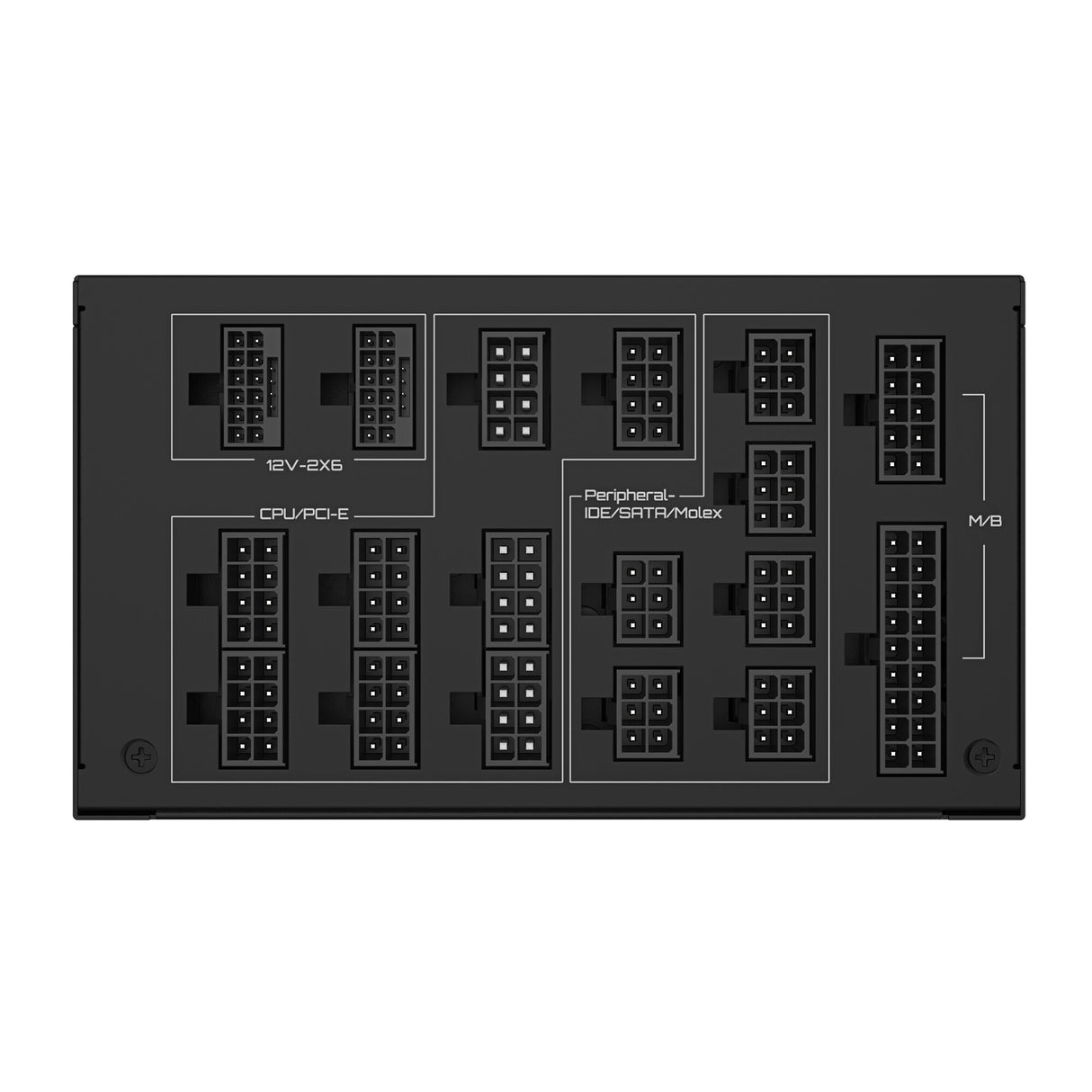

| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| SATA power cable length | 150,650 mm |
| Number of SATA power connectors | 16 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | DBB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |

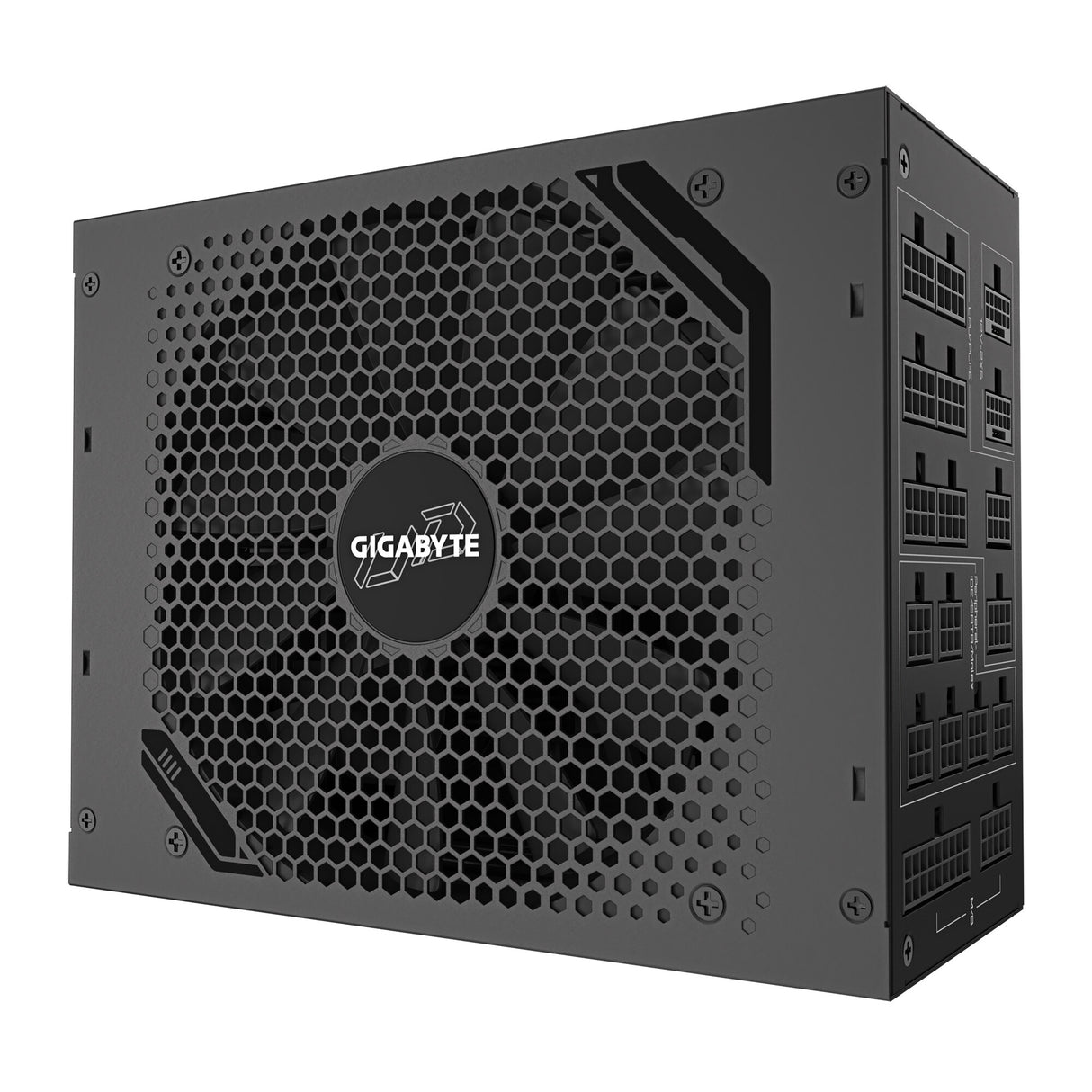

| Design | |
|---|---|
| On/off switch | Yes |

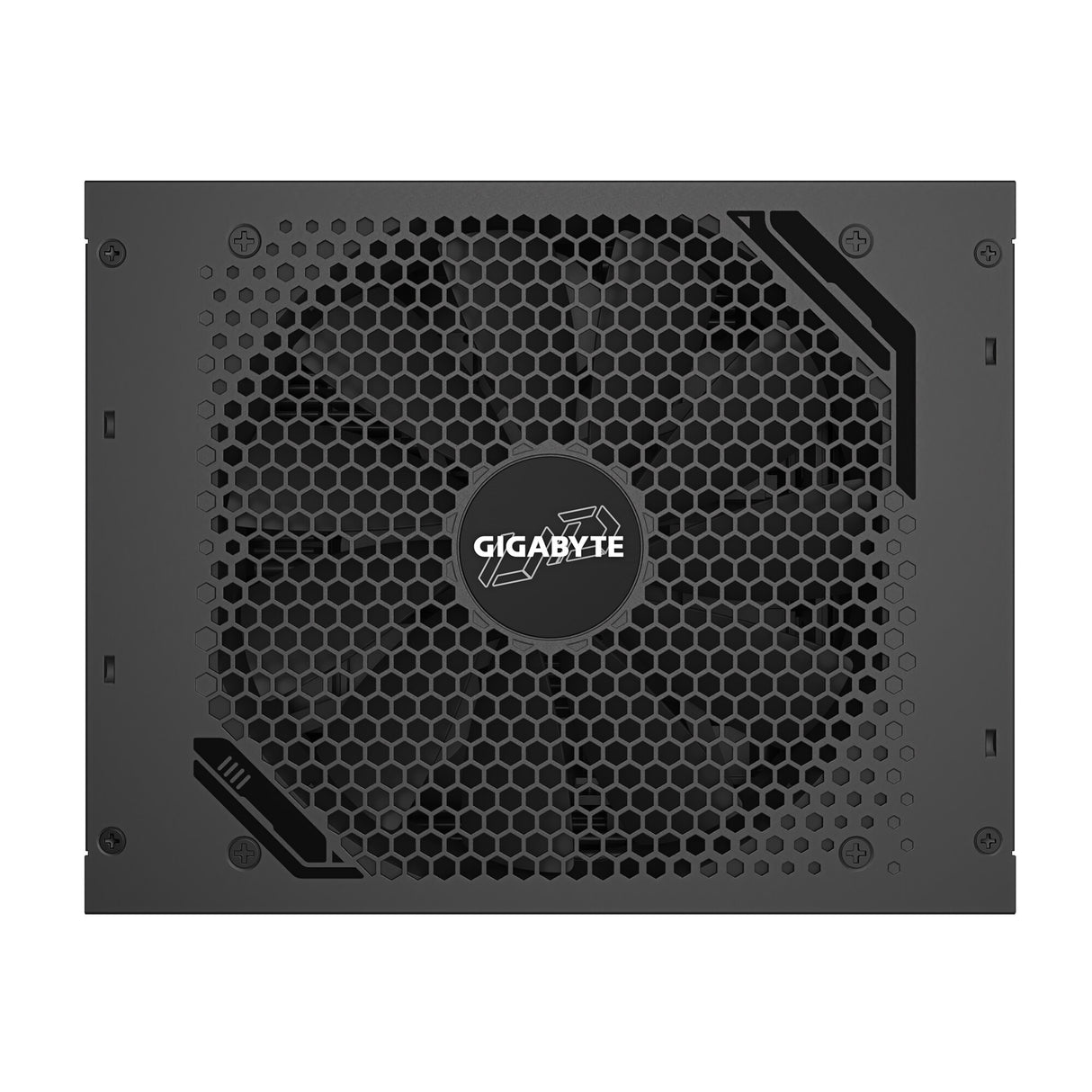

| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 5.3 kg |
| Height | 86 mm |
| Depth | 190 mm |
| Width | 150 mm |

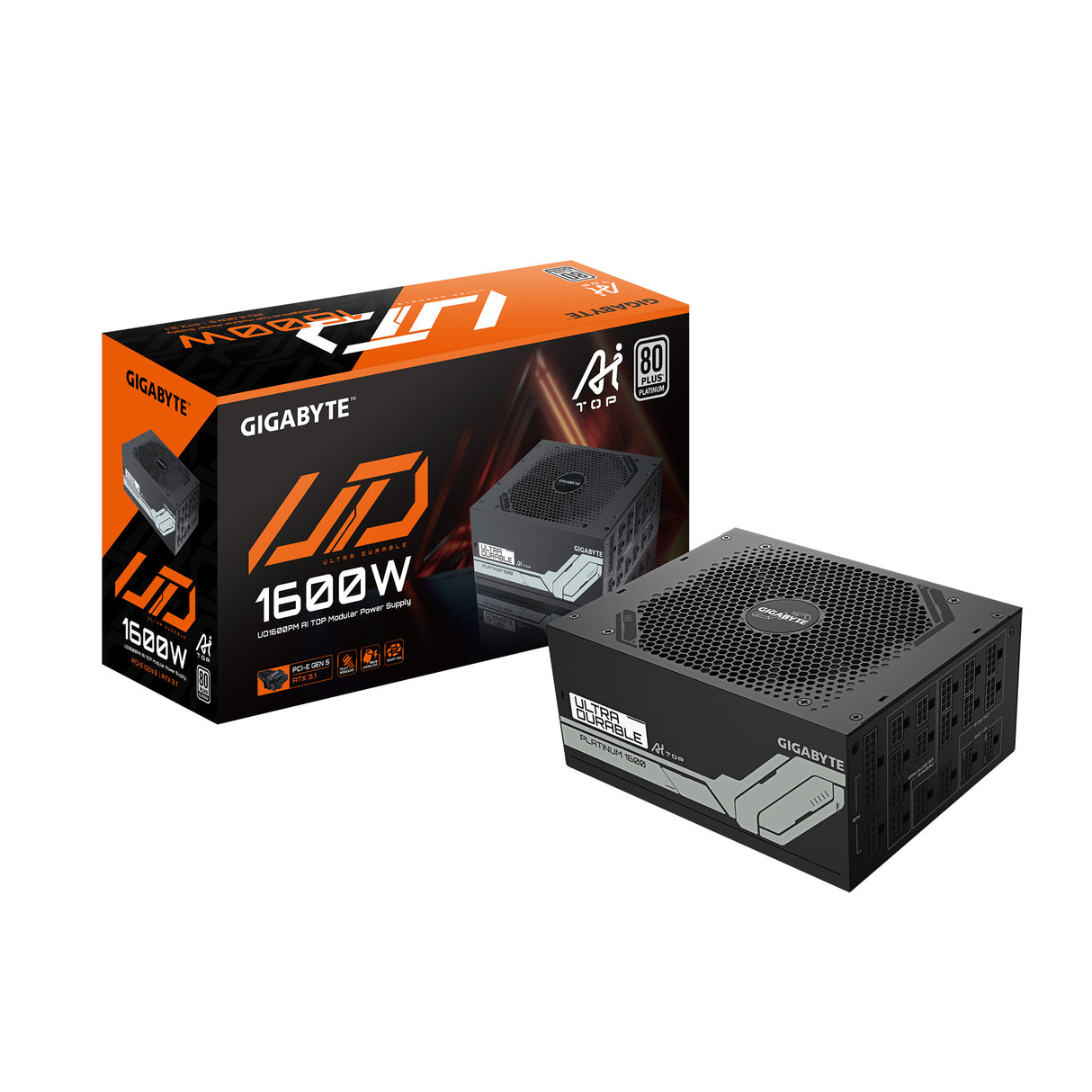

| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 5.58 kg |
| Package height | 145 mm |
| Package depth | 219 mm |
| Package width | 410 mm |
| Technical details | |
|---|---|
| Warranty period | 10 year(s) |
-
