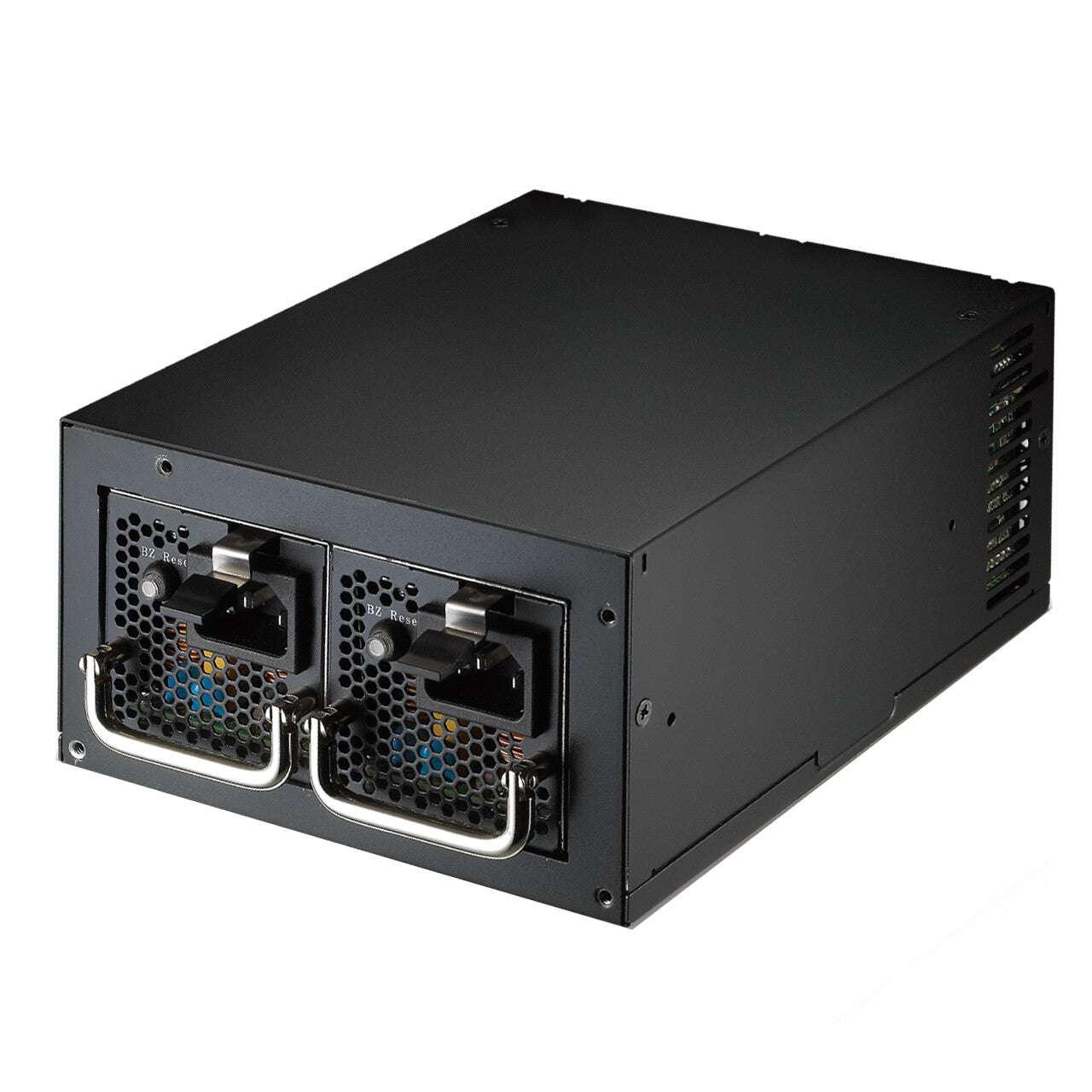

FSP Twins PRO 900W Power supply unit PS2 ATX Redundant ATX Black

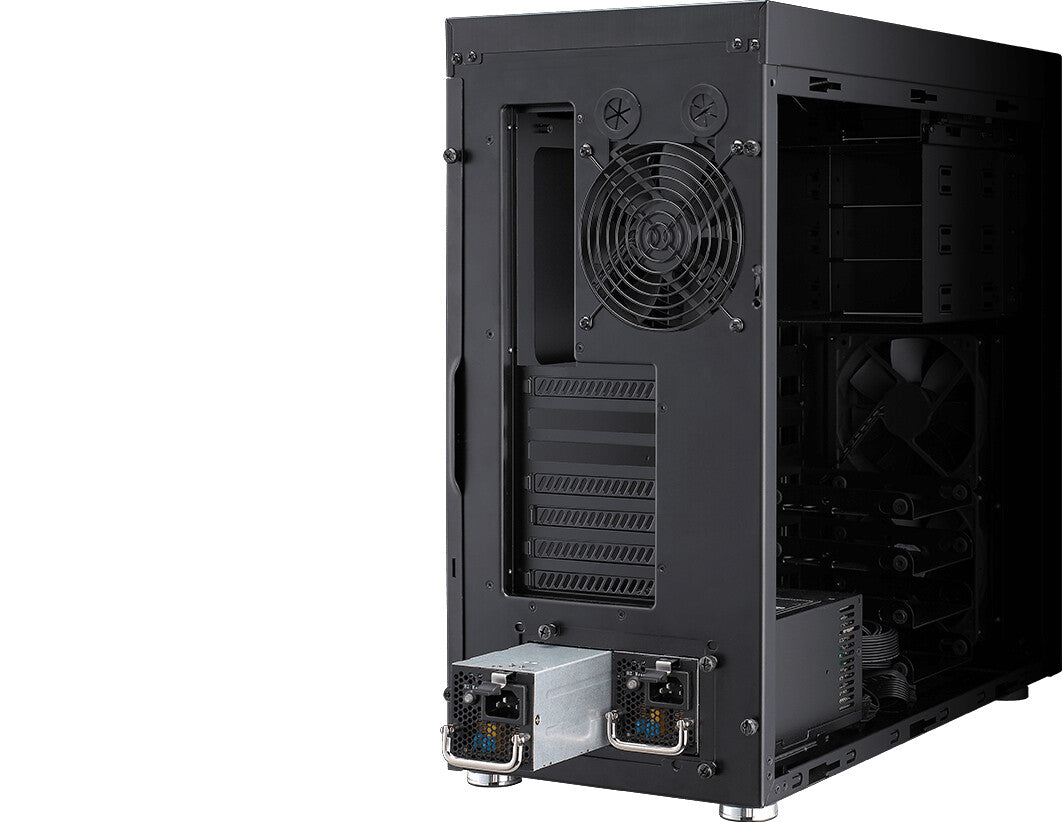

Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.

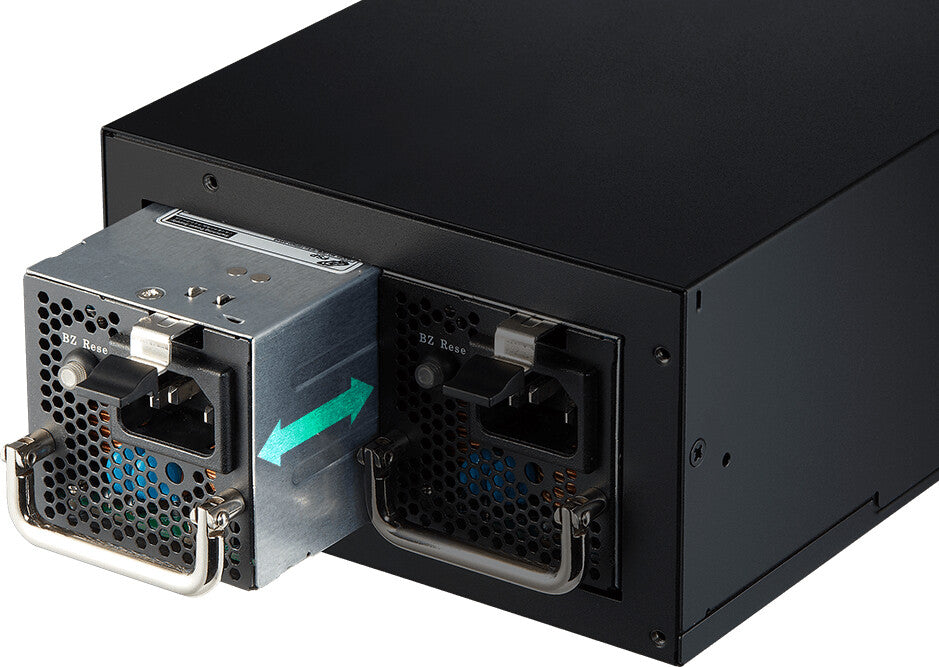

Redundant system design and built-in hot swappable modules
With redundancy in mind, the Twin Pro modular system design is more efficient and operates more quietly by distributing the power load between two hot swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.

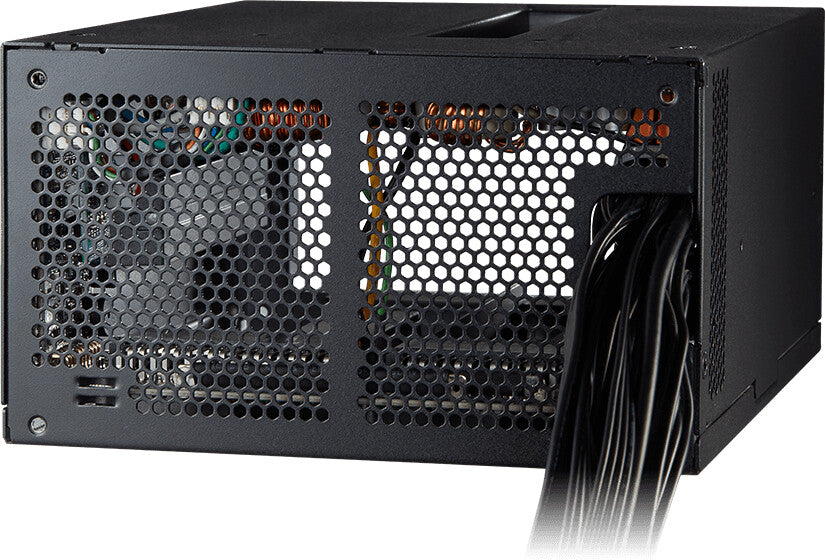

Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.

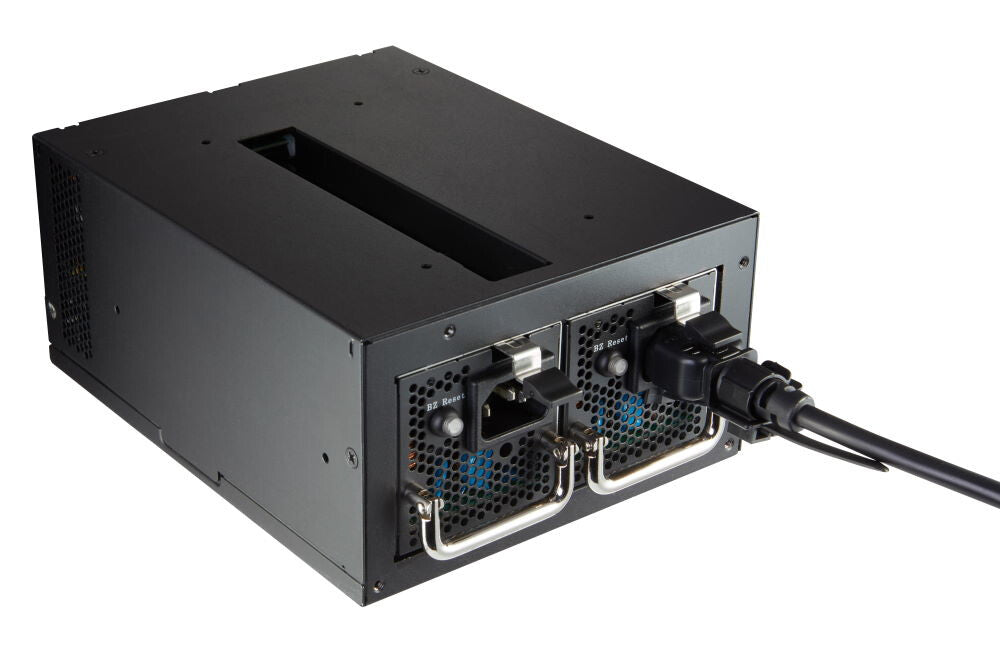

Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord from acciedntal disconnect helping to ensure stable operation without any system interruptions.
Twins_Pro Power Cord Locking Device
Guardian logoFSP Guardian
Propreitary user interface software that monitors status in real-time
Guardian display
The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real-time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in real-time.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 90% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 75 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5V) | 130 W |
| Combined power (+3.3V) | 130 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 6 - 10 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 900 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 6 |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Bearing technology | DBB |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | Server |
| Design | |
|---|---|
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| Product colour | Black |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, SATA |
| Weight & dimensions | |
|---|---|
| Height | 86 mm |
| Depth | 190 mm |
| Width | 150 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
-
