Description
Description

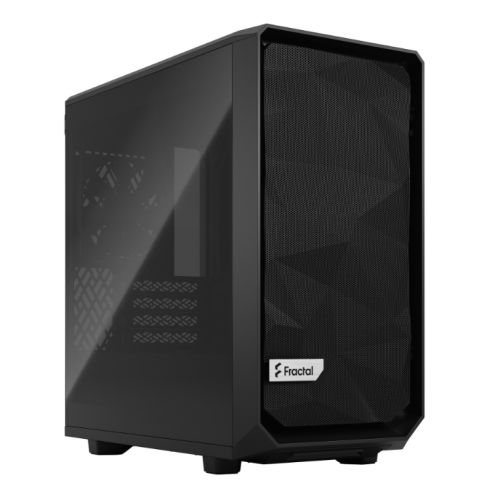

A classic evolved.
- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Open interior layout creates a smooth airflow path from front intake to rear exhaust
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
- Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
- Double layered front filter with detachable nylon for increased airflow
- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps
- Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 fans included)
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- Bridgeless PCI expansion slots ensure obstruction-free connections for easier installation and hookup
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
- Integrated cable guides with velcro straps further simplify cable management behind the board
Description
Specification
- Form Factor: Micro ATX
- #Hide#Small Form Factor: No
- Power Supply Wattage: No PSU
- Motherboard Support: "Micro ATX, Mini ITX, DTX, Mini DTX "
- #Hide#Window(s): Yes (Window)
-
Connectors / Controls: 1 x USB 3.1 Gen2 Type-C
2 x USB 3.0
Audio I/O
Power button
Reset button -
Drive Bays: 3.5""/2.5"" drive mounts: 2 (included)
Dedicated 2.5"" drive mounts: (2 included)*
*max 8 mm drive height for mounts behind motherboard plate - Expansion Slots: 4 Expansion slots
-
Cooling System: Included
Front: 1 x Dynamic X2 GP-14 140mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan
Fan Mounts
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 140 mm
Rear: 1 x 120 mm
Bottom: 1 x 120 mm (requires removal of HDD cage) -
.:
Radiator options:
Front: Up to 240/280 mm
Top: Up to 240 mm
Rear: 120 mm
Bottom: 120 mm (without HDD Cage) - Colour: Black
-
Material: Left side panel: Tempered glass
Right side panel: Steel -
Compatibility: GFX Card length:
331 mm
306 mm with front fan
Max CPU Cooler:
167 mm
Max PSU length:
165 mm recommended with HDD cage
200 mm without HDD cage -
Weight/Dimensions: 6.62 kg
(LxWxH) 396 x 205 x 406 mm - Additional Features: See Overview
-
Accessories: User manual
Accessory box - Package Weight: 8.0000 kg
- Warranty: 2 Years
