StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

STARTECH  |  SKU: SDOCKU33BV  |  Condition: Brand New  |  Barcode: 0065030855303

MORE INFO

£67.99
£56.66 excluding VAT @20%
iFrame
StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay (SDOCKU33BV)

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

Hard drive
Number of storage drives supported 1
Storage drive sizes supported 2.5,3.5"
Storage drive interface Serial ATA, Serial ATA II, Serial ATA III
Storage media type HDD, SSD

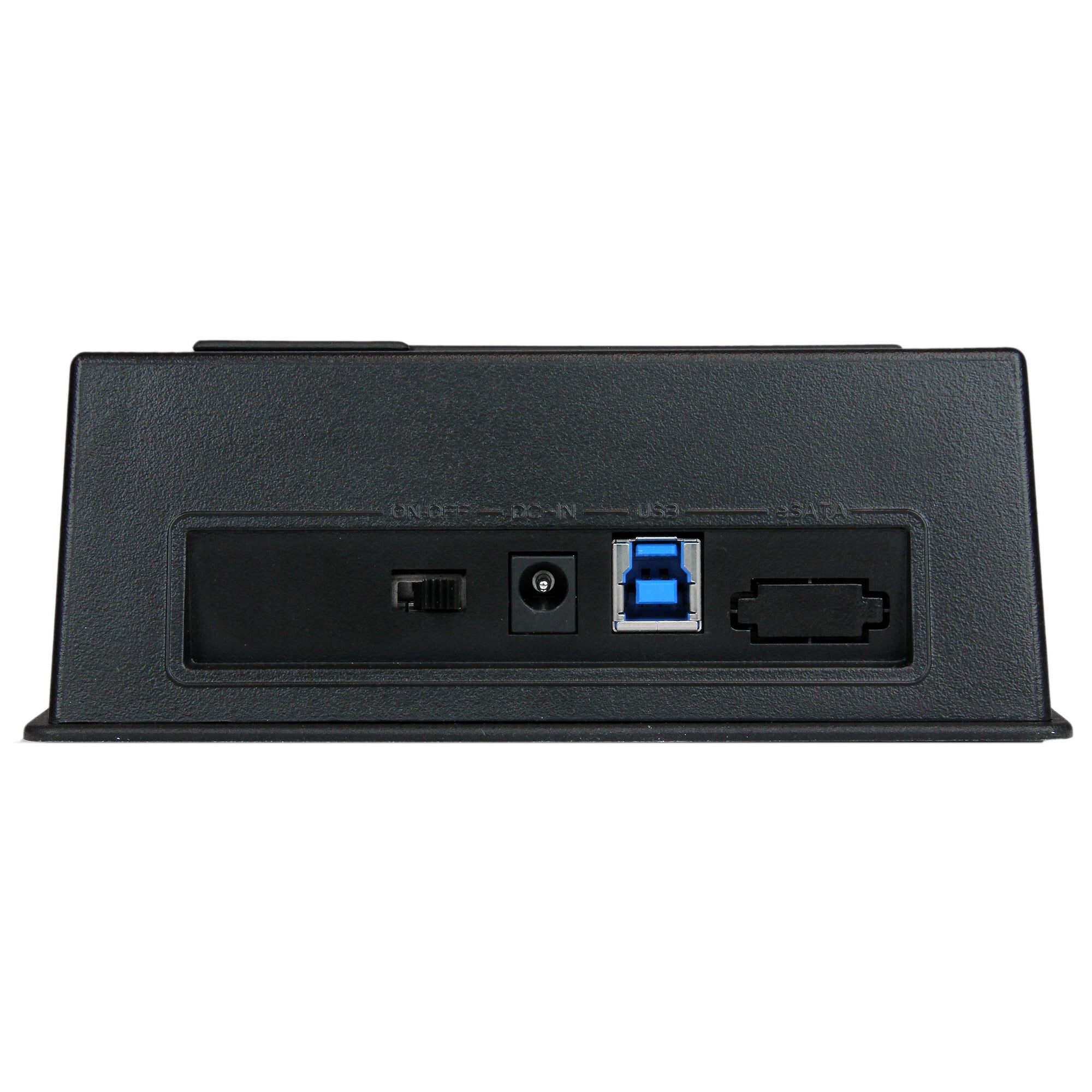

Ports & interfaces
DC-in jack Yes
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity 1
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Features
Chipset ASMedia - ASM1053 - 6G
LED indicators Activity, Power
On/off switch Yes
UASP support Yes
Plug and Play Yes
Maximum data transfer rate 6 Gbit/s
Cooling
Built-in fan No
Power
Output voltage 12 V
AC input voltage 100-240 V
Weight & dimensions
Weight 318 g

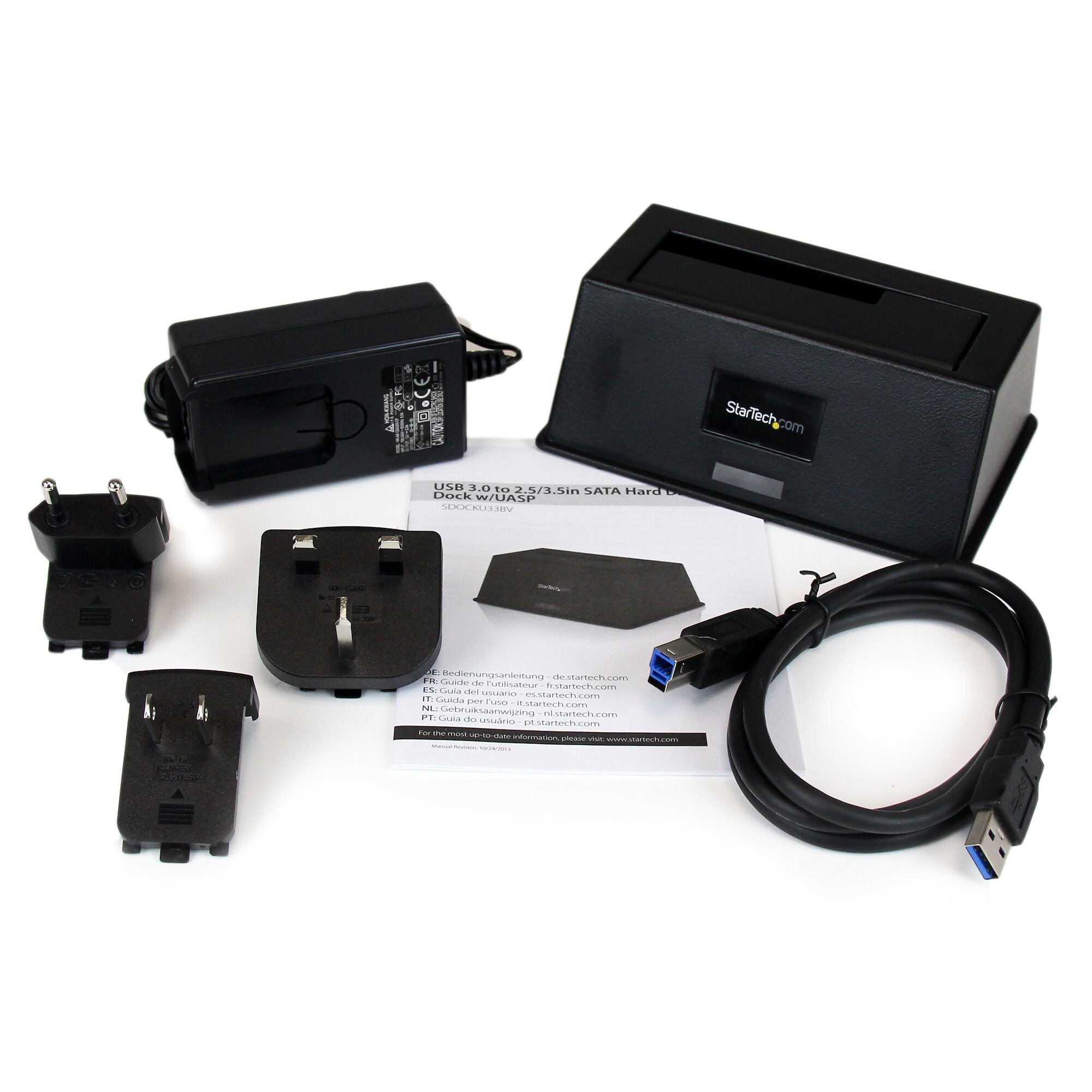

Packaging content
Included power plug types EU, NA, UK
Manual Yes
Cables included USB
AC adapter included Yes
Sustainability
Sustainability compliance Yes
Operational conditions
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -20 - 50 °C
Operating temperature (T-T) 5 - 35 °C
Other features
Standard interfaces USB 3.2 Gen 1 (3.1 Gen 1)
Packaging data
Package weight 704 g
Package height 94 mm
Package depth 170 mm
Package width 161 mm
Package dimensions (WxDxH) 92 x 160 x 170 mm
Technical details
Compliance certificates CE, RoHS
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case height 387 mm
Master (outer) case length 476 mm
Master (outer) case width 187 mm
Harmonized System (HS) code 84733080
