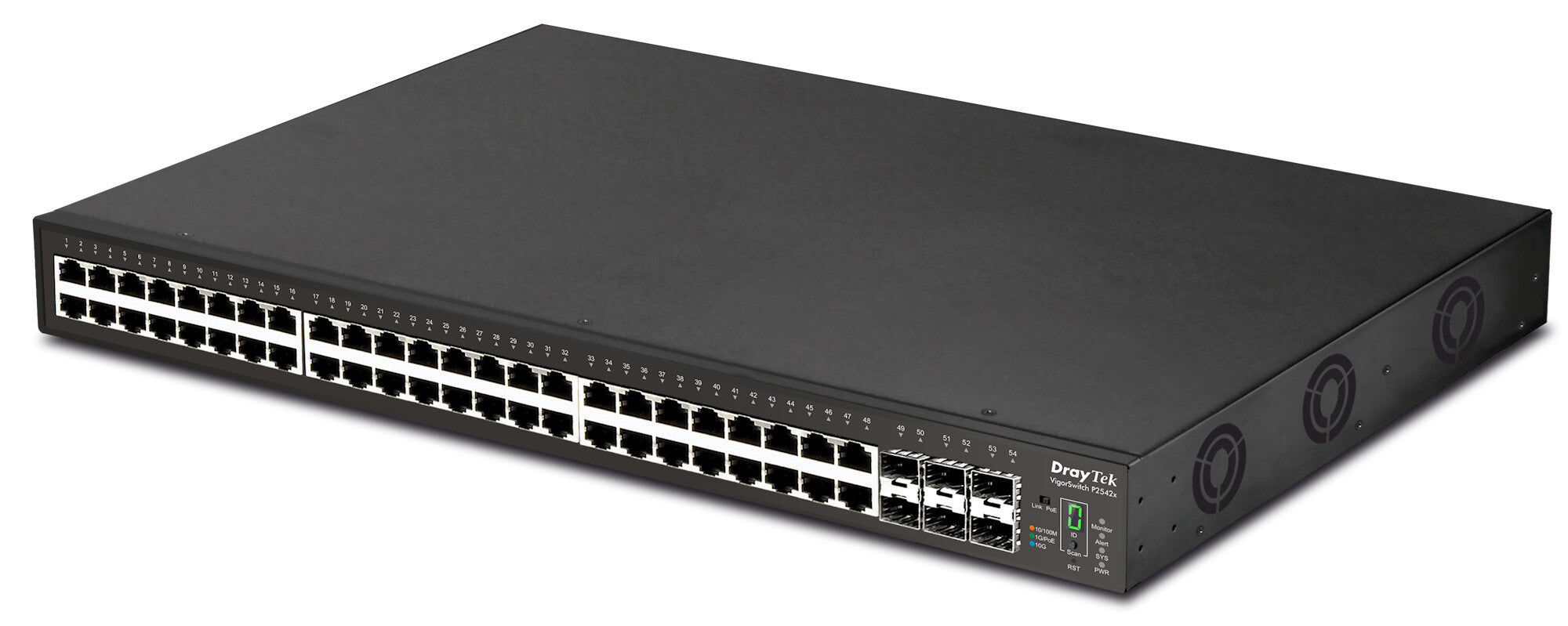

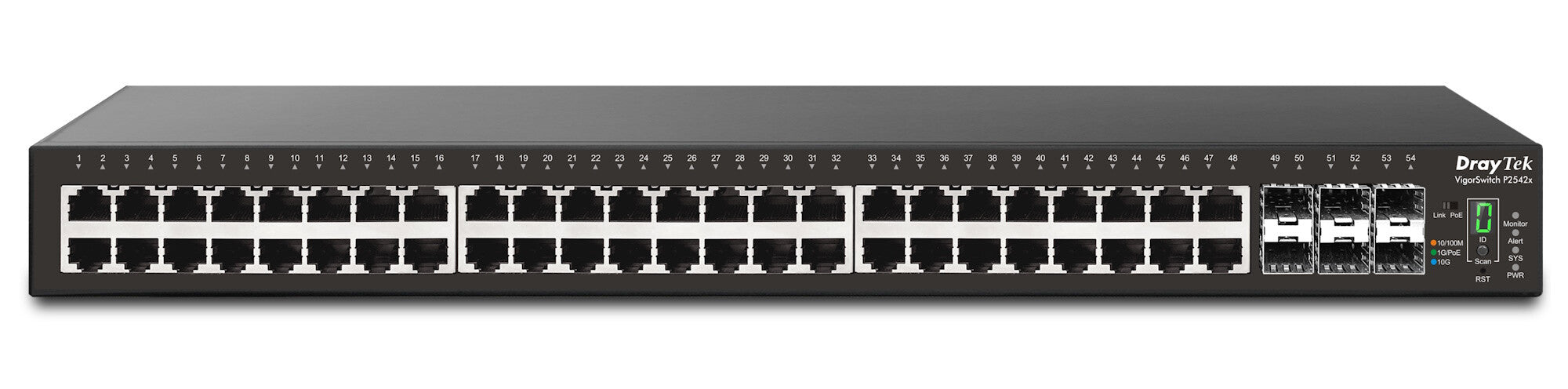

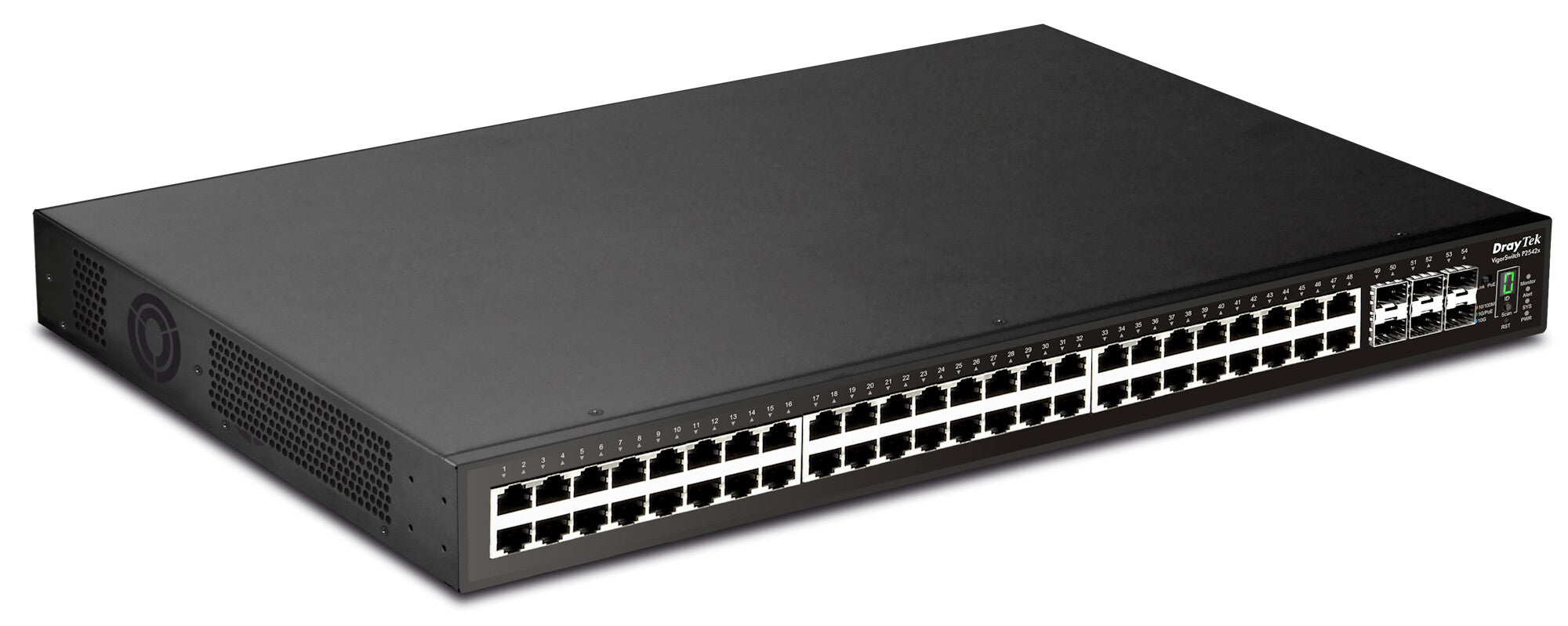

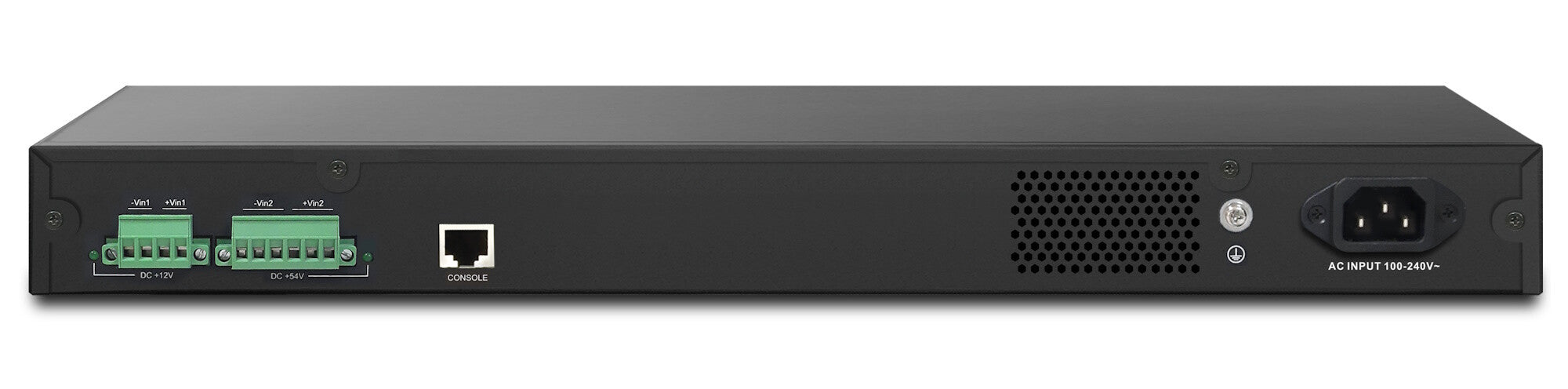

DrayTek VigorSwitch P2542x Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
DrayTek VigorSwitch P2542x Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black is backordered and will ship as soon as it is back in stock.
DrayTek VigorSwitch P2542x Managed L2+ Gigabit Ethernet (10/100/100...
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 6 |
| Console port | RJ-45 |
| Power connector | AC/DC |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 216 Gbit/s |
| Forwarding rate | 160 Mpps |
| Static route | Yes |
| Security | |
|---|---|
| DHCP features | DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | LAN |
| Market segment | Business |
| Performance | |
|---|---|
| Operating system installed | DrayOS |
| Firmware upgradeable | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Power | |
|---|---|
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 400 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 1562 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 346 mm |
| Height | 44 mm |
| Weight | 5.49 kg |
| Packaging data | |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package type | Box |
-
