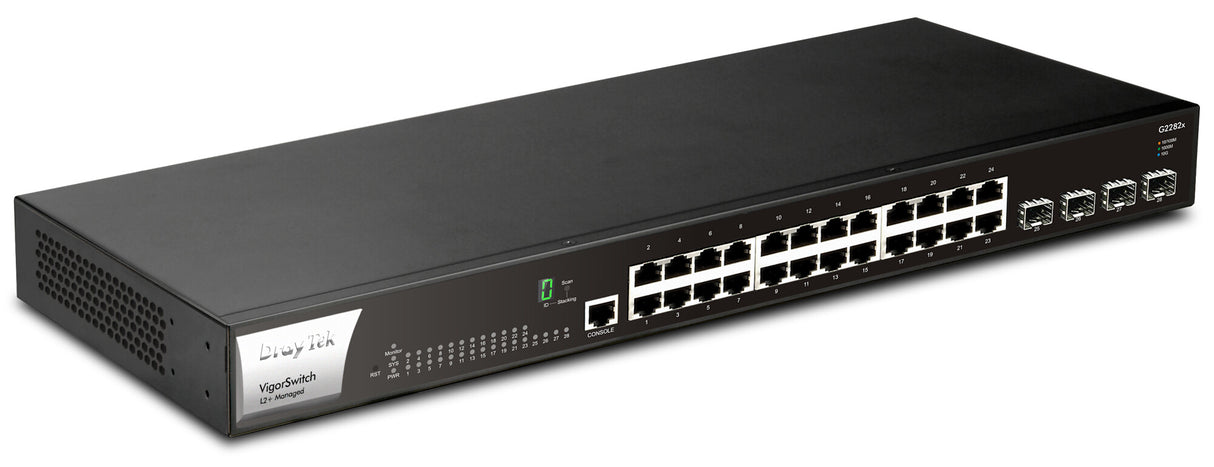

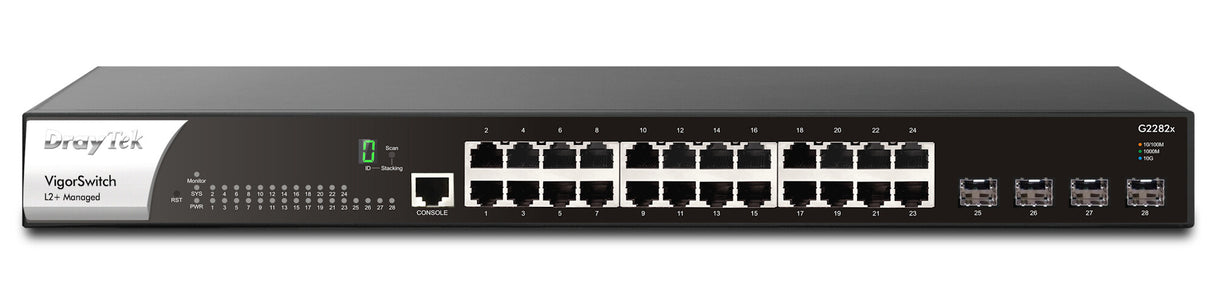

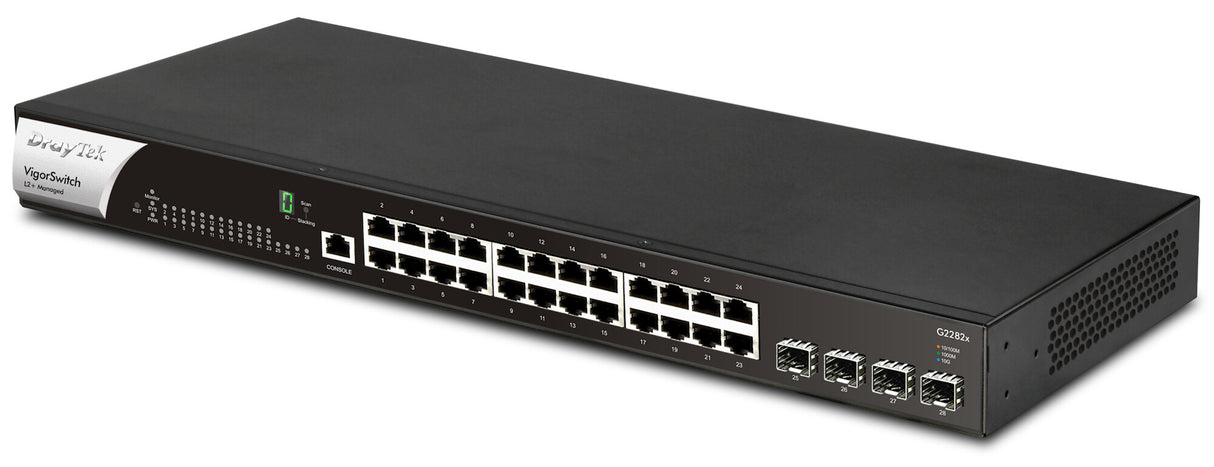

DrayTek VigorSwitch G2282x L2+ Managed 24-Port Gigabit Switch with 4 x 10GbE SFP+ Ports and Power Backup Input
DrayTek VigorSwitch G2282x L2+ Managed 24-Port Gigabit Switch with 4 x 10GbE SFP+ Ports and Power Backup Input is backordered and will ship as soon as it is back in stock.
DrayTek VigorSwitch G2282x L2+ Managed 24-Port Gigabit Switch with ...
The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.

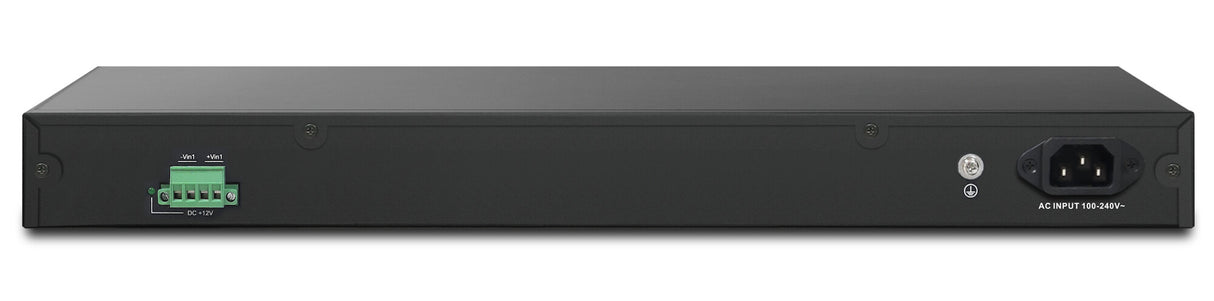

Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.
The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | AC/DC |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Security | |
|---|---|
| DHCP features | DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Reset button | Yes |
| LED indicators | LAN |
| Market segment | Business |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Certificates | |
|---|---|
| PSTI certified | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 205 mm |
| Height | 44 mm |
| Weight | 2.69 kg |
| Packaging data | |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package type | Box |
-
