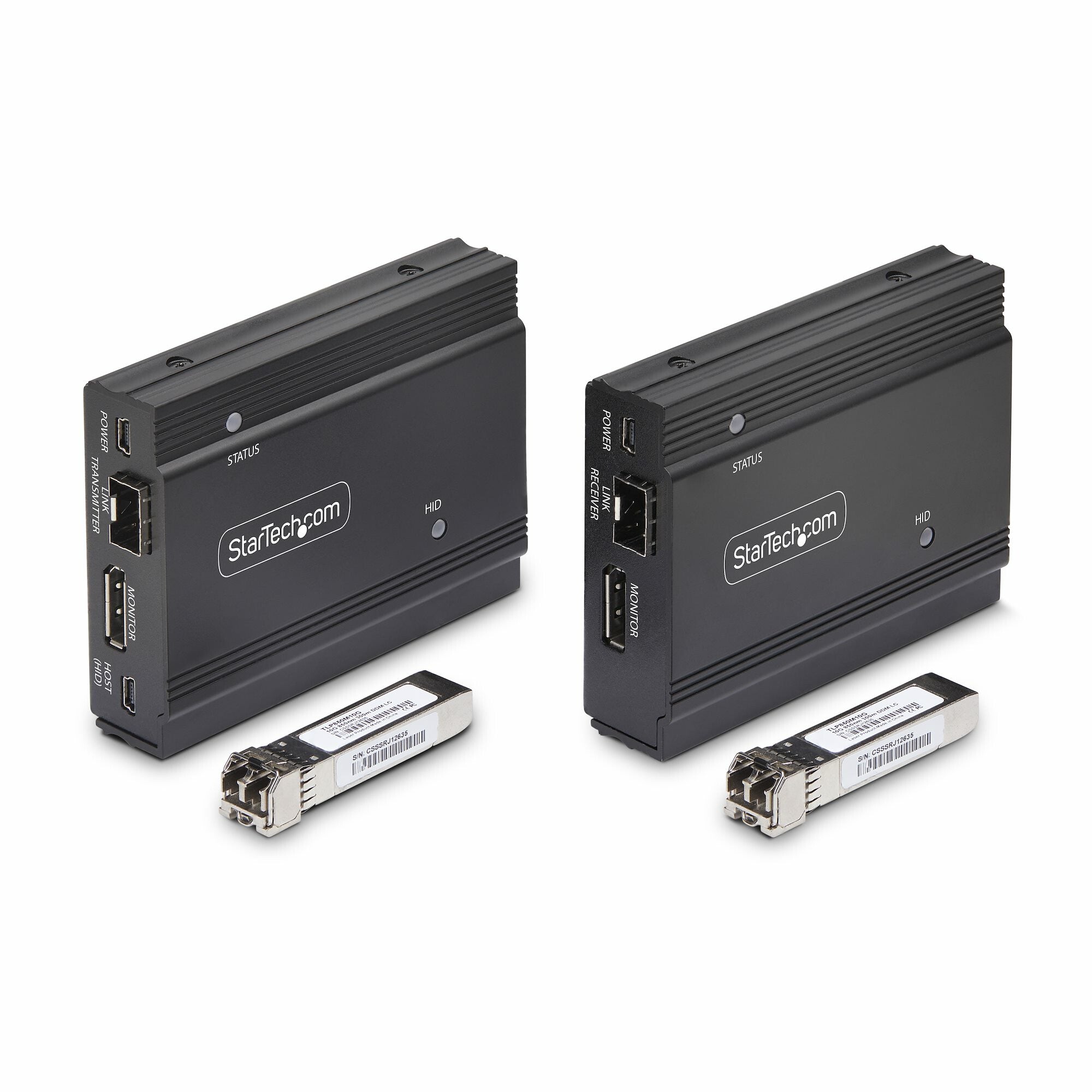

StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID

STARTECH  |  SKU: FD121-KVM-EXTENDER  |  Condition: Brand New  |  Barcode: 0065030901123

MORE INFO

£761.99
£634.99 excluding VAT @20%
iFrame
StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode)

Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable

The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).

4K 60Hz DisplayPort Video

The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.

Universal Compatibility

The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.

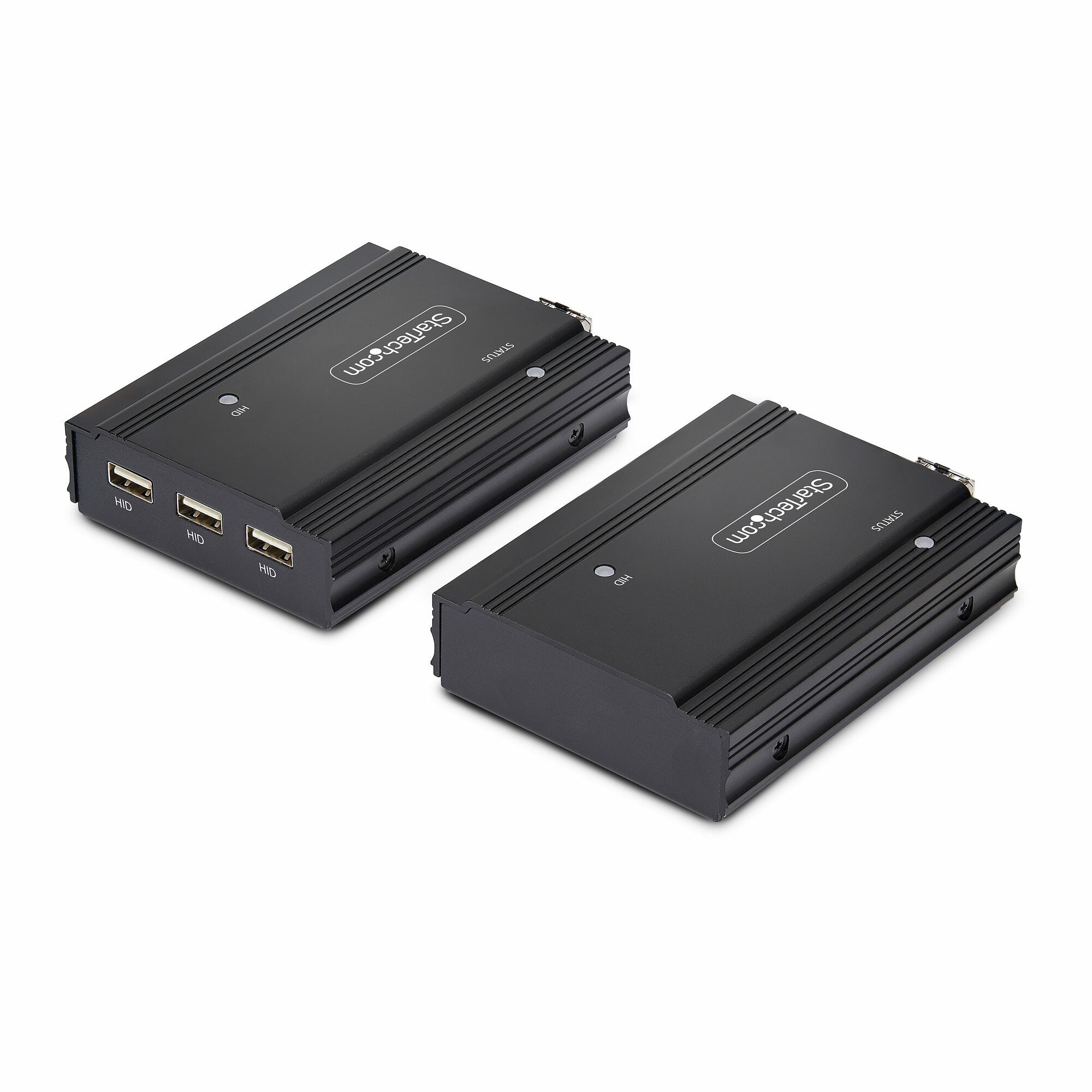

Built-In USB Hub

Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.

Durable Design

The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.

The StarTech.com Advantage

Features
LED indicators Yes
Product colour Black
On Screen Display (OSD) No
Supported resolutions 4096 x 2160 @ 60hz3840 x 2160 @ 60hz3440 x 1440 @ 60hz3200 x 1800 @ 60hz3072 x 1728 @ 60hz2560 x 1440 @ 60hz2048 x 1536 @ 60hz1920 x 1200 @ 60hz3840 x 1080 @ 60hz1920 x 1080 @ 60hz1760 x 990 @ 60hz1680 x 1050 @ 60hz1600 x 1200 @ 60hz1600 x 900 @ 60hz1440 x 900 @ 60hz1366 x 768 @ 60hz1280 x 1024 @ 60hz1280 x 720 @ 60hz1128 x 634 @ 60hz1024 x 768 @ 60hz800 x 600 @ 60hz
Maximum refresh rate 60 Hz
Maximum digital resolution 4096 x 2160 pixels
Maximum transfer distance 300 m
Connectivity technology Wired
Type Transmitter & receiver
Transmitter
Transmitter Micro-USB ports quantity 1
Number of displays supported 1
Transmitter local video port type DisplayPort
Transmitter local video port Yes
Receiver
Receiver local video port type DisplayPort
Receiver Micro-USB ports quantity 2
Ports & interfaces
USB 1.1 ports quantity 3
Installed SFP+ modules quantity 2
Power
Power consumption (receiver) (max) 10 W
Power consumption (transmitter) (max) 10 W
AC adapter output current 2 A
AC adapter output voltage 5 V
Input current 0.3 A
AC input voltage 100 - 240 V
Weight & dimensions
Receiver weight 235 g
Receiver height 2.8 cm
Receiver depth 10 cm
Receiver width 7.4 cm
Transmitter weight 235 g
Transmitter height 2.8 cm
Transmitter depth 10 cm
Transmitter width 7.4 cm
Packaging data
Package height 70 mm
Package depth 175 mm
Package width 306 mm

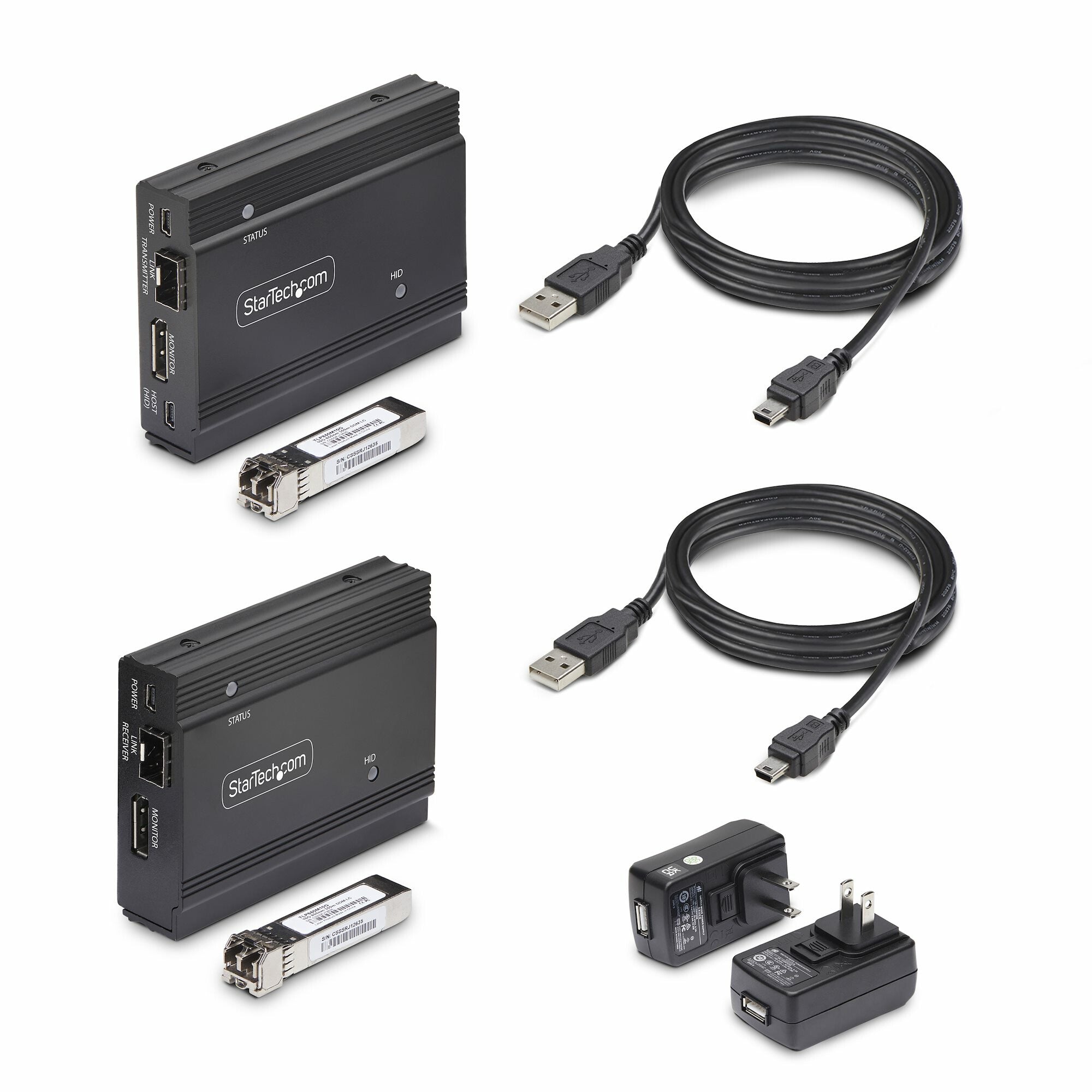

Packaging content
Included power plug types ANZ, EU, NA, UK
Quick installation guide Yes
Cables included Mini-USB
Operational conditions
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -10 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Sustainability
Sustainability compliance Yes
Other features
Compliance certificates RoHS, Trade Agreements Act (TAA)
Mean time between failures (MTBF) 156000 h
Extended display identification data (EDID) Yes
Logistics data
Products per master (outer) case 6 pc(s)
Master (outer) case height 275 mm
Master (outer) case length 323 mm
Master (outer) case width 410 mm
