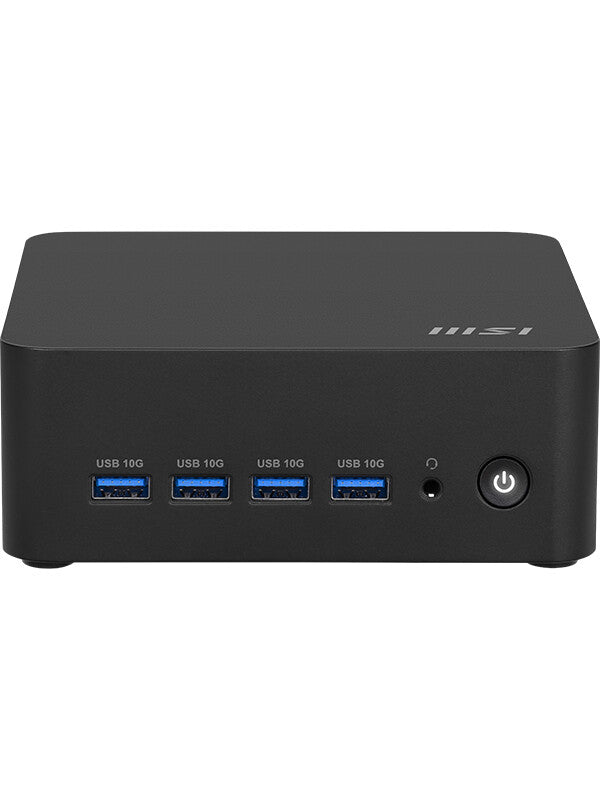

MSI Cubi Z AI 8M AMD Ryzen 5 8645HS Barebone, NUC, USFF, Mini Computer, HTPC (NO RAM, NO Storage, NO OS), AMD Radeon Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
MSI Cubi Z AI 8M AMD Ryzen 5 8645HS Barebone, NUC, USFF, Mini Computer, HTPC (NO RAM, NO Storage, NO OS), AMD Radeon Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA is backordered and will ship as soon as it is back in stock.
MSI Cubi Z AI 8M AMD Ryzen 5 8645HS Barebone, NUC, USFF, Mini Compu...

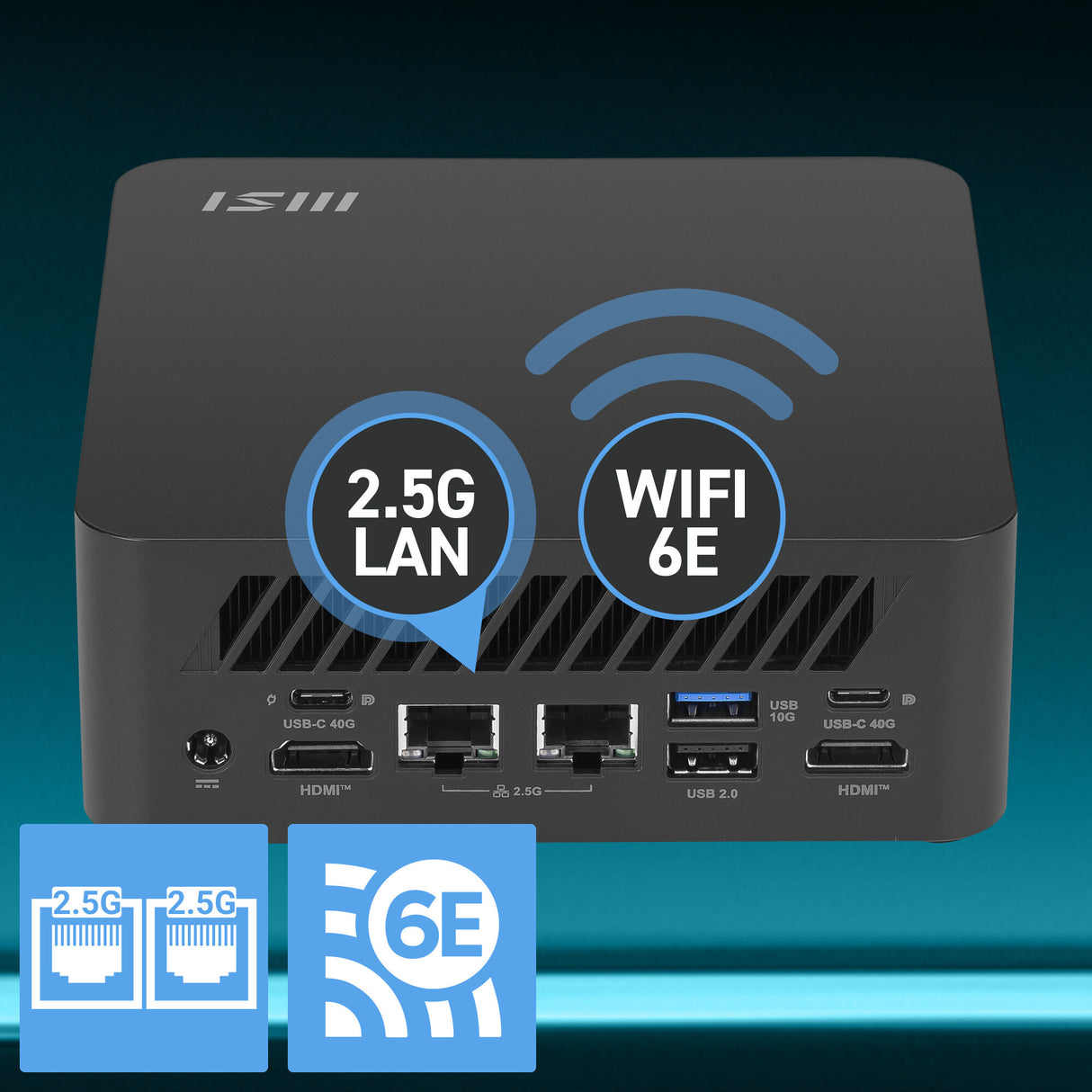

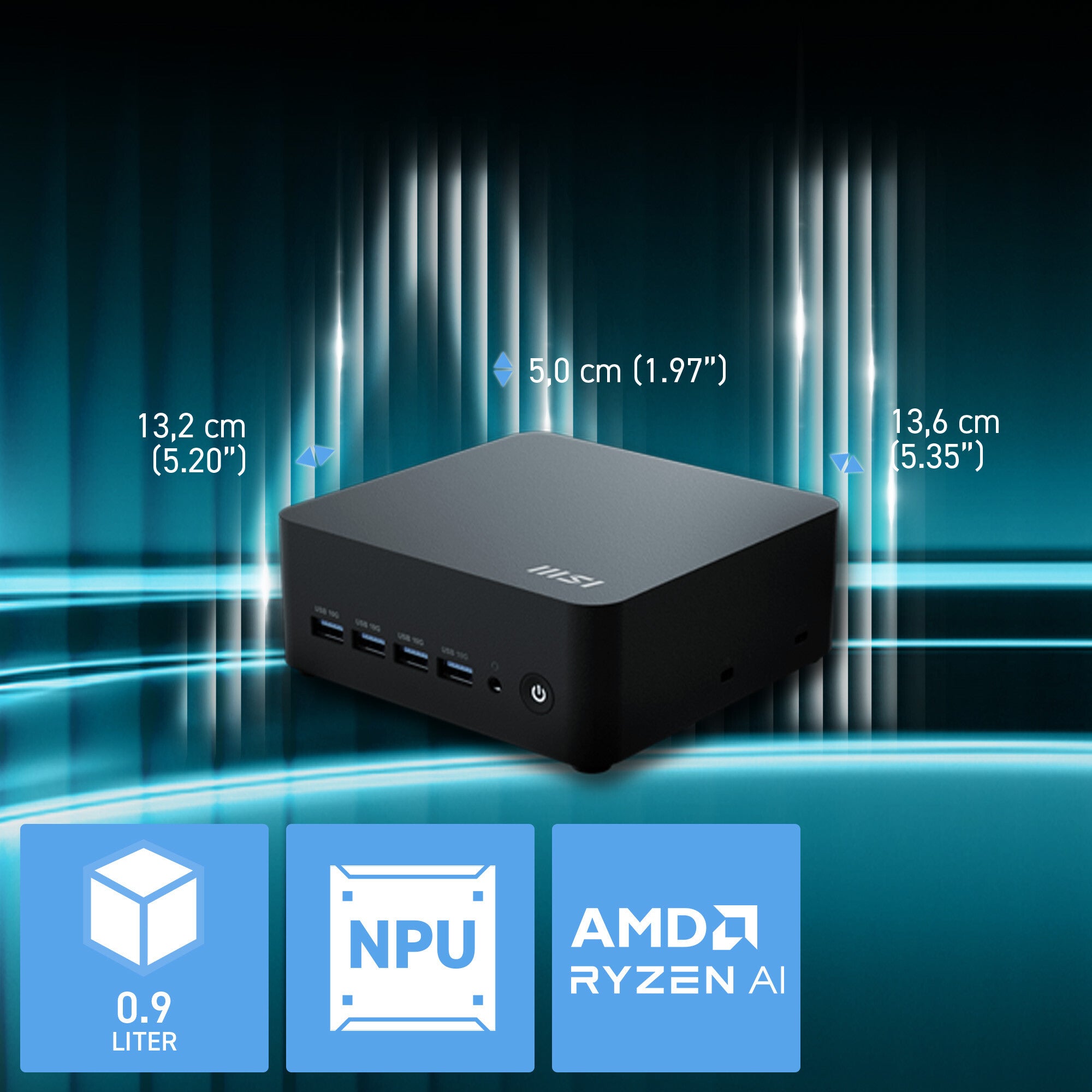

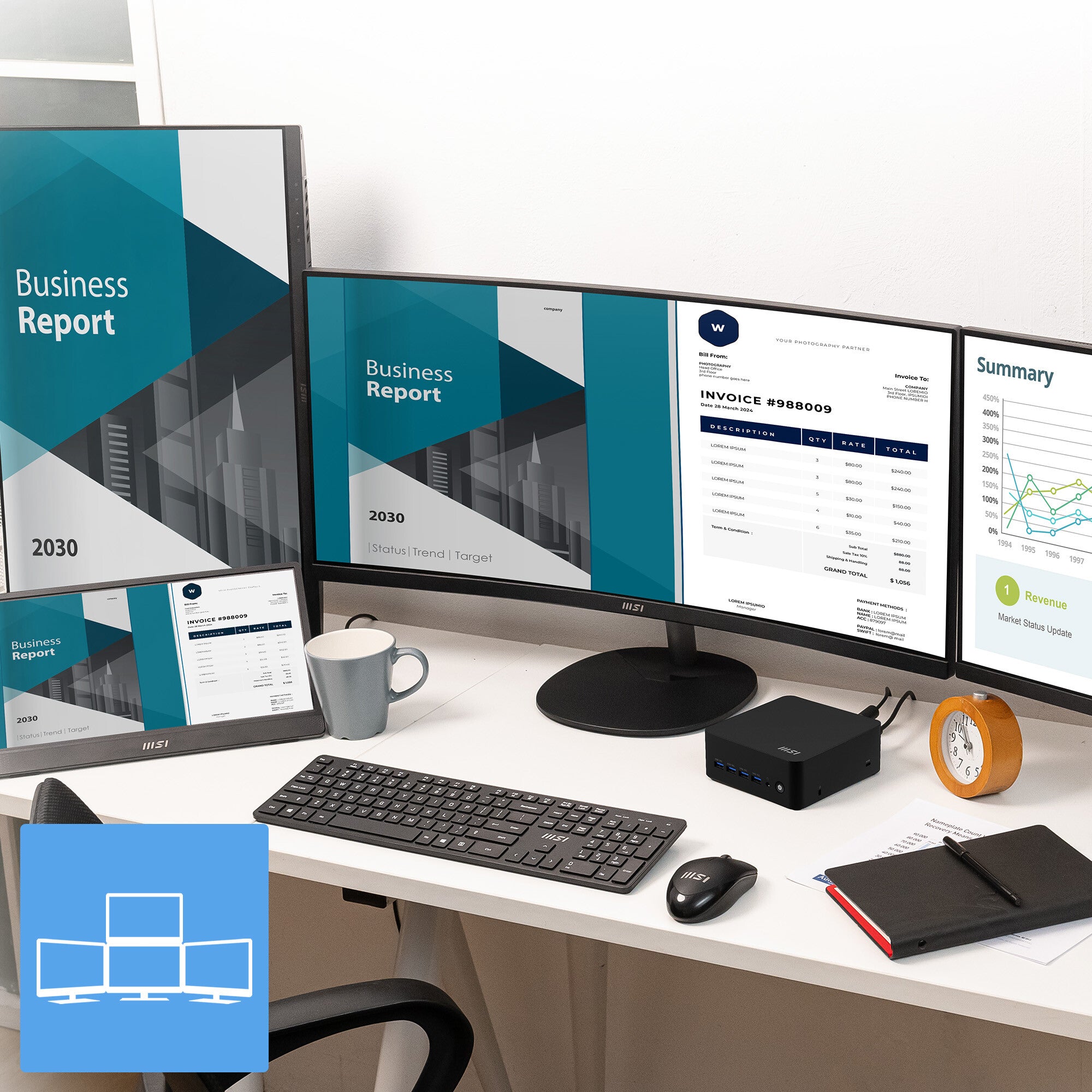

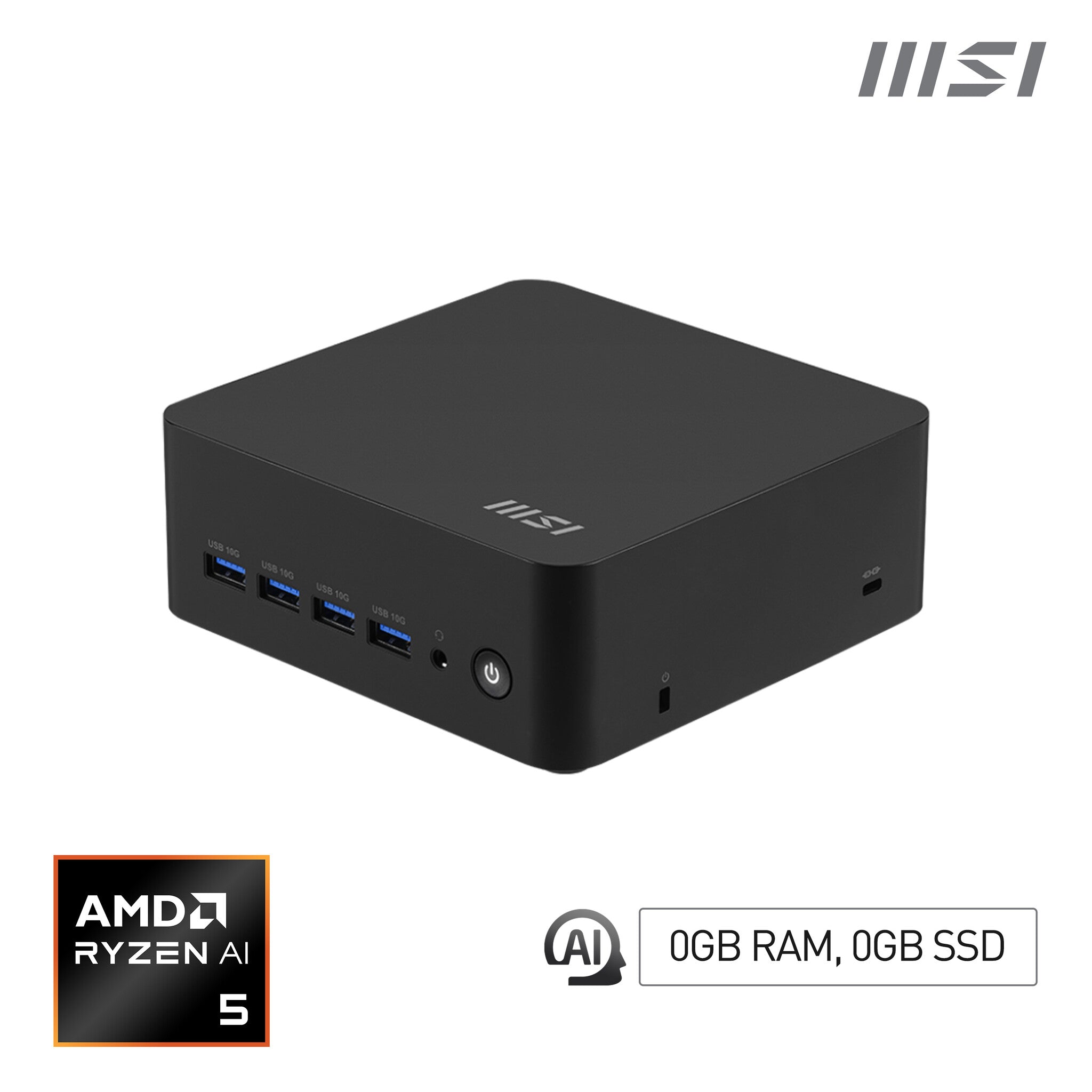

The MSI Cubi Z AI 8M combines AMD Ryzen™ 8000 Series with a built-in NPU in a compact 0.9-liter design. Features dual USB4 ports with speeds of up to 40Gbps, a 100W power delivery input, dual HDMI ports supporting up to four displays, dual 2.5G LAN ports for fast networking, a Kensington Lock for security, a built-in speaker, and a VESA mountable design.
| Processor | |
|---|---|
| Processor frequency | 4.3 GHz |
| Processor model | 8645HS |
| Processor family | AMD Ryzen™ 5 |
| Processor manufacturer | AMD |
| Built-in processor | Yes |

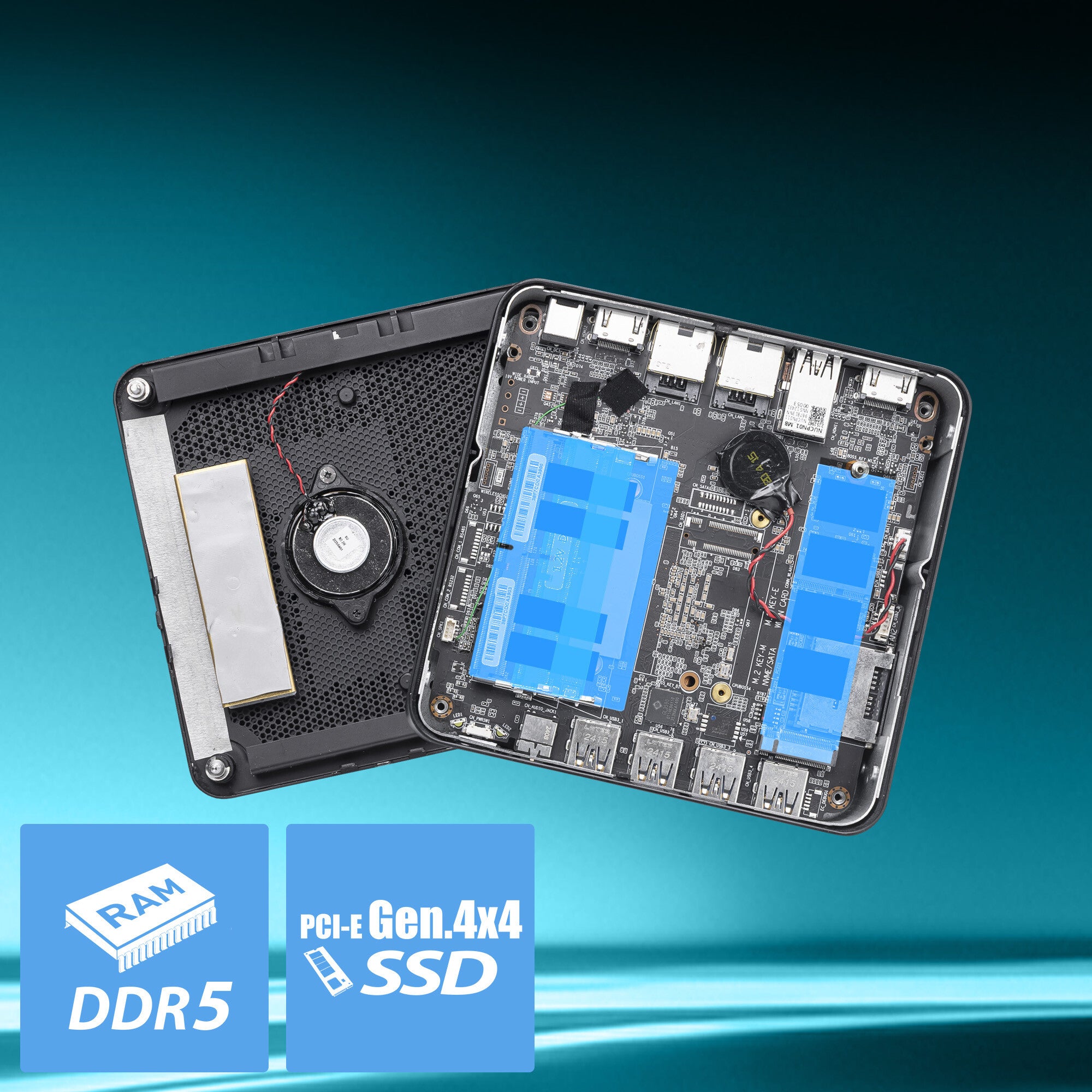

| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Internal memory installed | No |
| Storage | |
|---|---|
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Storage drives installed | No |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Audio | |
|---|---|
| RMS rated power | 2 W |
| Number of speakers | 1 |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| LAN controller | Realtek RTL8125B |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WLAN controller model | AMD RZ616 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |

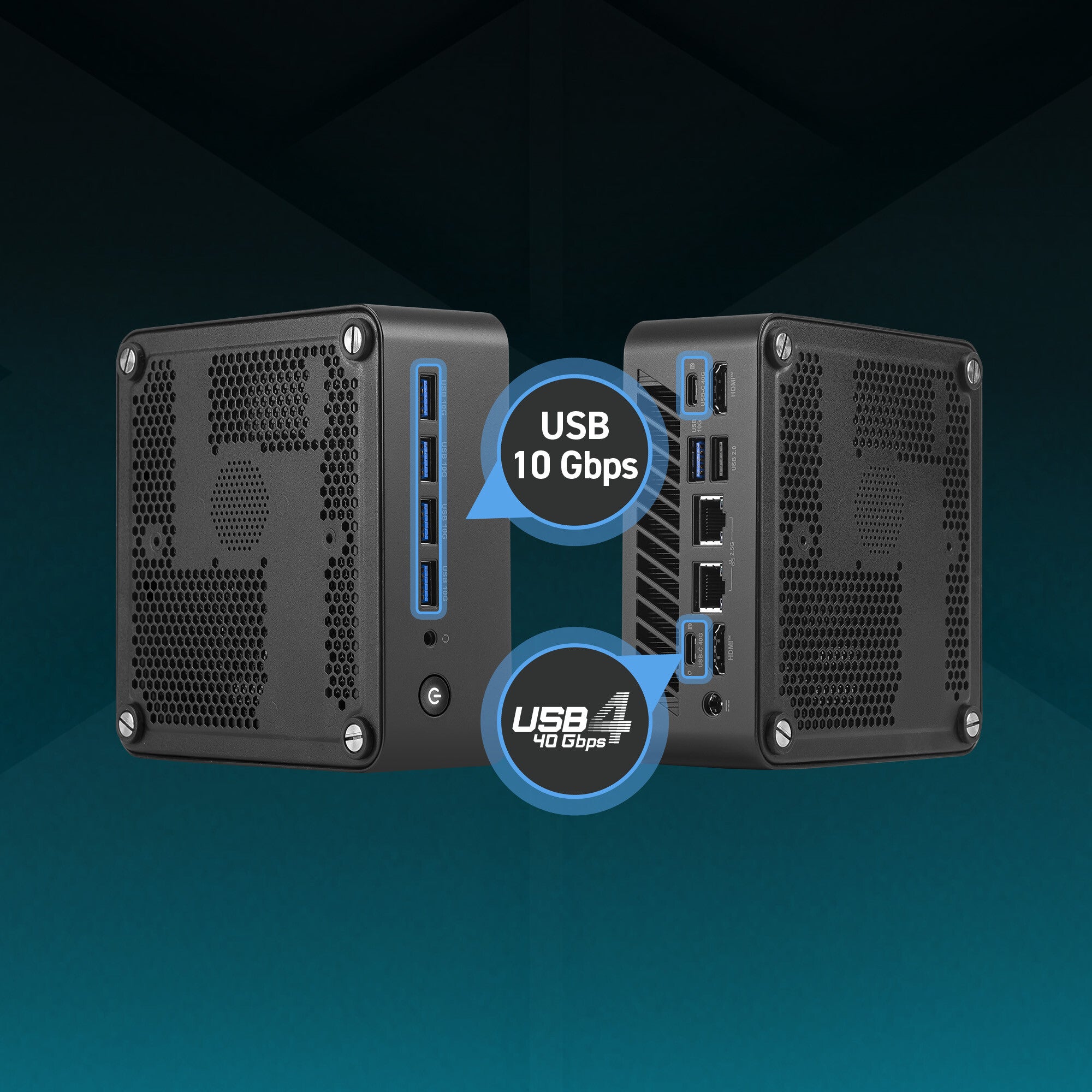

| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Product type | Mini PC barebone |

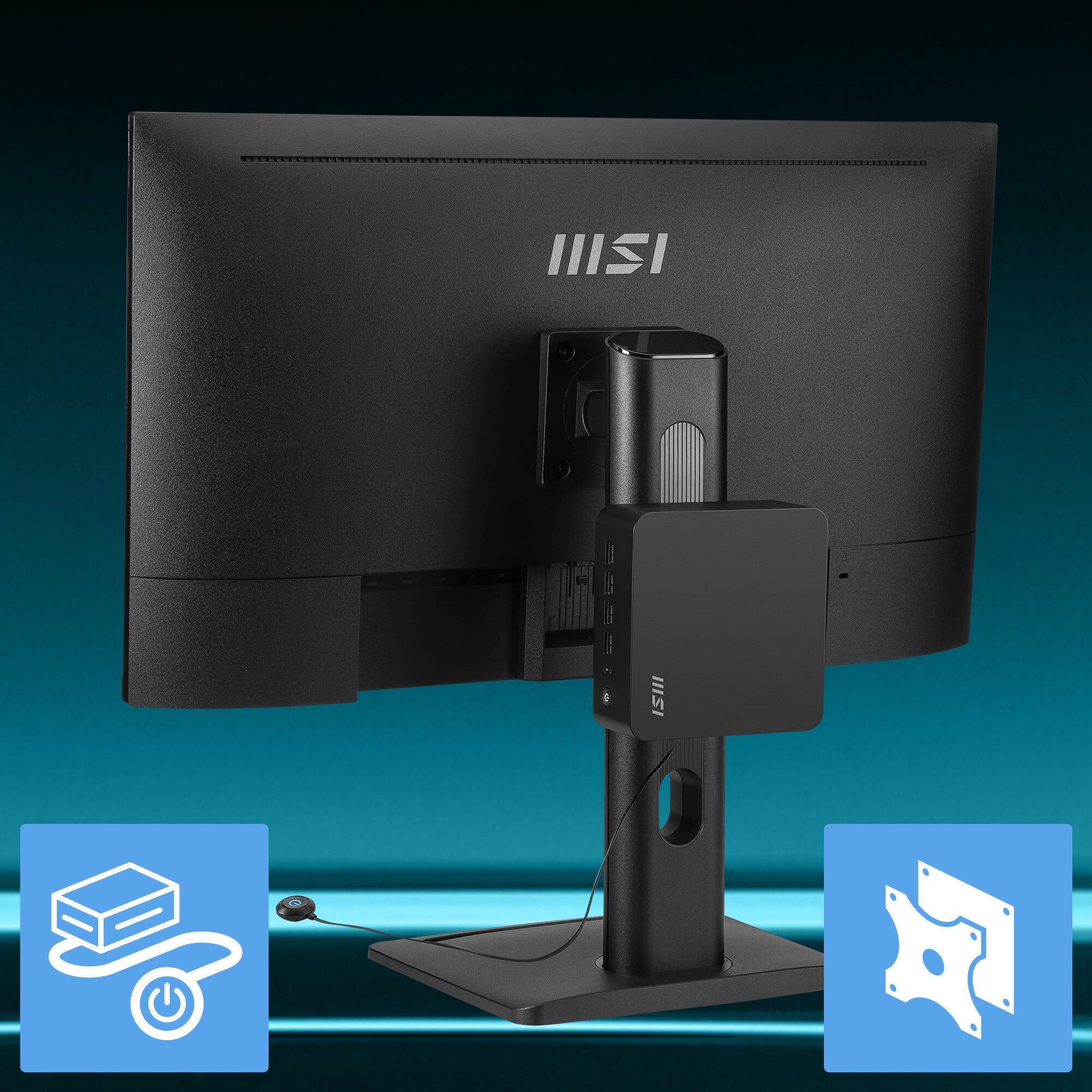

| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 0.9L sized PC |
| Performance | |
|---|---|
| Audio chip | Realtek ALC269 |
| Number of processors supported | 1 |
| Motherboard chipset | AMD SoC |
| General | |
|---|---|
| Product family | Cubi |
| Software | |
|---|---|
| Operating system installed | No |
| Windows operating systems supported | Windows 11, Windows 11 Pro |
| Sustainability | |
|---|---|
| Sustainability certificates | Certified Enviro Cranberries (CEC), ENERGY STAR, ErP |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply | 120 W |
| Number of power supply units | 1 |
| Power supply type | External AC adapter |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Package weight | 2 kg |
| Package height | 517 mm |
| Package depth | 221 mm |
| Package width | 469 mm |
| Weight | 790 g |
| Height | 50.1 mm |
| Depth | 132 mm |
| Width | 136 mm |
| Packaging content | |
|---|---|
| Keyboard included | No |
| Mouse included | No |
| Display included | No |
| Drivers included | No |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
| Other features | |
|---|---|
| Country of origin | China |
| Introduction month | December |
| Introduction year | 2025 |
| Warranty period | 3 year(s) |
-
