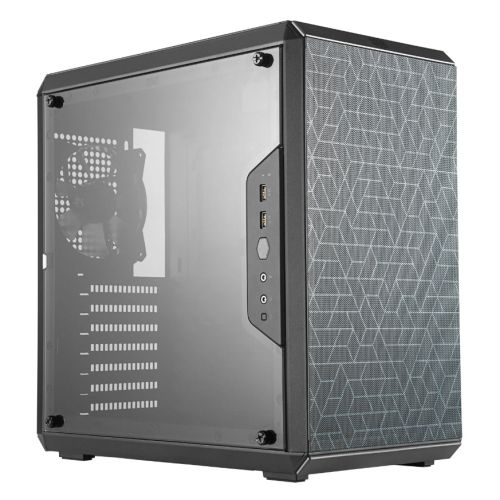

Cooler Master MasterBox Q500L Gaming Case w/ Acrylic Window, ATX, Modular Design, 12cm Fan, Movable I/O Panel, Black

£75.99 £76.99
Excl VAT £63.33
COOLER MASTER  |  SKU: MCB-Q500L-KANN-S00  |  Condition: Brand New  |  Barcode: 4719512080580

Description



Choose Your Style

  • Highly Compact Standard ATX
  • Orientation & A Movable I/O Panel
  • Versatile PSU Bracket
  • Fully Perforated Chassis
  • Magnetic Dust Filters
  • Edge-to-Edge Transparent Side Panel
  • Clean Routing Space




Orientation & a Movable I/O Panel

The modular MasterBox Q500L can orient vertically and horizontally with rubberized thumbscrews that also act as feet. Depending on hardware configuration, the movable I/O panel can be relocated to multiple positions to retain its accessibility.





Versatile PSU Bracket

The PSU bracket enables the PSU to adapt to different clearance requirements and motherboard form factors. The PSU bracket can shift up or down for top radiator/graphics card clearance and can also be relocated for ITX systems.





Fully Perforated Chassis

The top, front, rear, and bottom panels are fully perforated to support various fan configurations.





Magnetic Dust Filters

The magnetic dust filters feature a unique design. Magnets allow for quick removal and installation for easy cleaning of the dust filters with rubber stompers to keep the filters from sliding.





Cooling Support

The bottom supports up to two 120mm fans.
The rear supports a 120mm fan or 120mm radiator.
The top supports up to two 120mm/140mm fans or a 120/240mm radiator.





Storage Support

Each storage caddy can mount either 2x 2.5" drives or 1x 3.5" drive, two caddies included.

Possible Configurations:
4x 2.5" drives | 2x 3.5" drives | 2x 2.5" drives + 1x 3.5" drive





Motherboard Support

The internal layout and PSU location adapts to the motherboard. If a standard ATX motherboard is used, the PSU mounts to the top-front of the chassis with the ability to shift upward or downward. For mini-ITX builds, the PSU can be located in the conventional bottom-rear position for increased front panel ventilation.





Clean Routing Space

Behind the motherboard tray, 27~30mm width of space is offered for cable management with the entire perimeter dedicated as a channel for cables.


Description

Specification

  • Form Factor: ATX
  • #Hide#Small Form Factor: No
  • Power Supply Wattage: No PSU
  • Motherboard Support: "ATX, Micro ATX, Mini ITX"
  • #Hide#Window(s): Yes (Window)
  • Connectors / Controls: 2 x USB 3.0
    1 x 3.5mm Audio Jack
    1 x 3.5mm Mic Jack
  • Drive Bays: 2 x 2.5""/3.5"" Combo (each bay supports: 1 HDD or 2 SSDs)
  • Expansion Slots: 7 Expansion Slots
  • Cooling System: Included:
    Rear: 1 x 120mm Fan

    Fan Mounts:
    Rear: 1 x 120 mm
    Top: 2 x 120 / 140 mm
    Bottom: 2 x 120mm
  • .:
    Radiator Options:
    Top: 120/240 mm (35mm max MB component height)
    Rear: 120 mm
  • Colour: Black
  • Material: "Body: Steel, Plastic
    Side Panel: Acrylic"
  • Compatibility: GPU Clearance:
    360 mm (270mm clearance with PSUs longer than 160mm)

    CPU Clearance:
    160 mm

    PSU Clearance :
    180 mm
    ATX PS2
  • Weight/Dimensions: (LxWxH) 386 x 230 x 381 mm
  • Additional Features: Highly Compact Standard ATX
    Modular Design
    Movable I/O Panel
    Versatile PSU Bracket
    Fully Perforated Chassis
    Magnetic Dust Filters
    Edge-to-Edge Transparent Side Panel
    Clean Routing Space
    Dust Filters: Bottom

    See Overview for more details
  • Package Weight: 9.4000 kg
  • Warranty: 1 Year

Specifications

  • Grade
    Brand New
  • Part Number
    MCB-Q500L-KANN-S00

Grading Guide

Brand New – This product is Brand New and in it’s original
packaging.

New - Open Box - This product is unused but the box has been opened.

New – No Box – This product is unused but doesn’t come with
the original box/packaging.

Refurbished – This product has been refurbished by ourselves
or by the manufacturer.

Excellent Used – This item is used, tested and fully working
but in like new condition. It may come with it’s original packaging or not,
please check the product description.

Good Used – This item is used, tested and fully working but
will show signs of cosmetic wear and tear. It may come with it’s original packaging
or not, please check the product description.

Parts – This item is sold just for parts, meaning it is
unworking or unable to serve it’s purpose. It may come with it’s original packaging
or not, please check the product description.

Warranty

Brand New Products: All our Brand New products come with Manufaturer warranty. These can vary in length and it's important to check with the manufaturer of the product what warranty they provide and what is covered.

Used Products: All our used products come with 1 years warranty provided by us and some products may have manufaturer warranty.

Refurbished Products: With our refurbished products, we offer a free 3-month warranty which covers all software and hardware issues, that have not been influenced by the customer. There is also Manufactured Refurbished products which they will specify how long their warranty is.

Custom Gaming PCs: All our Custom PCs by default come with 3 years warranty. This includes parts and labour. You can also upgrade to 5 years warranty. Our warranty includes all hardware issues relating to the machine. If there is any faults, we will attempt to solve this remotely and if needed get the PC collected and back to base for repair.

Read more - Warranty Information

PDFs/Manuals

For extra information please see the manufaturers website
