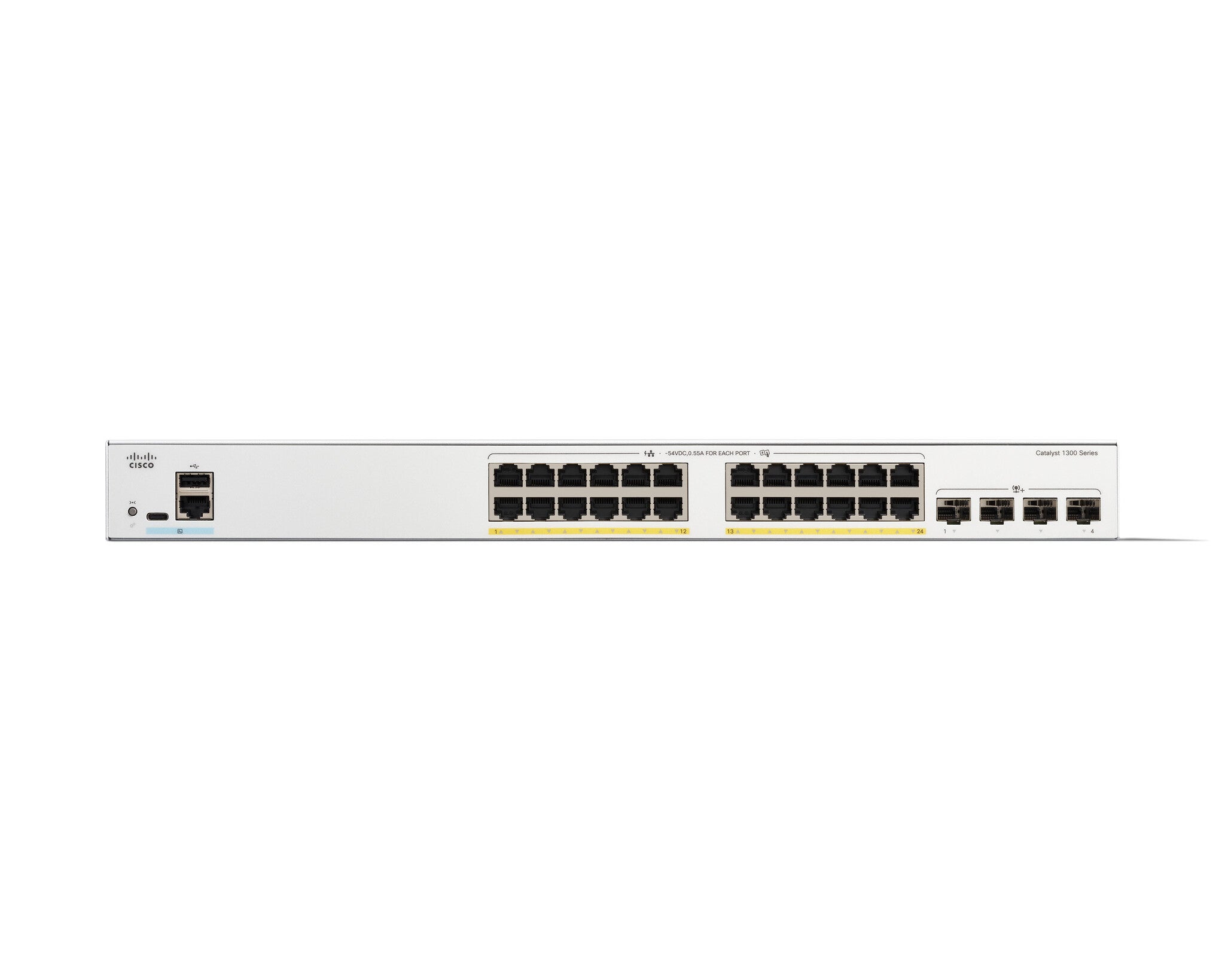

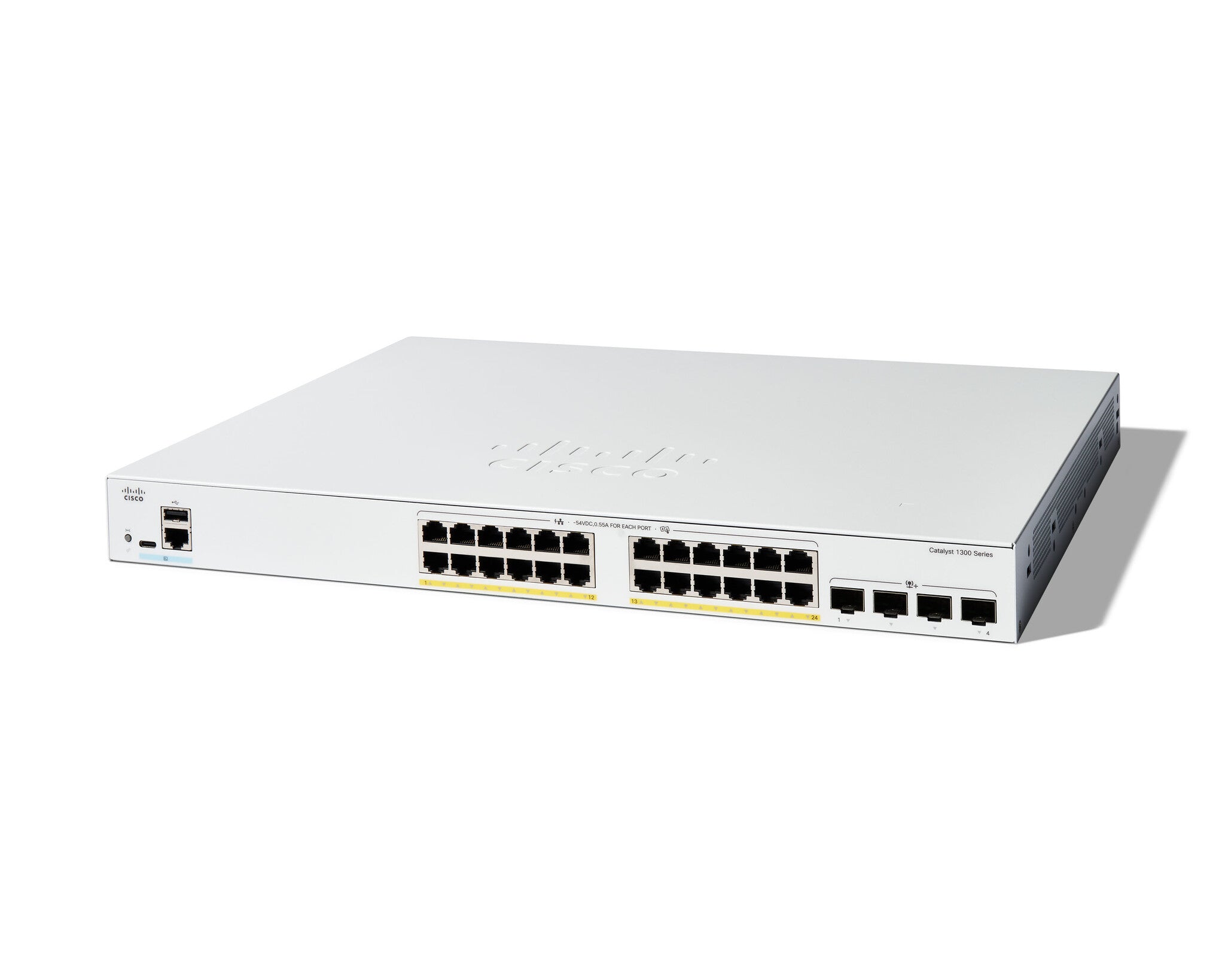

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)

CISCO  |  SKU: C1300-24FP-4X  |  Condition: Brand New  |  Barcode: 889728521505

MORE INFO

£1,202.99
£1,002.49 excluding VAT @20%
iFrame
Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)

The Cisco Catalyst 1300-24FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 4
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported Cat5e
Port mirroring Yes
Policy-based routing Yes
QinQ implementation Selective QinQ
Head-of-line (HOL) blocking Yes
Spanning tree protocol Yes
Rate limiting Yes
Broadcast storm control Yes
Link aggregation Yes
VLAN support Yes
Virtual LAN features Private VLAN, Voice VLAN
Data transmission
MAC address table 16000 entries
Switching capacity 128 Gbit/s
Number of queues 8
Static route Yes
Number of static routes 990
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 1.5 MB
Security
DHCP features DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) Yes
Access Control List (ACL) rules 1024
IGMP proxy Yes
IGMP snooping Yes
DoS attack prevention Yes
Queue scheduling algorithms Weighted Round Robin (WRR)
Authentication type RADIUS, TACACS+
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication MAC-based authentication, Web-based authentication
SSH/SSL support Yes
Multicast features
Multicast support Yes
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
Rack mounting Yes
Product colour Grey
Reset button Yes
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Performance
Built-in processor Yes
Processor frequency 1.4 MHz
Memory type DDR4-SDRAM
Internal memory 1000 MB
Flash memory 512 MB
Noise level 34.8 dB
Plug and Play Yes
Mean time between failures (MTBF) 698220 h
General
Product family Catalyst
Power
Power source AC
AC input voltage 100 - 220 V
AC input frequency 50/60 Hz
Power consumption (typical) 40.9 W
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 24
Total Power over Ethernet (PoE) budget 375 W
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 1548.8 BTU/h
Weight & dimensions
Width 350 mm
Depth 444.5 mm
Height 43.9 mm
Weight 4.6 kg
Packaging data
Package width 512.1 mm
Package depth 575.1 mm
Package height 108 mm
Package weight 7.18 kg
Logistics data
Country of origin China
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
