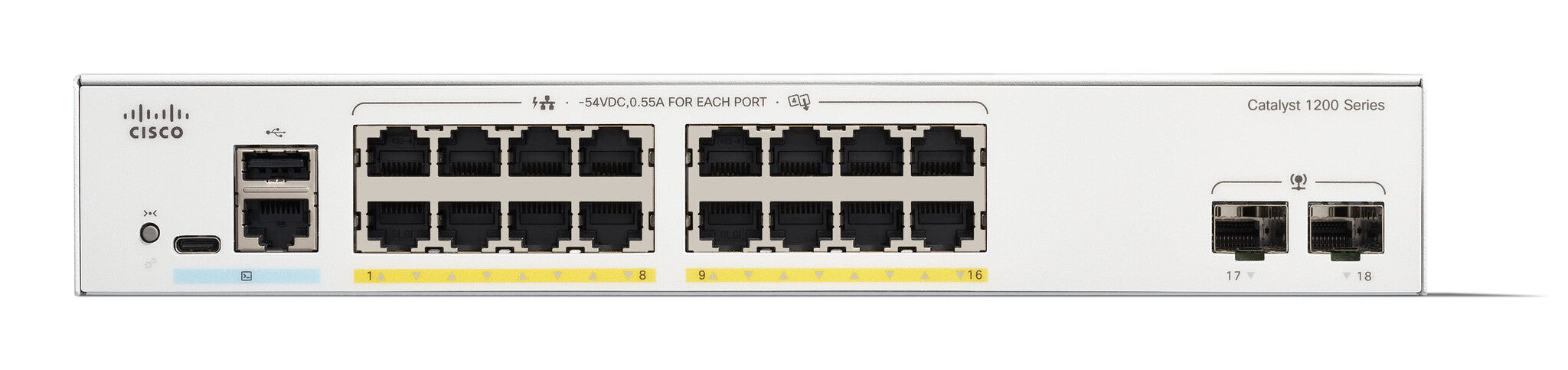

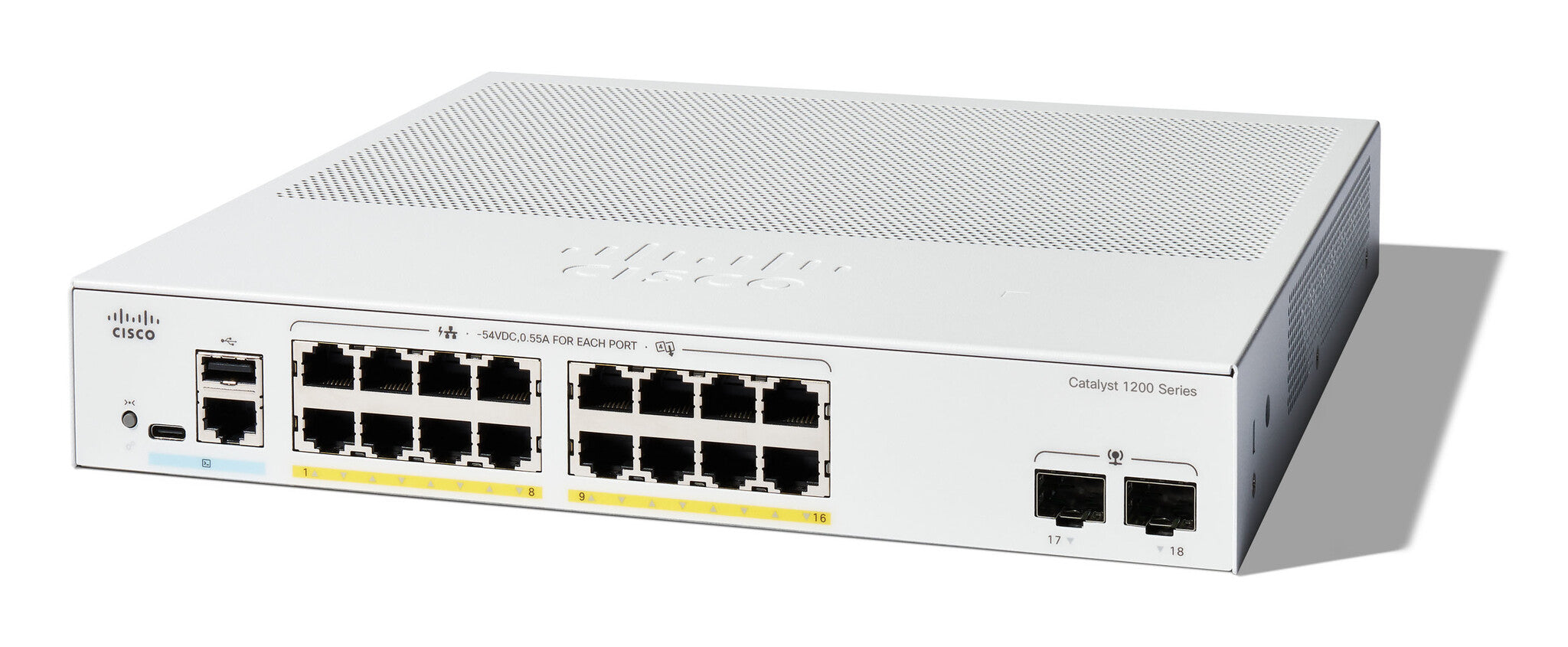

Cisco Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)

CISCO  |  SKU: C1200-16P-2G  |  Condition: Brand New  |  Barcode: 889728521666
£508.99
£424.16 excluding VAT @20%
iFrame
Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)

The Cisco Catalyst 1200-16P-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Configuring Location Settings (CLI) Yes
MIB support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring Yes
Spanning tree protocol Yes
Broadcast storm control Yes
Link aggregation Yes
VLAN support Yes
Number of VLANs 255
Data transmission
MAC address table 8000 entries
Switching capacity 36 Gbit/s
Forwarding rate 26.78 Mpps
Static route Yes
Number of static routes 32
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 1.5 MB
Security
DHCP features DHCP client
Access Control List (ACL) Yes
IGMP entries 255
IGMP snooping Yes
Authentication type RADIUS
Loop protection Yes
Authentication Guest VLAN
SSH/SSL support Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Product colour Grey
LED indicators Yes
Performance
Mean time between failures (MTBF) 706983 h
General
Product family Catalyst
Power
Power source AC
AC input voltage 110 - 220 V
AC input frequency 50/60 Hz
Power consumption (max) 156.4 W
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 16
Total Power over Ethernet (PoE) budget 120 W
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 536.05 BTU/h
Weight & dimensions
Width 296.9 mm
Depth 268.2 mm
Height 43.9 mm
Weight 2.38 kg
Packaging data
Package width 414 mm
Package depth 399 mm
Package height 108 mm
Package weight 4.11 kg
Logistics data
Country of origin China
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
