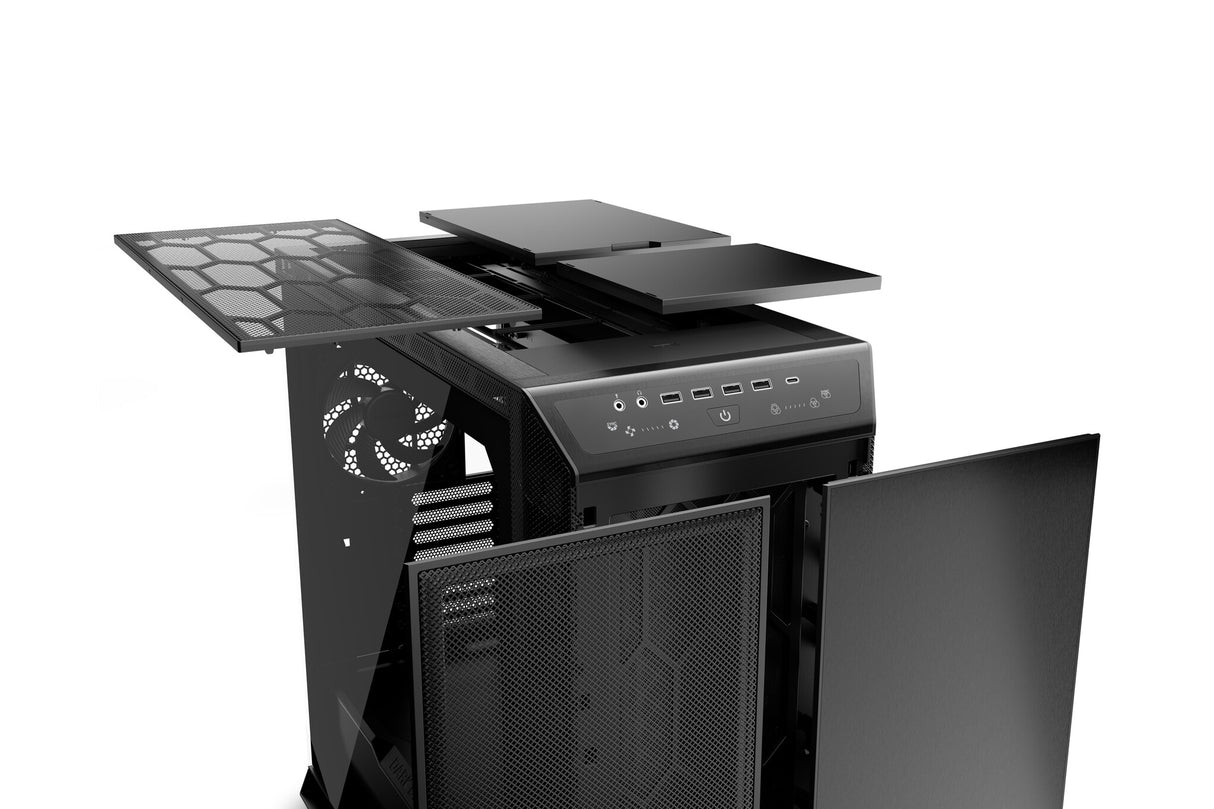

INTERCHANGEABLE TOP AND FRONT
The best case in any situation
Whether you prefer a virtually inaudible or an extremely performant case: Dark Base Pro 901 is the perfect choice. Dark Base Pro 901 features a silence-oriented and performance-optimized solution for the top and the front. All panels are included, and a user-friendly mounting makes
switching a breeze.
MAXIMUM USABILITY
For professional and casual use
Dark Base Pro 901 offers all functions enthusiasts could wish for in a high-end case. Among them is a detachable top and front bracket with included fan hub and pogo pin connector for a comfortable installation of radiators and fans. Even an inverted layout can be done easily thanks to an intuitive rail system. Numerous cleverly integrated solutions make handling extremely easy. Dark Base Pro 901 can be deployed without the hassle of additional screws and small parts, creating the optimal case for any build.
SILENT WINGS 4 PWM FANS
3 pre-installed fans for maximum airflow
Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm a fan that makes no compromises between virtually inaudible operation and high performance. Its extraordinary air pressure significantly increases the cooling performance of
Dark Base Pro 901.
THINK BIG
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Dark Base Pro 901 sets no limits on creativity. The front can fit a radiator of up to 420mm and additional fans can be installed throughout the case, even on the side panel.
FLEXIBLE VGA HOLDER AND CABLE BARS
For a neat interior
The VGA holder of Dark Base Pro 901 is very versatile and prevents GPU sag even with heavy graphics cards. 2 cable bars, one located inside the VGA holder and the other next to the motherboard tray, hide the cables inside the case. No matter how big or numerous the components built in Dark Base Pro 901 may be; with such clever features the result always makes a
good impression.
ARGB LIGHTING
And convenient features
Dark Base Pro 901 features ARGB lighting on the front and the PSU shroud: The lit-up areas are chosen consciously to ensure the case remains elegant with subtle illumination. The light and fan settings can be conveniently controlled via touch-sensitive buttons on the I/O panel. A wireless charger for Qi enabled devices perfectly rounds up Dark Base Pro 901.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your case. The window is made of tinted and tempered glass with black painted edges.
Specifications
Material
Steel (SGCC), ABS plastic, Aluminum
Drive bays
up to 16x 2.5 (6 included)
up to 7x 3.5 (2 included)
up to 1x 5.25 (1 included)
I/O port
1x USB 3.2 Gen. 2 Type C, 4x USB 3.2, HD Audio
(mic + audio), fan controller, ARGB controller
Color option
Black
Motherboard compatibility
E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX

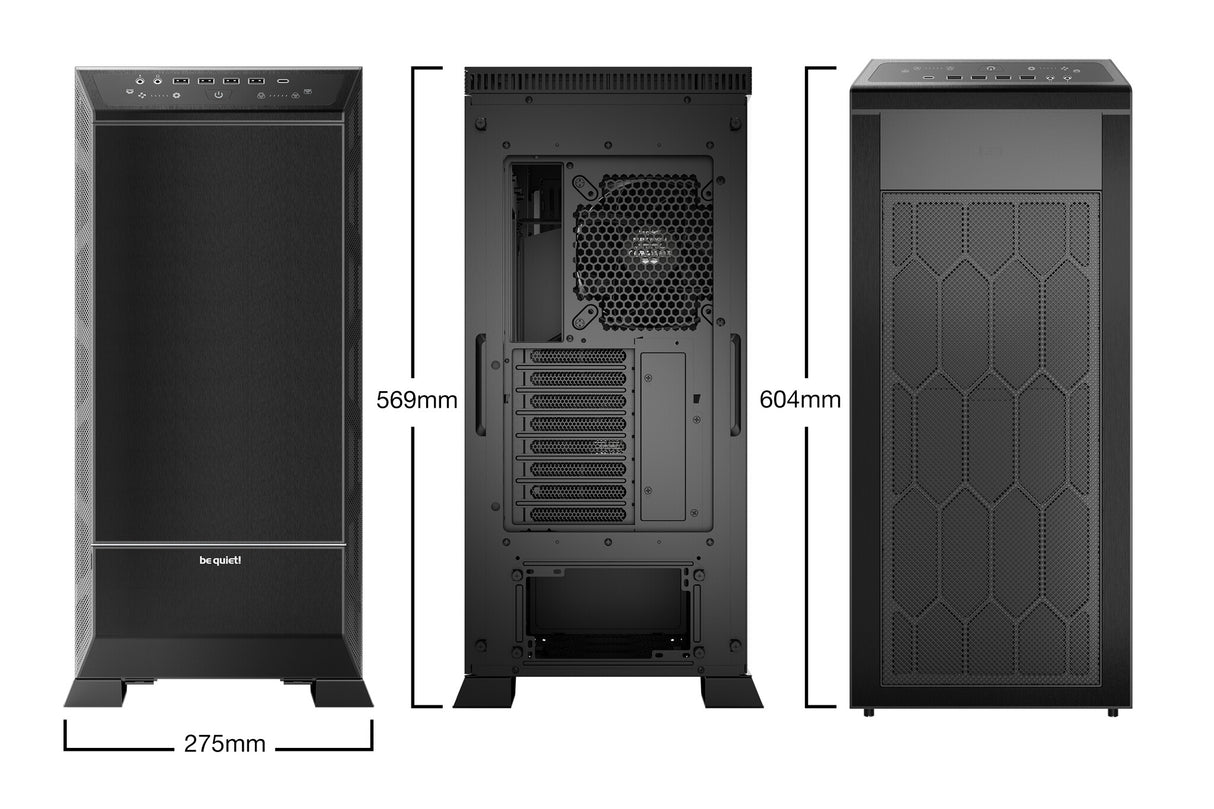

Case size excl. stands (L x W x H), (mm)
604 x 254 x 539
Case size incl. stands (L x W x H), (mm)
604 x 275 x 569
Volume (l)
82.69
PSU form factor
ATX PS/2
Weight (kg)
16.3
Expansion slots
8
Pre-installed fans
Fan at top
-
Fan at front
2x Silent Wings 4 140mm PWM
Fan at side
-
Fan at rear
1x Silent Wings 4 140mm PWM
Fan at bottom
-
Maximum dimensions (mm)
CPU cooler: up to 190
PSU: up to 288
GPU: 495
ATX motherboard: 350 (with HDD cage)
E-ATX motherboard: 370 (with HDD cage)
Dimensions (L x W x H), (mm)
Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm)
1900
Airflow at 100% PWM / 12V (CFM / m3/h)
78.4 / 133.20
Air Pressure at 100% PWM / 12V (mm H2O)
2.36
Noise level at 100% PWM / 12V (dB(A))
29.3
Voltage range (V DC)
12
Input power (W)
4.8
Input current (A)
0.4
Connector
4-pin PWM
Lifespan (h / 25°C)
300,000
Fan controller
-
Maximum fan installation
Maximum fans
11
Top (mm)
3x 140 / 3x 120
Front (mm)
3x 140 / 3x 120
Side (mm)
3x 120
Rear (mm)
1x 140 / 1x 120
Bottom (mm)
1x 140 / 1x 120
PSU shroud
-
- Form Factor: ATX
- Motherboard Support: E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
- PSU:
- Case Colour: Black
- LED Colour: RGB
- USB 3.0: None
- Side Panel: Glass
