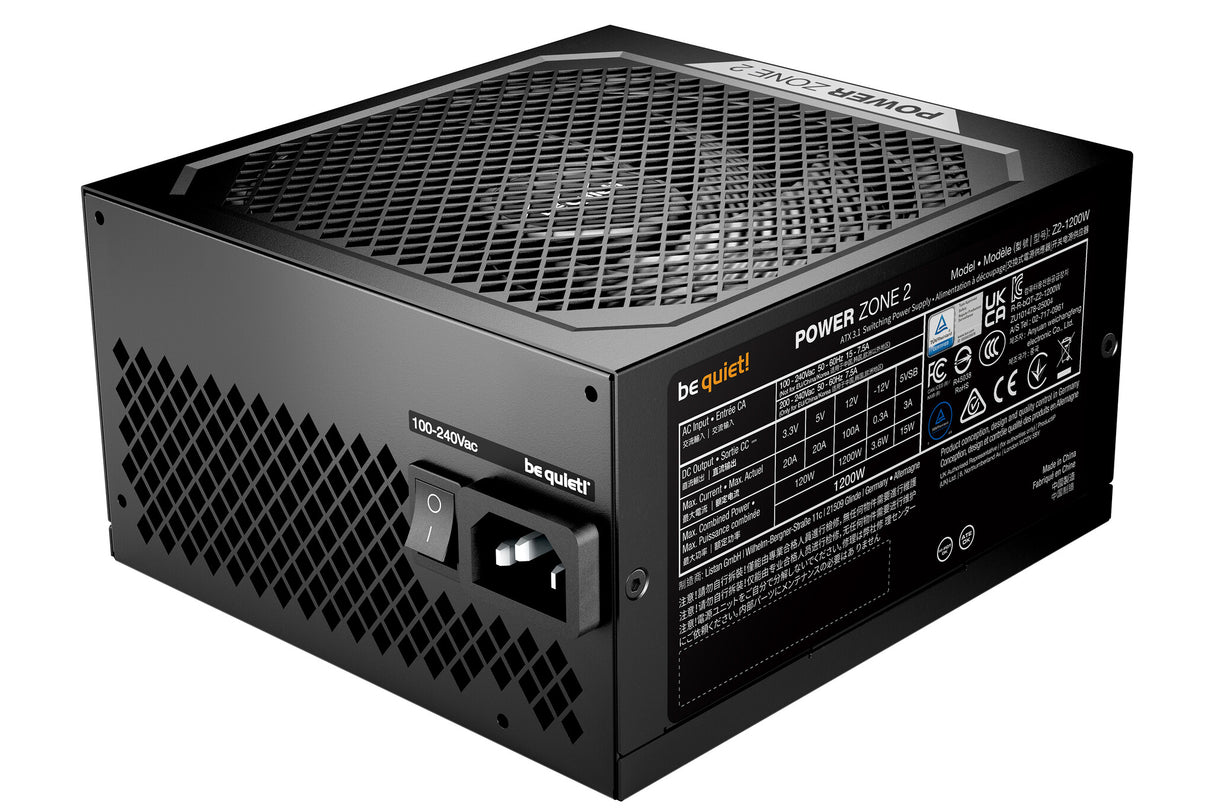

be quiet! POWER ZONE 2 | 1200 W power supply unit 20+4 pin ATX ATX Black
be quiet! POWER ZONE 2 | 1200 W power supply unit 20+4 pin ATX ATX Black is backordered and will ship as soon as it is back in stock.
be quiet! POWER ZONE 2 | 1200 W power supply unit 20+4 pin ATX ATX ...
Exceptional efficiency for Gamers

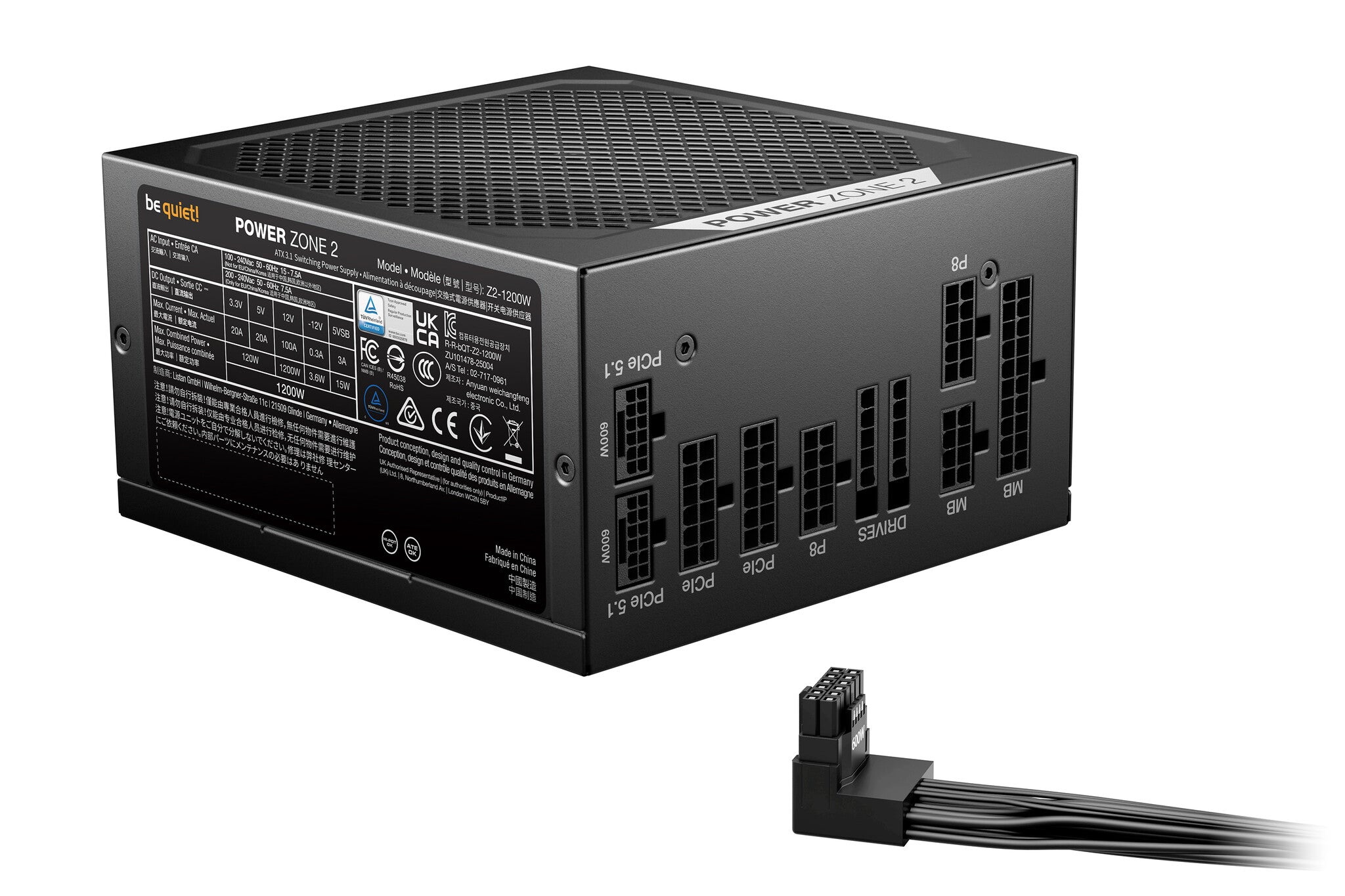

Power Zone 2 1200W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions. With 90° angled 12V-2x6 connectors in the scope of delivery and PCIe 5.1/ATX 3.1 compatibility, Power Zone 2 supports the latest graphics cards and constitutes a reliable investment for the future.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage |
| Efficiency | 92.7% |
| Hold time | 20.42 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+3.3V) | 120 W |
| Number of +12V rail(s) | 1 |
| Power factor | 0.97 |
| Maximum input current (@220V) | 7.5 A |
| Maximum input current (@110V) | 15 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 1270 W |
| Total power | 1200 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (12-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 3 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 1000 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA power cables | 2 |
| SATA power cable length | 550,700,850,1000 mm |
| Number of SATA power connectors | 7 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Rifle |
| Noise level | 25.5 dB |
| EPS version | 2.92 |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan speed | 0 - 2100 RPM |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 1.88 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.5 kg |
| Package height | 102 mm |
| Package depth | 328 mm |
| Package width | 248 mm |
| Manual languages | German, English, Spanish, French, Polish, Russian, Ukrainian |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 43 cm |
| Shipping (inner) case width | 26.5 cm |
| Shipping (inner) case height | 34 cm |
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case gross weight | 14.9 kg |
| Other features | |
|---|---|
| Cable ties included | Yes |
| Screws included | Yes |
-
