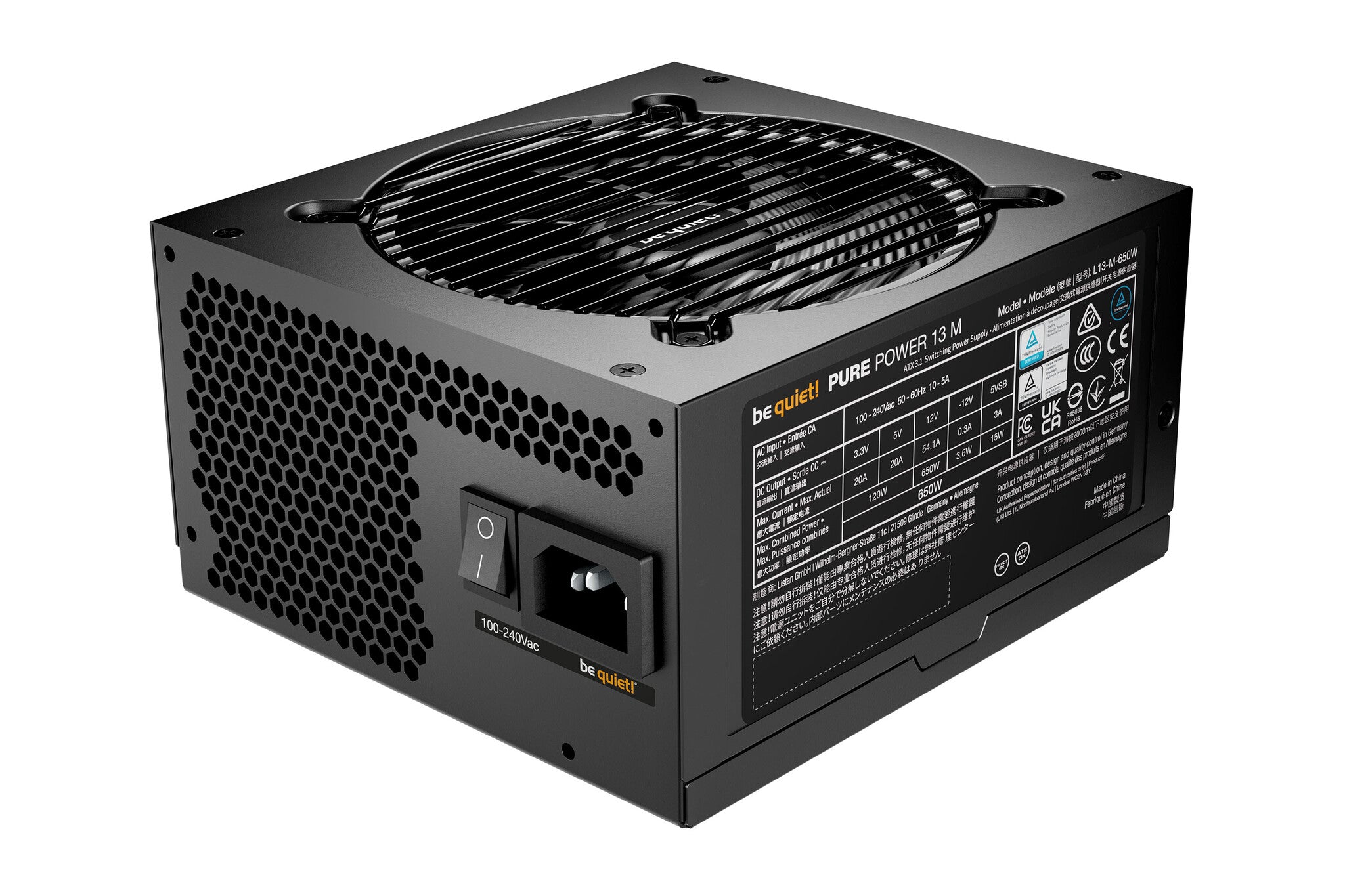

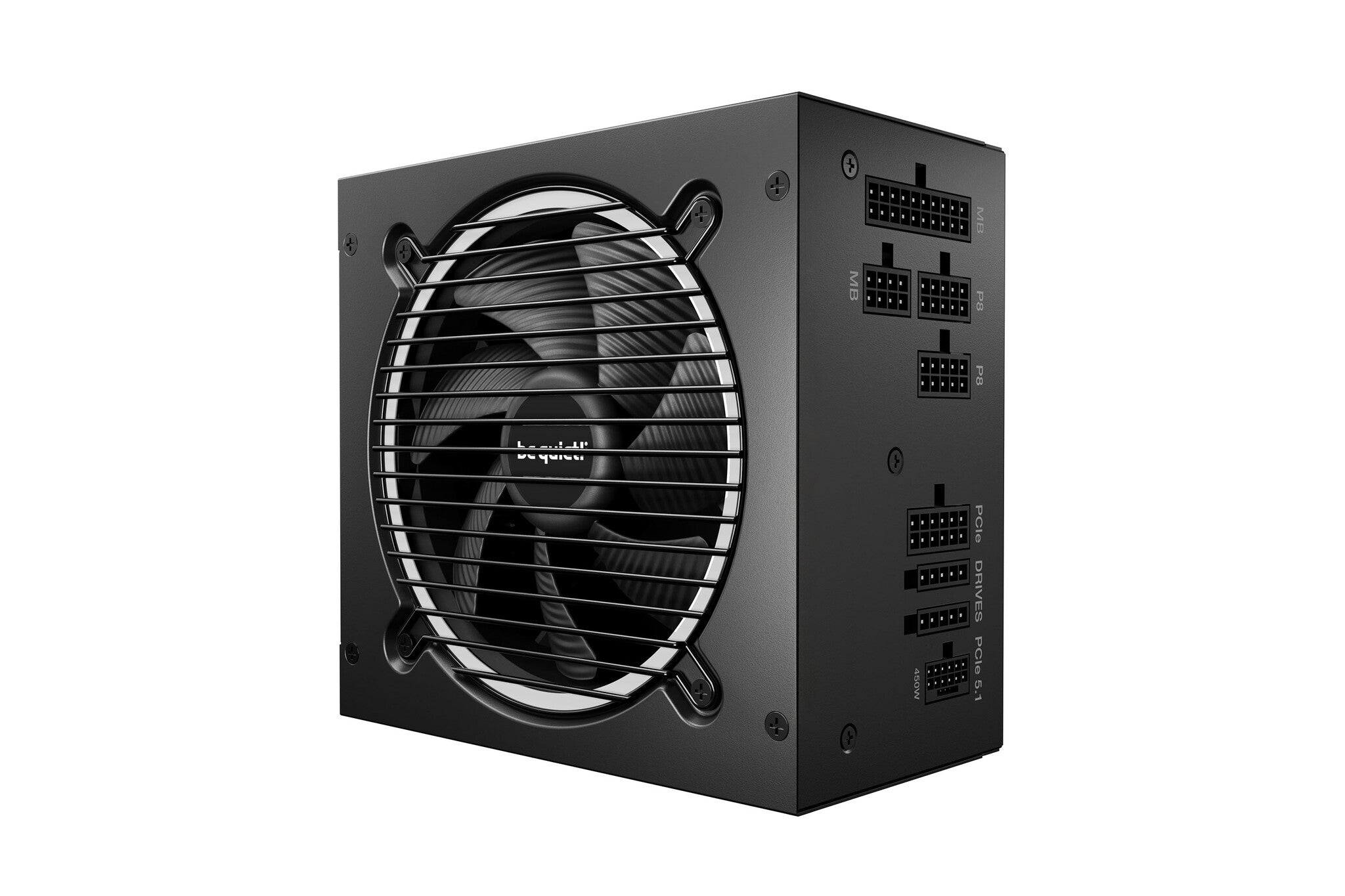

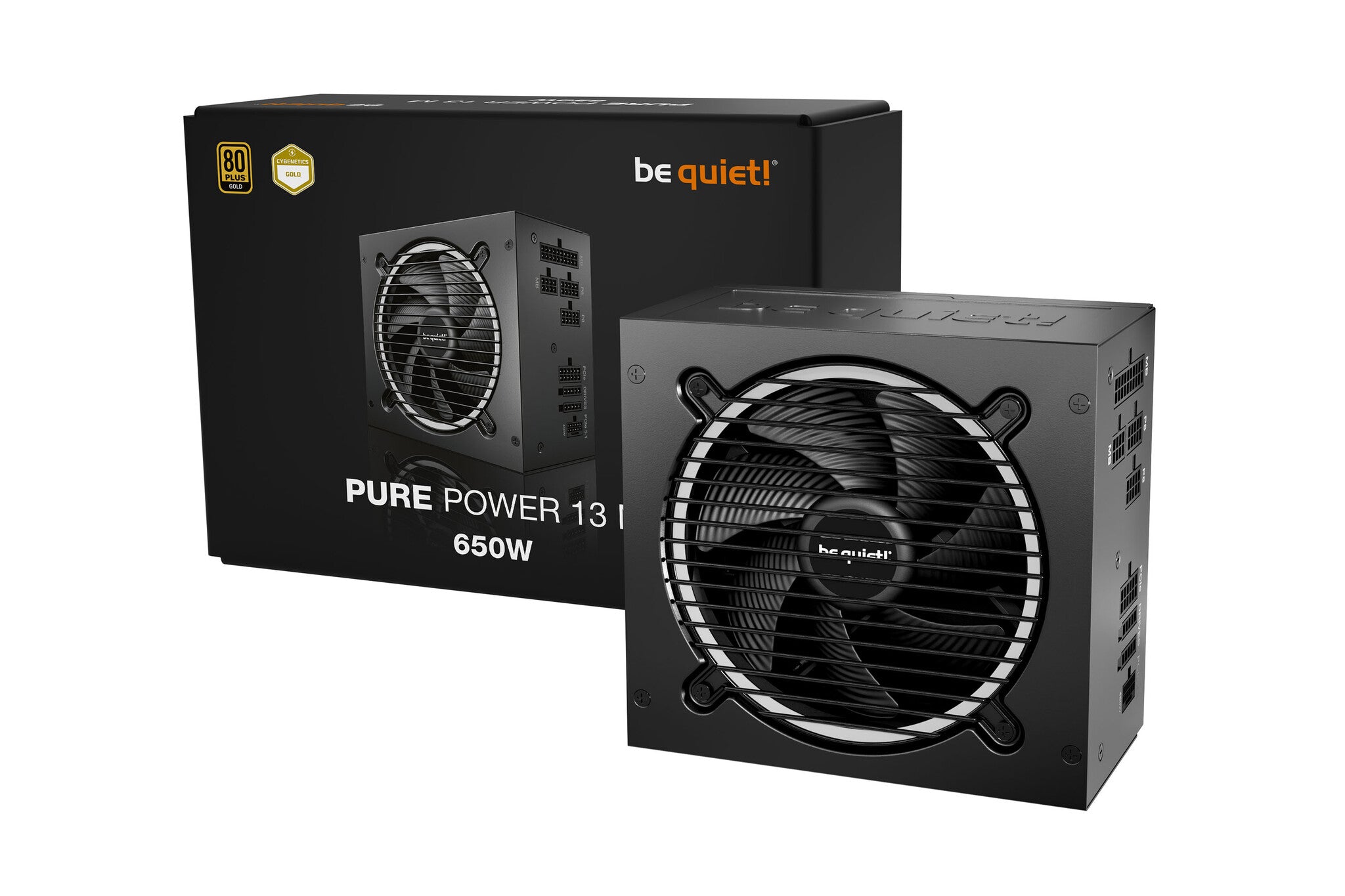

be quiet! Pure Power 13 M | 650W power supply unit 20+4 pin ATX ATX Black

BEQUIET  |  SKU: BP025EU  |  Condition: Brand New  |  Barcode: 4260052192177
£101.99 £102.99
Excl VAT £84.99
iFrame
×
650W, 80 PLUS Gold, ATX 3.1, EPS 12V 2.92, 160 x 150 x 86 mm

Exceptional quiet, superior features
Pure Power 13 M 650W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 650W offers the best combination of features with outstanding compatibility.

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Efficiency 92.8%
Hold time 22.5 ms
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Max output current (+5V) 20 A
Max output current (+12V1) 54.1 A
Max output current (+3.3V) 20 A
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Combined power (+5V) 120 W
Combined power (+12V) 650 W
Combined power (+3.3V) 120 W
Number of +12V rail(s) 1
Power Factor Correction (PFC) type Active
Power factor 0.98
Maximum input current (@220V) 5 A
Maximum input current (@110V) 10 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Peak power 720 W
Total power 650 W
Ports & interfaces
Cabling type Fully-Modular
CPU power cable length 65 cm
CPU power connector (4+4 pin) Yes
CPU P4 connector (4-pin) 3
PCI Express power connectors (12-pin) 1
PCI Express power connectors (6+2 pin) 2
Peripheral (Molex) power cable length 800,950 mm
Peripheral (Molex) power connectors (4-pin) 2
SATA power cable length 500,650,800 mm
Number of SATA power connectors 5
Motherboard power cable length 55 cm
Motherboard power connector 20+4 pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology Rifle

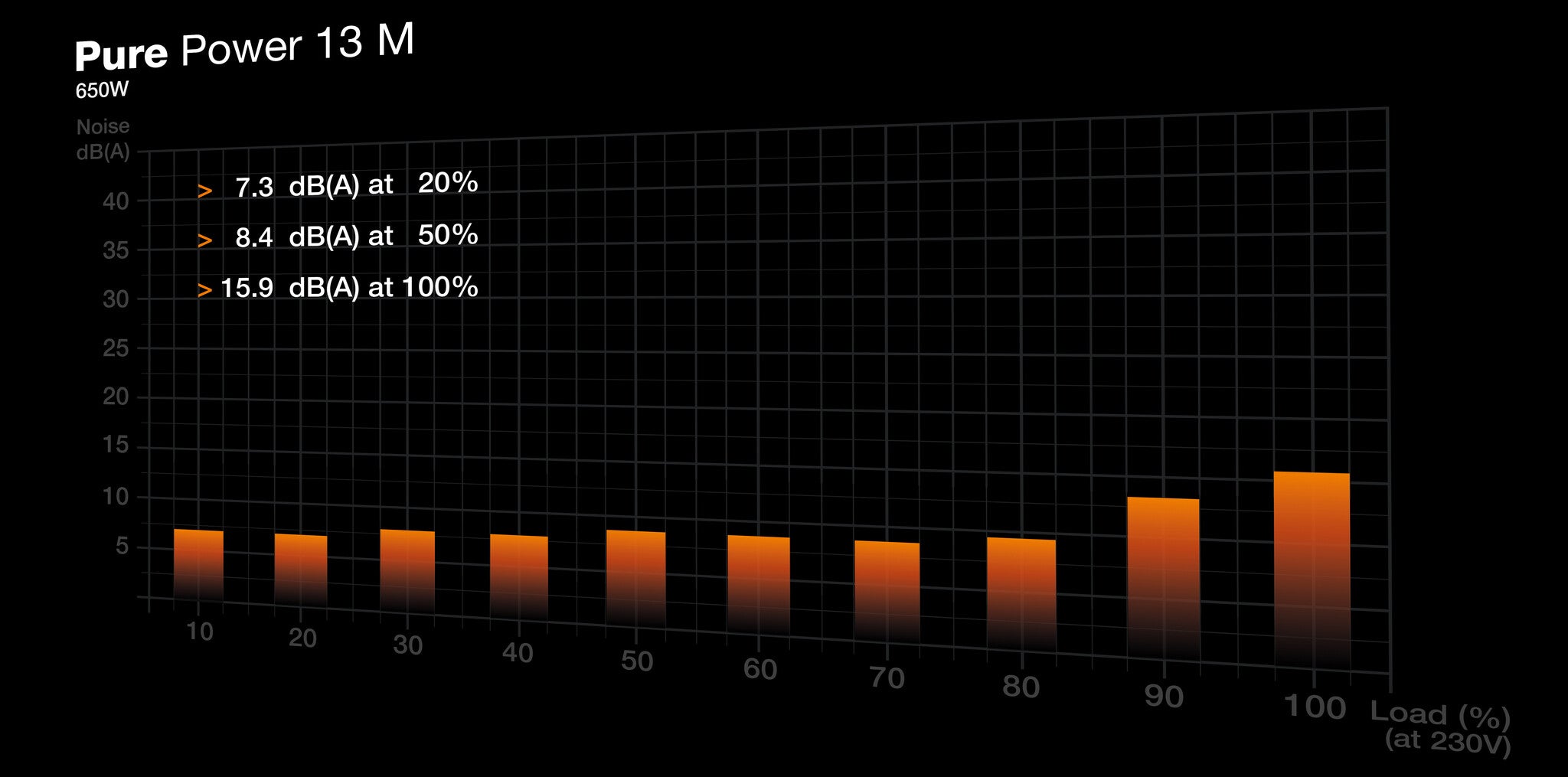

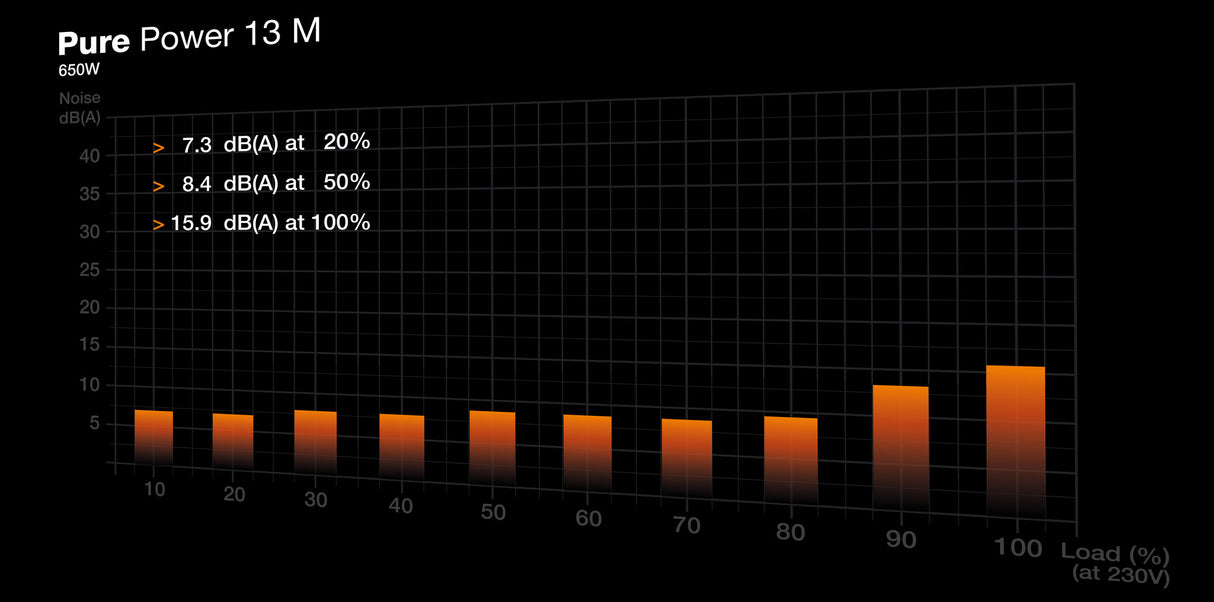

Noise level 30.2 dB
EPS version 2.92
ATX version 3.1
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Purpose PC
Design
On/off switch Yes
Fan speed 0 - 1800 RPM
Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Packaging content

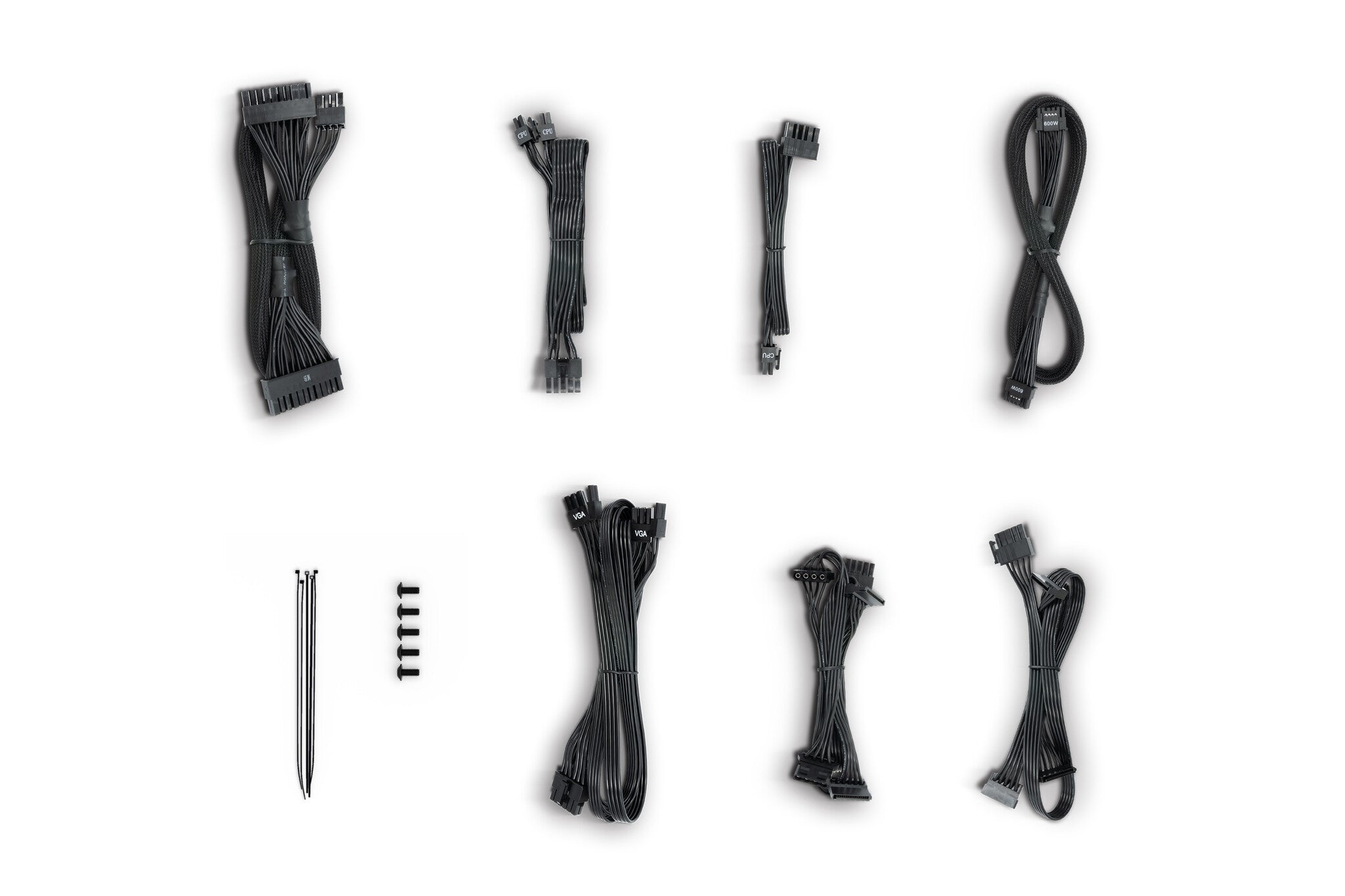

Cables included AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Weight 2.32 kg
Height 86 mm
Depth 160 mm
Width 150 mm
Packaging data
Package weight 3.1 kg
Package height 133 mm
Package depth 320 mm
Package width 210 mm
Technical details
Sustainability certificates ENERGY STAR, ErP
Compliance certificates BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Logistics data
Shipping (inner) case length 58 cm
Shipping (inner) case width 32.5 cm
Shipping (inner) case height 23.3 cm
Products per shipping (inner) case 6 pc(s)
Shipping (inner) case gross weight 20.9 kg
Other features
Cable ties included Yes
Screws included Yes
